1 Description and Features

The ATR533C(ATR3CMOS09000KPA) camera is designed specifically for astrophotography. It is mainly used for deep sky
photo shooting, since the camera has cooled CMOS sensor, ultra-low readout noise and zero amp-glow. It can be also used
for planetary photo shooting. Its extraordinary performance and extensive usage will give you great astrophotography
experience.
The features of ATR533C are listed below:
⚫ IMX 533 Color CMOS Sensor
⚫ Resolution: 3008 x 3008
⚫ 3.76μm Square Pixel
⚫ 1-inch Optical Format
⚫ 14-bit ADC
⚫ 512 Mbyte Memory
⚫ Precise Temperature Regulation
⚫ G Sensitivity: 535mv with 1/30s
⚫ Zero Amp-Glow
⚫ Ultra-Low Noise: 0.34 to 1.9e- (Low Noise Mode)
⚫ Support Low Noise Mode/ High Frame Rate Mode (20 FPS at all Pixel Readout 14 bit)
⚫ SNR Max: 47 dB (Low Noise Mode)
⚫ Dynamic Range: 87 dB (Low Noise Mode)
⚫ -35C below ambient under short exposure/ -45C under long exposure time (> 1s)

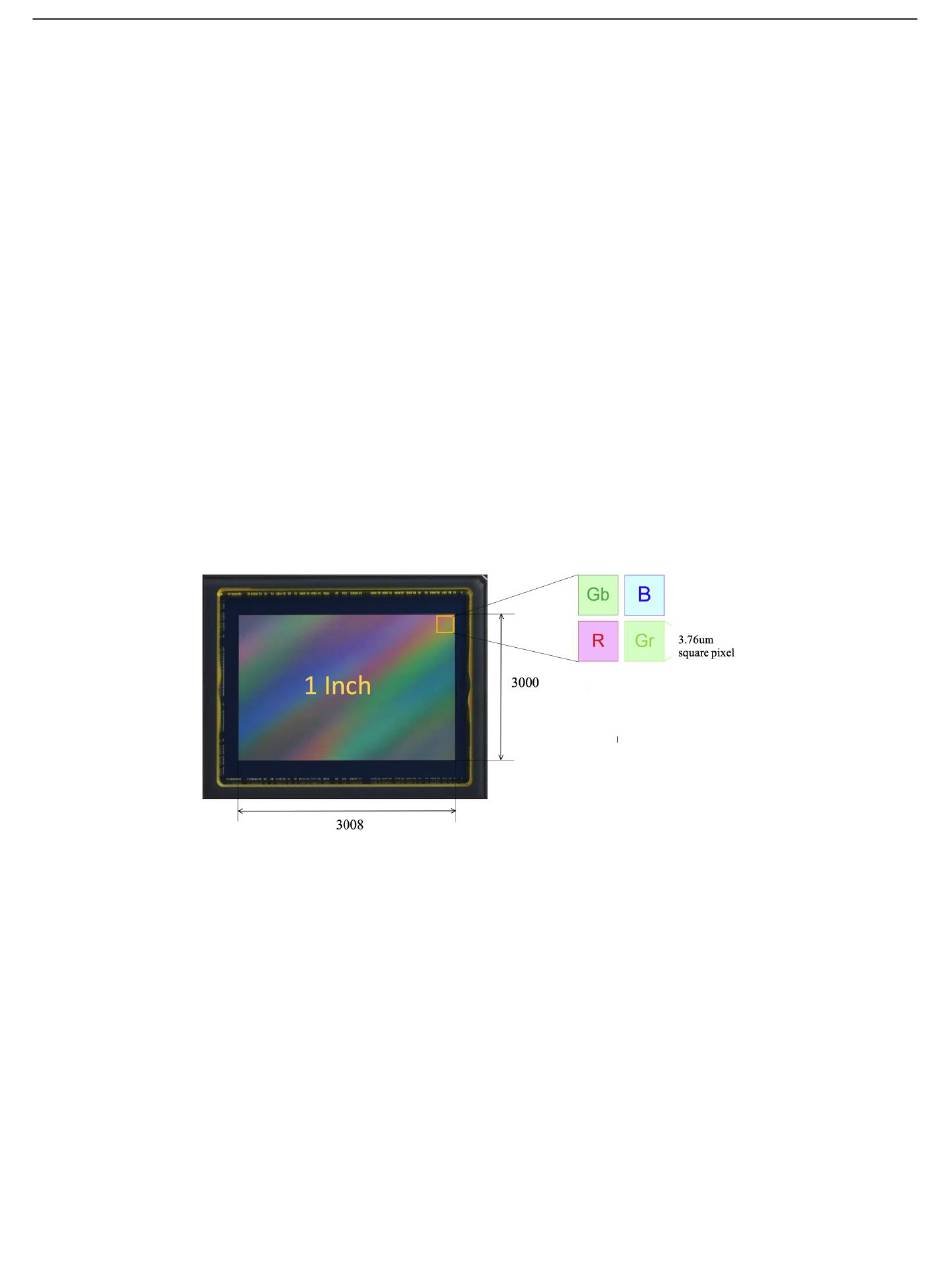

Figure 1 IMX533 Sensor and Its Pixel Structure
ATR533C(ATR3CMOS09000KPA) User Manual
1
