Parlé SBC 2 overview
About

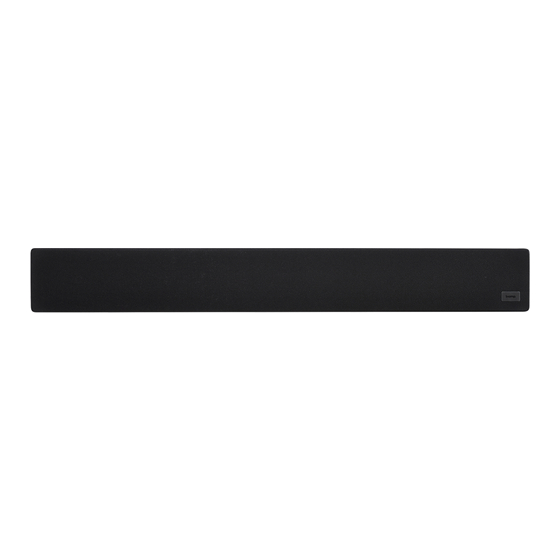

The Parlé SBC 2 is a high-fidelity speaker bar for use with conferencing systems in huddle rooms or small conference
rooms. The SBC 2 is equipped with two 4" woofers and two 1" tweeters and can be table- or wall-mounted. Four input
options are available to allow for interoperability with a variety of room environments.
Features
• Output Power Rating: 4 x 20 WRMS
• Equipped with two 4" woofers and two 1" tweeters
• Selectable EQ presets for Voice, Music, or
Presentation
• Four audio input options: HDMI ARC, USB,
Euroblock, and RCA. Sampling rate 44.1/48kHz on
digital inputs.
• RS-232 control and integration
• Wake-on-signal capability
• Red/Green Mute status LED
• Dimensions:
◦ Width 1120 mm / 44.1"
◦ Depth 150 mm / 5.9"
◦ Height 200 mm / 7.8"
• Powered by 100-240 VAC mains via IEC C8 connector. Maximum power usage at 60 W, standby power usage <0.5
W.
https://support.biamp.com/Parl%C3%A9/Conferencing_Bars/Parl%C3%A9_SBC_2_overview
Updated: Mon, 30 Sep 2024 07:14:16 GMT
Powered by
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Parle SBC 2 and is the answer not in the manual?

Questions and answers

Related Manuals for Biamp Parle SBC 2

Summary of Contents for Biamp Parle SBC 2

  • Page 1 ◦ Depth 150 mm / 5.9" ◦ Height 200 mm / 7.8" • Powered by 100-240 VAC mains via IEC C8 connector. Maximum power usage at 60 W, standby power usage <0.5 https://support.biamp.com/Parl%C3%A9/Conferencing_Bars/Parl%C3%A9_SBC_2_overview Updated: Mon, 30 Sep 2024 07:14:16 GMT Powered by...

  • Page 2: Audio Mode Selection

    • Volume = 70 (If max volume is set lower than 70, then that will not be exceeded) • Input = 1 (RCA Unbalanced) • Wake on signal = OFF https://support.biamp.com/Parl%C3%A9/Conferencing_Bars/Parl%C3%A9_SBC_2_overview Updated: Mon, 30 Sep 2024 07:14:16 GMT Powered by...

  • Page 3: Equalizer Presets

    The bar will look for another active source when the first signal is lost. In the absence of a signal, the bar will stay on for 20 minutes before powering off. https://support.biamp.com/Parl%C3%A9/Conferencing_Bars/Parl%C3%A9_SBC_2_overview Updated: Mon, 30 Sep 2024 07:14:16 GMT...

  • Page 4: Power Status Indicator

    All connections and controls are located on the SBC 2's rear panel. These are: HDMI (ARC) USB Audio Input (USB 2.0) Balanced audio connector RCA Unbalanced audio RS-232 connector Mode Switch for selecting RS-232 or Auto on/ Mains power in (100-240 VAC) https://support.biamp.com/Parl%C3%A9/Conferencing_Bars/Parl%C3%A9_SBC_2_overview Updated: Mon, 30 Sep 2024 07:14:16 GMT Powered by...
  • Page 5 Protocol considerations • All RS-232 communications are case sensitive. • Multiple commands can be sent without a time delay between commands by delimiting each command with the command ending \CR. https://support.biamp.com/Parl%C3%A9/Conferencing_Bars/Parl%C3%A9_SBC_2_overview Updated: Mon, 30 Sep 2024 07:14:16 GMT Powered by...

  • Page 6: Global Functions

    • NEUNIT=1,INPUT=?\CR Query the selected audio input. • NEUNIT=1,VOL=INC\CR Increments the master volume one step. • NEUNIT=1,VOL=DEC\CR Decrements the master volume one step. • NEUNIT=1,VOL=DEC\CR Decrements the master volume one step. https://support.biamp.com/Parl%C3%A9/Conferencing_Bars/Parl%C3%A9_SBC_2_overview Updated: Mon, 30 Sep 2024 07:14:16 GMT Powered by...

  • Page 7: Audio Input Settings

    <X> or a question mark, all commands must end with a \CR. Example of use: • NEUNIT=1,SETTINGS=OUTPUT,EQ=1\CR Select equalizer preset 1. • NEUNIT=1,SETTINGS=OUTPUT,EQ=2\CR Select equalizer preset 2. • NEUNIT=1,SETTINGS=OUTPUT,EQ=3\CR Select equalizer preset 3. • NEUNIT=1,SETTINGS=OUTPUT,EQ=?\CR Query the equalizer preset https://support.biamp.com/Parl%C3%A9/Conferencing_Bars/Parl%C3%A9_SBC_2_overview Updated: Mon, 30 Sep 2024 07:14:16 GMT Powered by...

  • Page 8: Wall Mounting

    • Use a level to ensure the template is level, then tape the template securely to the wall. • Use an awl or other sharp object to punch 4 small holes through 4 of the marked locations on the template. https://support.biamp.com/Parl%C3%A9/Conferencing_Bars/Parl%C3%A9_SBC_2_overview Updated: Mon, 30 Sep 2024 07:14:16 GMT...

  • Page 9: Further Reading

    VESA 400 or 800 holes at the rear of the Sound Bar are provided as an additional mounting option. Further reading • Parlé SBC 2 Conferencing Speaker Bar • Parlé SBC 2 Manual • SBC 2 Drilling Template • SBC 2 CAD files https://support.biamp.com/Parl%C3%A9/Conferencing_Bars/Parl%C3%A9_SBC_2_overview Updated: Mon, 30 Sep 2024 07:14:16 GMT Powered by...
