P30DT Pendant Loudspeaker
Installation Guide
PRODUCT DESCRIPTION

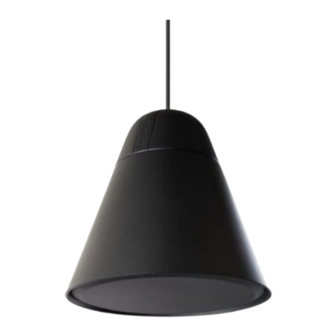

The P30DT 4.25" two-way, pendant loudspeaker brings
an exceptional dispersion to areas and rooms with open
ceilings, while offering a clear speech and musical purity.
Available in black (P30DT-BL) or white (P30DT-W), the
Biamp P30DT is suitable for a wide range of background
and foreground sound applications.
The dual Gripple™ wire suspension system, euroblock
in/out connector, loudspeaker cables and 70/100 volt
power rotary with 16 ohms connectivity can be hidden
after installation by the innovatively designed end-cap.
The attractive aesthetics and ease-of-installation make this
product an industry standard.
NOTES:
• This loudspeaker is designed for indoor use only.
• Operational temperature range: 0° to +35°C (32° to 95°F)
A:
9300 S.W. Gemini Drive Beaverton, OR 97008 USA
FEATURES
• High performance, attractive aesthetics, and ease of
installation
• Installer-friendly end cap with cut-out slot and
integrated magnetic fixing, hiding the power selector
and cable connections can be installed after the
loudspeaker is hung
• Two Gripples and snaphook wire suspension cables
are included for a safe and secure, fast and simple
installation
• Handy euroblock connector with permanent pass-
through allows for a quick install and easy daisy-
chaining of multiple loudspeakers
• Easily accessible rotary tap switch to select 70/100
volt power or low impedance (16 ohms) operation
• Tuned bass reflex port for optimised low frequency
performance
• High intelligibility while retaining perfect music
reproduction quality
• 4.25" LF driver with 1" tweeter
• 50 W dynamic power handling
• Loudspeaker overload protection for 24/7 failsafe
operation
• Available in black or white
• Conforms to UL Std.1480A and is certified to
CSA C22.2#62368-1
Models
P30DT-BL
P30DT-W
W:
www.biamp.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P30DT Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Biamp P30DT Series

Summary of Contents for Biamp P30DT Series

  • Page 1 Available in black (P30DT-BL) or white (P30DT-W), the and cable connections can be installed after the Biamp P30DT is suitable for a wide range of background loudspeaker is hung and foreground sound applications.

  • Page 2: Important Instructions

    Contact your local dealer, distributor, or call Biamp directly for will be denied if these materials are not retained. Your Biamp assistance. These terms are defined as: dealer and the factory will try to help in any way they can, but it...

  • Page 3: Loudspeaker Installation

    LOUDSPEAKER INSTALLATION To install the pendant loudspeaker, do the steps that follow: 1. Thread the snaphook cable through the opening in the locking device (Gripple) in the direction of the arrow shown on the unit (1). See Figure 1a. 2. Loop the snaphook cable over or through a secure structure, and pass the cable back through the Gripple, using the closest opening (2).

  • Page 4: Installation

    INSTALLATION (continued) 4. Connect the snaphook on the primary cable through the central mounting point on the loudspeaker (Figure 2). 5. Connect the snaphook on the secondary safety cable through one of the remaining mounting points (Figure 3). 6. Adjust the length of the primary cable so the loudspeaker hangs at the desired height as shown in Figure 4 (1).
  • Page 5 INSTALLATION (continued) 7. Attach the loudspeaker cables according to whether you are connecting a single loudspeaker (Figure 5a) or daisy chaining more than one (Figure 5b). Note: It is strongly recommended to use wire ferrules with stranded wire. Recommended wire size: 0.5 mm - 2.5mm (AWG 20 ga - 10 ga)
  • Page 6 INSTALLATION (continued) 10. Attach the end cap by placing it around the suspension and loudspeaker cables. Make sure the end cap is held firmly in place with the magnets (Figure 8). Figure 8. 11. Ensure the tether is securely inserted in the cable cover and end cap sockets (Figure 9a).
  • Page 7 DIMENSIONS P30DT 223 mm 8.78" 233 mm 9.15" Model P30DT Installation Guide page 7...
  • Page 8 However, due to ongoing technical advances, changes or modifications may have occurred that are not covered in this manual. The latest version is available at www.biamp.com. Biamp Compliance: REG-00012 P30DT Install Guide 26FEB2020 9300 S.W.
