Biamp Desono SPA-GRB100 Installation Manual

Desono™
Ceiling Loudspeaker Accessories

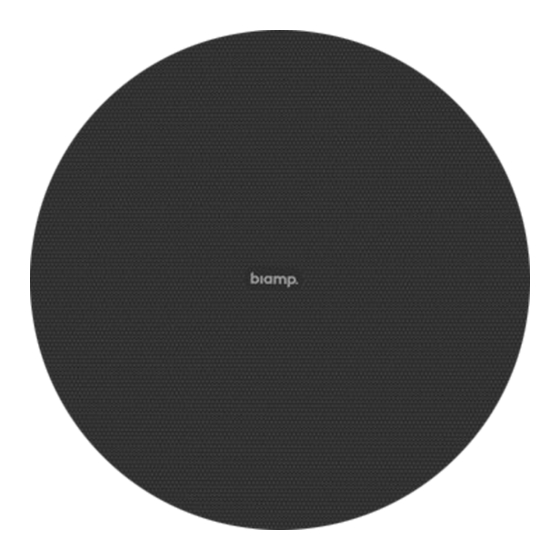

Black Grille
Installation Guide
Biamp offers several sizes of Black Grilles (GRB) suitable
for the Desono CM ceiling loudspeakers. They are sold in
6-packs and can be installed on the ceiling loudspeaker by
substituting the black grille for the white grille included with
the unit. Please refer to the appropriate Installation and
Operation guide for full installation instructions.
Installation
1. Install the loudspeaker per the instructions in the
manual and adjust tap settings as necessary.
2. Attach the grille tether by inserting the tether plug in
the hole in the loudspeaker face.
3. Position the grille against the outside ring. The
magnets will hold the grille in place.
1
A:
3
9300 S.W. Gemini Drive Beaverton, OR 97008 USA
SPA-GRB
Black Grille
Model Fits
SPA-GRB100 CM20DTS, CM30DTD
SPA-GRB200 CM60DTD
2
Typical installation (CM30DTD shown)
W: www.biamp.com
