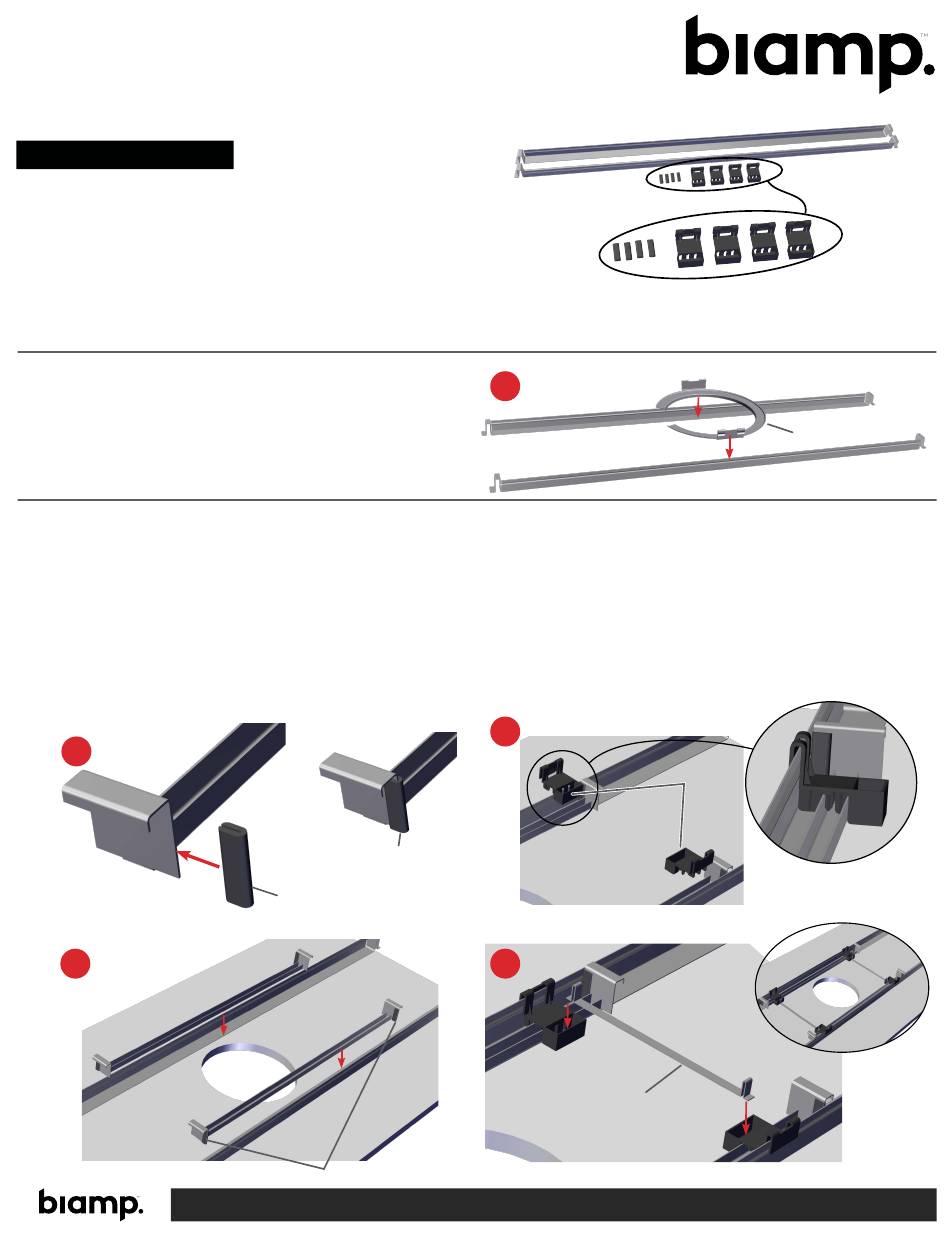

PRELIMINARY
Desono™
Ceiling Loudspeaker Accessories

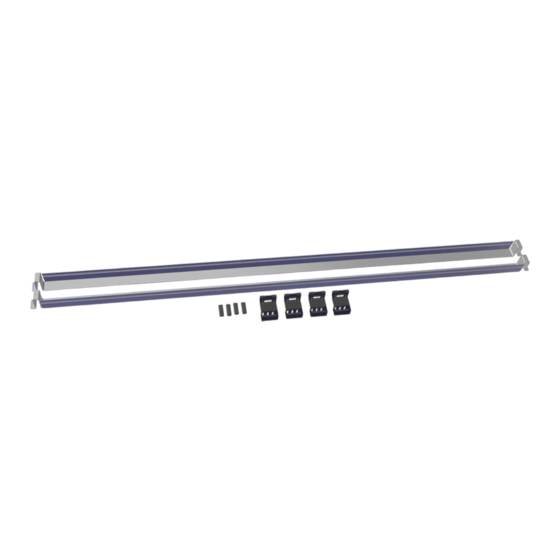

48" Tile Rails with Adapters
Installation Guide
Biamp offers 48" tile rails for Desono ceiling loudspeakers. CM
and C-IC6 loudspeakers utilize adapters with the mounting
rails included with the loudspeakers. Please refer to the
appropriate Installation and Operation guide for additional
information on installation methods.
Note: Loudspeakers do not need to be placed in the center of the
large ceiling tile if there are other elements above the ceiling or in
the tile.

D Series Installation

1. Place 48" tile rails with flat side in (as shown) the
appropriate distance apart and install the C-Ring.
Install the ceiling tile and loudspeaker per regular
installation practice. 24" rails not needed.

CM Series Installation

1. Push a gasket onto the edge of one side of each tab on
both ends of the 24" tile rail.
Note: These gasketed ends sit against the 48" rails and
prevent any chattering during loudspeaker operation.
2. Place 48" tile rails with flat side toward the opening the
appropriate distance apart and place the 24" rails on the
flat of the larger rail with gaskets against the 48" rail's
vertical wall (as shown).
1
2
A:
Installed
gasket
Gasket
Gaskets
9300 S.W. Gemini Drive Beaverton, OR 97008 USA
Gaskets
SPA-RAIL48
(2 sets in each kit)
1
3. Push an adapter onto the rails close to each end of the
shorter rails capturing the vertical walls of each rail. The
fit will be tight (see detail for placement).
4. Place a tile bridge (included with the CM models)onto
each pair of adapters as shown, and align around the
opening in the ceiling tile.
3
4
Tile Bridge
Adapters
D Series C-Ring
Adapters
W:
www.biamp.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Desono CM Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Biamp Desono CM Series

  • Page 1 Ceiling Loudspeaker Accessories 48" Tile Rails with Adapters Installation Guide Biamp offers 48" tile rails for Desono ceiling loudspeakers. CM and C-IC6 loudspeakers utilize adapters with the mounting rails included with the loudspeakers. Please refer to the appropriate Installation and Operation guide for additional information on installation methods.
  • Page 2 5. Rotate the dog ears out and down to fit onto the C-ring. fit will be tight (see circle detail). Do not deform the ceiling by tightening the dog ears too much. C-Ring 24" tile rails 9300 S.W. Gemini Drive Beaverton, OR 97008 USA www.biamp.com...
  • Page 3 31.9 [1.25"] 26.0 [1.02"] SECTION A-A COMPLIANCE INFORMATION Conforms to UL2043 Standard SUITABLE FOR USE IN AIR HANDLING SPACES PENDING CONTACT US Email: support@biamp.com Web: support.biamp.com XXXXXX Warranty: biamp.com/legal/warranty-information 9300 S.W. Gemini Drive Beaverton, OR 97008 USA www.biamp.com 585.0238 5NOV2021...
