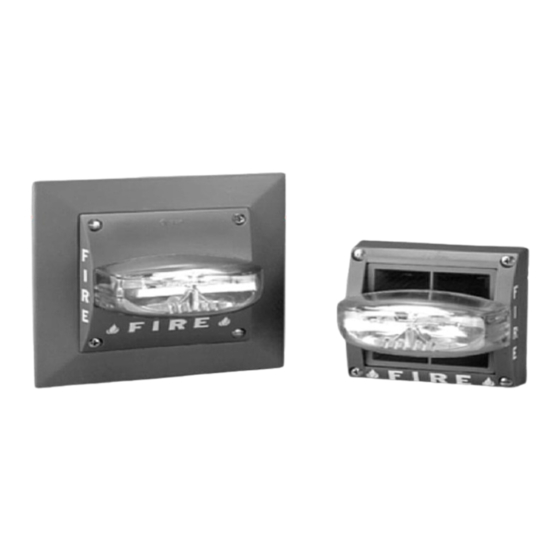

Strobes and synchronized horn/strobes for fire protective signaling systems

Advertisement

Quick Links

INSTALLATION AND MAINTENANCE INSTRUCTIONS
SS24ADAS Series Strobes and
MASS24ADAS Series Synchronized
Horn/Strobes for Fire Protective
Signaling Systems
Table 1. SS24ADAS Series Electrical Ratings:
Model
Supply
Voltage
Range
Average
Operating Current
Current
(mA)
SS2415ADAS
20-30V
SS241575ADAS
20-30V
General Description
The National Fire Protection Association has published
standards and recommended practices for the installation
and use of the listed appliances. It is recommended that the
installer be familiar with these requirements, with local
codes, and any special requirements of the local fire au-
thority having jurisdiction.
The Multi-Alert™ sounder and signaling strobe are intended
to be connected to the alarm indicating circuit of a UL-
listed fire alarm control panel and is compatible with DC
line supervision. The electronic sounder can be connected
to either 12 or 24 VDC panels. Models SS2415ADAS,
SS241575ADAS, and combination models incorporating
these strobes, require 24 volt panels. Panels may have full-
wave rectified, unfiltered power supplies. The strobes are
synchronized and flash at a rate of one flash per second
with continuous voltage applied. SS24ADAS, SS24ADA,
MASS24ADAS, and MASS24ADA series devices may be
combined in the same zone.
Table 2. Sound output and current ratings for the MA12/24D:
Sound (Hz)
Slow Whoop
800 Continuous
800/1000 Alternating
2400 Interrupted
2400 Continuous
1200 Interrupted
Swept Frequency
Fast Warble
Note 1:
See Figure 2 for tab clip removal & storage.
Note 2:
All models can be powered using full wave rectified unfiltered sup-
plies. Under no circumstances can SS24ADAS or MASS24ADAS se-
ries devices input voltage exceed 33 VDC or be less than 16 VDC
(18-33Vrms for full-wave rectified, unfiltered supplies).
D900-06-00
Operating Current from
Operating Current from Full-Wave
Regulated Supply
Rectified Unfiltered Supply
Peak
Inrush
Average
Current
Operating
(mA)
(Amps)
Current
20/30
(mArms)
Vrms
106
200
5.0/7.0
125
195
350
5.0/7.0
180
Clips on
Current (mA)
Tabs
DC Regulated/
FWR Unfiltered
(Note 1)
12V
ABC
21/40 38/56
BC
15/24 28/45
AC
17/32 34/46
AB
19/23 35/56
C
21/31 38/59
B
13/19 23/33
A
17/24 34/47
NONE
15/27 30/47
NOTE: In-rush current duration is less than 20
Peak
Inrush
Current
Current
(mA)
(Amps)
20/30
Vrms
250
5.0/7.0
395
5.0/7.0
The MA12/24D sounder is suitable for outdoor applica-
tions (-35° to 66° C) when it is used with a WBB Weather-
proof Back Box. The signaling strobe is rated for 0° to 49°
C and is NOT suitable for outdoor use.
The
UL-rated
SS241575ADAS, MASS2415ADAS, and MASS241575ADAS
is 15 cd (See Figure 1).
NOTE: The light output at 0°
SS241575ADAS and MASS241575ADAS is 75 cd.
Any one of eight sounds can be selected on the electronic
sounder, as indicated in Table 2.
NOTE: SS24ADAS, MASS24ADAS AND MAEH24ADAS SE-
RIES DEVICES OPERATING IN THE SAME ZONE
WILL NOT BE SYNCHRONIZED IF ENERGIZED AT
DIFFERENT TIMES (I.E., IF MORE THAN ONE CON-
TROLLER IS CONTROLLING THE SAME ZONE.)
Output (dBA)
(Note 3)
24V
30V
12V
46/72
85
35/55
87
43/58
85
43/64
89
46/73
85
27/41
85
43/60
85
38/59
85
Note 3:
Measured at 10 feet in an anechoic chamber.
Note 4:
Measured in a UL reverberant room.
Note 5:
Only continuous tones (800Hz, 2400 Hz) can be temporally
coded per UL. Strobes cannot be used on an MDL module pro-
viding temporal coding to Multi-Alert™ horns.
1
3825 Ohio Avenue, St. Charles, Illinois 60174
1-800-SENSOR2, FAX: 630-377-6495
microseconds (.00002 seconds).
light
output
of
the
viewing angle for
UL (dBA)
Ratings
(Note 4)
Temp. Tone (Note 5)
24V
12V
24V
92
79
85
93
79
85
92
79
85
90
79
85
94
79
85
91
75
82
92
79
85
92
79
85
A Division of Pittway
SS2415ADAS,
UL (dBA)
w/MDL Module
12V
24V
N/A
N/A
75
79
N/A
N/A
N/A
N/A
75
79
N/A
N/A
N/A
N/A
N/A
N/A
I56-750-58
