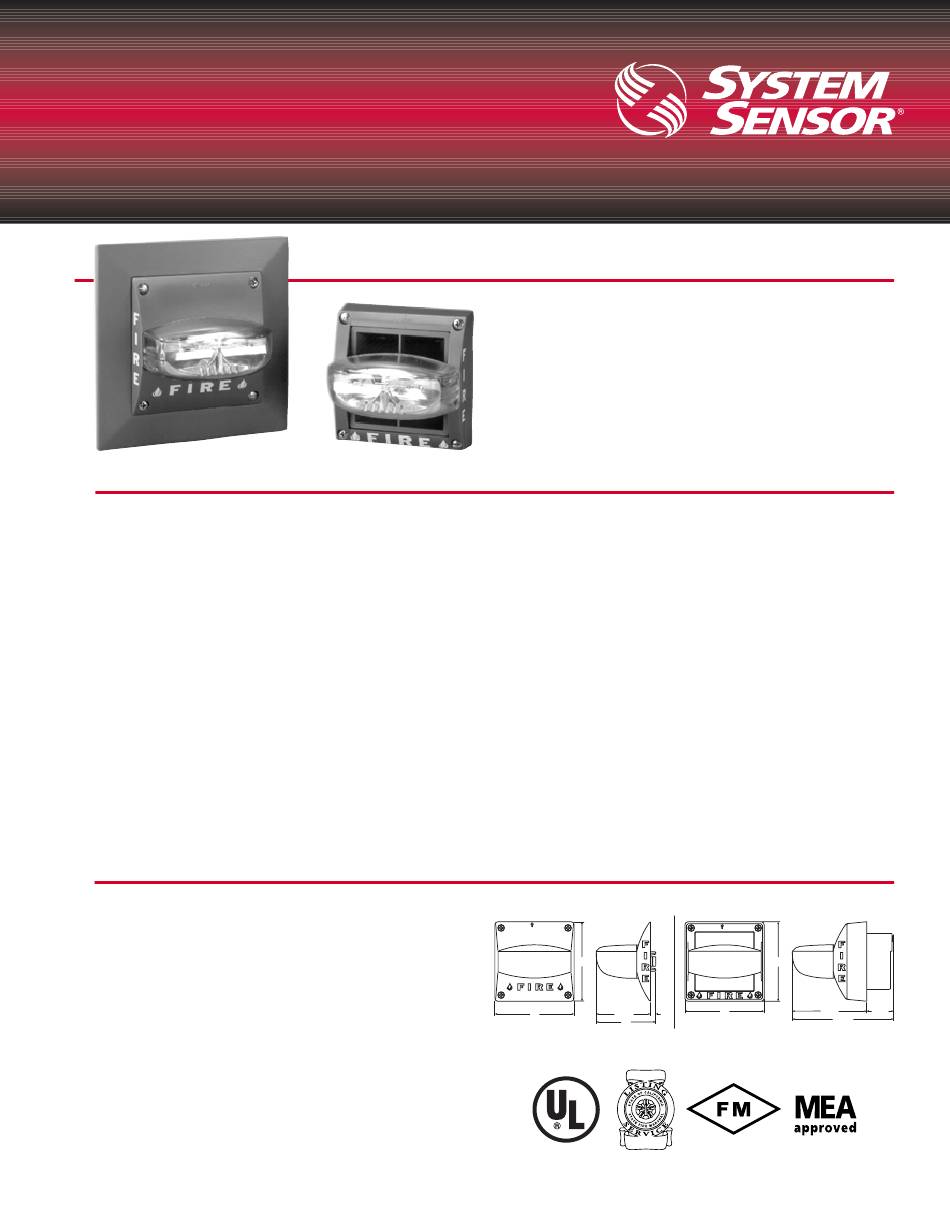

SS24ADAS
Synchronized Strobes
with Sync•Circuit
Features
• Works on two wire circuit
• No synchronization module required
• Synchronized and unsynchronized strobes can be
combined on the same zone in any combination
• Patent pending Sync•Circuit™
• 24 VDC versions only
• 15 and 15/75 cd versions available
• Available with Multi-Alert™ Sounder
• Constant current draw over voltage range
• Stand alone strobe mounts to single gang box with
MP-SF plate
• ADA compliant, UL 1971 listed
• Installer easy plug-in terminal strip
on stand-alone strobe
Specifications
Input terminals:
18 – 12 AWG
Shipping Weight:
SS-ADA Strobes:
5 oz. (141g)
MASS-ADA
Horn/Strobes:
10.4 oz. (293g)
Operating
Temperature Range:
32° F to 120° F (0° C to 49° C)
Mounting:
4" × 4" × 1
Surface:
(2
4" × 4" × 1
Semiflush:
(2
MP-SF semiflush mounting plate
(order separately)
© System Sensor 8/96
™
" standard backbox
1
/
2
" recommended)
1
/
8
" standard backbox
1
/
2
" recommended) with
1
/
8
This document is not intended to be used for installation purposes.
3825 Ohio Avenue, St. Charles, IL 60174
1-800-SENSOR2 (736-7672), Fax 630-377-6495
SS2415ADAS Strobe with Sync•Circuit
SS241575ADAS Strobe with Sync•Circuit
MASS2415ADAS Sounder/Strobe with Sync•Circuit
MASS241575ADAS Sounder/Strobe with Sync•Circuit
The SS24ADAS Series Synchronized Strobes are crystal
controlled to flash at precisely one flash per second. When
power is applied to an indicating circuit controlled by one
controller, all SS24ADAS or MASS24ADAS series devices in
that zone will flash simultaneously. No synchronizing
modules or coded supplies are necessary. The strobes can
be used in any combination with other System Sensor
ADA strobes, ADA horn/strobes, and ADA speaker/
strobes.
The unique lens/reflector design maintains the UL 1971
light dispersement pattern while flashing at the ADA
minimum 1 flash per second. Available in red at 24 VDC,
the SS24ADAS strobes can be surface mounted directly to
a standard 4" backbox or can be mounted to our semi-
flush plate for recessed electrical boxes. They are also
available in combination with System Sensor Multi-Alert™
horns for both visible and audible signaling.
Dimensions:
TOP
4"
"
"
1
2
3
/
/
4"
4
4
3"
SS Series ADA
A Division of Pittway
http://www.systemsensor.com
Models Available
TOP
4"
"
4"
3
1
3
/
4
"
5
3
/
32
MASS Series ADA
APPROVED
A05-239-03
"
11
/
32
