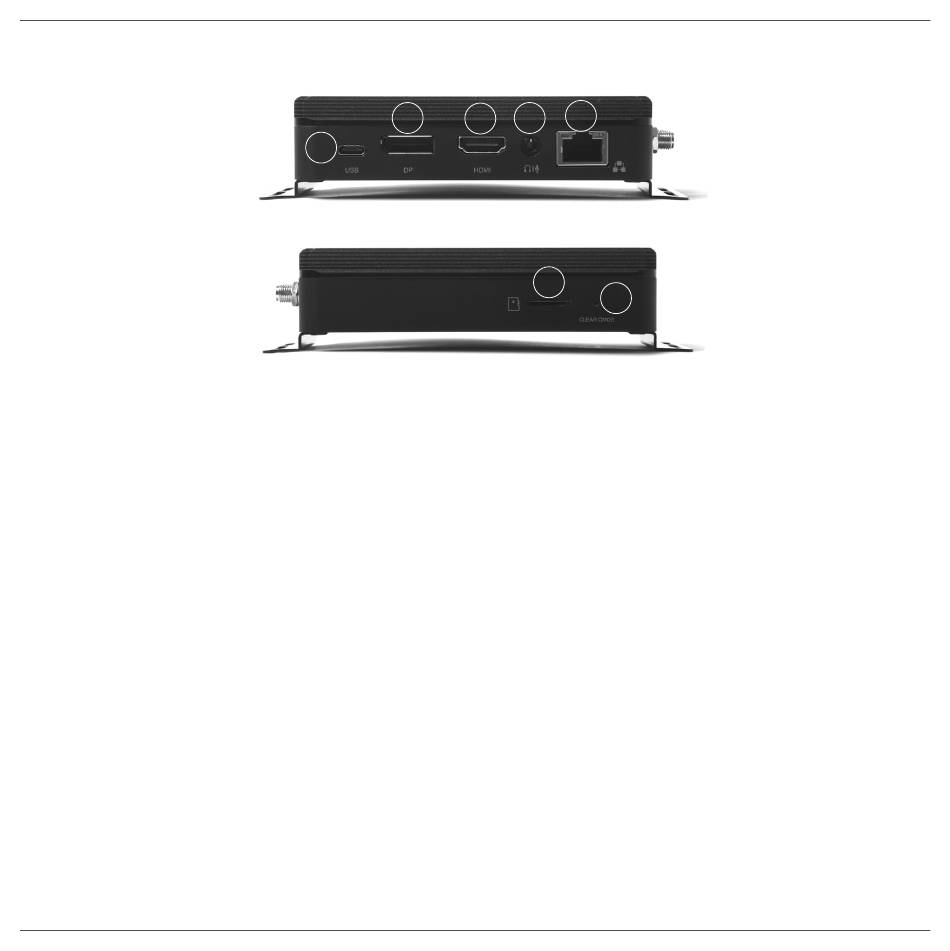

Port layout

1. USB 3.1 Type-C port
The USB 3.1 type-C port supports the SuperSpeed USB 3.1 devices. Use this port for USB
3.1 devices for maximum performance with USB 3.1 compatible devices.
2. DisplayPort
DisplayPort supports external connection up to DP1.2, max resolution 4096x2160 @60Hz.
3. HDMI port
The HDMI (High Definition Multimedia Interface) port supports with HDMI2.0, max resolution
4096x2160 @60Hz.
4. Combo Headphone/Microphone jack (3.5mm)
The combo headphone/microphone jack (3.5mm) is used to connect the system's audio out
signal to amplified speakers, 3-pole headphones or 4-pole OMTP headphones.
Note: The combo headphone/microphone jack does not support the traditional microphone.
5. Ethernet port
The eight-pin RJ-45 LAN port supports standard Ethernet cable for connection to a local
network.
6. MicroSD memory card slot
The built-in memory card reader supports Micro SDHC/SDXC cards to expand the storage
capabilities of the ZP-PI336.
