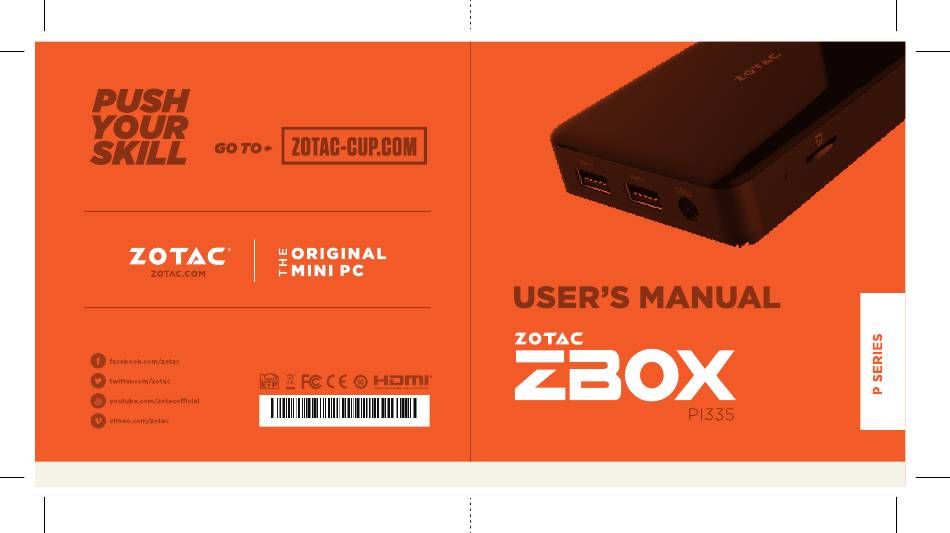

- Page 1 291-MB342-03R1F...
- Page 2 ZOTAC ZBOX pico User’s Manual No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except by the purchaser for backup purposes, without the express written permission of ZOTAC.
-
Page 3: Table Of Contents
Care during use ----------------------------------------------------------------------------------- 4 Welcome ------------------------------------------------------------------------------------------------ 5 Package contents --------------------------------------------------------------------------------- 5 Port Layout --------------------------------------------------------------------------------------------- 6 Mounting the ZOTAC ZBOX pico to an LCD monitor------------------------------------- 8 Installing drivers and software -----------------------------------------------------------------10 Installing an operating system ----------------------------------------------------------------10 Installing system drivers ------------------------------------------------------------------------10... -
Page 4: Product Specifications
• One USB 3.0 Type-C port Audio • One combo headphone/microphone jack Storage • 64GB eMMC • 2-in-1 card reader (Micro SDHC/SDXC) Networking • 10/100/1000Mbps Ethernet Wireless networking • 802.11ac Wi-Fi • Bluetooth 4.2 Operating System Support • Windows 10 64-bit ZOTAC ZBOX pico... -
Page 5: Safety Information
Safety information Your ZOTAC ZBOX pico is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions. Setting up your system Read and follow all instructions in the documentation before you operate your system. -
Page 6: Welcome
Welcome Congratulations on your purchase of the ZOTAC ZBOX pico. The following illustration displays the package contents of your new ZOTAC ZBOX pico. Please contact your retailer if any of the below items are damaged or missed. Package contents • 1 x ZOTAC ZBOX pico •... -
Page 7: Port Layout
Note: The combo headphone/microphone jack does not support the traditional microphone. 3. HDMI port The HDMI (High Definition Multimedia Interface) port supports a UHD device such as an LCD TV or monitor to allow viewing on a larger external display. ZOTAC ZBOX pico... - Page 8 7. MicroSD memory card slot The built-in memory card reader supports Micro SDHC/SDXC cards to expand the storage capabilities of the ZOTAC ZBOX pico. 8. USB 3.0 ports The USB 3.0 port supports SuperSpeed USB 3.0 devices and is backwards compatible with USB 2.0/1.1 devices.
-
Page 9: Mounting The Zotac Zbox Pico To An Lcd Monitor
Mounting the ZOTAC ZBOX pico to an LCD monitor You can attach the ZOTAC ZBOX pico to the back of a VESA75/100 compliant display. Secure the mounting bracket to the LCD monitor using 2 screws. Disclaimer: ZOTAC is not liable for damages resulting from an improper installation. - Page 10 Connect the ZOTAC ZBOX pico to the LCD monitor with an HDMI cable. Note: You can also mount the ZOTAC ZBOX pico vertically as shown in the picture below. ZOTAC ZBOX pico...
-
Page 11: Installing Drivers And Software
Install system drivers to gain full functionality of the ZOTAC ZBOX pico hardware and features. Installing system drivers Before you can use the full features of the ZOTAC ZBOX pico, the system drivers must be installed. The following types of operating systems are supported by the USB flash drive: • Windows 10 64-bit... -
Page 12: Using Your Zotac Zbox Pico
Note: If you want to use high-amperage USB charging for smartphones and tablets, please install the driver USB Charger driver. Each driver must be installed individually to ensure proper operation of the ZOTAC ZBOX pico. Select the driver you want to install. The driver installer should launch. -
Page 13: Configuring Audio Output Via An Hdmi Device
Configuring audio output via an HDMI device Follow the steps below to enable audio output via HDMI when connecting the ZOTAC ZBOX pico to a TV or receiver via HDMI. Access the Sound settings via the system Control Panel. Under Playback devices, click the display...
