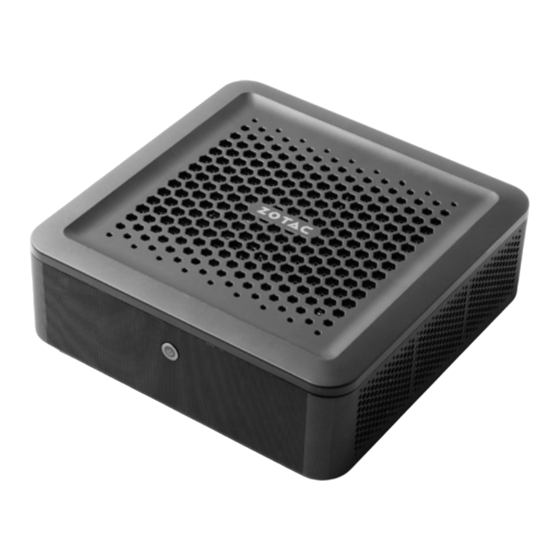

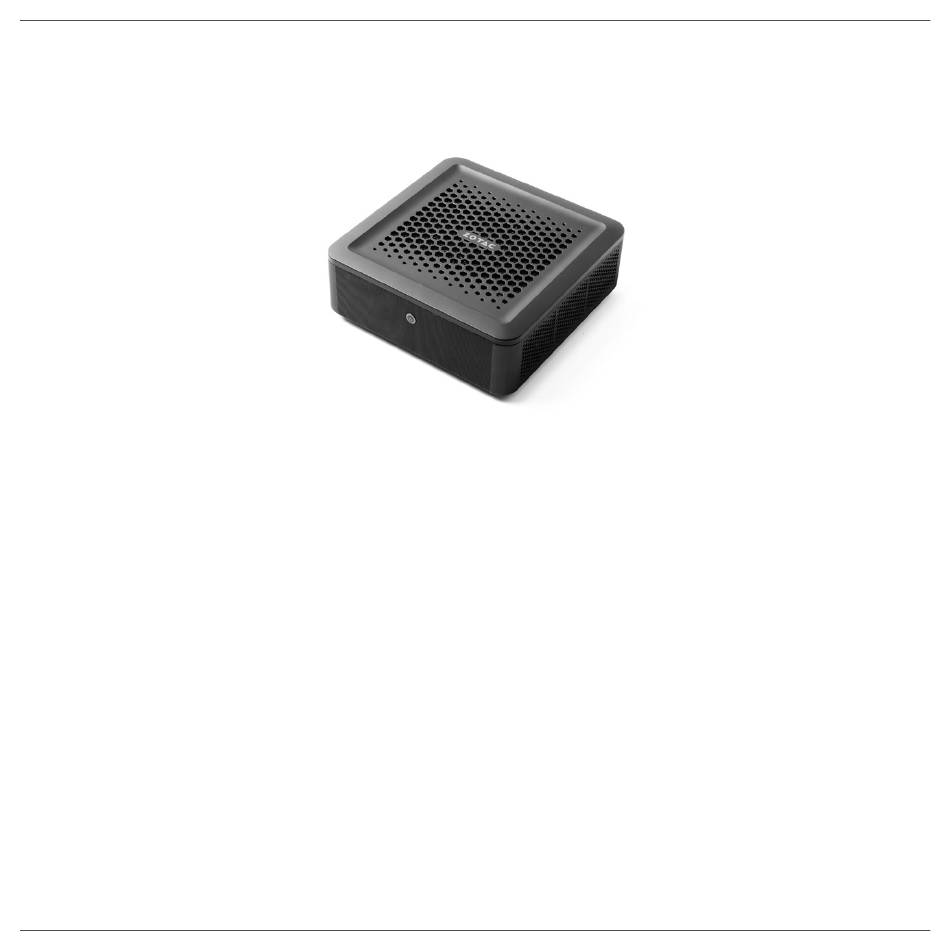

ZP-EGB Series
User's Manual
No part of this manual, including the products and software described in it,
may be reproduced, transmitted, transcribed, stored in a retrieval system,
or translated into any language in any form or by any means, except by the
purchaser for backup purposes, without the express written permission of
ZOTAC.
Products and corporate names mentioned in this manual may be registered
trademarks or copyrights of their respective companies, and are used for
identification purposes only. All trademarks are the property of their respec-
tive owners.
Every effort has been made to ensure the contents of this manual are correct
and up to date. However, the manufacturer makes no guarantee regarding
the accuracy of its contents, and reserves the right to make changes without
prior notice.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Zotac ZP-EGB Series
Summary of Contents for Zotac ZP-EGB Series
- Page 1 ZP-EGB Series User’s Manual No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except by the purchaser for backup purposes, without the express written permission of ZOTAC.
-
Page 2: Table Of Contents
Package contents -------------------------------------------------------------------------------------------5 Getting to know your ZP-EGB series --------------------------------------------------------------------6 Front view -----------------------------------------------------------------------------------------------------6 Rear view ------------------------------------------------------------------------------------------------------7 Connecting ZP-EGB series to the host -----------------------------------------------------------------8 Positioning the ZP-EGB series ----------------------------------------------------------------------------9 Mounting the ZP-EGB series to an LCD monitor ----------------------------------------------------9 Installing driver -------------------------------------------------------------------------------------------------11... -
Page 3: Table Of Contents Product Specifications
Specifications • NVIDIA RTX 2000 or NVIDIA RTX 3500 GPU Boost Clock • 2295Mhz, 2395MHz @ 115W TGP for RTX 2000 • 1725Mhz, 2250MHz @ 115W TGP for RTX 3500 Graphics Memory • 128-bit, 8 GB GDDR6 for RTX 2000 •... -
Page 4: Safety Information
Safety instructions ZP-EGB series is designed and tested to meet the latest standards of safety for information tech- nology equipment. However, to ensure your safety, it is important that you read the following safety instructions. Read and follow all instructions in the documentation before you operate your system. -
Page 5: Welcome
Welcome Congratulations on your purchase of the ZP-EGB series. The following illustration displays the pack- age contents of your new ZP-EGB series. If any of the below items are damaged or missing, contact your retailer. Package contents • 1 x ZP-EGB series •... -
Page 6: Getting To Know Your Zp-Egb Series
Getting to know your ZP-EGB series Front view Refer to the diagram above to identify the components on the front of the system. 1. Power button with LED indicator The power button turns the system ON and OFF. (Green=on, Red=standby) -
Page 7: Rear View
Rear view Refer to the diagram above to identify the components on the back of the system. 1. Power input (DC20V) The supplied power adapter converts AC power to DC power for use with this jack. Power supplied through this jack supplies power to the PC. To prevent damage to the PC, always use the supplied power adapter. -
Page 8: Connecting Zp-Egb Series To The Host
Connecting ZP-EGB series to the host You can connect your ZP-EGB series to the host via a Thunderbolt/ USB4 cable as shown below. -
Page 9: Positioning The Zp-Egb Series
Positioning the ZP-EGB series • Do not position the ZP-EGB series where the ventilation holes are covered. To guarantee proper use, leave 4 inches (10 cm) of spacing in front of the ventilation holes. • ZP-EGB series mini-PC systems provide ample connectivity in a tiny form factor, please choose connectors and cables in appropriate sizes to avoid interference. - Page 10 3. Align the ZP-EGB series mounting holes to the VESA mount attachment pegs, and gently press down to secure it to the mount. 4. Connect the ZP-EGB series to your LCD monitor with an DP cable.
-
Page 11: Installing Driver
Installing driver Before you can use the full features of the ZP-EGB series, the system drivers of the host must be installed. The following types of operating systems are supported: • Windows 10 IoT LTSC 64-bit • Windows 11 Follow the instructions below to install the driver: Insert the USB flash drive.
