Organization of the NB-14 Instruction Manual There are four types of instruction manuals for Noise Dosimeter NB-14. Quick Start Guide This manual describes the basic handling of Noise Dosimeter NB-14. Hardware Guide This manual describes the detailed instructions for handling Noise Dosimeter NB-14.

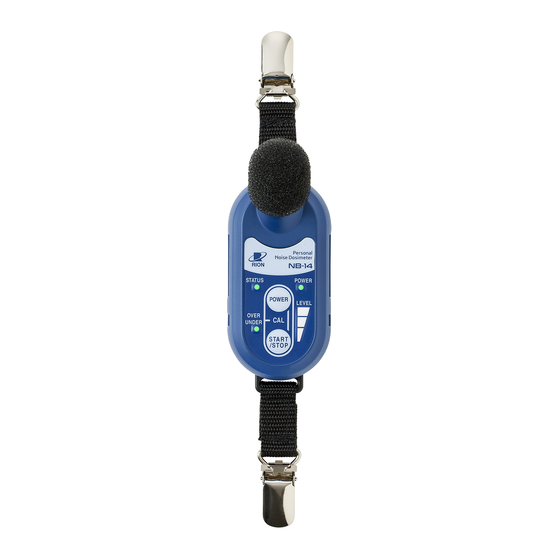

Microphone Noise Dosimeter NB-14 is fitted with a free-field electret microphone UC-52 that is 1/2 inch in diameter. Structure and how it works As shown in the figure below, in general, the electret condenser microphone used for taking measurements consists of five parts: a diaphragm, film, back electrode, insulator, and case.
Frequency Weighting Frequency weighting A and C of the sound level meter are achieved by frequency weighting circuits with electrical characteristics as shown in the following figure. Response (dB) A-weighting C-weighting 100 200 500 1 k 5 k 10 k 20 k 50 k Frequency (Hz) Characteristics of frequency weighting circuits...
With NB-14, L is calculated digitally using the following formula: : Number of samples The sampling cycle of NB-14 is 20.8 µs (48,000 samples per second). (C-weighted peak sound level) Cpeak The maximum absolute value of instantaneous C-weighted sound pressure within the measurement time can be...
Permitted level The daily exposure is obtained by adding up L (stored every second in NB-14) to which the worker is exposed during the workday. The permitted level is a value determined from the criterion time and level, which is above example is 8 hours, 85 dB.
Page 10
Measurement Function The DOSE calculated by the equivalent continuous sound level values measured for 8 hours per day is shown in Tables 3 and 4. Table 3 shows the DOSE value when the criterion level is 85 dB and 90 dB in Table 4. Table 3.
Configuration and normal mode of operation 9.2.1 b) Configuration • NB-14 • Dedicated windscreen Normal operating conditions • NB-14 with the dedicated windscreen attached » Instruction Manual: Hardware Guide [Name of Each Part / List of Accessories] [Charging Method] 5.1.5 Conformance class 9.2.1 a)
Page 12
Descriptions for IEC 61672-1 (JIS C 1509-1) / IEC 61252 Standard Explanation paragraph Description also NB-14 5.1.18 Characteristics and operations of each independent 9.2.1 e) Not applicable (1 channel only) channel 5.1.19 Initial stabilization time (time from turning on the 9.2.6 d)
Page 13
Descriptions for IEC 61672-1 (JIS C 1509-1) / IEC 61252 Standard Explanation paragraph Description also NB-14 Frequency weightings 5.5.5 Table of directional index in relation to random 9.3 e) » Refer to Tables 13 and 14 incidence characteristics 5.5.8 Design targets and tolerances for optional frequency 9.2.2 k)
Page 14
Descriptions for IEC 61672-1 (JIS C 1509-1) / IEC 61252 Standard Explanation paragraph Description also NB-14 5.18.4 Update cycle and conditions from the start of taking 9.2.2 g) Not applicable measurements until the first indicated value is displayed 5.18.5 Method for downloading digital data 9.2.6 l)
Page 15
Descriptions for IEC 61672-1 (JIS C 1509-1) / IEC 61252 Standard Explanation paragraph Description also NB-14 A.C. power-frequency and radio-frequency fields 6.6.1 Operation mode and connection state where the 9.3 o) Refer to Fig. 6-1 and 6-2 effects of power frequency magnetic fields and radio...
Page 16
Descriptions for IEC 61672-1 (JIS C 1509-1) / IEC 61252 Standard Explanation paragraph Description also NB-14 9.2.2 Design features 9.2.2 a) Measurable quantity 5.18.3 Refer to 5.18.3 9.2.2 b) Directional characteristics 5.4.5 Refer to 5.4.5 9.2.2 c) Frequency weightings that comply with standards 5.1.10...
Page 17
Time required from this operation to reinitialize from resetting to measurement reinitialization measuring: < 20 seconds Depending on the measurement time and the number of files in NB-14, it may take about 1 minute from the end of measurement to the next measurement. 9.2.6 j) Behavior of overload indication and underrange 5.11.1...
Page 18
Descriptions for IEC 61672-1 (JIS C 1509-1) / IEC 61252 Standard Explanation paragraph Description also NB-14 9.3 g) Starting point for level linearity calculation error testing 5.6.11 Refer to 5.6.11 9.3 h) Design targets and tolerance limits for electrical 5.1.15 Refer to 5.1.15...
Components and normal operating conditions Components • NB-14 • Dedicated windscreen Normal operating conditions • NB-14 with the dedicated windscreen attached » Instruction Manual: Hardware Guide [Name of Each Part / List of Accessories] [Charging Method] Means of electrical signal input...
Page 20
Standard paragraph Description Explanation Absolute acoustical sensitivity Calibration means for personal noise Compatible sound calibrators dosimeter NC-75/NC-74 (RION) Calibration Method » Instruction Manual: Hardware Guide [Calibration Method] Frequency weighting Dosimeter frequency response with Refer to Table 5 A-weighting Linearity of response to steady signal...
Page 21
Descriptions for IEC 61672-1 (JIS C 1509-1) / IEC 61252 Standard paragraph Description Explanation 13.2 Display of the IEC 61252:1993 mark Main unit: Refer to “Nameplate” Attachment position of the nameplate » Instruction Manual: Hardware Guide [Name of Each Part / List of Accessories] Instruction Manual Recommendations when wearing personal...
Page 22
Descriptions for IEC 61672-1 (JIS C 1509-1) / IEC 61252 Standard paragraph Description Explanation Effects of radio frequency electromagnetic Refer to 12.6 fields, electrostatic discharge and machine Refer to 12.7 vibration Refer to 12.8 Battery type and continuous operating time Refer to 4.12 Recommended procedure for checking battery Refer to 4.12 level...
Descriptions for IEC 61672-1 (JIS C 1509-1) / IEC 61252 NB-14 free field characteristics Table 5. NB-14 free field characteristics Microphone Free-field Influence of Case Influence of NB-14 Nominal Exact Response (dB) Reflection (dB) Windscreen (dB) Electrical Frequency Frequency Response...
Page 24
Descriptions for IEC 61672-1 (JIS C 1509-1) / IEC 61252 Microphone Free-field Influence of Case Influence of NB-14 Nominal Exact Response (dB) Reflection (dB) Windscreen (dB) Electrical Frequency Frequency Response UC-52 Expanded Expanded Expanded (Hz) (Hz) NB-14 NB-14 (dB) (NB-14)
Descriptions for IEC 61672-1 (JIS C 1509-1) / IEC 61252 Reference incident direction and position of reference point Reference incident direction Position of reference point Center point on diaphragm surface Fig. 1. Reference incident direction and position of reference point...
Descriptions for IEC 61672-1 (JIS C 1509-1) / IEC 61252 Microphone frequency response The frequency response of a free field microphone is represented by the response to the sound waves from the reference incident direction in a free field. Below is an example of the frequency response of microphone UC-52. Response (dB) 10 k...
Descriptions for IEC 61672-1 (JIS C 1509-1) / IEC 61252 Acoustic influence of housing The NB-14 has a structure that minimizes reflections from the housing. Below is an example of the acoustic influence from the housing. Response (dB) 10 k...
Therefore, the NB-14 is used with the dedicated windscreen attached. The characteristics of the dedicated windscreen are shown below. The effect of the dedicated windscreen on the free field characteristics of NB-14 is within ±1.0 dB up to 8 kHz, as shown in Figure 5.
Page 29
Fig. 4-3. Wind noise suppression with frequency weighting C (vertical) C-weighting Without dedicated windscreen Direction of wind to the microphone With dedicated windscreen Personal Noise Dosimeter RION (horizontal to the diaphragm STATUS POWER POWER LEVEL OVER UNDER of the microphone)
Descriptions for IEC 61672-1 (JIS C 1509-1) / IEC 61252 Electromagnetic compatibility (EMC) The following figures show the immunity test conditions (NB-14 direction, operation mode and connection state) against power frequency magnetic fields and radio frequency electromagnetic fields. A couple of things here.
Descriptions for IEC 61672-1 (JIS C 1509-1) / IEC 61252 4.10 Upper and lower limits of linear operating range for sound pressure level Table 8. Upper and lower limits of linear operating range for sound pressure level (dB) A-weighting 20 Hz 31.5 Hz 1 kHz 4 kHz...
(0°) and the measurement value of any incident angle θ . The electret condenser microphone used in the NB-14 is a pressure-type microphone, so it is primarily omnidirectional. However, at higher frequencies, it becomes directional due to the effects of structure-related diffraction and dents.
Page 34
Descriptions for IEC 61672-1 (JIS C 1509-1) / IEC 61252 Table 9. Directional characteristics of NB-14 (horizontal direction) Nominal frequency / exact frequency (Hz) Angle (degrees) 250/251.19 315/316.23 400/398.11 500/501.19 630/630.96 800/794.33 1000/1000.0 1250/1258.9 0° 0.00 0.00 0.00 0.00 0.00 0.00...
The high-frequency response is lower in a diffuse field than in a free field. Response (dB) 10 k 100 k Frequency (Hz) Fig. 11. NB-14 random incidence response (with the dedicated windscreen installed) Response (dB) 10 k 100 k Frequency (Hz)
Page 50
Descriptions for IEC 61672-1 (JIS C 1509-1) / IEC 61252 Table 13. NB-14 random incidence response (with the dedicated windscreen installed) Nominal frequency (Hz) Exact frequency (Hz) NB-14 random incidence response (dB) 63.096 -0.2 79.433 -0.2 100.00 -0.2 125.89 -0.2 158.49...
Page 51
Descriptions for IEC 61672-1 (JIS C 1509-1) / IEC 61252 Table 14. NB-14 random incidence response (without the dedicated windscreen installed) Nominal frequency (Hz) Exact frequency (Hz) NB-14 random incidence response (dB) 63.096 -0.2 79.433 -0.2 100.00 -0.2 125.89 -0.2 158.49...
Page 52
• QR code is a registered trademark of DENSO WAVE Incorporated. • All company names and product names mentioned in this manual are trademarks or registered trademarks of their respective owners. https://www.rion.co.jp/english/ 3-20-41 Higashimotomachi, Kokubunji, Tokyo 185-8533, Japan No. 67140 23-07...
