Summary of Contents for MAJORITY Fitzwilliam 2024
- Page 1 Fitzwilliam 2024 Internet Radio User Manual H O M E A U D I O • C A M B R I D G E...
-
Page 2: Table Of Contents
Contents What’s In the Box?......................Instructions Guide Controls & Functions..................Remote Control Operation Range……………………………………………………….. Basic Operations………………………………………………………………………………..Product Set-Up/Getting Started………………………………………………………….. System Settings....................Internet Radio……………………………………………………………………………………… Podcasts…………………………………………………………………………………………….. Spotify Connect………………………………………………………………………………….. Music Player Operation……………………………………………………………………….. DAB/DAB+ Radio Operation………………………………………………………………… FM Radio Operation……………………………………………………………………………. Bluetooth Operation…………………………………………………………………………..Auxiliary Input……………………………………………………………………………………… NetRemote…………………………………………………………………………………………. Using Headphones………………………………………………………………………………... -
Page 3: What's In The Box
Box Contents What’s in the Box? Majority Fitzwilliam 2024 2 x AAA Batteries Instruction Manual WLAN Antenna Remote Control Mains Power Cable... -
Page 4: Controls & Functions

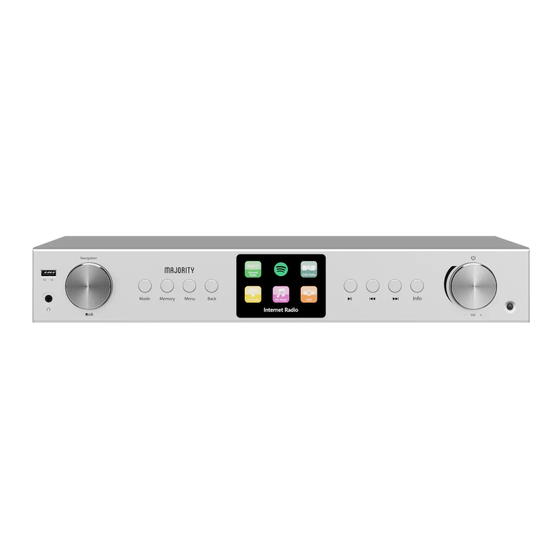

Controls & Functions Fitzwilliam 2024 - Front View USB Playback port Display screen Headphone jack Play/Pause button Navigation/OK dial Previous/Rewind button Mode button Next/Forward button Memory button Info button Menu button Power button/Volume dial Back button Remote Control sensor... - Page 5 Controls & Functions Fitzwilliam 2024 - Back View 15. DC IN port 16. W-LAN/BT Antenna port 17. Audio Output L/R (Analog, RCA jack) 18. Analog Audio (input/output, 3.5mm jack) 19. Digital Output (Optical) & Digital Output (Coaxial) 20. DAB/FM Antenna...
-
Page 6: Remote Control Operation Range
Remote Control Operations Remote Control... - Page 7 Remote Control Operations Remote control buttons 1. Power/Standby Press once to power on. Press once again to set the tuner in Standby Mode. 2. Dimmer Press to change screen brightness. 3. Equaliser button Press to change the sound mode 4. Next button While in Bluetooth or USB Mode press to skip and play the next audio track.
- Page 8 Remote Control Operations Battery Replacement for the Remote Control Press down the battery cover at ';' and push the battery cover outwards in the direction of the arrow. Insert 2 x AAA 1.5V batteries (not included). Make sure to match the (+) and (-) ends of the battery with the (+) and (-) ends indicated in the battery compartment.
-
Page 9: Basic Operations
Connection The audio output (analogue), optical out (digital) and coaxial out (digital) are available on the back of the unit to connect the Majority Fitzwilliam 2024 with an A/V amplifier, HiFi system or external speakers. Insert the DAB/FM antenna included into its port and extend to the desired length. -
Page 10: Product Set-Up/Getting Started
Basic Operations *Please note that the instructions within this manual will refer to the remote button number e.g. (Rem *number*) or tuner buttons e.g. (Ref* number*) in accordance with the diagrams on pages 4-6. Getting Started This instruction manual explains the basic information for operating this unit. Unless otherwise stated, all operations described are based on remote control use. - Page 11 Getting Started Initial Set-Up When you first connect the unit to the mains socket, the display will show the Majority welcome screen. The Privacy Policy page will come up. Please visit the website mentioned on the page to view the detailed privacy policy. Press the Navigation/OK (Ref.3) dial on unit or OK button on the remote control (Rem.18) to accept and move...
- Page 12 Getting Started Connecting using the WPS button on your router Connecting using the WPS (Wi-Fi Protected Setup) button on your router is a quick and easy way to connect your radio without having to type in a password. Select one of the following connection methods: Push button arrow If your router has a WPS button, you will notice [WPS] at the front of your network...
-
Page 13: System Settings
System Settings Press the 'MENU' button on the unit (Ref.6) or the remote control (Rem.6) to display the menu. Turn the 'Navigation /OK' dial on unit (Ref.3) or use the arrow buttons on the remote control to select 'System Settings', and then press 'Navigation/OK' dial on unit (Ref.3) or the 'OK' button on the remote control (Rem.18) to confirm. - Page 14 System Settings Streaming audio quality Enter this section to change the streaming audio quality between low, medium and high quality as per your preferences. Press the 'OK' button on the remote control (Rem.18) to confirm your selection. Network While in System Settings Mode, press the arrow buttons on the remote control, or rotate the 'Navigation/OK' dial on the unit (Ref.3) to select Network.
- Page 15 System Settings Time/Date The Time/Date can be set to automatically update from Internet Network, DAB or FM Radio or No update. Please Note: When choosing ‘No update,’ you can manually set the time and date on the Fitzwilliam tuner. While in System Settings Mode, press the arrow buttons on the remote control or rotate the 'Navigation/OK' dial on the unit (Ref.3) to select Time/Date.
- Page 16 System Settings Language While in System Settings Mode, using the arrow buttons on the remote control or the Navigation/OK dial on the unit (Ref.3) select Language and then press the 'OK' button (Rem.18) to enter. Press the arrow buttons on the remote control or rotate the 'Navigation/OK' dial on the unit (Ref.3) to change the display language as per your choice.
- Page 17 System Settings Factory Reset There may be times when you need to reset your unit back to the factory settings, for example, when you experience reception problems, you may want to reset and try again. If you move to another part of the country and pick up the local and national DAB stations in that area, your previously tuned channels may no longer be available.
- Page 18 System Settings Privacy Policy To view the Privacy Policy page, press the MENU button on the unit or remote control (Rem.6) and go to System Settings - Privacy Policy. After ‘Factory Reset’, you need read and once more, agree with the privacy policy.
-
Page 19: Internet Radio
Internet Radio Internet Radio To listen to an Internet Radio station, your radio must be connected to the network. Try to position your radio as close as possible to your router to get the best connection speed. When Internet Radio Mode is selected, the radio connects with the Frontier Silicon Internet Radio portal to download a list of stations. - Page 20 Internet Radio Station List If it is the first time listening to Internet Radio, the radio will be in [Station List]. Press the arrow buttons on the remote control or rotate the 'Navigation/OK dial on the unit (Ref.3) to select from the following options, and then press the OK button (Rem.18) to confirm.
- Page 21 Internet Radio Recalling a Stored Station To recall a preset, press the 'FAV' button (do not press and hold) on the remote control (Rem.10) or on the 'MEMORY' button on the unit (Ref.5), using the arrow buttons on the remote control. Alternatively, rotate the 'Navigation/OK' dial on the unit (Ref.3).
-
Page 22: Podcasts
Podcasts Podcasts To listen to Podcasts, your radio must be connected to the Internet network. Try to position your radio as close as possible to your router to get the best connection speeds. Press the 'MODE' button on unit (Ref.4) or remote control (Rem.14), to access Mode Menu. -
Page 23: Spotify Connect
Spotify Connect Spotify Connect Use your phone, tablet, or computer as a remote control for your Spotify • Connect. Go to spotify.com/connect to learn how. • Licenses The Spotify Software is subject to third party licenses found here: https://www.spotify.com/connect/third-party-licenses... -
Page 24: Music Player Operation
'OK' button (Rem.18) to confirm. Press the arrow buttons to select and press the 'OK' button to start playing. The Majority Fitzwilliam 2024 supports MP3 audio film format for USB playback. The unit can support USB stick of up to 128GB. - Page 25 Music Player Operation My Playlist While in the Music Player Menu, press the arrow buttons or use the 'Navigation/OK' dial on the unit (Ref.3) to select ‘My Playlist’, and press the 'OK' button (Rem.18) to enter. Press the arrow buttons to select songs and press the 'OK' button (Rem.18) to start playing from the playlist.
-
Page 26: Dab/Dab+ Radio Operation
(Ref.3) or the 'OK' button on the remote control (Rem.18) to confirm. The Majority Fitzwilliam 2024 will enter DAB Mode and perform an automatic scan. During the scan, the display will read 'Scanning…' together with a slide bar that indicates the progress and the number of stations found. - Page 27 DAB/DAB+ Radio Operation Manual Tuning As well as the auto tune function, you can manually tune the receiver. This feature can help you when you would like to align your aerial or add new radio stations that you might have missed when scanning automatically. Press the 'MENU' button on the unit (Ref.6) or on the remote control (Rem.18) to display the menu.
- Page 28 DAB/DAB+ Radio Operation Signal Error/ Signal Strength The signal error is indicated with a number. If the number is 0, it means the signal received is error free and the signal strength is strong. If the error rate is high, it is recommended to reposition the radio aerial or reposition the unit.
- Page 29 DAB/DAB+ Radio Operation Station Order You may wish to arrange the station listing order. While in DAB Mode, press the 'MENU' button on the unit or on the remote control (Ref.6 or Rem.6) and press the arrow buttons on the remote control to select Station order and press the 'OK' button (Rem.18) to enter.
-
Page 30: Fm Radio Operation
FM Radio Operation FM Operation Press the MODE button on unit (Ref.4) or remote control (Rem.18) to access Mode Menu. Rotate the 'Navigation/OK' dial on the unit (Ref.3) or press the 'UP'/'DOWN' buttons on the remote control to select FM Radio Mode. Press the 'Navigation/OK' dial on the unit (Ref.3) or the 'OK' button on the remote control to confirm. - Page 31 FM Radio Operation Station Name / Frequency When an RDS station is received, the name of that station will be displayed. If this information is not available, then the frequency will be displayed. Date Displays the current date provided automatically by the broadcaster. Scan Setting Press the 'MENU' button (Ref.6 or Rem.6) to access FM Mode menu.
-
Page 32: Bluetooth Operation
Some mobile phones with Bluetooth connectivity may connect and disconnect as • you make and end calls. This is not an indication of a problem with your unit. Control and adjust the volume on Fitzwilliam 2024 and on your Bluetooth device. •... -
Page 33: Auxiliary Input
Search for UNDOK on Google Play (Android) or Apple Store (iPhone) and install the app on your smartphone or tablet. Before using the UNDOK app, make sure the Fitzwilliam 2024 and the smartphone or tablet are in the same Wi-Fi network. Launch the app. -
Page 34: Using Headphones
Insert the headphone connector in the headphone socket which can be found on • the Fitzwilliam 2024 front panel (Ref.2). Long-term exposure to loud music can cause ear damage. It is best to avoid extreme volume when using earphones, especially for extended periods of time. -
Page 35: Sleep Setting
Sleep Setting Sleep Setting This function allows you to program the unit to switch to Standby Mode by itself after a set period of time. To activate the sleep function, press the 'SLEEP' button on the remote control (Rem.13) repeatedly. The time will change in the below sequence on each button press: Sleep OFF 15 minutes... -
Page 36: Setting Alarm
Setting the Alarm Setting the Alarm Press the 'ALARM' button on the remote control (Rem.12), the display shows 'Alarm (1 or 2): Off [hh:mm]'. Press the 'Navigation/OK' dial (Ref.3) on the unit or press the 'OK' button on remote control to enter . Press the 'Navigation/OK' dial (Ref.3) on the unit or press the 'OK' button on remote control (Rem.18) to enter. -
Page 37: Cancelling Alarm
Cancelling the Alarm Cancelling the Alarm Press the 'ALARM' button on the remote control, and the display will show 'Alarm (1 or 2): On [hh:mm]'. Press the arrow buttons or rotate the 'Navigation/OK' dial on the unit (Ref.3) to select the Alarm number (1 or 2), and then press the 'OK' button to start the setting of the timer. -
Page 38: Product Specification
Product Specifications Product Specifications Power Input 1200-240 V- 20-60 Mhz Power Consumption In operation mode up to 8W Working Environment - Temperature 0-35 Degrees Net Weight 3 Kg Unit Dimension (W) × (D) × (H) 43.5 x 7.4 x 29.7 cm FM-87.5-108.00 Mhz Radio Frequency DAB 174-240 Mhz... - Page 39 Product Specifications Version V4.2(only support BR+EDR) Maximum transmitted 5 dBm Bluetooth version power Frequency band 2402 - 2480 MHz Maximum transmitted 15 dBm power Wi-Fi Frequency band 2412 - 2472 MHz Standby power consumption: Wi-Fi off: < 1.00 W (standard standby mode) Wi-Fi on: < 2.00 W (network standby mode) Note: The equipment will enter network standby mode after approx.
-
Page 40: Support & Warranty
Support & Warranty Support Thank you for purchasing the Majority Fitzwilliam 2024. Please follow the guidance of the manual to set up your device and enjoy its fantastic features. If you require further assistance with your new device, please contact our support team on the Majority website: https://www.majority.co.uk/support... -
Page 41: Safety Information
Read these instructions. ADDITIONAL WARNINGS Keep these instructions. Instructions are also The apparatus shall not be exposed to dripping, available for download at www.majority.co.uk. splashing or objects filled with water. Heed all warnings. Follow all instructions. The main plug is used to disconnect the device. In Do no clean the apparatus near or with water.
