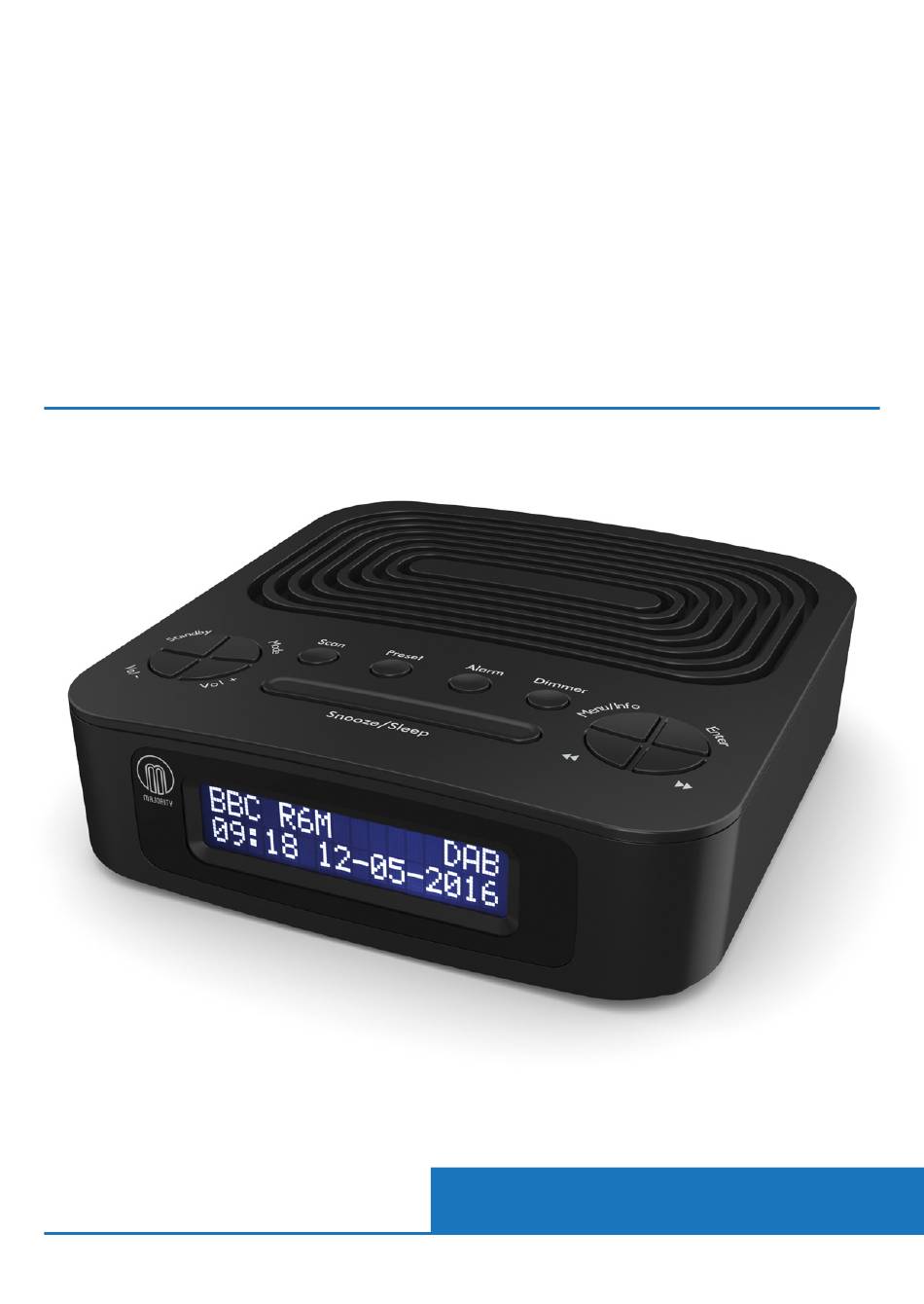

MAJORITY
BAR HILL
Bedside Digital Radio
BHL-DAB-BLK
Instructions Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bar Hill BHL-DAB-BLK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MAJORITY Bar Hill BHL-DAB-BLK

Summary of Contents for MAJORITY Bar Hill BHL-DAB-BLK

  • Page 1 MAJORITY BAR HILL Bedside Digital Radio BHL-DAB-BLK Instructions Guide...

  • Page 2: Table Of Contents

    Contents Controls And Functions ���������������������������������������������� What’s in the Box?���������������������������������������������������� Instructions Guide ����������������������������������������������������� Basic Operation �������������������������������������������������������� DAB/DAB+ Mode ������������������������������������������������������ Setting up DAB mode ������������������������������������������������ Storing DAB Stations ������������������������������������������������� DAB Station Information ������������������������������������������� FM Radio ������������������������������������������������������������������� Clock and Date Setting ��������������������������������������������� Dual Alarm ��������������������������������������������������������������� Alarm Setting �����������������������������������������������������������...

  • Page 3: Controls And Functions

    Controls And Functions Side View / Control Buttons Main display screen Back View / Connections 2. USB output 1 5. Headphone jack 3. Power switch (on/off ) 6. Antenna 4. DC in power jack...
  • Page 4 Controls And Functions Dimmer 10 11 13 14 15 16 Standby 14. Snooze/Sleep Vol - 15. Dimmer Vol + 16. Menu/Info 10. Mode 17. Back (<<) button 11. Scan 18. Forward (>>) button 12. Preset 19. Enter 13. Alarm 1/Alarm 2...
  • Page 5 Controls And Functions 20. Battery compartment...

  • Page 6: What's In The Box

    What’s in the Box? What’s in the Box? Majority Bar Hill DAB/DAB+ Radio Clock UK Standard Plug 5V DC Power Supply User Guide...

  • Page 7: Instructions Guide

    Instructions Guide Basic Operation Please note all (Ref.) refer to the Controls and Functions mapping guide on pages 1,2 and 3. Starting up your radio Plug the adaptor connector into the back of the system labelled ‘DC in’ and turn the power on from the mains (Ref.4). Alternatively, insert 4 x AA batteries rather than using the above process for mains power.

  • Page 8: Dab/Dab+ Mode

    Instructions Guide DAB/DAB+ Mode Setting up DAB mode From the ‘Welcome to Digital Radio’ screen, click the ‘Standby’ (Ref.7) button and your radio will automatically scan for DAB stations. Once the scan is complete, all digital stations found will be stored on your radio.

  • Page 9: Storing Dab Stations

    Instructions Guide Storing DAB Stations You can store up to 10 DAB radio stations. To store a station that you are currently playing: Press and hold the “Preset” (Ref.12) button, the display will show “Preset Store<x:(Empty)>” Press the ‘<< ‘ or ‘>>’ button (Ref. 17/18) to change the “<1” to the number you want to store the station as.

  • Page 10: Dab Station Information

    Instructions Guide DAB Station Information When listening to a DAB station, press the ‘Menu/Info’ (Ref.16) repeatedly to scroll through and display different program information: Signal Strength: Displays a signal bar with the strength of the current station. Signal Error: Provides details of the signal error rate. Channel and Frequency: Displays the station’s transmission channel number and frequency.

  • Page 11: Fm Radio

    Instructions Guide FM Radio FM Scan Press the “Mode” (Ref.10) button to switch to FM radio. The first time you do this, the FM frequency “87.5MHz” will be displayed on the screen. Fully extend the antenna. To auto scan, press the “Scan” (Ref.11) button and then release. This will then start scanning up the frequency band and play the first station it finds with good signal.
  • Page 12 Instructions Guide Storing FM Stations You can store up to 10 FM radio stations. To store a station that you are currently playing: Press and hold the “Preset” (Ref.12) button, the display will show “Preset Store<x:(Empty)>” Press the ‘<<’ or ‘>>’ button to change the “<1” to the number you want to store the station as.
  • Page 13 Instructions Guide FM Station Information When listening to a FM station, press the ‘Menu/Info’ (Ref.16) repeatedly to scroll through and display different program information: Radio Text: Displays scrolling test information supplied by the broadcaster. PTY (Program Type): Shows the type and description of the program provided by the DAB station.

  • Page 14: Clock And Date Setting

    Instructions Guide Clock and Date Setting Manually Setting the Time Ensure the unit is in working mode (i.e. listening to DAB/FM Radio). Press and hold the Menu/Info button (Ref.16) for 1-2 seconds to open the ‘Set Menu’ option. Use the ‘<<’ or ‘>>’ (Ref. 17/18) buttons to choose your option and select Time/Date by pressing ‘Enter’...

  • Page 15: Dual Alarm

    Instructions Guide Dual Alarm Alarm Setting Press the ‘Alarm’ (Ref.13) button once for Alarm1 or twice for Alarm2. Press the ‘Enter’ (Ref.19) button to confirm. To turn the alarm on or off, press ‘<<’ or ‘>>’ button (Ref. 17/18), so that “ON” is flashing and press the ‘Enter’ button to confirm. The hour digits for the alarm will flash, press ‘<<’...

  • Page 16: Alarm Functions And Snooze

    Instructions Guide Alarm functions and Snooze Cancel the Alarm Press the ‘Alarm’ button (Ref.13) once for Alarm1 or twice for Alarm2. Press the “Enter” (Ref.19) button to confirm. To turn the Alarm off, press the ‘>>’ (Ref.18) button, so that “OFF” is flashing and press the “Enter”...

  • Page 17: Sleep Timer And Usb Charging

    Instructions Guide Sleep Timer and USB Charging Sleep Timer This enables you to programme the radio to switch off at a specific time, up to 120 minutes from activation. Press and hold the “Snooze/Sleep” button (Ref.14), then display shows “Set Sleep: OFF” Choose from 120/90/60/45/30/15/5 minutes by pressing the ‘<<’...

  • Page 18: Additional Functions

    Instructions Guide Additional Functions When the radio is turned on, press and hold the Menu/Info (Ref.16) button. This will open ‘Set Menu’ and display these settings: System Version: Press the ‘<<’ or ‘>>’ button (Ref.17 ) to select your desired sub- option of ‘System Version.

  • Page 19: Specifications

    Specifications Specifications DC 5V 1A Power Supply FM 87.5 MHz to 108 MHz Mode: DAB 174 - 240 MHz 1.5 RMS Output : Output Connector: Earphone jack Power Supply and Batteries The unit is powered and charged by UK Standard Plug DC 5v and is also portable when powered by 4 x AA batteries (not supplied).

  • Page 20: Safety Information

    Safety Information ADDITIONAL WARNINGS 1. Read these instructions. 2. Keep these instructions. Instructions are also The apparatus shall not be exposed to dripping or available for download at www.majorityradios.co.uk splashing and no objects filled with liquid, such as 3. Heed all Warnings vases, shall be places on the apparatus.
  • Page 22 www.majorityradios.co.uk...
