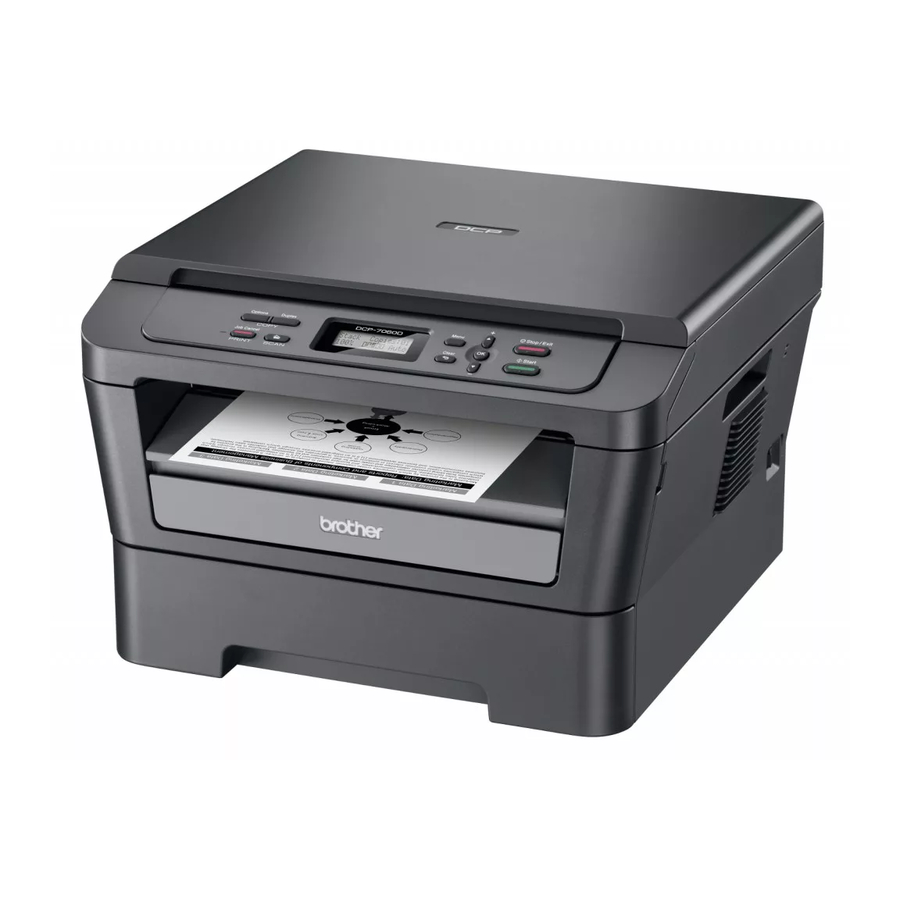

SOFTWARE USER’S GUIDE Not all models are available in all countries. For DCP users; This documentation is for both MFC and DCP models. Where it says ‘MFC’ in this user’s guide, please read ‘MFC’ as ‘DCP’. Version A...
Secure Key (For MFC-7460DN and MFC-7860DW) ................2 Printer Emulation Support (For DCP-7070DW and MFC-7860DW)............3 Printing the Internal Font List (For DCP-7070DW and MFC-7860DW) ..........4 Printing the Print Configuration List (For DCP-7070DW and MFC-7860DW) ........4 Test Print (For DCP-7070DW and MFC-7860DW)................5 Duplex Print (For DCP-7070DW and MFC-7860DW) .................5...
Page 3
Viewing items ............................59 Organizing your items in folders ......................60 Quick links to other applications ......................60 ScanSoft™ PaperPort™ 12SE with OCR lets you convert image text into text you can edit....61 Importing items from other applications.....................61 Exporting items into other formats.....................61...
Page 4
ControlCenter4 Overview..............................63 Changing the user interface ......................63 Using ControlCenter4 in Home Mode......................64 ControlCenter4 Features for Home Mode users ................65 Scan tab ..............................66 File types ............................67 Document Size ..........................68 Saving the scanned image ........................68 Printing the scanned image .......................68 Opening the scanned image in an application...................69 Attaching the scanned data to E-mail....................69...
Page 5
Setting up a cover page........................97 Entering cover page information......................98 Sending a file as a PC-FAX using the Facsimile style user interface..........98 Sending a file as a PC-FAX using the Simple style user interface ..........100 Address Book ............................102 Brother Address Book ........................103 Setting up a member in the Address Book ..................103...
Page 6
Features in the printer driver (Macintosh)....................126 Duplex printing............................127 Guidelines for printing on both sides of the paper ................127 Automatic duplex printing (Not available for DCP-7055, DCP-7057, MFC-7360 and MFC-7360N)127 Manual duplex printing ........................127 Simultaneous scanning, printing and faxing ..................128 Choosing page setup options ......................128 Choosing printing options ........................130...
Page 8
) ..................202 Configuring Network Scanning (Macintosh) ..................205 Using the Scan key..........................206 Scan to E-mail ..........................206 Scan to E-mail (E-mail Server) (For MFC-7460DN and MFC-7860DW) .........207 Scan to Image ..........................208 Scan to OCR ...........................209 Scan to File............................210 Scan to FTP (For MFC-7460DN and MFC-7860DW)..............211...
Job Cancel To cancel the current print job, press Job Cancel. You can clear the data that is left in the printer memory by pressing Job Cancel. To cancel multiple print jobs, hold down this key until the LCD shows Job Cancel (All).
When the machine receives data from the computer, it automatically chooses the emulation mode. The default setting is Auto. Your machine has the following emulation modes. You can change the setting by using the control panel or a web browser.
Using the control panel Printing the Internal Font List (For DCP-7070DW and MFC-7860DW) You can print a list of the machine’s internal (or resident) fonts to see how each font looks before you choose Press Menu. Press a or b to choose Printer. Press OK.
If the problem appears on the printout, see Improving the print quality in the Basic User's Guide. Duplex Print (For DCP-7070DW and MFC-7860DW) You can choose whether you want to automatically print on both sides of the paper. The setting in the printer driver will take priority over the setting made on the control panel.
To exit without making a change, press a or b to choose Exit. Press OK. Press Stop/Exit. Note If you want to reset the Fax memory, see the Reset functions of Machine Information in the Basic User's Guide. If you want to reset the Printer memory, turn the power switch Off.
Using the control panel Using the scan keys You can use (SCAN) on the control panel to scan documents into your word processing, graphics or E-mail applications or a folder on your computer. See Section IV Using The Scan key for details.
XP. Screens on your PC may vary depending on your operating system. • If your PC is protected by a firewall, and you are unable to network print, network scan or PC Fax, you may ® need to configure the firewall settings. If you are using the Windows Firewall and you installed MFL-Pro Suite from the CD-ROM, the necessary Firewall settings have already been made.
When the machine receives data from your computer, it begins printing by picking up paper from the paper tray. The paper tray can feed many types of paper and envelopes. (See the Basic User's Guide for information about the Paper Tray and Recommended paper.) From your application, choose the Print command.
If the paper is thin, it may wrinkle. If paper is curled, turn over the stack, straighten it and then put it back in the paper tray or manual feed slot. If the paper is not feeding properly, it may be curled. Remove the paper, straighten it and turn over the stack.
Simultaneous scanning, printing and faxing Your machine can print from your computer while sending or receiving a fax in memory, or while scanning a document into the computer. Fax sending will not be stopped during the computer printing. However, when the machine is copying or receiving a fax on paper, it pauses the computer printing operation, and then continues printing when copying or fax receiving has finished.
Printing Printer driver settings Note (Macintosh) See Printing and Faxing on page 126. You can change the following printer settings when you print from your computer: Paper Size Orientation Copies Media Type Resolution Print Settings ...
Click the button, and then click Devices and Printers. Right-click the Brother MFC-XXXX Printer icon (where XXXX is your model name) and select Properties (Printer properties). The printer properties dialog box appears. Choose the General tab and then click Printing Preferences... (Preferences...).
Note ® • The screens in this section are from Windows XP. The screens on your PC will vary depending on your operating system. • To access the printer driver settings, see Accessing the printer driver settings on page 14.
Printing Basic tab You can also change the Page Layout settings by clicking the illustration on the left side of the Basic tab. Choose the Paper Size, Orientation, Copies, Media Type, Resolution and Print Settings (1). Choose Multiple Page and Duplex / Booklet (2).
You can set brightness, contrast and other settings. Multiple Page The Multiple Page selection can reduce the image size of a page allowing multiple pages to be printed on one sheet of paper or enlarge the image size for printing one page on multiple sheets of paper.
Use this option to print a document in booklet format using duplex printing; it will arrange the document according to the correct page number and allows you to fold at the centre of the print output without having to change the order of the page number.
When you check Binding Offset, you can also specify the offset for binding in inches or millimetres. Paper Source You can choose Auto Select, Tray1 or Manual and specify separate trays for printing the first page and for printing from the second page onwards.
Use Watermark You can put a logo or text into your document as a watermark. You can choose one of the preset Watermarks, or you can use a bitmap file that you have created. Check Use Watermark and then click the Settings...
Printing In Outline Text Check In Outline Text if you only want to print an outline of the watermark. It is available when you choose a text watermark. Custom Settings You can choose the watermark to be printed on the first page or on the other pages.
ID Print If you select Login User Name, your PC login user name will print. If you select Custom and enter the text in the Custom edit box, the text you entered will print. Toner Save Mode You can conserve toner use with this feature. When you set Toner Save Mode to On, prints appears lighter.
Printing Administrator Administrators have the authority to limit access to functions such as scaling and watermark. Password Enter the password into this box. Note Click Set Password... to change the password. Copies Lock Lock the copy pages selection to prevent multiple copy printing.
User Authentication (For MFC-7860DW) If you are restricted from PC Print by the Secure Function Lock 2.0 feature, you need to set your ID and PIN in the User Authentication Settings dialog. Click Settings of User Authentication and select Use ID Name/PIN.
Do not use this setting if the humidity is below 30% or ghosting may increase. Note This feature may not reduce ghosting for all types of paper. Before you buy a lot of paper, test a small quantity to make sure that the paper is suitable.
Printing Print Profiles tab Print Profiles (1) The printer driver of the machine has preset print profiles. Select a desired profile and click OK to select the preset print settings. Edit a profile (2) You can edit and save a new print profile.
Printing Editing a print profile Configure the print settings in the print driver. See Basic tab on page 16 and Advanced tab on page 21. Click the Print Profiles tab. Click the Edit a profile button. Choose the icon from the drop-down list (1) and enter a profile name (2).
Click Support... in the Printing Preferences dialog box. Brother Solutions Center (1) The Brother Solutions Center (http://solutions.brother.com/) is a website offering information about your Brother product including FAQs (Frequently Asked Questions), User’s Guides, driver updates and tips for using your machine. Original Supplies Website (2)
Page 39
Printing Brother CreativeCenter (3) You can visit our website for free and easy online solutions for business and home users by clicking this button. Print Settings (4) This will print the pages that show how the internal settings of the machine have been configured.
(where XXXX is your model name) and select Properties to access the Tray Settings tab. Select Settings and then Printers for Windows® 2000 users. You can define the paper size for each paper tray and auto detect the serial number in the Tray Settings tab as follows.
Page 41
Printing Serial No. (2) By clicking Auto Detect, the printer driver will query the machine and display its serial number. If it fails to receive the information, the screen will display "---------------". Note The Auto Detect function is not available under the following machine conditions: •...
Printing Status Monitor This reports the machine status (any errors that may happen with the machine) when printing. If you would like to turn the status monitor on, follow these steps: Click the Start button, All Programs , Brother MFC-XXXX (where XXXX is your model name) and then Status Monitor.
• Orientation Orientation selects the position of how your document will be printed. (Portrait, Landscape or Rotated Landscape) • Print on Both Sides If you want to do duplex printing, choose Flip on Short Edge or Flip on Long Edge.
Page 44
Specifies the order in which the pages of your document will be printed. Front to Back prints the document so that page 1 is on top of the stack. Back to Front prints the document so that page 1 is on the bottom of the stack.
Printing Advanced options You can access the Advanced options by clicking the Advanced... button on the Layout tab or Paper/Quality tab. Choose the Paper Size and Copy Count (1). Paper Size From the drop-down box choose the Paper Size you are using.
Page 46
You can change settings by choosing a setting in the Printer Features list (3): Media Type You can use the following types of media in your machine. For the best print quality, select the type of media that you wish to use. Plain Paper...
Do not use this setting if the humidity is below 30% or ghosting may increase. Note This feature may not reduce ghosting for all types of paper. Before you buy a lot of paper, test a small quantity to make sure that the paper is suitable.
You can check the device status at anytime by double-clicking the icon in the tasktray or by choosing Status Monitor located in Start/All Programs/Brother/MFC-XXXX on your PC.
A yellow icon indicates a warning. A red icon indicates a printing error has occurred. There are two locations where you can display the Status Monitor on your PC - in the tasktray or on the desktop.
• For ScanSoft™ PaperPort™ 12SE, see Using ScanSoft™ PaperPort™ 12SE with OCR by NUANCE™ on page 59. • If your PC is protected by a firewall and is unable to network scan, you may need to configure the firewall ®...
Page 51
When scanning is finished, click Cancel to return to the PaperPort™ 12SE window. Note After you select a document size, you can adjust the scanning area further by clicking the left mouse button and dragging it. This is required when you want to crop an image when scanning. (See Pre-Scanning to...
Pre-Scanning to crop a portion you want to scan You can preview your image and crop unwanted portions before scanning by using the PreScan button. When you are satisfied with the preview, click the Start button in the Scanner Setup dialog box to scan the image.
Page 53
Scanning Press and hold down the left mouse button and drag it over the portion you want to scan. 1 Scanning area Note You can enlarge the image using the icon, and then use the icon to restore the image to its original size.
Settings in the Scanner Setup dialog box Scan (Image Type) Choose the output image type from Photo, Web or Text. Resolution and Scan Type will be altered for each default setting. The default settings are listed in the table below:...
Page 55
You can improve and enhance the quality of your scanned images with this selection. The Reduce Noise setting is available when using 24bit Colour and scan resolutions of 300 300 dpi, 400 400 dpi or 600 600 dpi.
Page 56
• Width: shows the width of scanning area. • Height: shows the height of scanning area. • Data Size: shows the rough data size in Bitmap format. The size will be different for other file formats such as JPEG. • User adjustable from 8.9 x 8.9 mm to 215.9 x 355.6 mm.
(Not available for DCP-7055, DCP-7057, DCP-7060D and DCP-7070DW) or the scanner glass. If you want to scan and then crop a portion of a page after pre-scanning the document, you need to use the scanner glass. (See Pre-Scanning and cropping a portion using the scanner glass on page 51.) Load your document.
Page 58
Choose the picture type (2). Choose the Page size from the drop-down list (4). If you need advanced settings, click Adjust the quality of the scanned picture (3). You can choose Brightness, Contrast, Resolution (DPI) and Picture type from Advanced Properties. Click OK after you choose a setting.
The Preview button is used to preview an image for cropping any unwanted portions from the image. When you are satisfied with the preview, click the Scan button in the Scan dialog box to scan the image. Follow the steps from a to g of Scanning a document into the PC on page 49.
Page 60
Scanning Press and hold down the left mouse button and drag it over the portion you want to scan. If you need advanced settings, click Adjust the quality of the scanned picture (3). You can choose Brightness, Contrast, Resolution (DPI) and Picture type from Advanced Properties. Click OK after you choose a setting.
If you scan the document at a resolution greater than 1200 dpi, the file size may be very large. Make sure that you have enough memory and hard disk space for the size of the file you are trying to scan. If you do...
Page 62
7) For users who have administrator rights: Click Yes. ® • (Windows Vista )For users who do not have administrator rights: Enter the administrator password and click OK. ® (Windows 7) For users who do not have administrator rights: Enter the administrator password and click Yes.
(Not available for DCP-7055, DCP-7057, DCP-7060D and DCP-7070DW) or the scanner glass. If you want to scan and then crop a portion of a page after pre-scanning the document, you need to use the scanner glass. (See Pre-Scanning and cropping a portion using the scanner glass on page 57.) Load your document.
Page 64
Scanning Adjust the following settings, if needed, in the Scanner dialog box. Profile (1) Source (2) Paper size (3) Color format (4) File type (5) Resolution (DPI) (6) Brightness (7) Contrast (8) Click the Scan button in the Scan dialog box.
The Preview button is used to preview an image for cropping any unwanted portions from the image. When you are satisfied with the preview, click the Scan button in the Scan dialog box to scan the image. Follow the steps from a to e of Scanning a document into the PC on page 55.
Page 66
Scanning Press and hold down the left mouse button and drag it over the portion you want to scan. Click the Scan button in the Scan dialog box. The machine starts scanning the document. This time only the chosen area of the document appears in your application window.
Viewing items ScanSoft™ PaperPort™ 12SE gives several ways to view items: Desktop displays the item in the chosen folder with a thumbnail (a small graphic that shows each item in a desktop or folder) or an icon. You can see both PaperPort™ 12SE items (MAX files) and non-PaperPort™ 12SE items (files created using other applications).
Organizing your items in folders PaperPort™ 12SE has an easy-to-use filing system for organizing your items. The filing system consists of folders and items that you choose to view in Desktop. An item can be a PaperPort™ 12SE item or a non-PaperPort™ 12SE item: ...
12SE. PaperPort™ 12SE can use your preferred OCR application if it is already on your PC. You can convert the entire item, or by using the Copy Text button on the Item ribbon, you can choose only a portion of the text to convert.
Scanning Uninstalling ScanSoft™ PaperPort™ 12SE with OCR ® (Windows Click the Start button, Control Panel, Add or Remove Programs, and click the Change or Remove Programs icon. Choose Nuance PaperPort 12 from the list and click Change or Remove. ®...
ControlCenter4 Overview ControlCenter4 is a software utility that lets you quickly and easily access your often used applications. Using ControlCenter4 eliminates the need to manually launch specific applications. ControlCenter4 has two user interfaces: Home Mode and Advanced Mode. Home Mode The Home Mode gives you easy access to your machine’s main functions.
ControlCenter4 Using ControlCenter4 in Home Mode This section briefly introduces the ControlCenter4 functions in Home Mode. For more details on each function, click Help. 1 Scan directly to a file, E-mail, word processor or graphics application of your choice. 2 Access the PC-FAX applications available for your device.
See Printing the scanned image on page 68. See Opening the scanned image in an application on page 69. See Attaching the scanned data to E-mail on page 69. See Using the OCR feature on page 70.
Scan tab There are five scan options: Save, Print, Open with an Application, Send E-mail and OCR. This section briefly introduces the Scan tab function. For more details of each function, click Help. 1 PC Scan setting area 2 Image viewer...
7 or when using applications which support XML Paper Specification files. • If you set the file type to TIFF or TIFF Multi-Page, you can choose “Uncompressed” or “Compressed”. • Secure PDF is available for the Save and Send E-mail selections.
1 to 2 (A4), the scanned image will be divided into two A5 size documents. Saving the scanned image The Save button lets you scan an image to a folder on your hard disk in one of the file types shown in the file attachment list.
The image will appear in the application you have chosen. Attaching the scanned data to E-mail The Send E-mail button lets you scan a document to your default E-mail application, so you can send the scanned job as an attachment.
ControlCenter4 Using the OCR feature The OCR button lets you scan a document and convert it into text. This text can be edited using your favourite word processing software. Select the Scan tab. Configure the settings in the PC Scan setting area.
ControlCenter4 PC-FAX tab (MFC models only) This section briefly introduces the PC-FAX tab function. For more details of each function, click Help. Note The PC-FAX software can only send Black & White fax documents in A4 size. 1 Send Image File button...
PC-FAX software. Select the PC-FAX tab. Click Send Image File. Click on the folder tree to browse for the folder where the image you want to send is located. Then select the file you want to send. Click the Send button.
Viewing and printing received PC-FAX data The Received PC-FAX button lets you view and print received fax data using the Brother PC-FAX software. Before you use the PC-FAX Receive function, you must select the PC-FAX Receive option from the control panel menu of the Brother machine.
ControlCenter4 Device Settings tab This section briefly introduces the Device Settings tab function. For more details of each function, click Help. 1 Remote Setup button 2 Quick Dial button 3 Device Scan Settings button 4 BRAdmin button Configuring Remote Setup The Remote Setup button lets you open the Remote Setup Program window to configure most machine and network setting menus.
ControlCenter4 Accessing Quick Dial The Quick Dial button lets you open the Address Book window in the Remote Setup Program. You can then easily register or change the Quick Dial numbers from your PC. Select the Device Settings tab. Click Quick Dial.
BRAdmin Light or BRAdmin Professional 3 utility. The BRAdmin Light utility is designed for initial setup of the Brother network connected devices. It can also search for Brother products in a TCP/IP environment, view the status and configure basic network settings, such as the IP address.
ControlCenter4 Support tab This section briefly introduces the Support tab function. For more details of each function, click the Help button in ControlCenter4. Opening ControlCenter Help The ControlCenter Help lets you open the Help file for detailed information about ControlCenter.
6 You can configure your original settings tab by right clicking the tab area. 7 You can select which machine ControlCenter4 will connect with from the Model drop-down list. 8 You can open the configuration window for each scan function and change the user interface mode. 9 Access the Help file.
ControlCenter4 ControlCenter4 Features for Advanced Mode users Scan (See Scan tab on page 80.) See Opening the scanned image in an application on page 82. See Using the OCR feature on page 82. See Attaching the scanned data to E-mail on page 82.
5 File button Note • You can change the default settings of each button by right-clicking the appropriate button or clicking Configuration. When the configuration dialog appears, you can change the settings and then click OK. • To preview and configure the scanned image, check Pre Scan on configuration dialog.
• Secure PDF is available for Scan to Image, Scan to E-mail and Scan to File. Document Size You can choose the document size from the pull-down list. If you choose a “1 to 2” document size, such as 1 to 2 (A4), the scanned image will be divided into two A5 size documents.
The image will appear in the application you have chosen. Using the OCR feature The OCR button lets you scan a document and convert it into text. This text can be edited using your favourite word processing software. Select the Scan tab.
ControlCenter4 Saving the scanned image The File button lets you scan an image to a folder on your hard disk in one of the file types shown in the file attachment list. Select the Scan tab. If you want to change the scan settings, right-click the File button and then change settings. If you want to preview and configure the scanned image, check Pre Scan.
ControlCenter4 PC-Copy tab Printing the scanned image You can scan a page on the machine and print copies using any of the features of ControlCenter4 supported by your Brother machine’s printer driver. Select the PC-Copy tab. If you want to change the scan settings, right-click the button you want to change and then change the settings.
PC-FAX software. Select the PC-FAX tab. Click Send Image File. Click on the folder tree to browse for the folder where the image you want to send is located. Then select the file you want to send. Click the Send button.
Viewing and printing received PC-FAX data The Received PC-FAX button lets you view and print received fax data using the Brother PC-FAX software. Before you use the PC-FAX Receive function, you must select the PC-FAX Receive option from the control panel menu of the Brother machine.
93. Accessing Quick Dial The Quick Dial button lets you open the Address Book window in the Remote Setup Program. You can then easily register or change the Quick Dial numbers from your PC. Select the Device Settings tab.
The Device Scan Settings button lets you configure your machine’s SCAN key settings. Select the Device Settings tab. Click Device Scan Settings. The Device Scan Settings dialog will appear. You can change settings of each Scan button function. Click OK.
BRAdmin Light or BRAdmin Professional 3 utility. The BRAdmin Light utility is designed for initial setup of the Brother network connected devices. It can also search for Brother products in a TCP/IP environment, view the status and configure basic network settings, such as the IP address.
ControlCenter4 Support tab This section briefly introduces the Support tab function. For more details of each function, click the Help button in ControlCenter4. Opening ControlCenter Help The ControlCenter Help lets you open the Help file for detailed information about ControlCenter.
This section briefly introduces adding a Custom tab. For more details, click Help. Creating a Custom tab You can create up to three customized tabs including up to five customized buttons with your original settings. Click Configuration and then select Create custom tab.
Select a button you want to create from the menu. The settings dialog will appear. Enter the button name and change the settings if necessary. Click OK. (The setting options vary depending on the created button.) Note You can change or remove the created tab, button or settings. Click Configuration and follow the menu.
PC and displayed on your PC screen. If you change the settings, you can upload them directly to the machine. Click the Start button, All Programs, Brother, MFC-XXXX (or MFC-XXXX LAN) and Remote Setup.
Page 102
• You can use the Export button to save Quick Dial or all your settings for your machine. • If your PC is protected by a firewall, and is unable to use Remote Setup, you may need to configure the firewall settings to allow communication through port number 137.
The Brother PC-FAX feature lets you use your PC to send a document from an application as a standard fax. You can send a file created in any application on your PC as a PC-FAX. You can even attach a cover page.
Enter a number here to access an outside line. This is sometimes required by local PBX telephone systems (for example, dialling 9 to get an outside line in your office). For PC-Fax send, this number will be applied and Dial Prefix settings in the function menu will be ignored.
Brother PC-FAX Software (MFC models only) User interface Choose the user interface from two choices: Simple style or Facsimile style. Simple style Facsimile style Setting up a cover page From the PC-FAX dialog box, click the icon to access the Brother PC-FAX Cover Page Setup screen.
Brother PC-FAX Software (MFC models only) Entering cover page information Note If you are sending a fax to more than one recipient, the recipient information will not be printed on the cover page. Choose the recipient information you want to add to the cover page.
Page 107
Click Start to send the fax. Note • If you want to cancel the fax, click Stop. • If you want to redial a number, click Redial to scroll through the last five fax numbers, choose a number, and then click Start.
Choose Brother PC-FAX as your printer, and then click Print. The Simple style user interface appears: Note If the Facsimile style user interface appears, change the user interface selection setting. (See Sending setup on page 96.) Enter the fax number using any of the following methods: ...
Page 109
Brother PC-FAX Software (MFC models only) Click the send icon. Note If you want to cancel the fax, click the cancel icon.
Brother PC-FAX Software (MFC models only) Address Book If Outlook or Outlook Express is installed on your PC, you can choose in the Select Address Book pull-down which address book to use for PC-FAX sending. There are four types: Brother Address Book, Outlook, Outlook Express Windows Mail Address or Windows Contacts.
In the Address Book dialog box, click the icon to add a member. The Brother Address Book Member Setup dialog box appears: In the Member Setup dialog box, enter the member’s information. Name is a required field. Click OK to save the information.
Brother PC-FAX Software (MFC models only) Speed Dial setup From the Brother PC-FAX Setup dialog box, click the Speed Dial (Facsimile style only) tab. (To use this feature, you must choose the Facsimile style user interface.) You can register a member or group on each of the ten Speed Dial buttons.
Enter the name of the new group in the Group Name field. In the Available Names box, choose each member to be included in the group, and then click Add >>. Members added to the group appear in the Group Members box.
Data that can be used by the Remote Setup application of your machine. (See Remote Setup on page 93.) If you are creating a vCard, you must first click on the address book member you want to create the vCard for.
Page 115
Brother PC-FAX Software (MFC models only) Click OK to save the data. Enter the name of the file, and then click Save.
From the Available Items column, choose the data fields you want to import, and click Add >>. Note From the Available Items list choose the fields in the same order they are listed in the import text file. Choose Tab or Comma based on the file format you are importing from Divide Character.
Page 117
Brother PC-FAX Software (MFC models only) Note If you chose Text file in step a, Files of type: will be Text files (*.txt; *.csv).
• The PC-FAX software can only receive Black & White fax documents. • If your PC is protected by a firewall and is unable to use PC-FAX receive, you may need to configure the firewall settings to allow communication through port number 54926 and 137. (See Before using the Brother software on page 115.)
Note If you choose Backup Print:On, the machine will print the fax, so you will have a copy if there is a power failure before it is sent to the PC. The fax messages are automatically erased from your machine’s memory when they have been successfully printed and sent to your PC.
The PC-Fax Rx Setup dialog box appears: In Save file to, click the Browse button if you want to change the path where PC-FAX files are saved. In File Format, choose .tif or .max as the received document format. The default format is .tif.
The settings to send received faxes to your computer were automatically configured during the installation of MFL-Pro Suite (see the Quick Setup Guide). If you are using a different machine than the one that was registered to your PC during the installation of the MFL-Pro Suite software, follow the steps below.
Double-click any new faxes to open and view them. Note The subject of your unread PC message will be based on the date and time that the messages were received until you assign a file name. For example ‘Fax 2-20-2010 16:40:21.tif’.
54926 Internal Port number 54925 54926 Add Port number 137 if you still have trouble with your network connection after you added port 54925 and 54926. Port number 137 also supports printing and Remote Setup over the network. ® Windows...
Page 124
Add port 54925 for network scanning by entering the information below: 1 In Description of service: Enter any description, for example “Brother Scanner”. 2 In Name or IP address (for example 192.168.0.12) of the computer hosting this service on your network: Enter “Localhost”.
1 In Description of service: Enter any description, for example “Brother Network Print”. 2 In Name or IP address (for example 192.168.0.12) of the computer hosting this service on your network: Enter “Localhost”. 3 In External Port number for this service: Enter “137”.
Page 126
Firewall settings (For Network users) Make sure that Windows Firewall Settings on the General tab is set to On. Click the Exceptions tab. Click the Add port... button. To add port 54925 for network scanning, enter the information below: 1 In Name: Enter any description, for example “Brother Scanner”.
Page 127
Make sure that the new setting is added and is checked, and then click OK. If you still have trouble with your network connection such as Network Scanning or Printing, check File and Printer Sharing box in the Exceptions tab and then click OK.
Page 128
Click the button, Control Panel, System and Security and then Windows Firewall. Make sure the Windows Firewall state is set to On. Click Advanced settings. The Windows Firewall with Advanced Security window appears. Click Inbound Rules. Click New Rule. Choose Port and click Next.
Page 129
Firewall settings (For Network users) To add a port enter the information below: For network scanning Choose UDP and enter “54925” in the Specific local ports:. Click Next. For Network PC-Fax Choose UDP and enter “54926” in the Specific local ports:.
Page 130
Firewall settings (For Network users) Enter any description in Name: (for example “Brother Scanner” or “Brother PC-Fax”) and click Finish. Make sure that the new setting is added and is checked. Click Outbound Rules.
Page 131
Choose Port and click Next. To add port enter the information below: For network scanning Choose UDP and enter “54925” in the Specific remote ports:. Click Next. For Network PC-Fax Choose UDP and enter “54926” in the Specific remote ports:.
Page 132
Choose Allow the connection and click Next. Check the applicable items and click Next. Enter any description in Name: (for example “Brother Scanner” or “Brother PC-Fax”) and click Finish. Make sure that the new setting is added and is checked.
Page 133
Section III Apple Macintosh Printing and Faxing Scanning ControlCenter2 Remote Setup...
Features in the printer driver (Macintosh) This machine supports Mac OS X 10.4.11 - 10.5.x - 10.6.x. Note The screens in this section are from Mac OS X 10.5. The screens on your Macintosh will vary depending on your operating system version.
If the paper is thin, it may wrinkle. If paper is curled, turn over the stack, straighten it and then put it back in the paper tray or manual feed slot. If the paper is not feeding properly, it may be curled. Remove the paper, straighten it and turn over the stack.
Simultaneous scanning, printing and faxing Your machine can print from your computer while sending or receiving a fax in memory, or while scanning a document into the computer. Fax sending will not be stopped during the computer printing. However, when the machine is copying or receiving a fax on paper, it pauses the computer printing operation, and then continues printing when copying or fax receiving has finished.
Page 137
Printing and Faxing (Mac OS X 10.5.x to 10.6.x) For more page setup options, click the disclosure triangle beside the Printer pop-up menu.
If you want to add a cover page to your document, use this function. Cover Page Type Choose a template for the cover page. Billing Info If you want to add the billing information to the cover page, enter text in the Billing Info box.
Printing and Faxing Layout Pages per Sheet The Pages per Sheet selection can reduce the image size of a page by allowing multiple pages to be printed on one sheet of paper. Layout Direction When you specify the pages per sheet, you can also specify the direction of the layout.
Secure documents are documents that are password protected when they are sent to the machine. Only the people who know the password will be able to print them. Since the documents are secured at the machine, you must enter the password using the control panel of the machine to print them.
Printing and Faxing Print Settings You can change settings by choosing a setting in the Print Settings list: Basic tab Media Type You can change the media type to one of the following: • Plain Paper • Thin Paper •...
Page 142
Printing and Faxing Toner Save Mode You can conserve toner use with this feature. When you set Toner Save Mode to On, print appears lighter. The default setting is Off. Note • We do not recommend Toner Save Mode for printing Photo or Greyscale images.
Page 143
Do not use this setting if the humidity is below 30% or ghosting may increase. Note This feature may not reduce ghosting for all types of paper. Before you buy a lot of paper, test a small quantity to make sure that the paper is suitable.
Page 144
Automatic Duplex Printing (Not available for DCP-7055, DCP-7057 and MFC-7360N) Select Layout. Choose Long-edge binding or Short-edge binding in Two-Sided. Manual duplex Select Paper Handling. • (Mac OS X 10.4.11) Choose Even numbered pages and print, and then choose Odd numbered pages and print.
Page 145
Printing and Faxing • (Mac OS X 10.5.x to 10.6.x) Choose Even Only and print, and then choose Odd Only and print.
Delete button. For Mac OS X 10.5.x to 10.6.x Log in as an ‘Administrator’. From the Apple menu, choose System Preferences. Click Print & Fax, then choose the printer you want to remove and remove it by clicking the - button.
FAQ's for installation instructions. • If you use a USB cable and Mac OS, only one printer driver for a machine can be registered in the Printer Setup Utility (Mac OS X 10.4.11) or Print & Fax in System Preferences (Mac OS X 10.5.x to 10.6.x). If a Brother Laser driver is already listed in the Printer list, you will need to remove it and then install the BR-Script 3 printer driver.
Secure Print allows you to secure documents that are password protected when they are sent to the machine. Only the people who know the password will be able to print them. Since the documents are secured at the machine, you must enter the password using the control panel of the machine. The secured...
Page 149
Stops other applications from modifying the Halftone settings. The Default setting is on. High Quality Image Printing You can increase the quality of image printing. If you set High Quality Image Printing to On, the printing speed will be slower.
Page 150
Do not use this setting if the humidity is below 30% or ghosting may increase. Note This feature may not reduce ghosting for all types of paper. Before you buy a lot of paper, test a small quantity to make sure that the paper is suitable.
Page 151
Printing and Faxing (Mac OS X 10.5.x to 10.6.x) Feature Sets: General 1 Media Type You can change the media type to one of the following: • Plain Paper • Thin Paper • Thick Paper • Thicker Paper • Bond Paper •...
Page 152
If you choose this setting, the paper curl may be reduced. If you are printing only a few pages, you do not need to choose this setting. We recommend that you change the printer driver setting in Media Type to a thin setting.
Page 153
Do not use this setting if the humidity is below 30% or ghosting may increase. Note This feature may not reduce ghosting for all types of paper. Before you buy a lot of paper, test a small quantity to make sure that the paper is suitable.
The Status Monitor utility is a configurable software tool for monitoring the status of the machine, letting you see error messages such as paper empty or paper jam at pre-set update intervals. You can also access the web based management. Before you can use the tool you must choose your machine in the Model pop-up menu in ControlCenter2.
Hiding or showing the window After starting the Status Monitor, you can hide or show the window. To hide the window, go to the menu bar, Brother Status Monitor and choose Hide Status Monitor. To show the window, click the Brother Status Monitor icon in the dock or click the Status Monitor in the DEVICE SETTINGS tab of ControlCenter2.
Create a document in a Macintosh application. From an application such as Apple TextEdit, click File, then Print. (Mac OS X 10.4.11) (Mac OS X 10.5.x to 10.6.x) For more page setup options, click the disclosure triangle beside the Printer pop-up menu.
Page 158
Printing and Faxing Choose Send Fax from the pop-up menu. Choose Facsimile from the Output pop-up menu.
Page 159
Enter a fax number in the Input Fax Number box, and then click Print to send the fax. Note If you want to send a fax to more than one number, click Add after entering the first fax number. The destination fax numbers will be listed in the dialog box.
Drag a vCard from the Mac OS X Address Book application to the Destination Fax Numbers field. Note If both work and home fax numbers are stored in the Mac OS X Address Book, choose work Fax or home Fax from the Stored Fax Numbers pop-up menu, and then drag a vCard.
When you are finished addressing your fax, click Print. Note The vCard used must contain a work Fax or home Fax number. Using Mac OS X 10.5.x to 10.6.x Addresses panel You can address a fax number using the Addresses button.
Page 162
Printing and Faxing Choose the fax number from the Addresses panel and then click To. When you are finished addressing your fax, click Print.
Loading documents in the Basic User's Guide. Note If you want to scan from a machine on a network, choose the networked machine in the Device Selector application located in Macintosh HD/Library/Printers/Brother/Utilities/DeviceSelector or from the Model pop-up menu of ControlCenter2.
The PreScan button is used to preview and also lets you crop any unwanted areas from the image. When you are satisfied you are scanning the correct area, click the Start button in the Scanner Setup dialog box to scan the image.
Resolution You can change the scanning resolution from the Resolution pop-up menu. Higher resolutions take more memory and transfer time, but produce a finer scanned image. The following table shows the resolutions you can choose and the available colours. Resolution Black &...
Page 166
Although using 24bit Color creates an image with the most accurate colour reproduction, the image file size will be about three times larger than a file created using the 256 Color option. It requires the most memory and has the longest transfer time.
Page 167
Custom After you choose a custom size, you can adjust the scanning area. Click and hold the mouse button as you drag the mouse to crop the image. Width: Enter the custom width. Height: Enter the custom height.
Page 168
You can improve and enhance the quality of your scanned images with this selection. The Reduce Noise setting is available when using 24bit Color and scan resolutions of 300 300 dpi, 400 400 dpi or 600 600 dpi.
Using Image Capture In order to use Image Capture included with Mac OS X 10.6.x, the ICA Scanner Driver is required. The Brother CUPS Printer Driver for Mac OS X 10.6.x contains the ICA Scanner Driver. To install the ICA Scanner Driver, go to the downloads selection located on the main page for your model on the Brother Solutions Center (http://solutions.brother.com/).
Page 170
Select the machine from the list on the left side of the screen. If you connected the Brother machine and your Macintosh with a USB cable, you will see the machine in the DEVICES area. If connected via LAN, you will see it in the SHARED area.
Page 171
If the program does not automatically crop the document as you want, you can do it manually by dragging the mouse pointer over the portion you want to scan from the dialog box that can be accessed by clicking on Show Details.
Page 172
Scanning You can adjust the following settings, if needed, in the dialog box accessed by clicking on Show Details. Please note that the item name and assignable value may vary depending on the machine. Scan Mode: Choose Document Feeder or Flatbed.
Scanning Scanning directly from the “Print & Fax” section If you already added your Brother machine in the Print & Fax section, you can scan directly from there. Please follow the steps below: Connect your Brother machine to the Macintosh using a USB cable. Or connect your Brother machine to the same LAN (if you are using a network model) where the Macintosh is connected.
Page 174
If the program does not automatically crop the document as you want, you can do it manually by dragging the mouse pointer over the portion you want to scan from the dialog box that can be accessed by clicking on Show Details.
Page 175
Select the destination folder or destination application for Scan To. You can adjust the following settings, if needed, in the dialog box accessed by clicking on Show Details. Please note that the item name and assignable value may vary depending on the machine.
NewSoft Presto! PageManager 9. Features OCR: In one step you can scan an image, recognize the text, and edit it with a word processor. Image Editing: Enhance, crop and rotate images, or open them with an image-editing program of your choice.
Company name: SoftBay GmbH Postal Address: Carlstraße 50, D-52531, Übach-Palenberg Telephone: 0900 1 409640 (For callers from within Germany, this is not a toll-free call, Callers will be charged at Euro 0.59 per minute) E-mail Address: de.nsc@newsoft.eu.com URL: http://de.newsoft.eu.com/ Company name:...
Page 178
Scanning Italy Company name: Telephone: 0899399878 (For callers from within Italy, this is not a toll-free call, Callers will be charged at Euro 0.80 per minute) E-mail Address: it.nsc@newsoft.eu.com URL: http://it.newsoft.eu.com/ Spain Company name: Telephone: 0807505598 (For callers from within Spain only, this is not a toll-free call, Callers will be charged at Euro 0.94 per minute)
Using ControlCenter2 ControlCenter2 is a software utility that lets you quickly and easily access your often used applications. Using ControlCenter2 eliminates the need to manually launch specific applications. The icon will appear on the menu bar. To open the ControlCenter2 window, click the icon and choose Open.
ControlCenter2 Turning the AutoLoad feature off If you do not want ControlCenter2 to run automatically each time you start your Macintosh, do the following. Click the ControlCenter2 icon in the menu bar and choose Preferences. The ControlCenter2 preference window appears.
ControlCenter2 SCAN There are four scan buttons for the Scan to Image, Scan to OCR, Scan to E-mail and Scan to File applications. Image (Default: Apple Preview) Lets you scan a page directly into any graphic viewer/editor application. You can choose the destination ®...
• Secure PDF is available for Scan to Image, Scan to E-mail and Scan to File. Document Size You can choose the document size from the pull-down list. If you choose a “1 to 2” document size, such as 1 to 2 (A4), the scanned image will be divided into two A5 size documents.
To change the default settings, click the button while holding down the control key and choose Software Button. If you want to scan and then crop a portion of a page after pre-scanning the document, check the Show Scanner Interface box.
Page 184
Note This function is also available for Scan to E-mail and Scan to OCR. The window may vary depending on the function. If you choose Secure PDF from the File Type list, the Set PDF Password dialog box appears. Enter your password in the Password and Re-type Password box and then click OK.
Target Application pop-up menu. You can add an application to the list by clicking the Add button. To delete an application, click the Delete button. If you want to scan and then crop a portion of a page after pre-scanning the document, check the Show Scanner Interface box.
Delete button. When you first start ControlCenter2 a default list of compatible E-mail applications will appear in the pop-up menu. If you are having trouble using a custom application with ControlCenter2 you should choose an application from the list.
File The Scan to File feature lets you scan an image to a folder on your hard disk in any file format. This lets you easily archive your paper documents. To configure the file type and folder, click the button while holding down the control key and choose Software Button.
E-mail addresses chosen from your E-mail address book. Scan to File Lets you save a scanned image to any folder on a local or network hard disk. You can also choose the file type to be used.
• Secure PDF is available for Scan to Image, Scan to E-mail and Scan to File. Document Size You can choose the document size from the pull-down list. If you choose a “1 to 2” document size, such as 1 to 2 (A4), the scanned image will be divided into two A5 size documents.
ControlCenter2 Scan to Image General tab Enter a name in Name for Custom (up to 30 characters) to create the button name. Choose the type of scan from the Scan Action field. Settings tab Choose the Target Application, File Type, Resolution, Scan Type, Document Size, Show Scanner...
ControlCenter2 Scan to OCR General tab Enter a name in Name for Custom (up to 30 characters) to create the button name. Choose the type of scan from the Scan Action field.
Page 192
Choose the Target Application, File Type, OCR Software, OCR Language, Resolution, Scan Type, Document Size, Show Scanner Interface, Brightness and Contrast settings. Note The Scan to OCR function is available for English, French, German, Dutch, Italian, Spanish, Portuguese, Danish, Swedish, Japanese, Korean, Traditional Chinese and Simplified Chinese.
ControlCenter2 Scan to E-mail General tab Enter a name in Name for Custom (up to 30 characters) to create the button name. Choose the type of scan from the Scan Action field. Settings tab Choose the E-mail Application, File Type, Resolution, Scan Type, Document Size, Show Scanner...
Settings tab Choose the file format from the File Type pop-up menu. Save the file to the default folder or choose your preferred folder by clicking the Browse button. Choose the Resolution, Scan Type, Document Size, Show Scanner Interface, Brightness and Contrast settings and enter the file name if you want to change it.
COPY - Lets you use your Macintosh and any printer driver for enhanced copy operations. You can scan a page on the machine and print the copies using any of the features of the machine’s printer driver, or you can direct the copy output to any standard printer driver installed on your Macintosh including network printers.
Page 197
(Mac OS X 10.4.11) To copy, choose Copies & Pages from the pop-up menu. To fax, choose Send Fax from the pop-up menu. (See Sending a fax (MFC models only) on page 149.) (Mac OS X 10.5.x to 10.6.x) For more options click the disclosure triangle beside the Printer pop-up menu.
Lets you open the Remote Setup Program. (See Remote Setup on page 193.) Quick-Dial (MFC models only) Lets you open the Set Quick-Dial window of Remote Setup. (See Remote Setup on page 193.) Status Monitor Allows you to open the Status Monitor Utility.
ControlCenter2 Remote Setup (MFC models only) The Remote Setup button lets you open the Remote Setup Program window to configure the machine setting menus. Note For details, see Remote Setup on page 193.
ControlCenter2 Quick-Dial (MFC models only) The Quick-Dial button lets you open the Address Book window in the Remote Setup Program, so you can easily register or change the Quick-Dial numbers on your Macintosh. Status Monitor The Status Monitor button allows you to monitor the status of one devices, allowing you to get immediate...
The Remote Setup application lets you configure many machine and network settings from a Macintosh application. When you access this application, the settings on your machine will be downloaded automatically to your Macintosh and displayed on your Macintosh screen. If you change the settings, you can upload them directly to the machine.
Page 202
Remote Setup Print Lets you print the chosen items on the machine. You cannot print the data until it is uploaded to the machine. Click Apply to upload the new data to the machine and then click Print. ...
Page 203
Section IV Using The Scan key Scanning (For USB cable users) Network Scanning...
Scanning (For USB cable users) Using the Scan key Note If you use the SCAN key when connected to a network, see Network Scanning on page 201. You can use (SCAN) on the control panel to scan documents into your word processing, graphics or E-mail applications or a folder on your computer.
SCAN on page 173.) • If you want to change the default file size for JPEG, PDF or Secure PDF, choose your preferred size by moving the scroll bar on the Device Scan Settings screen of ControlCenter4 or Device Button tab of the...
SCAN on page 173.) • If you want to change the default file size for JPEG, PDF or Secure PDF, choose your preferred size by moving the scroll bar on the Device Scan Settings screen of ControlCenter4 or Device Button tab of the...
If your original document is text, you can use ScanSoft™ PaperPort™ 12SE or Presto! PageManager to scan the document and convert it into a text file which can then be edited in your favorite word processing software. Load your document.
Scan to File You can scan a black and white or a colour document into your computer and save it as a file in a folder of your choice. The file type and specific folder are based on the settings you have chosen in the Device Scan ®...
• For network scanning, a maximum of 25 clients can be connected to one machine on a network. For example, if 30 clients try to connect at a time, 5 of those clients will not be shown on the LCD.
Network Scanning ® Configuring Network Scanning (Windows If you are using a different machine than the one that was originally registered to your PC during the installation of MFL-Pro Suite software (see the Quick Setup Guide), follow the steps below. ®...
Page 211
) For users who do not have administrator rights: Enter the administrator password and click OK. ® (Windows 7) For users who do not have administrator rights: Enter the administrator password and click Yes. Click the Network Setting tab and choose the appropriate connection method.
Page 212
If you want to avoid receiving unwanted documents, enter a 4-digit PIN number in the Pin number and Retype Pin number field. To send data to a PC protected by a PIN number, the LCD prompts you to enter the PIN number before the document can be scanned and sent to the PC. (See Using the Scan...
Network Scanning Configuring Network Scanning (Macintosh) If you want to scan from the machine on a network, you must choose the networked machine in the Device Selector application located in Macintosh HD/Library/Printers/Brother/Utilities/DeviceSelector or from the Model drop-down list in the main screen of ControlCenter2. If you have already installed the MFL-Pro Suite Software following the network installation steps in the Quick Setup Guide then this selection should already be made.
171. Scan to E-mail When you choose Scan to E-mail (PC) your document will be scanned and sent directly to the computer you designated on your network. ControlCenter4 or ControlCenter2 will activate the default E-mail application on the designated computer. You can scan and send a black and white or colour document from the computer as an attachment.
Home Mode or Configuring Scan button settings on page 88 for Advanced Mode. For Macintosh, see SCAN on page 173.) • If you want to change the default file size, choose your preferred size by moving the scroll bar on the Device Scan Settings screen of ControlCenter4 or Device Button tab of the ControlCenter2 configuration screen.
Home Mode or Configuring Scan button settings on page 88 for Advanced Mode. For Macintosh, see SCAN on page 173.) • If you want to change the default file size, choose your preferred size by moving the scroll bar on the Device Scan Settings screen of ControlCenter4 or Device Button tab of the ControlCenter2...
If your original document is text, you can use ScanSoft™ PaperPort™ 12SE or Presto! PageManager to scan the document and convert it into a text file which can then be edited in your favorite word processing software. Load your document.
Scan to File When you choose Scan to File, you can scan a black and white or colour document and send it directly to a computer you designate on your network. The file will be saved in the folder and file format that you have configured in the Device Scan Settings screen of ControlCenter4 or Scan to File screen of ControlCenter2.
Network Scanning Scan to FTP (For MFC-7460DN and MFC-7860DW) When you choose Scan to FTP, you can scan a black and white or colour document directly to an FTP server on your local network, or on the internet. The details required to use Scan to FTP can be entered by using Web Based Management to pre-configure and store the details in an FTP Profile.
Page 220
Choose the Profile you want to configure in FTP Scan Profile. Enter the name that you want to use for the profile of the FTP server. This name will be displayed on the LCD of the machine and can be up to 15 characters.
Page 221
Choose the file name you want to use for the scanned document. You can choose from seven preset and two user defined File Names. The file name that will be used for your document will be the file name you selected plus the last 6 digits of the flatbed/ADF scanner counter plus the file extension (For example, Estimate098765.pdf).
Page 222
If you want to change the file name, go to step j. Press a or b to choose a file name you want to use and press OK. Press Start and go to step l. Note If you want to change the file name manually, go to step k.
Index Printer driver ............. 126 ® Windows Booklet printing ........... 19 BR-Script 3 mode ............3 BR-Script 3 printer driver ........35 Duplex printing ............ 19 Printer driver ............15 ControlCenter2 Macintosh ............171 ControlCenter4 ® Remote Setup Windows .............. 63 Macintosh .............
