Quick Setup Guide
Start Here
Please read the Safety and Legal booklet first before you set up your machine. Then, please read this Quick Setup
Guide for the correct setup and installation.
To view the Quick Setup Guide in other languages, please visit http://solutions.brother.com/.
WARNING
CAUTION
1
Unpack the machine and check the components
Drum Unit and Toner Cartridge Assembly
(pre-installed)
WARNING
Plastic bags are used in the packaging of your machine. Plastic bags are not toys. To avoid danger of
suffocation, please keep these bags away from babies and children and dispose of them properly.
WARNING indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injuries.
CAUTION indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injuries.
Installation CD-ROM,
Documentation CD-ROM
Basic User's Guide

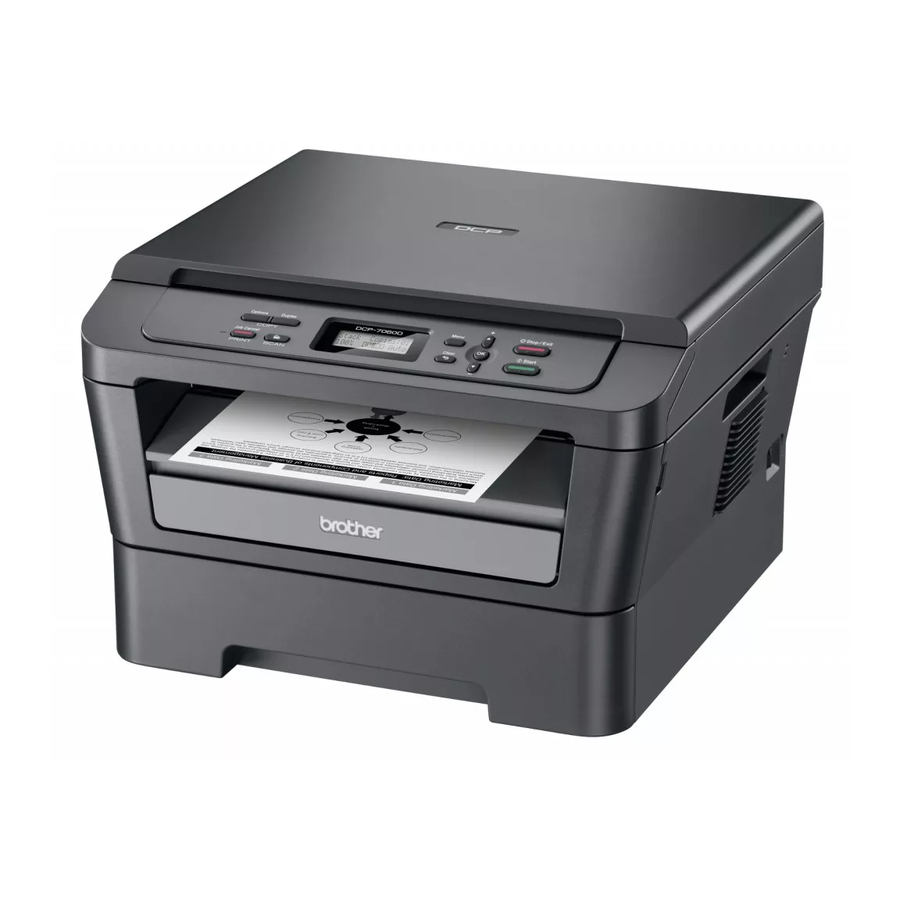

DCP-7060D
DCP-7065DN
Product Registration
Sheet
(USA only)
Quick Setup Guide
AC Power Cord
Safety and Legal booklet
USA/CAN Version 0
1

Advertisement

   Also See for Brother DCP-7060D

   Summary of Contents for Brother DCP-7060D

  • Page 1 Quick Setup Guide Start Here DCP-7060D DCP-7065DN Please read the Safety and Legal booklet first before you set up your machine. Then, please read this Quick Setup Guide for the correct setup and installation. To view the Quick Setup Guide in other languages, please visit http://solutions.brother.com/.
  • Page 2 When you move the machine, grasp the side handholds that are under the scanner. DO NOT carry the machine by holding it at the bottom. Note • Keep a minimum gap around the machine as shown in the illustration. DCP-7060D 13.8 in. (350 mm) 3.55 in. 3.95 in.
  • Page 3 Remove the packing Lift the elastic band off the drum. material from the machine IMPORTANT DO NOT connect the AC power cord yet. Remove the packing tape from the outside of the machine and the film covering the scanner glass. Open the front cover.
  • Page 4 Gently shake it from side to side several times Load paper in the paper to distribute the toner evenly inside the assembly. tray Pull the paper tray completely out of the machine. Put the drum unit and toner cartridge assembly back in the machine.
  • Page 5 Put paper in the tray and make sure: Note The paper is below the maximum paper  For Legal or Folio size paper, press the release mark (b b b) a. button in the bottom of the paper tray and then Over filling the paper tray will cause paper pull out the back of the paper tray.
  • Page 6: Connect The Power Cord

    Connect the power cord Set the LCD contrast (if needed) If you are having difficulty reading the LCD, try IMPORTANT changing the contrast setting. DO NOT connect the interface cable yet. Press Menu. Press a or b to choose 1.General Setup. Connect the AC power cord to the machine, Press OK.
  • Page 7: Choose Your Connection Type

    Choose your connection type ® ® ® These installation instructions are for Windows 2000 Professional, Windows XP Home/Windows ® ® ® Professional, Windows XP Professional x64 Edition, Windows Vista , Windows 7, and Mac OS X (versions 10.4.11, 10.5.x and 10.6.x). Note ®...
  • Page 8 ® Windows For USB Interface Users ® ® ® (Windows 2000 Professional/XP/XP Professional x64 Edition/Windows Vista /Windows Before you install Install MFL-Pro Suite Make sure that your computer is ON and you Put the installation CD-ROM into your are logged on with Administrator rights. CD-ROM drive.
  • Page 9 ® Windows Connect the USB cable to the USB connector marked with the symbol on your machine and then connect the cable to your computer. Turn the machine on, and follow the on-screen instructions to complete setup. IMPORTANT DO NOT cancel any of the screens during the installation.
  • Page 10 Macintosh For USB Interface Users (Mac OS X 10.4.11 - 10.6.x) Before you install Install MFL-Pro Suite Make sure your machine is connected to the Put the installation CD-ROM into your power and your Macintosh is ON. You must be CD-ROM drive.
  • Page 11 Macintosh Download and install Presto! PageManager When Presto! PageManager is installed OCR capability is added to Brother ControlCenter2. You can easily scan, share and organize photos and documents using Presto! PageManager. On the Brother Support screen, click Presto! PageManager and follow the on-screen instructions.
  • Page 12 Wired Network ® Windows For Wired Network Interface Users (DCP-7065DN only) ® ® ® (Windows 2000 Professional/XP/XP Professional x64 Edition/Windows Vista /Windows Connect the network interface cable to the LAN Before you install connector and then connect it to a free port on your hub.
  • Page 13 Wired Network ® Windows Install MFL-Pro Suite on When the Firewall/AntiVirus detected screen appears, choose Change the Firewall port additional computers settings to enable network connection and (if needed) continue with the installation. (Recommended) and click Next. ® (Not for Windows 2000 users) If you want to use your machine with multiple computers on the network, install MFL-Pro Suite on...
  • Page 14 Wired Network Macintosh For Wired Network Interface Users (DCP-7065DN only) (Mac OS X 10.4.11 - 10.6.x) Before you install Install MFL-Pro Suite Make sure your machine is connected to the Put the installation CD-ROM into your power and your Macintosh is ON. You must be CD-ROM drive.
  • Page 15 Wired Network Macintosh Note Download and install • You can find your machine’s MAC Address Presto! PageManager (Ethernet Address) and IP Address by printing out the Network Configuration Report. See Print the Network Configuration Report on page 16. When Presto! PageManager is installed OCR •...
  • Page 16: Web Based Management

    For Network Users (DCP-7065DN only) Web Based Management Print the Network Configuration (web browser) Report The Brother print server is equipped with a web server You can print the Network Configuration Report to that allows you to monitor its status or change some confirm the current network settings.
  • Page 17 Other Information Brother CreativeCenter Get inspired. If you're using Windows, double-click the Brother CreativeCenter icon on your desktop to access our FREE web site with many ideas and resources for personal and professional use. Mac users can access Brother CreativeCenter at this web address: http://www.brother.com/creativecenter/...
  • Page 18 Consumables Consumables When the time comes to replace consumable items, an error will be indicated by the LCD on the control panel. For more information about the consumables for your machine, visit us at http://solutions.brother.com/ or contact your local Brother reseller. Toner cartridges Drum unit Standard Toner: TN-420...
  • Page 19 Trademarks The Brother logo is a registered trademark of Brother Industries, Ltd. Brother is a registered trademark of Brother Industries, Ltd. Microsoft, Windows, Windows Server and Internet Explorer are registered trademarks of Microsoft Corporation in the United States and/or other countries. Windows Vista is either a registered trademark or a trademark of Microsoft Corporation in the United States and other countries.
