Taurus TF-PU1207HT Operating Instructions

Operating Instructions
Art. No. TF-PU1207HT
Chin-up Bar
Specifi cation
The Taurus chin-up bar Premium is a solid chin-up bar for wall mounting
that off ers various diff erent grip positions. Upper grip, lower grip or parallel
hand position - the chin-up bar off ers all grip variations, as well as special
ball grips/climbing grips that are particularly well suited to additionally
improve the forearm muscles and grip strength. As a special highlight, the
wide pull-up bars are available with two diff erent grip diameters.
The pull-up bar can be loaded with up to 120 kg (please also note the
wall condition).
+ Chin-up bar with many grip positions
+ Very solid steel construction
+ Wide chin-up grip with two diff erent grip diameters possible
+ Incl. two ball handles | climbing handles
+ With angled, parallel and straight handles in diff erent grip widths
+ Several ways to attach support straps or a sling trainer
Technical Data
Packaging dimensions (L x W x H):
Weight (gross, incl. packaging):
Max. load approx.:
FSTFPU1207HT.01.02
Assembly
Before assembly, take a close look at the individual assembly steps shown
and carry out the assembly in the order given.

NOTICE
First loosely screw all parts together and check that they fi t properly.
Tighten the screws using the tool only when you are instructed to do
so.
65 cm x 49 cm x 13 cm
14 kg
120 kg

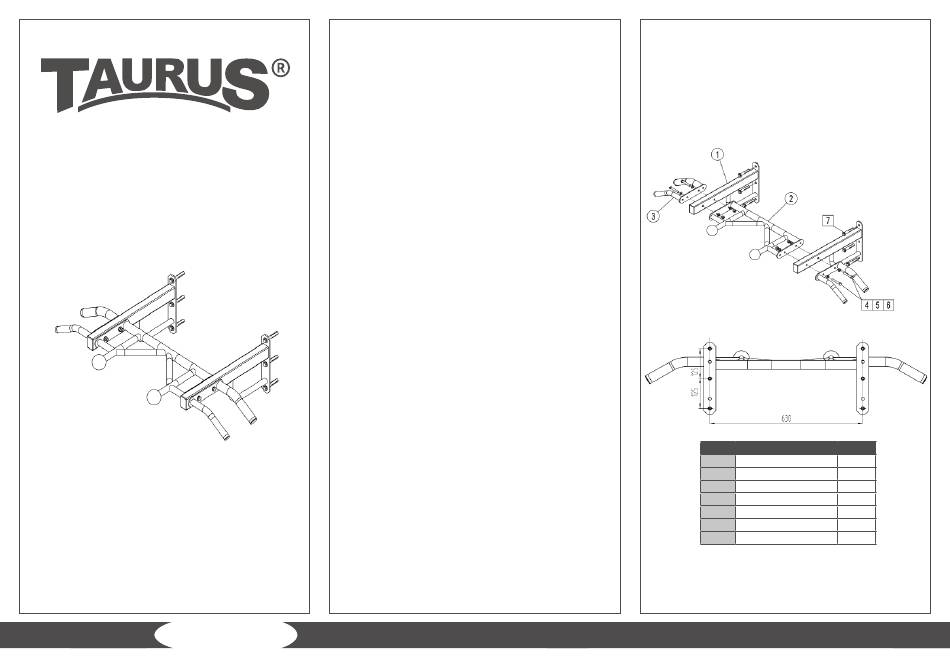

Assemble both side frames (1) and both small handles (3) to the big
handle (2) by using two bolts (4), four washers (5) and two lock nuts (6)
on each side.
No. Description Qty.
1 Side Frame 2
2 Big Handle 1
3 Small Handle 2
4 Bolt M10*65 4
5 Washer 10 8
6 Lock Nut M10 4
7 Expansion Bolt Set 6
