Summary of Contents for Taurus TF-PTT0219

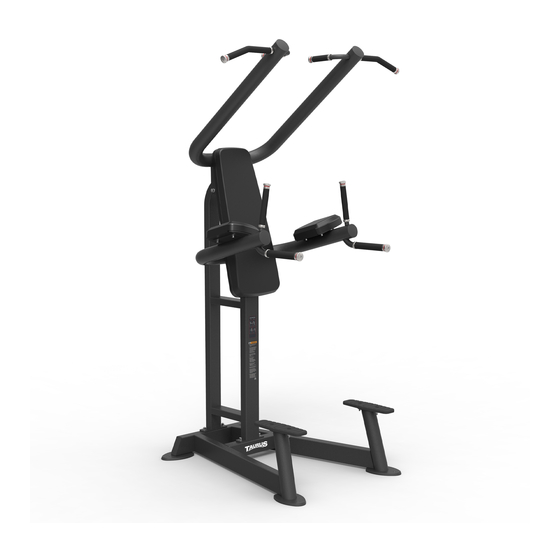

- Page 1 Assembly Instructions max. 180 kg ~ 45 Min. 93 kg L 119 | W 126 | H 230 TFPTT0219.01.01 Art. No. TF-PTT0219 Taurus Studio Power Tower...
- Page 2 Power Tower...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing... - Page 4 With Taurus® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
- Page 5 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
-
Page 6: General Information
GENERAL INFORMATION Technical Data Weight and Dimensions: Packaging dimensions (L x W x H) and weight approx.: Box 1: 159 cm x 89 cm x 42.5 cm 69 kg Box 2: 78 cm x 9 cm x 48.5 cm 8.5 kg Box 3: 130 cm x 118 cm x 29.5 cm 27.5 kg... -
Page 7: Personal Safety
Personal Safety DANGER ⚠ Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 8: Set-Up Place
Set-Up Place WARNING ⚠ Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 9: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. - Page 10 Power Tower...
-
Page 11: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. Step 1: Assembly of the Foot Frame and Floor Stander Mount the floor stander (2) to the foot frame (1) with four screws (18), four spring washers (28) and... - Page 12 Step 2: Assembly of the Parallel Bars Bracket Mount the parallel bars bracket (3) to the floor stander (2) with two screws (17), four plain washers (26) and two nuts (30). Name Specification Qty. Floor stander Parallel bars bracket Hex Socket Head Cap Screw M12*140 Plain washer Φ24*Φ13*2.5...
- Page 13 Step 3: Assembly of the Back Pad and Chinup Attachment Mount the back pad (46) to the floor stander (2) with two screws (19), two spring washers (27) and two plain washers (24). Mount the chinup attachment (48) to the floor stander (2) with three screws (17), six plain washers (26) and three nuts (30).
- Page 14 Step 4: Assembly of the Arm Pads and Pedals Mount the arm pads (47) onto the parallel bars bracket (3) with four screws (45), four spring washers (27) and four plain washers (24) each. Mount the rubber covered pedals (6) onto the foot frame (1) with two screws (20), two plain washers (25) and two nuts (29) each.
-
Page 15: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑... -
Page 16: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Screw connections Cushions Legend: C = clean;... -
Page 17: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. This could be a floor mat, for example, which makes your fitness equipment stand more securely and also protects the floor from falling sweat, but it could also be additional handrails on some treadmills or silicone spray to keep moving parts in good shape. -
Page 18: Ordering Spare Parts
The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: Taurus / multi-gym Model Name: Studio Power Tower Article Number: TF-PTT0219... -
Page 19: Parts List
Parts List Name Specification Qty. Foot frame Floor stander Parallel bars bracket Rubber mat Plug Rubber covered pedal Handle grip Handle grip Round pipe plug Pipe plug Reed nut M6*Φ20.8*10 Reed nut M6*27.2*15 Hex socket head cap screw M12*140 Hex socket head cap screw M10*35 Hex socket head cap screw M8*75... - Page 20 Hexagon socket set screws with cone point M5*5 Spring washer Hex socket head cap screw M6*25 Hex socket head cap screw M8*30 Back pad Arm pad Chinup attachment Power Tower...
-
Page 21: Exploded Drawing
Exploded View Exploded Drawing 30 26 26 1 7... -
Page 22: Warranty
WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 23 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
-
Page 24: Contact
CONTACT TECHNICAL SUPPORT TECHNICAL SUPPORT & SERVICE TECHNICAL SUPPORT & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 �� +49 4621 4210-698 �� �� info@fitshop.dk service-france@fitshop.fr �� technik@sport-tiedje.de ��... - Page 25 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA Sport-Tiedje is Europe’s largest specialist store www.sport-tiedje.co.uk for home fitness equipment with currently over www.sport-tiedje.de/blog 70 stores and one of the world’s most renowned online mail order companies for fitness equipment. Private customers order via the 25 www.facebook.com/SportTiedje web shops in the respective national language or have their desired equpiment assembled on...
- Page 26 Notes Power Tower...
- Page 28 Taurus Studio Power Tower...
