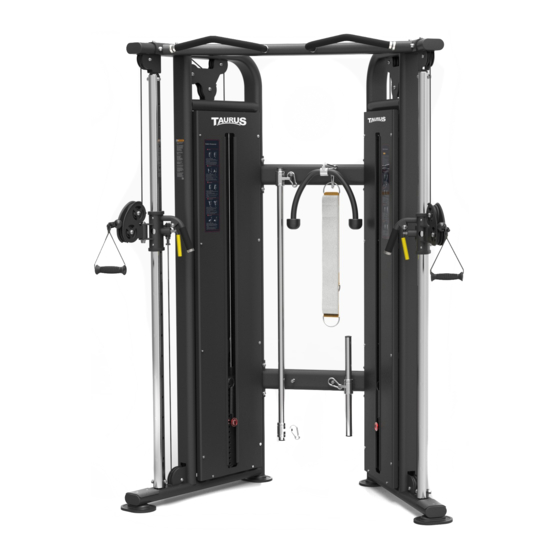

- Page 1 Assembly and Operating Instructions max. 180 kg ~ 180 Min. ~ 120 Min. 323 kg L 84 | W 152 | H 212 TFPC0921.01.02 Art. No. TF-PC0921 Taurus Elite Dual Pulley...
- Page 2 Dual Pulley...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing... - Page 4 Dual Pulley...
- Page 5 With Taurus® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
-
Page 7: General Information
GENERAL INFORMATION Technical Data Weight and dimensions: Packaging dimensions (L x W x H) and weight approx: No.1: 216 cm x 56.5 cm x 105 cm 193 kg No.2: 30.5 cm x 11.5 cm x 12.5 cm 187.5 kg Article weight (net, without packaging): 322.5 kg Set-up dimensions (L x W x H) approx.: 84 cm x 152 cm x 212 cm... -
Page 8: Personal Safety
Personal Safety DANGER ⚠ Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 9: Set-Up Place
Set-Up Place WARNING ⚠ Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 10: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. -
Page 11: Scope Of Delivery
Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. CAUTION ⚠... - Page 12 Item No. Name Description Qty. Left doorframe Right doorframe Upper beam bracket Link span Long handle support Pull back rope set Handle grips Short handle Foot strap Rubber foot Hardware pack Dual Pulley...
-
Page 13: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. Step 1: Assembly of the Link Spans Assemble the upper link span (4) to the left and right doorframes (1&2) by using four screws... - Page 14 Step 2: Assembly of Upper Beam Bracket Assemble the upper beam bracket (3) to the left and right doorframes (1&2) by using two screws (46), two spring washers (57) and two plain washers (54) on each upper side. Fasten the upper beam bracket (3) by using one screw (46), one spring washer (57) and one plain washer (54) on each side.
- Page 15 Step 3: Assembly of Weight Stack Plates Insert the guide rods (10) to the lower side of the right doorframe (2) and place the two rod end covers (34). Slide the two rubber bumpers (38) onto the guide rods (10). Slide the 19 weight stack plates (21) onto the guide rods (10).
- Page 16 Step 4: Assembly of Front Shields Assemble both front shields (66) by using ten screws (67) and ten washers (68) on each side. Dual Pulley...
- Page 17 Step 5: Assembly of Accessories Attach the latpulldown cable (19), foot strap (18) and long handle support (12) to the upper link span (4). Attach the short handle (17) and handle grips (69) to the lower link span (4).
-
Page 18: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑... -
Page 19: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. CAUTION ⚠ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. -
Page 20: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Cables Screw connections Pulleys and cable routing... -
Page 21: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. For training equipment like smith machines, weight benches or racks this could for example be a floor mat, which makes your fitness equipment stand more securely and also protects the floor from sweat but it could be also additional weights, handles, foot straps for leg exercises or triceps ropes. -
Page 22: Ordering Spare Parts
The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: Taurus / Multi-gym Model Name: Elite Dual Pulley Article Number: TF-PC0921... -
Page 23: Parts List
Parts List Name Specification Qty. left doorframe right doorframe upper beam bracket link span rotary frame roller hanger left adjusting pipe right adjusting pipe guide rod Φ20*1726 guide rod fixing plate long handle support mounting pole ringer shield cable set Φ4.8 short handle foot strap... - Page 24 rubber foot 175*125*11 rubber bumper Φ62*Φ20*26 rubber bumper Φ38*Φ33*15 plug Φ12.5*Φ11.2*20 blind nuts hexagon socket button head M10*65thread25 screw hexagon socket button head M10*55thread25 screw hexagon bolt hexagon socket head screw M10*45thread25 Hexagon socket button head M10*25 screw Hexagon socket head screw M8*25 hexagon socket button head M12*90thread30...
- Page 25 hexagon socket head screw M10*25 rings components hook cover aluminum end cover Φ38*Φ6.5*13 aluminum ring Φ32*Φ23*14.5 aluminum baffle ring Φ35*Φ26*13 plastic ring Φ30*Φ26*4.5 socket cap screw M6*25 spring washer inner hexagon end set screw M5*5 reinforcing regula 16*9*1560 countersunk head pull mandrel 5*12 rivet protect plate...
-
Page 26: Exploded Drawing
Exploded View Exploded Drawing Dual Pulley... -
Page 27: Warranty
WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 28 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
-
Page 29: Contact
CONTACT TECHNIK TEKNIK OG SERVICE TECHNIQUE & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 �� +49 4621 4210-698 �� �� info@fitshop.dk service-france@fitshop.fr �� technik@sport-tiedje.de �� �� Åbningstider kan findes på... - Page 30 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA Sport-Tiedje is Europe’s largest specialist store www.sport-tiedje.co.uk for home fitness equipment with currently over www.sport-tiedje.de/blog 70 stores and one of the world’s most renowned online mail order companies for fitness equipment. Private customers order via the 25 www.facebook.com/SportTiedje web shops in the respective national language or have their desired equpiment assembled on...
- Page 32 Taurus Elite Dual Pulley...
