Steelcraft 70-10320 Quick Start Manual

PARTS LIST:

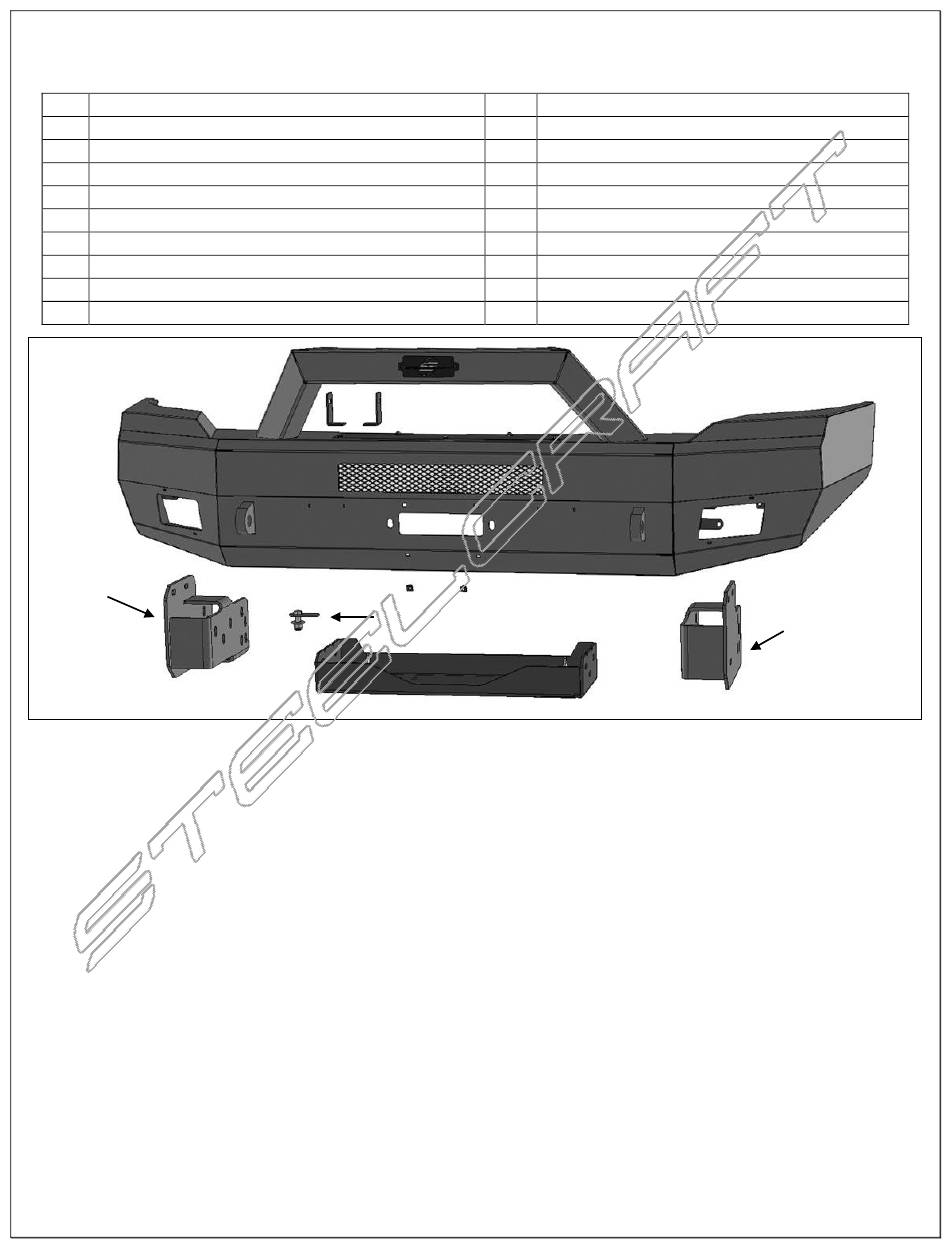

1 Elevation Bull Nose Front Bumper Assembly
1 Winch Tray Assembly
1 Driver/left Frame Mounting Bracket
1 Passenger/right Frame Mounting Bracket
1 Winch Access Cover
1 Driver/left LED light bracket
1 Passenger/right LED light bracket
2 Plastic Plugs for License Plate
2 12mm Bolt Plates
6 12-1.75mm x 140mm Hex Bolts
Passenger/Right
Frame Mounting
Bracket
PROCEDURE: REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ
INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. BUMPER IS HEAVY, ASSISTANCE
IS HIGHLY RECOMMENDED TO AVOID POSSIBLE INJURY OR DAMAGE TO THE VEHICLE.
1. Remove the license plate and bracket. On models with factory fog lights, unplug both lights and
harness leading to the bumper, (Figures 1 & 2). Move all wiring harnesses away from bumper.
2. Remove the outer bumper supports on each side of the frame, leading from the frame to the outer ends
of the bumper, (Figures 2 & 15).
3. Place blocks or jack stands under the front bumper to support it during mounting bolt removal. Once the
bumper has been safely supported, remove the factory hex nuts and double bolt plate attaching the
inner bumper bracket to the ends of the frame, (Figure 3). WARNING! Assistance is required to hold
the bumper in place during bolt removal to prevent the bumper from falling. Slide the bumper assembly
off of the frame.
4. Remove both tow hooks from the ends of the frame, (Figures 4 & 5).
5. Select the driver/left Frame Mounting Bracket. Attach the Bracket to the frame with (1) 12mm x 140mm
Hex Bolt, (2) 12mm Flat Washers and (1) 12mm Nylon Lock Nut, (Figure 6). It may be easier to attach
the Bracket at the top mounting hole first before inserting the remaining long hex bolts.
6. Next, insert (1) 12mm Bolt Plate into the end of the Bracket and out through the hole to the inside wall
of the frame, (Figure 6). Secure the Bracket to the Bolt Plate with (1) 12mm Flat Washer and (1) 12mm
Nylon Lock Nut. Leave hardware loose at this time.
7. Repeat Step 5 to insert (2) 12mm x 140 Hex Bolts, (4) 12mm Flat Washers and (2) 12mm Nylon Lock
Nuts through the (2) remaining mounting holes in the driver/left Mounting Bracket, (Figures 6—9).
ELEVATION BULL NOSE FRONT BUMPER
12 12-1.75mm x 50mm Hex Bolts
38 12mm x 32mm OD x 3mm Flat Washers
20 12mm Nylon Lock Nuts
2 8-1.25mm x 25mm Hex Bolts
2 8-1.25mm x 16mm Hex Bolt
6 8mm x 24mm x 2mm Flat Washer
4 8mm Lock Washers
2 8mm Hex Nuts
5 6mm Combo Bolts (winch access cover)
1
4mm Wrench (combo bolts)
Left and Right Bar
Light "L" Brackets
(2) License Plate Plugs
(2) 12mm Bolt Plates
Page 1 of 6
2007-13 CHEVY SILVERADO 1500
Driver/Left Frame
Mounting Bracket
6/12/17 (DP)
