PARTS LIST:
1 Bull Bar

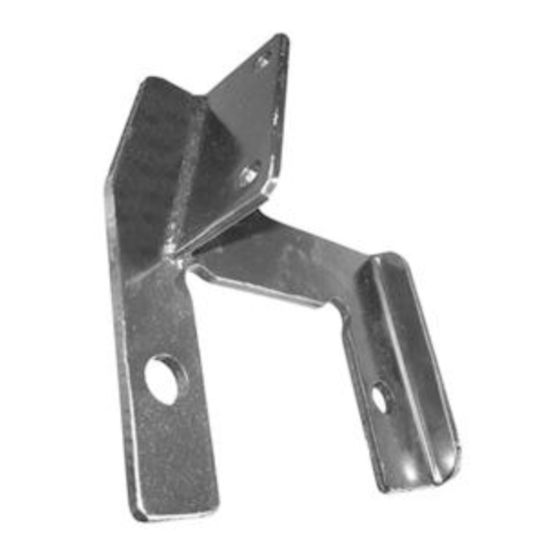

1 Driver/Left Mounting Bracket
1 Passenger/Right Mounting Bracket
PROCEDURE:
1. REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ
INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
2. NOTE: It may be necessary to remove/relocate front license plate and license plate bracket. It
is not required, but strongly recommended. If local/state law requires a license plate, license
plate relocation kit is available.
3. Start installation at the driver side front of the vehicle. Remove the tow hook loop from the
bracket. Leave the tow hook bracket in place. NOTE: Tow hook loops may be reinstalled once
Bull Bar Brackets are in place but it is not recommended.
4. Remove the (2) factory hex bolts attaching the tow hook bracket to the bumper. Do not remove
the bracket. Select the driver side Bull Bar Mounting Bracket. Bolt the Bull Bar Bracket to the
tow hook mounting bracket using the factory hex bolts.
5. Repeat Steps 3—4 to install the passenger side Bull Bar Bracket.
6. With help, position the Bull Bar onto the outside of the (2) Mounting Brackets. Attach the Bull
Bar to the Brackets with the included (4) 8mm x 30mm Hex Bolts, (8) 8mm Flat Washers, (4)
8mm Nylon Lock Nuts.
7. Level and adjust the Bull Bar and tighten all hardware at this time.
8. Do periodic inspections to the installation to make sure that all hardware is secure and tight.
To protect your investment, wax this product after installing. Regular waxing is recommended to
add a protective layer over the finish. Do not use any type of polish or wax that may contain
abrasives that could damage the finish.
For stainless steel: Aluminum polish may be used to polish small scratches and scuffs on the
finish. Mild soap may be used also to clean the Bull Bar.
For gloss black finishes: Mild soap may be used to clean the Bull Bar.
4
8
4
Passenger/Right Side
Mounting Bracket
Page 1 of 2
8-1.25mm x 30mm Hex Bolts
8mm x 16mm x 1.6mm flat washers
8mm Nylon Lock Nuts
Driver/Left Side
Mounting Bracket
3" BULL BAR
2006-2010 HUMMER H3
Rev1 (DP) 3/20/14
