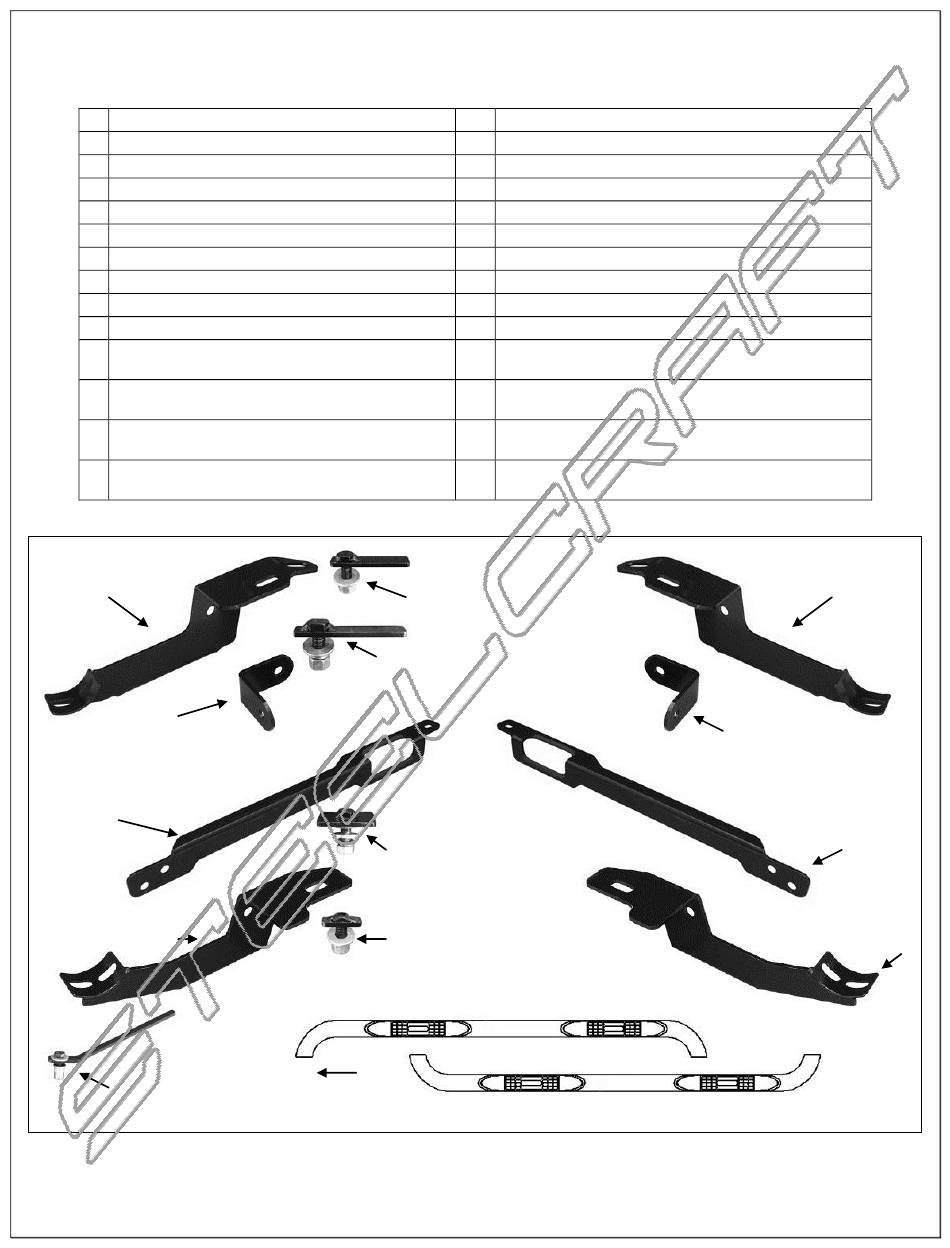

PARTS LIST:
1 Driver/Left Sidebar
1 Passenger/Right Sidebar
1 Driver/Left Front Mounting Bracket
1 Passenger/Right Front Mounting Bracket
1 Driver/Left Rear Mounting Bracket
1 Passenger/Right Rear Mounting Bracket
1 Driver/Left Front Support Bracket
1 Passenger/Right Front Support Bracket
1 Driver/Left Rear Support Bracket
1 Passenger/Right Rear Support Bracket
12-1.75mm x 35mm T-Bolt Plate (Front
2
Bracket Only)
10-1.50mm x 35mm "Wide" T-Bolt Plate (Front
2
Support Bracket Only)
12-1.75mm x 40mm Long Bolt Plate (Rear
2
Bracket Only)
10-1.50mm x 35mm Bolt Plate (Rear Bracket
2
Only)
Passenger/Right
Rear Mounting
Bracket
Passenger/Right Rear
Support Bracket
Passenger/Right
Front Support Bracket
Passenger/Right Front
Mounting Bracket
8mm Threaded Insert
Tool (pictured w/insert
and hardware)
2 8mm Threaded Inserts
1 Insert Tool
4 12-1.75mm x 32mm OD x 3mm Flat Washers
4 12mm Lock Washers
4 12mm Hex Nuts
6 10-1.50mm x 30mm Hex Bolts
4 10mm x 27mm OD x 3mm Large Flat Washers
12 10mm x 20mm OD x 2mm Small Flat Washers
4 10mm Lock Washers
6 10mm Nylon Lock Nuts
4 10mm Hex Nuts
10 8-1.25mm x 30mm Hex Bolts
10 8mm x 24mm OD x 2mm Flat washers
10 8mm Lock Washers
(2) 10mm x 35mm Bolt
Plate (Rear Bracket Only)
(2) 12mm x 40mm Long Bolt
Plate (Rear Bracket Only)
(2) 10mm x 35mm "Wide T" Bolt
Plate (Front Support Bracket Only)
(2) 12mm x 35mm "T" Bolt
Plate (Front Bracket Only)
Passenger/Right Sidebar
Front
Page 1 of 5
2011-13 FORD EXPLORER
Driver/Left Rear
Support Bracket
Driver/Left Sidebar
SIDEBARS
Driver/Left Rear
Mounting Bracket
Driver/Left Front
Support Bracket
Driver/Left Front
Mounting Bracket
4/27/11 (DP)
Advertisement
Table of Contents
Related Manuals for Steelcraft 213900
Summary of Contents for Steelcraft 213900
- Page 1 SIDEBARS 2011-13 FORD EXPLORER PARTS LIST: 1 Driver/Left Sidebar 2 8mm Threaded Inserts 1 Passenger/Right Sidebar 1 Insert Tool 1 Driver/Left Front Mounting Bracket 4 12-1.75mm x 32mm OD x 3mm Flat Washers 1 Passenger/Right Front Mounting Bracket 4 12mm Lock Washers 1 Driver/Left Rear Mounting Bracket 4 12mm Hex Nuts 1 Passenger/Right Rear Mounting Bracket...
- Page 2 SIDEBARS 2011-13 FORD EXPLORER PROCEDURE: 1. REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. DRILLING IS REQUIRED. ASSISTANCE IS RECOMMENDED. 2. Start installation under the driver side of the vehicle. Select (1) 12mm x 35mm Small T-Bolt Plate and insert it into the factory oval hole in the floor panel, (Figures 1A &...
- Page 3 SIDEBARS 2011-13 FORD EXPLORER To protect your investment, wax this product after installing. Regular waxing is recommended to add a protective layer over the finish. Do not use any type of polish or wax that may contain abrasives that could damage the finish. For stainless steel: Aluminum polish may be used to polish small scratches and scuffs on the finish.
- Page 4 SIDEBARS 2011-13 FORD EXPLORER Driver Side Installation Pictured (2) 10mm x 25 Hex Bolts (4) 10mm x 20mm Small Flat Washers 10mm x 35mm Bolt Plate (2) 10mm Nylon Lock Nuts 10mm Large Flat Washer 10mm Lock Washer 10mm Hex Nut Front Fig 6B Fig 5...
- Page 5 SIDEBARS 2011-13 FORD EXPLORER Driver Side Installation Pictured 8mm x 30mm Hex Bolt 8mm Flat Washer Insert Tool 8mm Expanding Threaded Insert Fig 10B Rear Fig 10C (Fig 9) Mark Support Bracket location onto pinch weld. Carefully drill the location with 7/16" drill bit.
