Steelcraft HD11370RW Manual

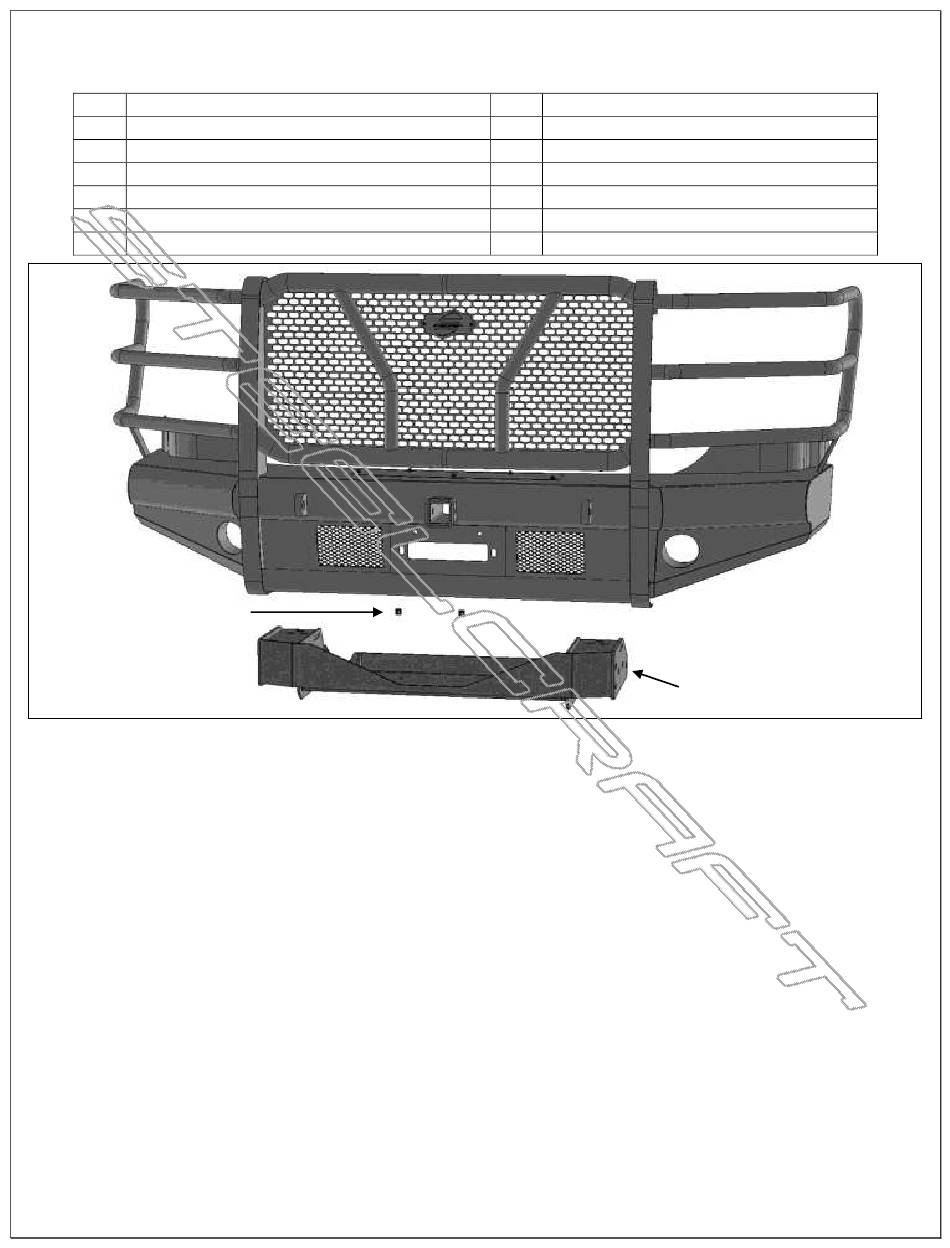

PARTS LIST:
1 HD Replacement Front Bumper Assembly
1 Winch Tray Bracket Assembly
1 Bumper Cover Plate
2 Plastic Plugs for license plate mount
18 12-1.75mm x 50mm Hex Bolts
36 12mm x 32mm x 3mm Flat Washers
18 12mm Lock Washers
(2) License
Plate Plugs
PROCEDURE:
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS
CAREFULLY BEFORE STARTING INSTALLATION. BUMPER IS HEAVY, ASSISTANCE IS
HIGHLY RECOMMENDED TO AVOID POSSIBLE INJURY OR DAMAGE TO THE VEHICLE.
1. Remove the license plate and bracket. On models with factory fog lights, unplug wiring
harness leading to the bumper, (Figures 1 & 2). Move harness away from bumper.
2. Release the rubber air deflector from the back of the bumper. Next, remove the driver and
passenger side outer bumper supports attached to the outside of the frame, (Figure 2).
3. Place blocks or jack stands under the front bumper to support it during mounting bolt removal.
Once the bumper has been safely supported, remove the (4) factory bumper bolts, (Figure 3).
WARNING! Assistance is required to hold the bumper in place during bolt removal to prevent
the bumper from falling. Carefully slide the bumper off and over the tow hooks.
4. Remove the driver/left side tow hook from the top of the frame, (Figure 4). Next, remove the
(4) factory hex nuts, lower frame extension, (if equipped), and double bolt plates from the end
of the frame, (Figures 1, 4 & 5). Repeat this Step to remove the passenger/right side tow hook
and lower frame extension.
5. Next, select the Winch Tray/Bracket Assembly. Slide the assembly over the end of the frame.
Line up the slots in the top of the Bracket Assembly with the holes in the top of the frame for
the tow hooks. Attach the Bracket Assembly to the driver/left side of the frame with the
included (3) 12mm Hex Bolts, (6) 12mm Flat Washers, (3) 12mm Lock Washers and (3) 12mm
Hex Nuts, (Figures 6 & 7). Leave hardware loose.

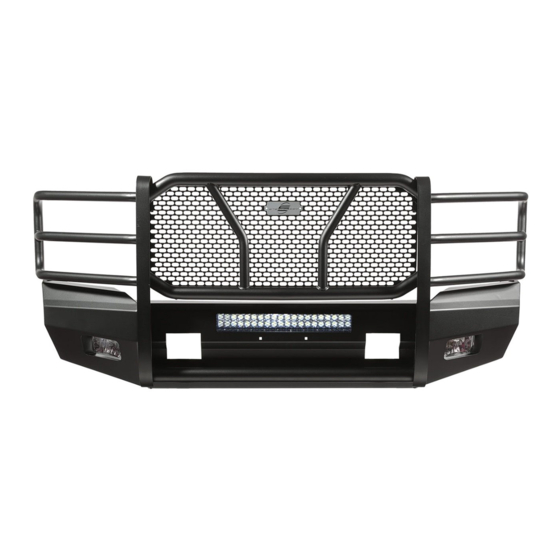

HD REPLACEMENT WINCH FRONT BUMPER
2011-16 FORD SUPERDUTY F250-350
18 12-1.75mm Hex Nuts
5 6mm Combo Button Head Bolts (cover)
4 5mm x 20mm Button Head Bolts
8 5mm x 10mm x 1mm Flat Washers
4 5mm Nylon Lock Nuts
1 4mm Wrench
1 3mm Wrench
Winch Tray and
Bracket Assembly
Page 1 of 6 11/13/19 (DP)
