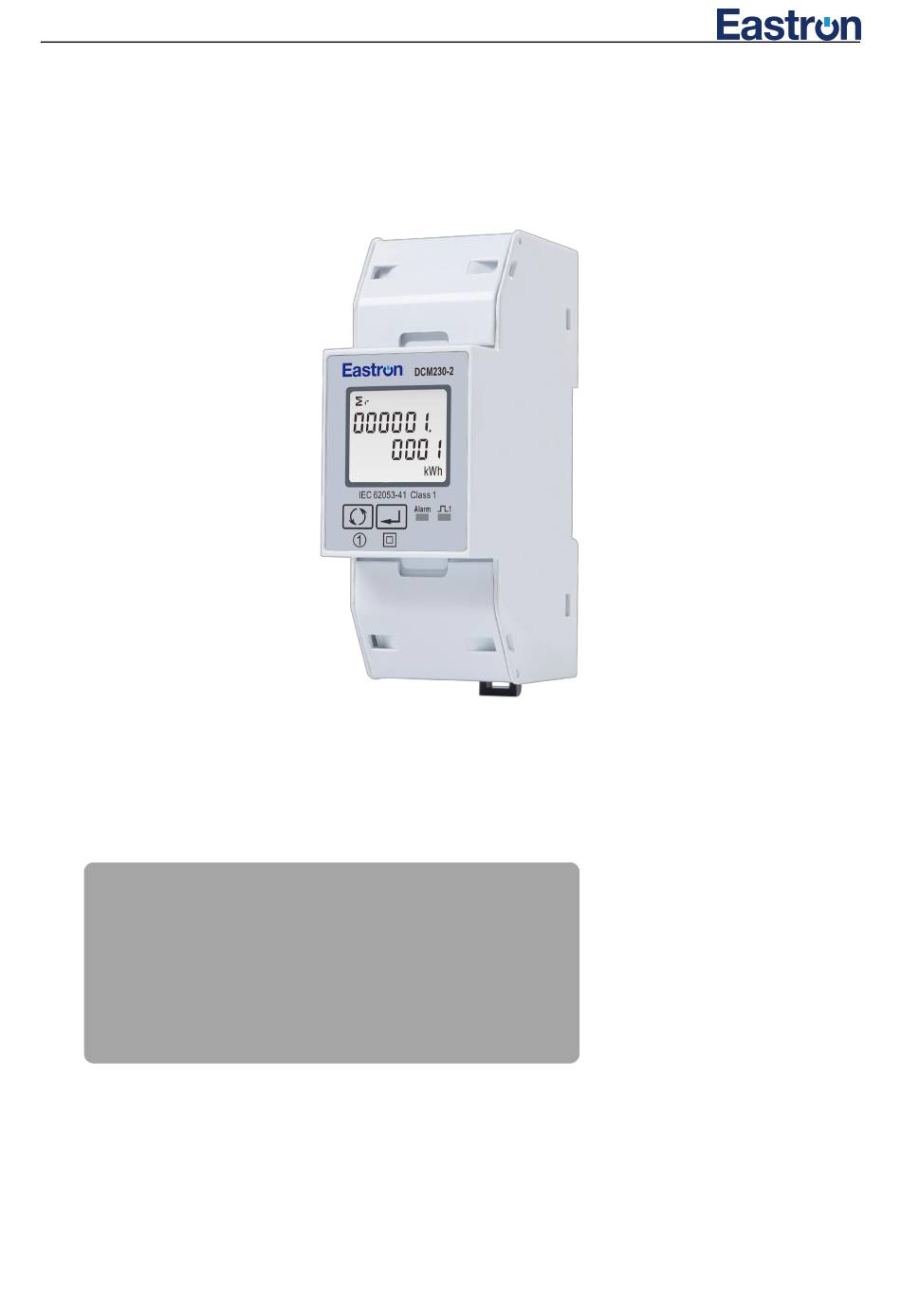

Eastron DCM230-2 User Manual

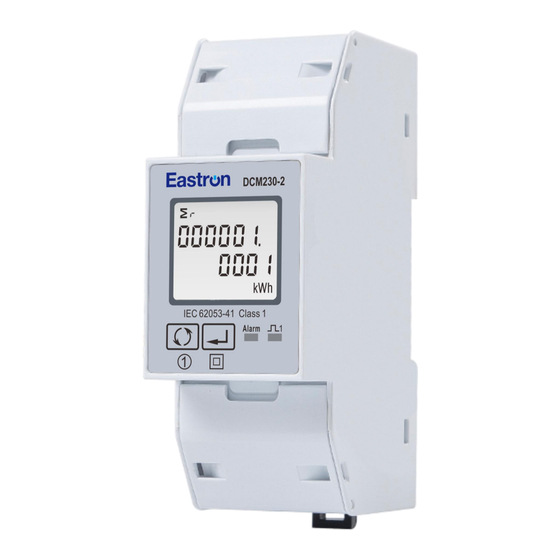

DCM230 DC Energy Meter
Measures kWh, W, V, A etc.
Bi-directional measurement IMP & EXP
Pulse output
RS485 Modbus
Din rail mounting 35mm
DC shunt connection
Class 1
Zhejiang Eastron Electronic Co.,Ltd.
Address: No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, China. Web: www.eastron.com.cn email: sales@eastrongroup.com
Tel: 0086-573-83698881
User Manual V2.0
Fax: 0086-573-83698883

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DCM230-2 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Eastron DCM230-2 Series

Summary of Contents for Eastron DCM230-2 Series

  • Page 1 Pulse output  RS485 Modbus  Din rail mounting 35mm  DC shunt connection  Class 1  User Manual V2.0 Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Fax: 0086-573-83698883 Address: No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, China. Web: www.eastron.com.cn email: sales@eastrongroup.com...

  • Page 2: Specification

    Eastron DCM230-2 User Manual Introduction Eastron DCM230-2 series DC energy meters are designed for measuring and monitoring in DC systems. The din rail DC energy meters can measure of important DC parameters: Voltage, current, power and energy etc. It also support bi-directional measurement with pulse output.All data in the meter are accessible via RS485 using...
  • Page 3 1000 imp/kwh 100 imp/kWh 10 imp/kWh 1 imp/kWh Pulse width: 200/100(default)/60 ms. Note: the relationship between pulse constant and CT1 Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Fax: 0086-573-83698883 Address: No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, China. Web: www.eastron.com.cn email: sales@eastrongroup.com...
  • Page 4 Degree of pollution Mechanics Din rail dimensions 36x100x63 (WxHxD) DIN 43880 Mounting DIN rail 35mm Ingress Protection IP51 (indoor) Material Self-extinguishing UL94V-0 Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Fax: 0086-573-83698883 Address: No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, China. Web: www.eastron.com.cn email: sales@eastrongroup.com...

  • Page 5: Operation

    Full Screen (stay 2s) Software Version (stay 2s) (This information is for reference only, in kind pervail.) Current Modbus address (stay 2s) Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Fax: 0086-573-83698883 Address: No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, China. Web: www.eastron.com.cn email: sales@eastrongroup.com...
  • Page 6 After initialization and self-checking program, the meter displays the measured values. The default page is total kWh. If the user wants to check other information, please press the scroll button on the front panel. Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Fax: 0086-573-83698883 Address: No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, China. Web: www.eastron.com.cn email: sales@eastrongroup.com...
  • Page 7 Total active energy(kWh) Total=Import+ Export Display format: 999999.9999 -> 000000.0000 Partial resettable active energy Display format: 999999.9999 -> 000000.0000 Voltage Current Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Fax: 0086-573-83698883 Address: No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, China. Web: www.eastron.com.cn email: sales@eastrongroup.com...
  • Page 8 Display format: <1000 W: XXX W <1000kW: XXX.XXX kW For other value: XXXX.XX kW Pulse constant CT1 Primary current Meter address Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Fax: 0086-573-83698883 Address: No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, China. Web: www.eastron.com.cn email: sales@eastrongroup.com...
  • Page 9 Set-up Mode To get into Set-up Mode, the user need press the “Enter” button for 3 second. Page Display Descriptions Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Fax: 0086-573-83698883 Address: No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, China. Web: www.eastron.com.cn email: sales@eastrongroup.com...
  • Page 10 3 second, the current selection will flash, use to change the type of Pulse Output. Options: total kWh, IMP kWh, EXP kWh Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Fax: 0086-573-83698883 Address: No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, China. Web: www.eastron.com.cn email: sales@eastrongroup.com...
  • Page 11 Keep pressing for 3 second, the current selection will flash, use to change the DIT(Demand Integration Time). Options: 0,5,8,10,15,20,30,60( default) Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Fax: 0086-573-83698883 Address: No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, China. Web: www.eastron.com.cn email: sales@eastrongroup.com...
  • Page 12 Option: N, P N: Negative type (default) P: Positive type Keep pressing button to exit the set-up mold. Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Fax: 0086-573-83698883 Address: No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, China. Web: www.eastron.com.cn email: sales@eastrongroup.com...
  • Page 13 0.5-1.5mm² 0.2Nm DC± / I ± 6-7 mm 0.5-2.5mm² 0.2Nm Symbols Symbol Reference Description IEC60417-5031(2002-10) Direct current IEC60417-5032(2002-10) Alternating current Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Fax: 0086-573-83698883 Address: No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, China. Web: www.eastron.com.cn email: sales@eastrongroup.com...
  • Page 14 Après l’installation, les équipements ne doivent pas être accessibles à l'utilisateur et les dispositions de  Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Fax: 0086-573-83698883 Address: No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, China. Web: www.eastron.com.cn email: sales@eastrongroup.com...

  • Page 15: Installation

    Si cet équipement est utilisé d'une manière non spécifiée par le fabricant, la protection fournie par  l'équipement peut être altérée. Dimensions Installation Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Fax: 0086-573-83698883 Address: No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, China. Web: www.eastron.com.cn email: sales@eastrongroup.com...

  • Page 16: Modbus Protocol

    Current resettable total active energy 316403 None Current overload alarm 00 00 means no alarm 00 01 means Current overload alarm Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Fax: 0086-573-83698883 Address: No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, China. Web: www.eastron.com.cn email: sales@eastrongroup.com...
  • Page 17 3 = 2 stop bit and none parity. Requires a restart to become effective. Length : 4 byte Data Format : Float Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Fax: 0086-573-83698883 Address: No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, China. Web: www.eastron.com.cn email: sales@eastrongroup.com...
  • Page 18 4 means Export active energy type Default：2 Length : 4 byte Data Format: float 48193 Setting on shunt connection. Connection Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Fax: 0086-573-83698883 Address: No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, China. Web: www.eastron.com.cn email: sales@eastrongroup.com...
  • Page 19 0.5% 36x127x22 500 A 75/60/45 mV 0.5% 46x127x22 600 A 75/60/45 mV 0.5% 55x127x22 750 A 75/60/45 mV 0.5% 76x127x22 Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Fax: 0086-573-83698883 Address: No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, China. Web: www.eastron.com.cn email: sales@eastrongroup.com...
  • Page 20 1000 A 75/60/45 mV 0.5% 96x127x22 1500 A 75/60/45 mV 0.5% 113x127x22 or 87x200x97 2000 A 75/60/45 mV 0.5% 136x200x97 Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Fax: 0086-573-83698883 Address: No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, China. Web: www.eastron.com.cn email: sales@eastrongroup.com...
