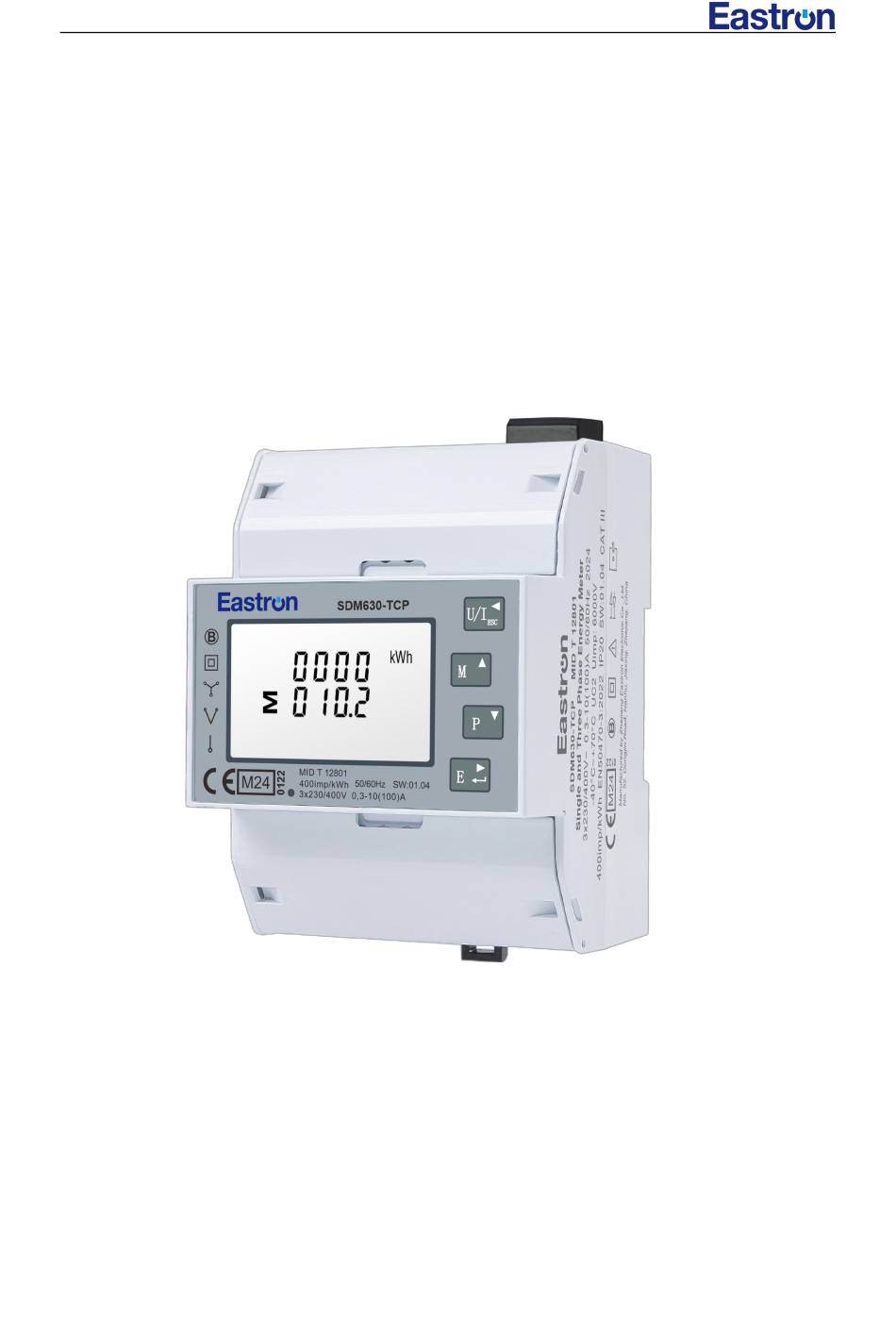

- Page 1 Eastron SDM630-TCP User Manual V2.01 Three Phase Multifunctional Energy Meter SDM630-TCP User manual V2.01 Zhejiang Eastron Electronic Co.,Ltd. 2024 EASTRON ELECTRONIC. ALL RIGHTS RESERVED. www.eastrongroup.com...
- Page 2 Eastron SDM630-TCP User Manual V2.01 Statements All rights reserved. Without the written permission of the company, no paragraphs or chapters in this manual can be extracted, copied or reproduced in any form. Otherwise, the violator shall bear all consequences. The company reserves all legal rights.
-
Page 3: Table Of Contents
Eastron SDM630-TCP User Manual V2.01 Content Version History ......................... - 3 - Risk Information ........................... 1 Information for Your Own Safety ....................1 Chapter 1. Introduction ......................- 1 - 1.1 Product Introduction ........................- 1 - 1.2 Product Characteristics ......................- 1 - 1.3 Application .......................... - Page 4 Eastron SDM630-TCP User Manual V2.01 3.4.9 Reset ..........................- 16 - Chapter 4. Communication Protocol ..................- 17 - 4.1 Input Register ...........................- 17 - 4.2 Holding Register ........................- 20 - 2025 EASTRON ELECTRONIC. ALL RIGHTS RESERVED. www.eastrongroup.com...
-
Page 5: Version History
Eastron SDM630-TCP User Manual V2.01 Version History Version Date Changes 2.00 2024-11-27 Initial Issue 2.01 2025-04-22 Wiring diagram modification 2025 EASTRON ELECTRONIC. ALL RIGHTS RESERVED. www.eastrongroup.com... -
Page 6: Risk Information
Eastron SDM630-TCP User Manual V2.01 Risk Information Information for Your Own Safety This manual does not contain all of the safety measures operating the equipment (module, device) for different conditions and requirements. However, it does contain information which you must know for your own safety and to avoid damages. - Page 7 Eastron SDM630-TCP User Manual V2.01 not exceed the maximum rated current. The supply wiring of this device shall be suitable sized cable to match the installed circuit breaker. A Disconnection Device (Circuit Breaker) should be installed close to the Multi Function Energy Meter.
-
Page 8: Chapter 1. Introduction
Chapter 1. Introduction 1.1 Product Introduction SDM630-TCP is a new multi-function energy meter designed by EASTRON. The meter can work with 1p2w, 3p3w, 3p4w electricity grid. It provides all important electrical parameters: voltage, current, power, PF, THD, frequency, demand, energy etc. The meter supports Max.100A direct connection, saving the cost and avoiding the trouble to connect external CTs, giving the unit a cost-effective and easy operation. -
Page 9: Chapter 2. Technical Parameters
Eastron SDM630-TCP User Manual V2.01 Chapter 2. Technical Parameters 2.1 Technical parameters Voltage AC (Un): 3*230/400VAC Voltage between L-N: 100 - 276V a.c. ( not for 3p3w supplies ) Voltage between L-L: 173 to 480V a.c ( 3p supplies only) ... -
Page 10: Performance Criteria
Eastron SDM630-TCP User Manual V2.01 Gateway: 192.168.1.1 DHCP: Off (default) 2.4 Performance criteria Operation humidity: ≤90% non-condensing Storage humidity: ≤95% non-condensing Operating temperature: -25℃~+55℃ / -40℃~+70℃( optional) Storage temperature: -40℃~+70℃ International standard: EN50470-3: 2022 and IEC/EN62053-11: 2021 +A11: 2022 ... -
Page 11: Wiring Diagram
Eastron SDM630-TCP User Manual V2.01 2.6 Wiring diagram 3P4W 3P3W 1P2W(L+N) - 4 - 2025 EASTRON ELECTRONIC. ALL RIGHTS RESERVED. www.eastrongroup.com... -
Page 12: Torque Value
Eastron SDM630-TCP User Manual V2.01 2.7 Torque value Measurement Connection Screw Connection Strip Length 12-13mm Screw Terminal ①~⑧ Rigid/Supple 4-25mm² (11~4AWG) Tightening Torque 3.5Nm Model Chapter 3. Operation 3.1 Installation display The first screen lights up all display segments and can be used as a display check. -
Page 13: Button Functions
Eastron SDM630-TCP User Manual V2.01 3.2 Button Functions: Button Short click Long press (3s) Display mode Setup mode Display mode Setup mode V1 V2 V3 Return to V1-2 V2-3 V3-1 previous menu I1 I2 I3 V %THD I %THD Hz PF... -
Page 14: Frequency, Power Factor And Demand
Eastron SDM630-TCP User Manual V2.01 Current on each phase Phase to neutral voltage THD% ( Under 3P3W, it shows phase to phase voltage THD%) Phase to neutral current THD% 3.3.2 Frequency, Power factor and Demand Each successive pressing of the... -
Page 15: Power
Eastron SDM630-TCP User Manual V2.01 Maximum total power demand 3.3.3 Power Each successive pressing of the button select a new range: Instantaneous Active Power in kW Instantaneous Reactive Power in kVAr Instantaneous Volt-amps in kVA Total W, VArh, VA 3.3.4 Energy... - Page 16 Eastron SDM630-TCP User Manual V2.01 Total active energy in kWh Total reactive energy in kVArh imported active energy in kWh Exported active energy in kWh Imported reactive energy in kVArh Exported reactive energy in kVArh - 9 - 2025 EASTRON ELECTRONIC.
-
Page 17: Auxiliary Information
Eastron SDM630-TCP User Manual V2.01 Carbon Emission (unit: kg) 3.3.5 Auxiliary information Long press the button to enter into the auxiliary information interface. Short press the button to select the previous interface or the next interface. Meter address IP address-High 192.168(default) IP address-Low 001.200(default) -
Page 18: Setup Mode
Eastron SDM630-TCP User Manual V2.01 Software Version CRC Value Full Screen 3.4 Setup Mode The meter’s settable parameters are password protected. By long pressing the 4th button “E”, the user can get into the setup mode. 3.4.1 Password Validation Press button to enter password. -
Page 19: Demand Interval Time Setup
Eastron SDM630-TCP User Manual V2.01 Communication address setup Long press button to enter the setup mode. Press button to set the addresses. Long press button to confirm. Address range：001 ~ 247, default 001. 3.4.3 Demand Interval Time setup Long press button to enter the setup. -
Page 20: System Type Setup
Eastron SDM630-TCP User Manual V2.01 3.4.5 System Type Setup Long press button to enter the setup. Press button to setup the supply system. Option: 3P4W, 3P3W, 1P2W or 1P3W. Long press button to confirm. Option: 3P4W(default), 3P3W, 1P2W. 3.4.6 Password Modification Setup Long press button to enter the setup mode. - Page 21 Eastron SDM630-TCP User Manual V2.01 3.4.7.2 TCP IP address setup Long press button to set IP address. Press button to choose IP-High address. Long press button to confirm the setting. IP-High 192.168 (default) Press button to choose IP-Low address. Long press button to confirm the setting.
- Page 22 Eastron SDM630-TCP User Manual V2.01 3.4.7.4 TCP gateway address setup Long press button to enter the setup mode of IP address of TCP gateway Press button to choose TCP gateway address - High. Long press button to confirm the setting.
-
Page 23: Reset
Eastron SDM630-TCP User Manual V2.01 Long press button to enter the CO2 factor mode. Press button to set the CO2 rate. Long press button to confirm. CO2 rate: 0.5703(default) 3.4.9 Reset This function allows user to reset the demand information. -
Page 24: Chapter 4. Communication Protocol
Eastron SDM630-TCP User Manual V2.01 Chapter 4. Communication Protocol 4.1 Input Register Function code Description Read Input Register Start Input Register Address Parameter Ø Ø Ø Address Data (Register) Description Length Units format Byte Phase 1 line to neutral volts. - Page 25 Eastron SDM630-TCP User Manual V2.01 Total system power factor (1). 30063 Float None √ √ √ Total system phase angle. 30067 Float Degrees √ √ √ Frequency of supply voltages. 30071 Float √ √ √ Import Wh since last reset (2).
- Page 26 Eastron SDM630-TCP User Manual V2.01 L3 import kvarh 30369 Float kVArh √ √ L1 export kvarh 30371 Float kVArh √ √ √ L2 export kvarh 30373 Float kVArh √ √ L3 export kvarh 30375 Float kVArh √ √ L1 total kvarh...
-
Page 27: Holding Register
Eastron SDM630-TCP User Manual V2.01 310269 Phase 1 apparent power. Int32 0.1VA √ √ 310271 Int32 0.1VA √ Phase 2 apparent power. 310273 Int32 0.1VA √ Phase 3 apparent power. 310275 Int32 0.1VAR √ √ Phase 1 reactive power. 310277 Phase 2 reactive power. - Page 28 Eastron SDM630-TCP User Manual V2.01 (KPPA is asked) Read: to get the status of the KPPA 0 = not authorized；1 = authorized Key Parameter Write the correct password to get Programming 40015 KPPA, enable to program key Authorization parameters. (KPPA)
- Page 29 Eastron SDM630-TCP User Manual V2.01 If you have any question, please feel free to contact our sales team. Zhejiang Eastron Electronic Co., Ltd. No. 52, Dongjin Road, Nanhu, Jiaxing, Zhejiang, China Tel: +86-573-83698881 Fax: +86-573-83698883 Email: sales@eastrongroup.com www.eastrongroup.com - 22 - 2025 EASTRON ELECTRONIC.
