Removing the Hopper Unit (Y/M/C/Bk)
■ Preparation (for the Hopper Unit (Y/M/C))
1. "Removing the Rear Cover 1" on page 141
2. "Removing the Left Upper Cover" on page 146
3. "Removing the Fax Speaker Unit" on page 232
4. "Removing the Main Controller Sub Cover /Main Controller Cover" on page 209
5. "Removing the Fax Unit" on page 232
6. "Removing the Main Controller Unit" on page 210
7. "Removing the Low-voltage Power Supply Unit" on page 221
8. "Removing the DC Controller PCB" on page 214
9. "Removing the Main Drive Unit" on page 258
10. "Removing the Waste Toner Container" on page 239
11. Remove the toner container (The color to be removed)
12. Remove the Drum Unit (The color to be
13. "Removing the ITB Unit" on page 243
14. "Removing the Left Lower Cover" on page 146
15. "Removing the Primary Transfer High-voltage PCB Unit" on page 217

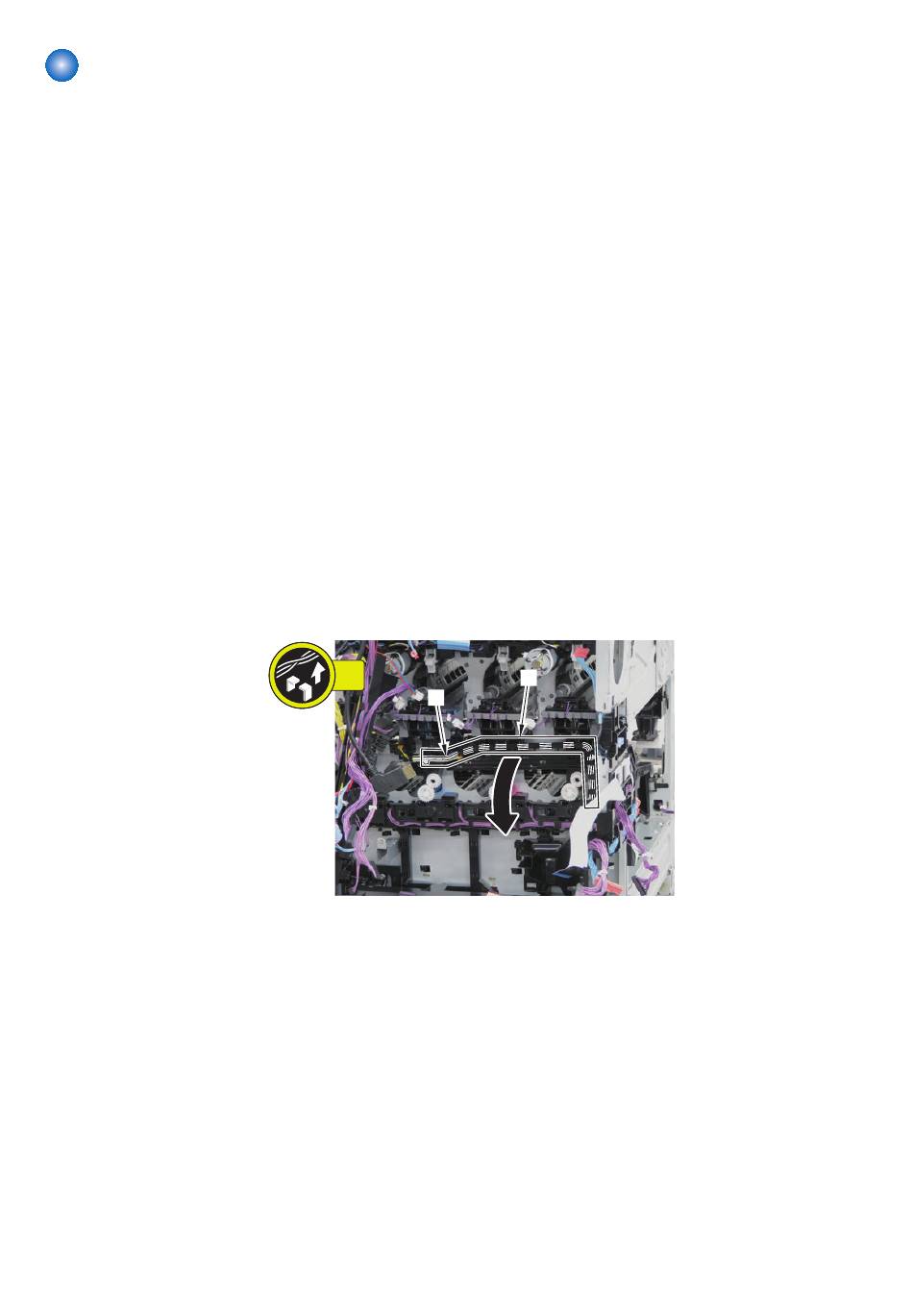

16. Free the harness [1] from the Harness Guide [A] of the High-voltage Contact Unit.
"Removing the Toner Container (Y/M/C/Bk)" on page 239
removed)"Removing the Drum Unit (Y/M/C/Bk)" on page
1x
[1]
259
4. Parts Replacement and Cleaning
[A]
.
240.
