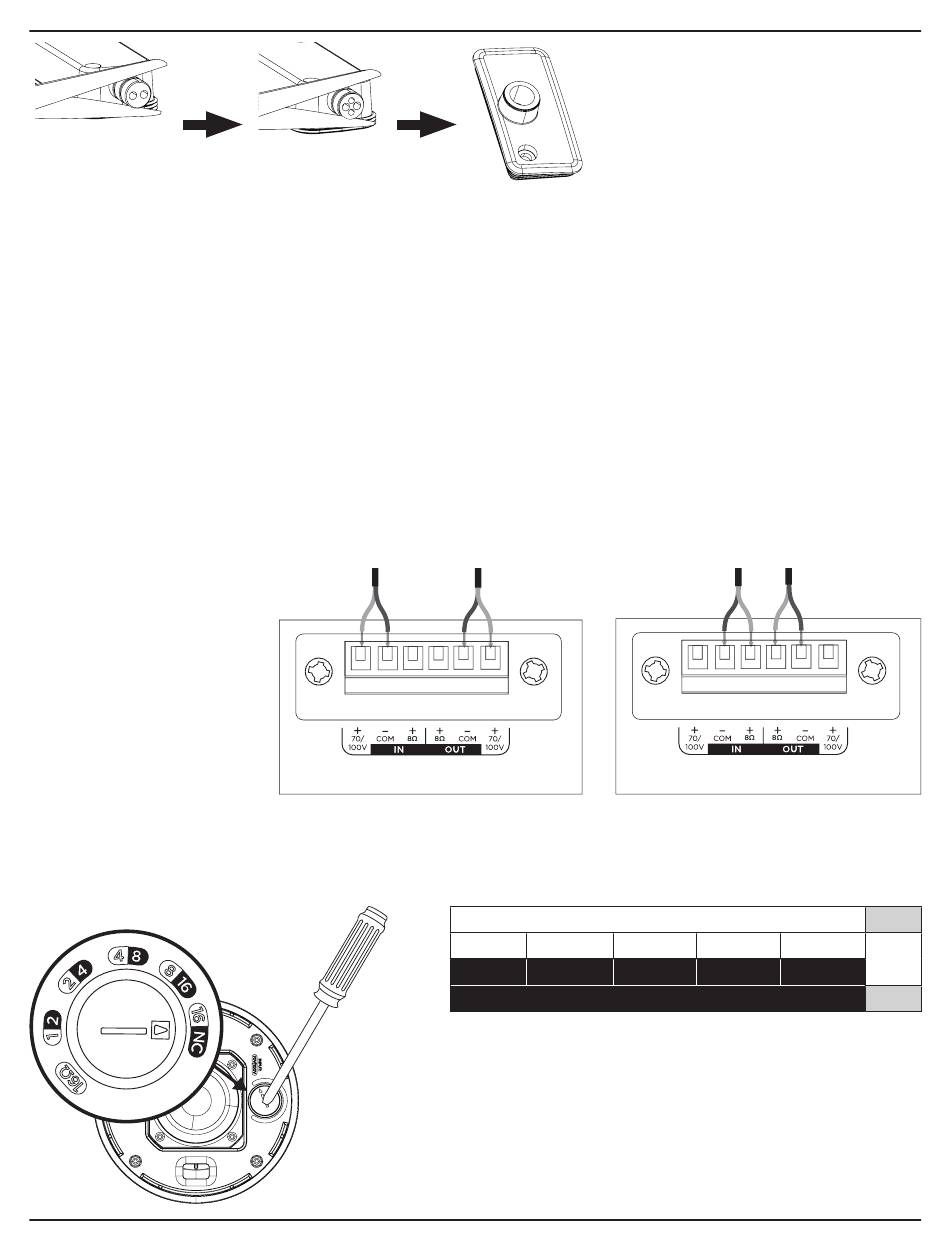

Bose FreeSpace FS2P Installation Manual page 4

Setup
Single In
Preparing the Weather-resistant Input Cover
The weather-resistant input cover is designed for three different wiring scenarios (see above). To change the configuration of the input
cover to support your wiring scenario, cut along the perforation on the rubber conduit.
Note: Indoor-only applications do not require use of the input cover.
Note: If using the wide open rubber conduit configuration, it is the installer's responsibility to seal against water ingress into the
Euroblock connector.
Wiring the Loudspeaker
Wire Gauge
The FreeSpace FS2P loudspeaker is designed to work with 18 AWG (0.8 mm
Connection Diagrams
Expose six millimeters (1/4 inch) of
bare wire to attach to the terminals.
Note: The loudspeaker is not rated
for use with a rigid conduit. The
loudspeaker is suitable for a flexible
conduit or wiring connection only.
Note: Wiring method must be in
accordance with:
In Canada, CSA C22.1, Canadian
Electrical Code, Part I, Safety
Standard for Electrical Installations,
Section 32;
In the United States, The National
Electrical Code, NFPA 70.
Loudspeaker Settings
4 • English
In and Out
70/100V
* Factory default
Transformer Tap Setting
Set tap by turning. Use a flat head screwdriver.
Wide Open
) to 14 AWG (2.1 mm ) size wire only.
2 2
70V
1W 2W 4W
2W 4W 8W
100V
** NC: No Connection (do not use)
boseprofessional.com
16Ω
8W 16W*
16W NC**
FreeSpace FS2P • Installation Guide
16Ω
