Summary of Contents for Bose FreeSpace FS4CE

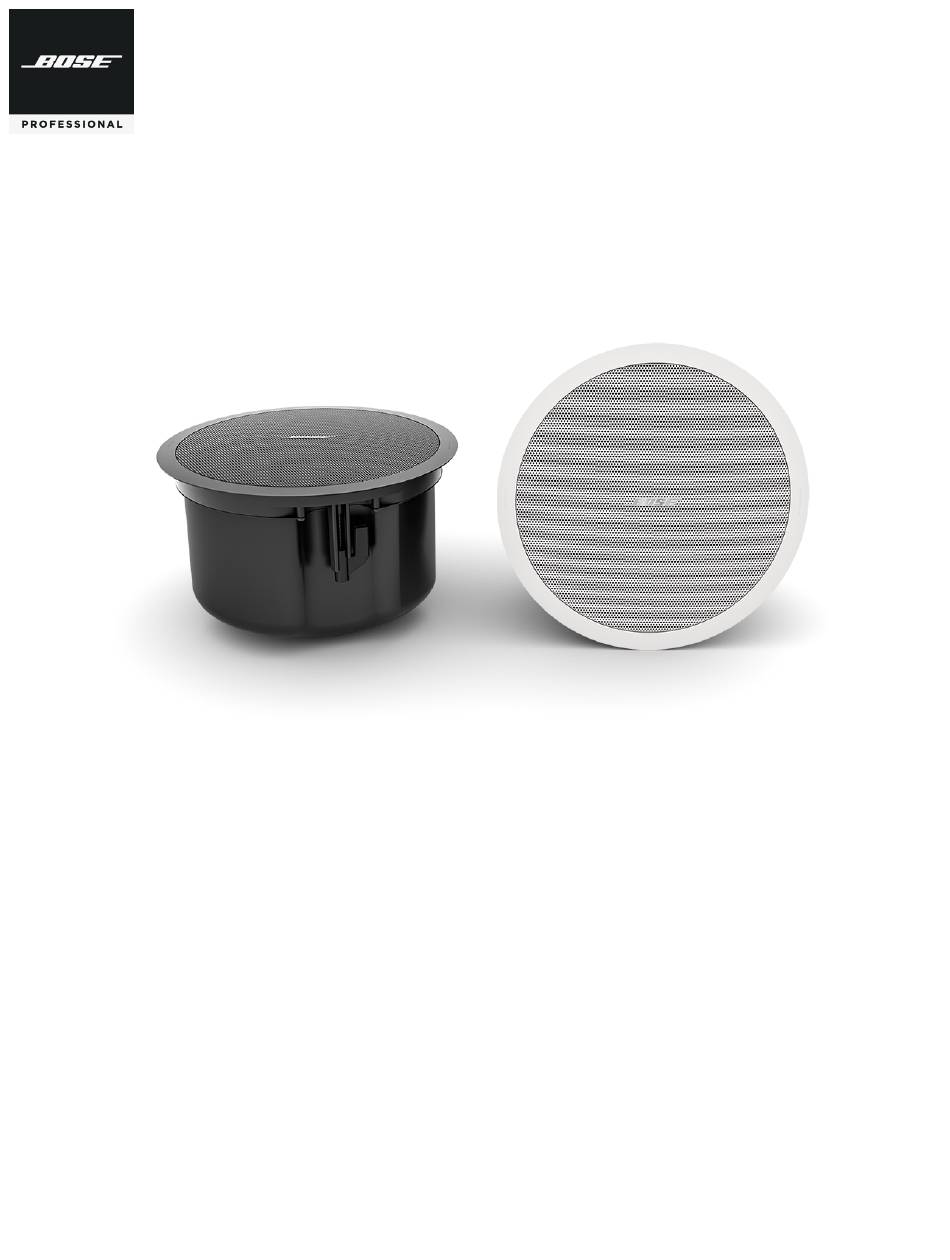

- Page 1 FreeSpace FS4CE In-ceiling Loudspeaker Installation Guide . . . . . . . . . . . . . . . . . . . . . . . 2 Monteringsveiledning .
- Page 2 Bose, including but not limited to lubricants, cleaning agents, Mexico Importer: Bose de México, S. de R.L. de C.V. , Paseo de las Palmas 405-204, Lomas de contact sprays, or hydrocarbon-based solvents. Exposure to such substances can lead to degradation of the plastic material, resulting in cracking and creating a falling hazard.
-
Page 3: Package Contents
Before installing the loudspeaker, review technical data sheet at PRO.BOSE.COM. For EN 54-24 Important Safety Instructions on page 2. specifications, see the FreeSpace FS4CE EN 54-24 certified ratings (AM857614 Rev. 00) at PRO.BOSE.COM. For fire and evacuation notification applications, Physical environmental rated to IP33C per EN 54-24. -
Page 4: Installation Options
One of the following is required for installation. See the If using a flexible metal conduit, use with a 3/8-inch conduit related accessory installation guide at PRO.BOSE.COM for fitting or a 3/8-inch dual (duplex) connector. Note: Conduit fittings are not provided. - Page 5 Note: It is the installer's responsibility to seal against water ingress into the Euroblock connector. Use outdoor or marine- grade silicone to seal all wiring connections to ensure a tight seal. Installation Guide • FreeSpace FS4CE English • 5...
-
Page 6: Wiring The Loudspeaker
Setup PRO.BOSE.COM Wiring the Loudspeaker Wire Gauge The FreeSpace FS4CE loudspeaker is designed to work with 18 AWG (0.8 mm ) to 14 AWG (2.1 mm ) size wire only. Connection Diagrams Expose six millimeters (1/4 inch) of bare wire to attach to the terminals. - Page 7 Installing in Hard Ceiling Using a Rough-in Pan (New Construction) For information on installing a rough-in pan, see the DesignMax and FreeSpace Rough-in Pan installation guide at PRO.BOSE.COM. Once the rough-in pan is installed, see Mounting the Loudspeaker on page 8. Ceramic Terminal Attachment Point The FreeSpace FS4CE is compatible with an optional ceramic terminal accessory.
-
Page 8: Mounting The Loudspeaker
Place the input cover over the connector and press it firmly against the loudspeaker to create a tight seal. Use the two included input cover screws to secure the input cover. See Preparing the Input Cover on page 5. 8 • English FreeSpace FS4CE • Installation Guide... -
Page 9: Attaching The Grille
NFPA 90-A, 2002, Installation of Air Conditioning and Ventilation Systems, Paragraph 4.3.10.2.6.5. EMC Directive 89/336/EEC and Article 10 (1) of the directive, EN50081-1 and EN50082-1 as signified by the CE mark. The FreeSpace FS4CE loudspeaker has been designed to the requirements defined in the following European regulatory specification for combination systems: British Standard Code of Practice BS 5839, Part 8, when used with the ceramic terminal block and thermal fuse. - Page 10 ©2021 Bose Corporation, All rights reserved. Framingham, MA 01701-9168 USA PRO.BOSE.COM AM861344 Rev. 02 September 2021...
