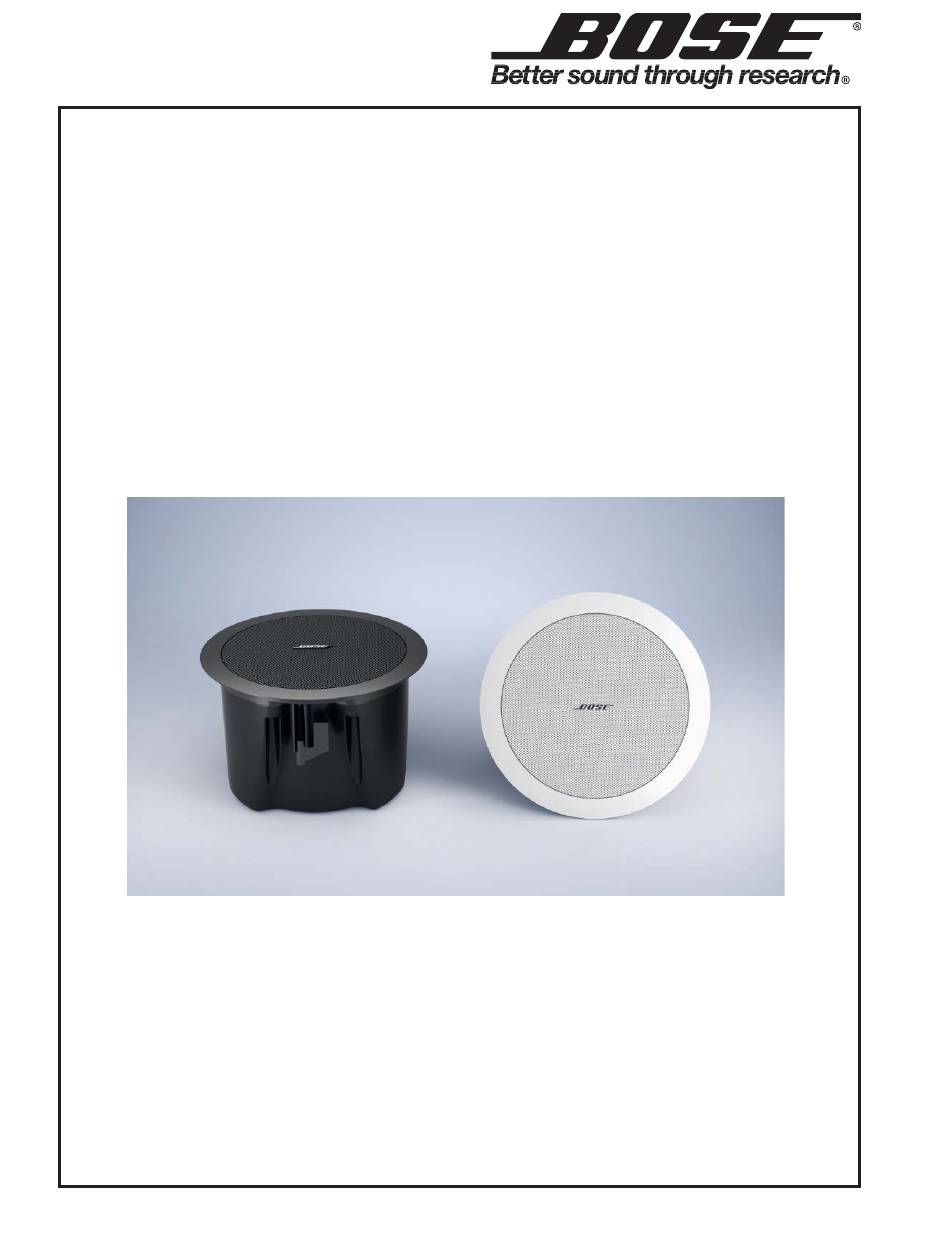

- Page 1 ® FreeSpace Model 16 Loudspeaker ©2009 Bose Corporation Service Manual Reference Number 263554-SM Rev. 01...
-
Page 2: Table Of Contents
PRODUCT BY AN AUTHORIZED BOSE SERVICING CENTER OR OWNER OF THE BOSE PRODUCT, AND SHALL NOT BE REPRODUCED OR USED FOR ANY OTHER PURPOSE. WARRANTY INFORMATION The Bose Free Space Model 16 Loudspeaker is covered by a 5-year transferable limited warranty. -
Page 3: Specifications
Recommended amplifier/ Max 16 Watts. Filter: 24db/oct Butterworth, Hi-pass 80Hz Lo-pass 16kHz, PRODUCT DESCRIPTION The Bose ® Free Space ® Model 16 Loudspeaker is a passive flush-mount ceiling speaker with two variants, Model 16 and Model 16EU. The Model 16 is a world wide, general-pur- pose use 8Ω/70V/100V speaker that complies with the requirements for Fire/Emergency... -
Page 4: Disassembly/Assembly Procedures
DISASSEMBLY / ASSEMBLY PROCEDURES Note: Refer to Figure 2 for the following & rotary switch (13) into the baffle (5). procedures. 4.2 Secure the driver & transformer in 1. Grille Assembly Removal place using the six screws (1) removed in procedure 3.5. 1.1 Gently pull the grille assembly (15) away from the baffle (5). -
Page 5: Test Procedures
TEST PROCEDURES Reject any speakers with air leaks. Audio Signal Generator Except for air leaks resulting from defective driver or gaskets. Replace any driver that has a rubbing or ticking noise. Small (quiet) ticks are acceptable if they cannot be heard at a distance of Power Amplifier 1 foot. -
Page 6: Main Part List, Free Space Model 16 Loudspeaker
MAIN PART LIST Free Space ® Model 16 Loudspeaker ® ® ® ® Item Description Vendor Part Qty. Note Bose Part Number Number Number Screw, M4 x 12mm 2910-4012-3000 Terminal 259279 4135-2381-0 Gasket for transformer 4149-0111-0 Anchor, FS Model 16, White... -
Page 7: Packing List, Free Space Model 16 Loudspeaker
PACKING LIST Free Space ® Model 16 Loudspeaker ® ® ® ® Item Description Vendor Part Qty. Note Bose Part Number Number Number Carton 263622 1436-0201-1-2 Carton Sheet 263804 1450-6200-0 Inner Card, Bottom 263803 4149-6190-0 Grille, White 8901-4540-0 Grille, Black... - Page 8 SPECIFICATIONS AND FEATURES SUBJECT TO CHANGE WITHOUT NOTICE Bose Corporation The Mountain Framingham Massachusetts USA 01701 P/N: 263554-SM Rev. 01 3/2009 (P) FOR TECHNICAL ASSISTANCE OR PART ORDERS, CALL 1-800-233-4408 http://serviceops.bose.com...
