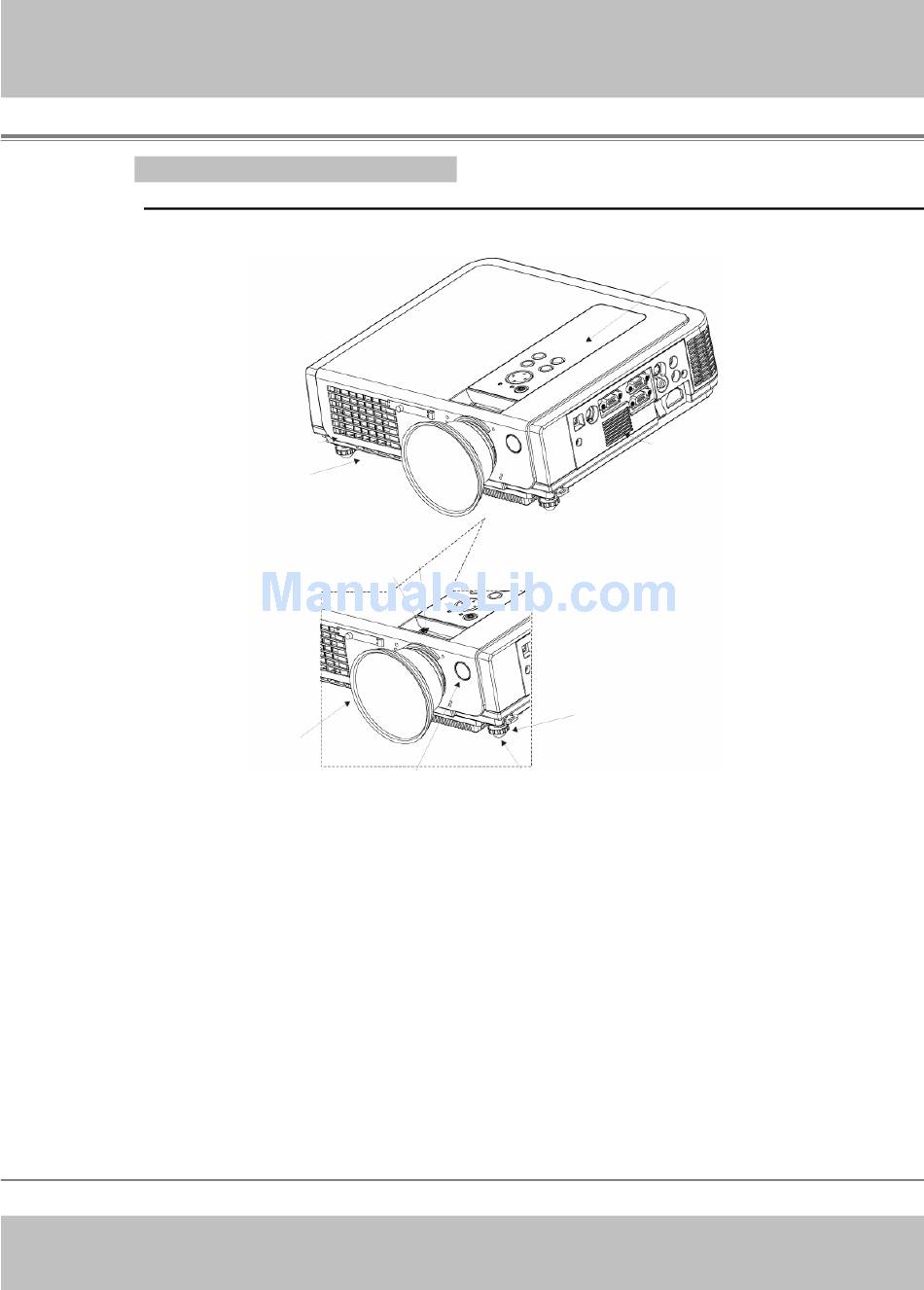

Part Names and Function:

Main Unit

Outlet ventilation
4.Filter cover( bottom)
2.Focus ring
7.Lens cover
1. Zoom Ring
Use the Zoom Ring to adjust the size of the projected image.
Rotate the Zoom Ring until the image is the desired size.
2. Focus Ring
Use the Focus Ring to focus the projector image.
Rotate the Focus Ring until the image is clear.
3. Front IR receiver
When using the remote control, point the remote control at this sensor.
4. Filter cover
Prevents dust and other foreign particles from being drawn into projector.
Remove the Filter cover to clean the air filter.
1.Zoom ring
3.Front IR receiver 5.Front adjustable foot
-11-
Multimedia LCD Projector
8.Control panel
Speaker
6.Foot adjust button
