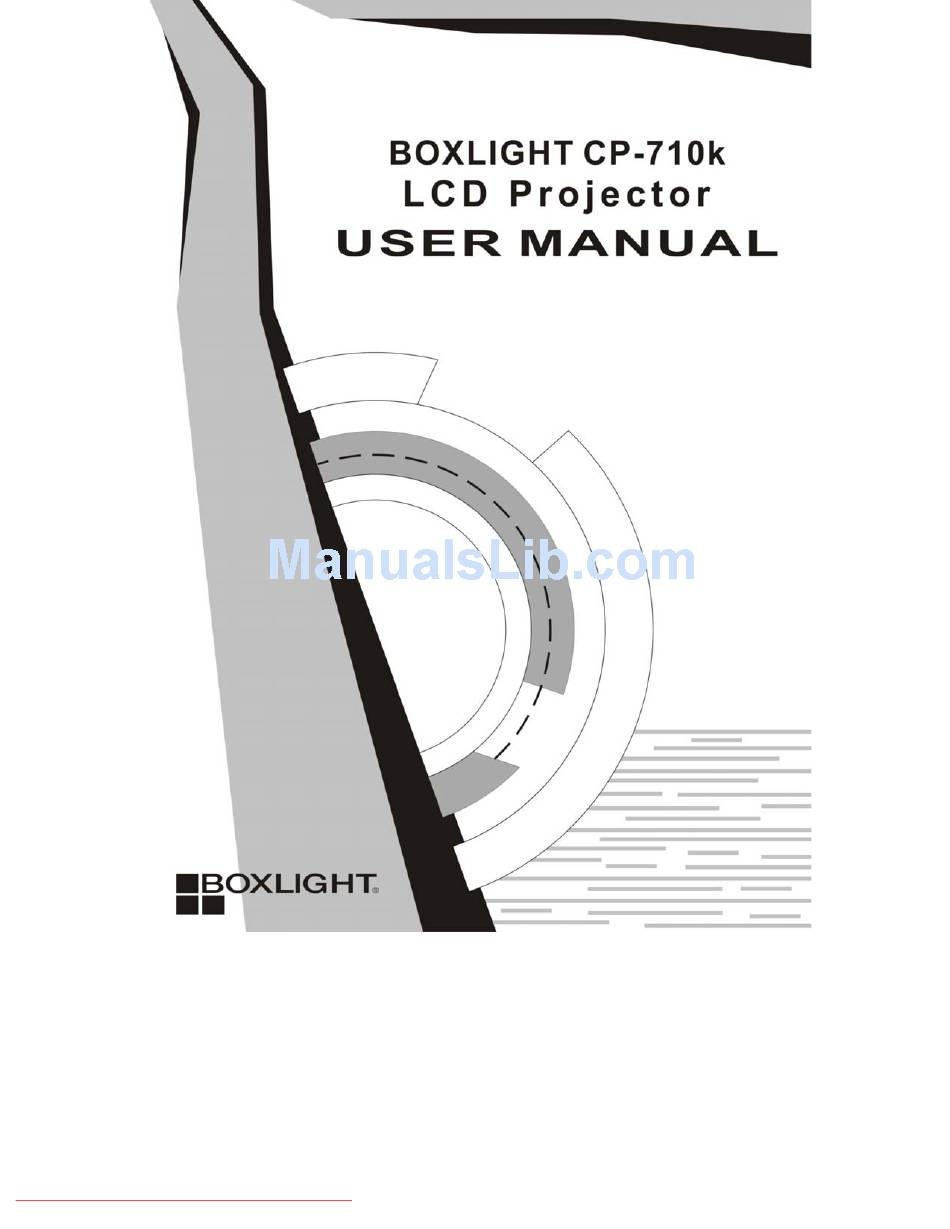

- Page 1 Downloaded From projector-manual.com Boxlight Manuals...
- Page 2 Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Shielded interface cable, if any, must be used in order to comply with emission limits. Downloaded From projector-manual.com Boxlight Manuals...
-
Page 3: Table Of Contents
2、 Accessories..................... 4 3、 Definitions of Buttons and Indicators ............5 4、 Explanation of Indicator Status ..............7 5、 Setting Up....................... 9 6、 Connecting Projector..................11 7、 Operating OSD(On Screen Display) Menu...........14 8、 Maintenance ....................20 9、 Appendix .......................21 Downloaded From projector-manual.com Boxlight Manuals... -
Page 4: Overview
Refer all servicing to qualified service technicians from your authorized dealer. When replacement parts are required, make sure the parts are of the same type from your authorized dealer. Downloaded From projector-manual.com Boxlight Manuals... -
Page 5: Accessories
D-Sub 15pin Cable PC-PC Audio Cable Remote Control (with two AA USB Cable Batteries) Optional Accessories Lamp Air filter Carry bag RS232 Cable You can purchase these spare parts from your authorized dealer or service center. Downloaded From projector-manual.com Boxlight Manuals... -
Page 6: Definitions Of Buttons And Indicators
Definition of Buttons and Indicators Remote Control Buttons and Indicators of Control Panel Downloaded From projector-manual.com Boxlight Manuals... - Page 7 Press Freeze button to freeze image on-screen and press again to Freeze cancel Freeze function Enlarge Press Enlarge +/- button to enlarge or reduce the image and press (+/-) button to move the image Display PIP Quick Menu Downloaded From projector-manual.com Boxlight Manuals...
-
Page 8: Explanation Of Indicator Status
At this time, Fan indicator keeps flashing, Ready indicator is off and Lamp indicator is on. If fan error consists continuously after system self-detection, Downloaded From projector-manual.com Boxlight Manuals... -
Page 9: Lamp Error
Also, when a projected image becomes dark or image color turns into unnatural one, lamp replacement is required. For safety reasons, replace with a lamp module of the same type and order it through your authorized dealer. Downloaded From projector-manual.com Boxlight Manuals... -
Page 10: Setting Up
Refer to the figures below to adjust the size of screen you desire. Projection Distance / Size Table Project Distance /m Project Distance/m Projection Size/inch 40” 1.33 1.64 50” 1.67 2.05 60” 2.46 100” 3.33 150” 6.15 200” 6.67 Downloaded From projector-manual.com Boxlight Manuals... -
Page 11: Screen Adjustment
Feet. The choice of the height of the Sustaining Feet can adjust the projection angle (up to 10 degree) and image tilt. Focus adjustment：turning the focus ring to focus an image. Zoom adjustment：turn the zoom ring to adjust the image size. Downloaded From projector-manual.com Boxlight Manuals... -
Page 12: Connecting Projector
Connect the Audio Cable from PC or notebook AUDIO OUT to the projector AUDIO jacks. When controlling PC with Remote Control of the projector, connect mouse port of PC to USB terminal. Make sure that all the terminals are well connected. Downloaded From projector-manual.com Boxlight Manuals... - Page 13 Connect Video Cable from video equipment (VTR, DVD or LD) VIDEO OUT to the projector VIDEO input jack. Connect the Audio Cable from equipment AUDIO OUT to the projector AUDIO jacks. Make sure that all the terminals are well connected. Downloaded From projector-manual.com Boxlight Manuals...
- Page 14 Connect S-Video Cable from video equipment (VTR, DVD or LD) S-VIDEO OUT to the projector S-VIDEO jack. Connect the Audio Cable from video equipment AUDIO OUT jacks to the projector AUDIO jack. Make sure that all the terminals are well connected. Downloaded From projector-manual.com Boxlight Manuals...
-
Page 15: Operating Osd(On Screen Display) Menu
Clock value of the image. H position： Press buttons to adjust the image position horizontally. V position： Press buttons to adjust the image position vertically. Auto： To select the value of Phase and Clock automatically. Downloaded From projector-manual.com Boxlight Manuals... - Page 16 Reset an image size to the default. Full Screen： Screen Resize function; press buttons to select best aspect ratio to display your source image --- 16：9 (wide screen ratio); 4 ： 3 (normal screen ratio) and off (the original setting). Downloaded From projector-manual.com Boxlight Manuals...
- Page 17 Select the source of sub screen from AV, S-AV or AUTO. PIP POS： Select the position of sub screen. Volume： Press buttons to adjust the level of volume. Mute : Audio mute by selecting On; Audio play by selecting Off. Downloaded From projector-manual.com Boxlight Manuals...
- Page 18 Rear：image is left/ right reversed. Rear Ceiling：image is top/ bottom reversed. Reset： Press buttons to reset all the adjustments and settings to the factory preset. Description of OSD Menu Functions (VIDEO Input) Downloaded From projector-manual.com Boxlight Manuals...
- Page 19 (warn & reddish color) and User (adjust the value of Red, Green, Blue respectively) V-Keystone： Press buttons to correct the vertical keystone distortion. maximum keystone angle that can be corrected is ±15 degree upward and downward. Downloaded From projector-manual.com Boxlight Manuals...
- Page 20 (wide screen ratio); 4 ： 3 (normal screen ratio) and off (the original setting). Volume： Press buttons to adjust the level of volume. Mute : Audio mute by selecting On; Audio play by selecting Off. Downloaded From projector-manual.com Boxlight Manuals...
- Page 21 Desk：normal display. Ceiling：image is top/ bottom and left/ right reversed. Rear：image is left/ right reversed. Rear Ceiling：image is top/ bottom reversed. Reset： Press buttons to reset all the adjustments and settings to the factory preset. Downloaded From projector-manual.com Boxlight Manuals...
-
Page 22: Maintenance
Replace a new lamp module of the same type; make sure that it is fully inserted and properly plugged into the socket. Secure the lamp module in place by tightening three screws back. Reattach the lamp cover and tighten two screws back. Downloaded From projector-manual.com Boxlight Manuals... -
Page 23: Appendix
800 × 600 72Hz 48.1KHz MAC-15 75Hz 68.7KHz 800 × 600 75Hz 46.9KHz MAC-16 75Hz 49.1KHz 800 × 600 85Hz 53.7KHz MAC-19 75Hz 60.2KHz 832 × 624 75Hz 49.7KHz MAC-1960 60Hz 48.2KHz 1024 × 768 43Hz 35.5KHz Downloaded From projector-manual.com Boxlight Manuals... - Page 24 Video Compatible Format Format V. Frequency Resolution NTSC 60Hz 525 lines 50Hz 625 lines Downloaded From projector-manual.com Boxlight Manuals...
