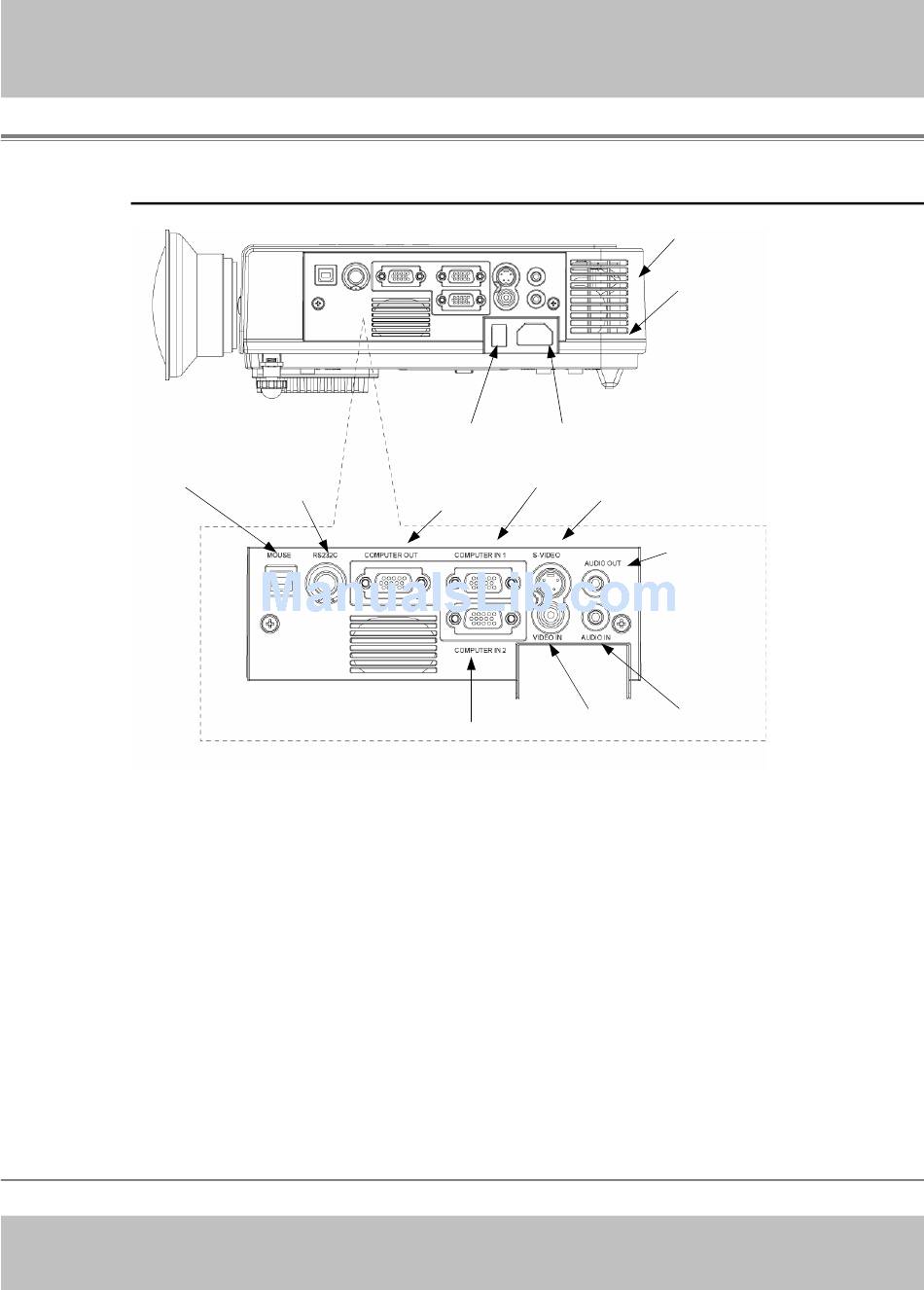

Rear View / IO Board
9.USB mouse connector
4.RS-232C
1. Computer in 1
Input Analog RGB video signal from a computer
2. Computer in 2 /YPbPr
When input signal from computer 2, it may encounter incorrect picture
color. Please press "Auto" button again. The picture will be corrected.
3. Monitor out connector
Connect an external monitor to this connection view the Computer1
input.
4. Control (RS-232C)
Serial data port for controlling the projector with a computer or other RS-232
control device.
Multimedia LCD Projector
11.Power switch 10.Power socket
1.Computer1 in
3.Monitor out
1.Computer2/YPbPr in 6.Video in
-15-
12.Rear IR receiver
Inlet ventilation
5.S-video
7.Audio out
8.Audio in
