CED-1 Аддепдит-2

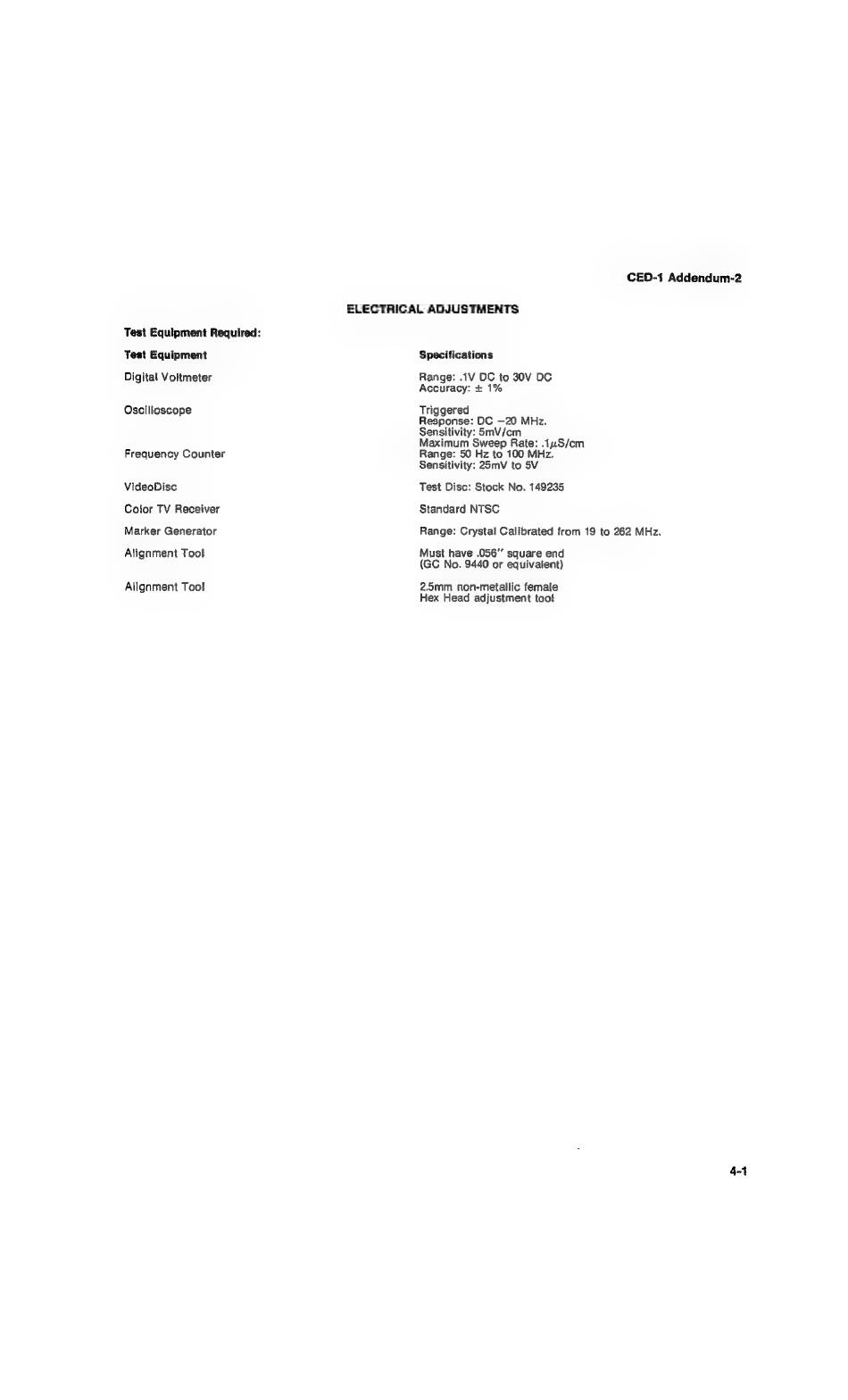

ELECTRICAL ADJUSTMENTS
Test Equipment Required:
Test Equipment Specifications
Digital Voltmeter Range: ЛУ DC to 30V DC
Accuracy: + 1%
Oscilloscope Triggered
Response: DC —20 MHz.
Sensitivity: 5mV/cm
Maximum Sweep Rate: .1и5/ст
Frequency Counter Range: 50 Hz to 100 MHz.
Sensitivity: 25mV to 5V
VideoDisc Test Disc: Stock No. 149235
Color TV Receiver Standard NTSC
Marker Generator Range: Crystal Calibrated from 19 to 262 MHz.
Alignment Tool Must have .056" square end
(GC No. 9440 or equivalent)
Alignment Tool 2.5mm non-metallic female
Hex Head adjustment too!
4-1
