CED-1 Addendum-2

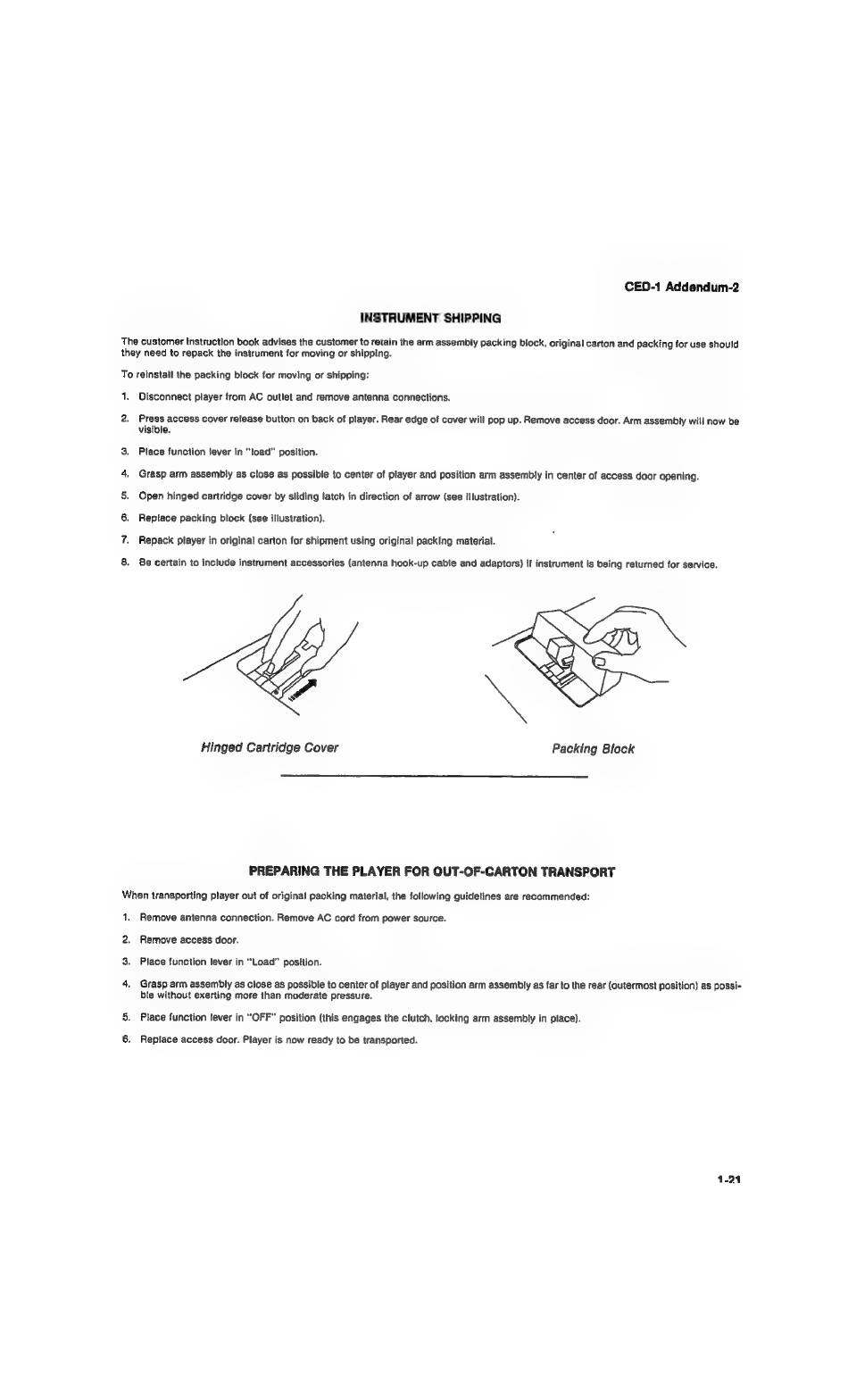

INSTRUMENT SHIPPING
To reinstall the packing block for moving or shipping:
1.
Disconnect player from AC outlet and remove antenna connections.
Place function lever in "load" position.
Replace packing block (see illustration).
Repack player in original carton for shipment using original packing material.
Ве certain ta include instrument accessories (antenna hook-up cable and adaptors) if instrument is being returned for service.
>"
Hinged Cartridge Cover Packing Block
PREPARING THE PLAYER FOR OUT-OF-CARTON TRANSPORT
When transporting player ош! of original packing material, the following guidelines are recommended:
1,
2.
Remove antenna connection. Remove AC cord from power source.
Remove access door.
Place function lever in "Load" position.
Grasp arm assembly as close as possible to center of player and position arm assembly as far to the rear (outermost position) as possi-
ble without exerting more than moderate pressure.
Place function lever in "OFF" position (this engages the clutch, locking arm assembly in place).
Replace access door. Player is now ready to be transported.
1-21
