CED-1 Аддепдит-2

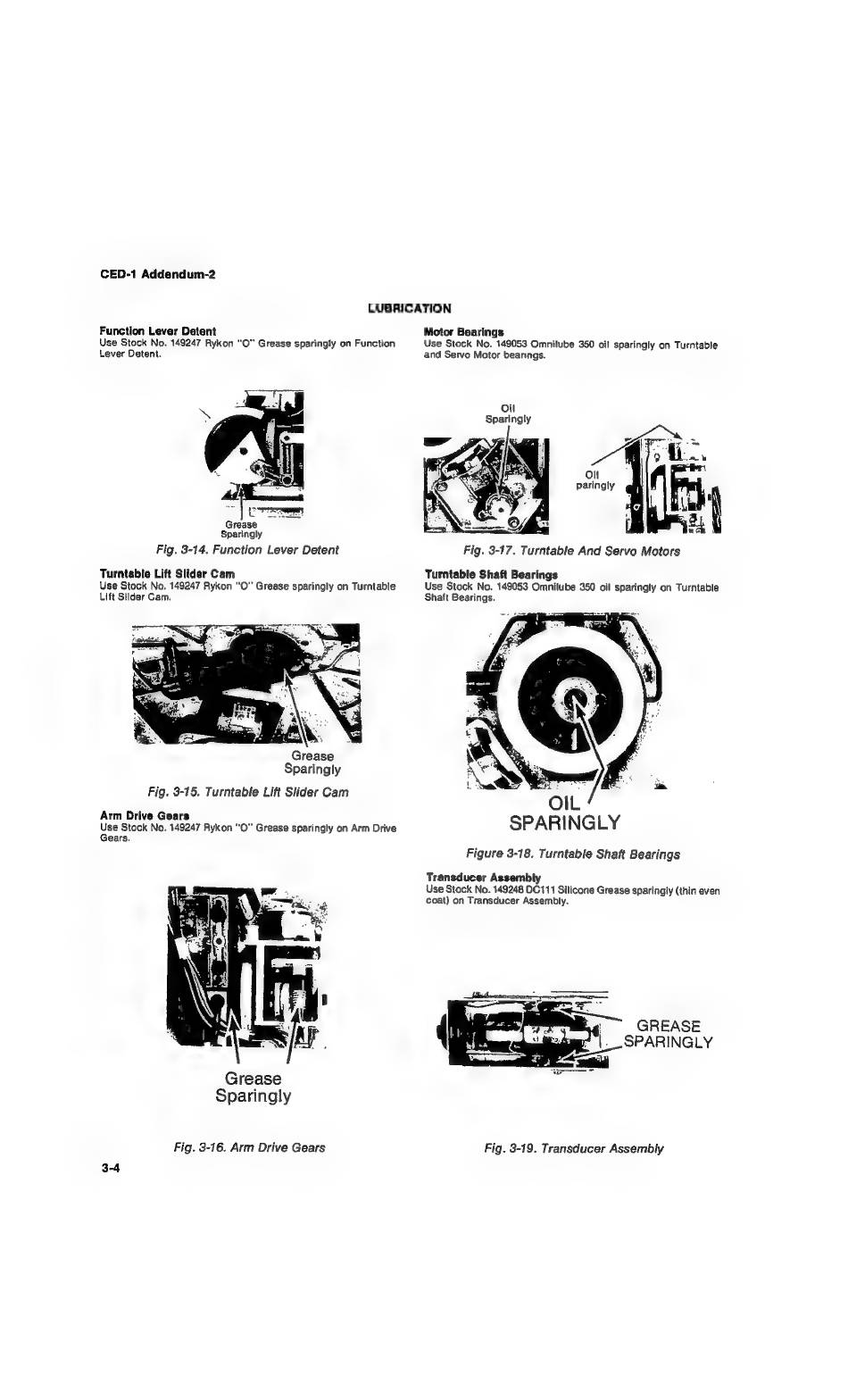

LUBRICATION
Function Lever Detent
Use Stock No. 149247 Rykon "О" Grease sparingly on Function
Lever Detent.
Sparingly
Fig. 3-14. Function Lever Detent
Turntable Lift Slider Cam
Use Stock Ма. 149247 Rykon "О" Grease sparingly on Turntable
Lift Slider Cam.
Grease
Sparingly
Fig. 3-15. Turntable Lift Slider Cam
Arm Drive Gears
Use Stock No. 149247 Rykon "О" Grease sparingly on Arm Drive
Gears.
Grease
Sparingly
Fig. 3-16. Arm Drive Gears
3-4
Motor Bearings
Use Stock No. 149053 Omnilube 350 oil sparingly on Turntable
and Servo Motor bearings.
он
Sparingly
он
paringly
Fig. 3-17. Turntable And Servo Motors
Turntable Shaft Bearings
Use Stock No. 149053 Omnilube 350 oil sparingly on Turntable
Shaft Bearings.
OIL
SPARINGLY
Figure 3-18, Turntable Shaft Bearings
Transducer Assembly
Use Stock No. 149248 DC111 Silicone Grease sparingly (thin even
coat) on Transducer Assembly.
GREASE
. , SPARINGLY
Fig. 3-19. Transducer Assembly
