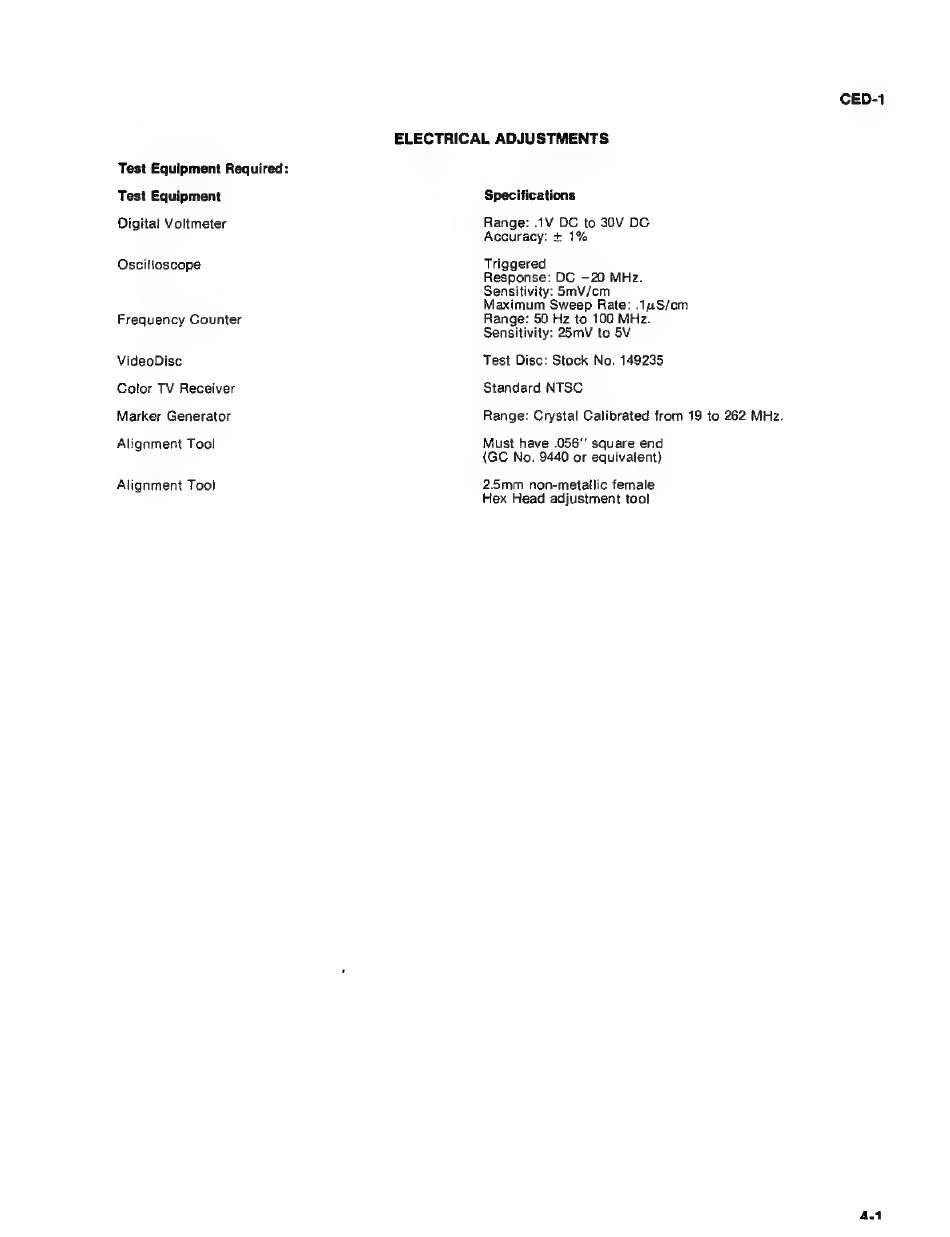

Electrical Adjustments - RCA SelectaVision VideoDisc SFT 100 Service Data

Test Equipment Required:
Test Equipment
Digital Voltmeter
Oscilloscope
Frequency Counter
VideoDisc
Color TV Receiver
Marker Generator
Alignment Tool
Alignment Tool
CED-1
ELECTRICAL ADJUSTMENTS
Specifications
Range: .1V DC to 30V DC
Accuracy: + 1%
Triggered
Response: DC -20 MHz.
Sensitivity: 5mV/cm
Maximum Sweep Rate: .1uS/cm
Range: 50 Hz to 100 MHz.
Sensitivity: 25mV to 5V
Test Disc: Stock No. 149235
Standard NTSC
Range: Crystal Calibrated from 19 to 262 MHz.
Must have .056'' square end
(GC No. 9440 or equivalent)
2.5mm non-metallic female
Hex Head adjustment tool
