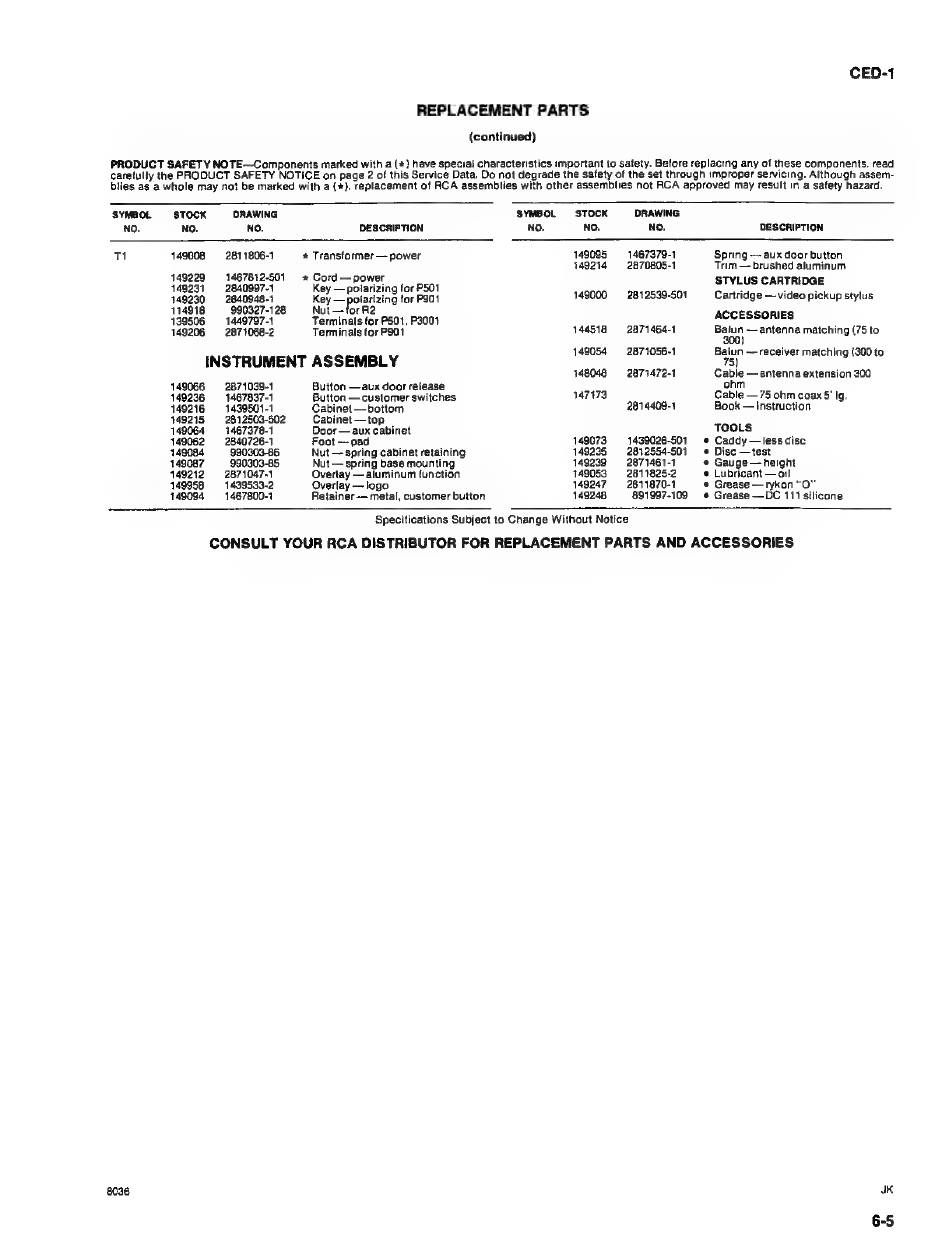

REPLACEMENT PARTS
(continued)
CED-1
PRODUCT SAFETY NOTE—Components marked with а (а) have special characteristics important to safety. Before replacing any of these components. read
caretully the PRODUCT SAFETY NOTICE on page 2 of this Service Data. Do not degrade the safety of the set through improper servicing. Although assem-
blies as a whole may not be marked with a (ж), replacement of RCA assemblies with other assemblies not RCA approved may result in a safety hazard.
SYMBOL. STOCK DRAWING SYMBOL STOCK DRAWING
NO. NO. NO. DESCRIPTION NO. NO. NO. DESCRIPTION
Ti 149008 2811806-1 * Transformer — power 149095 1467379-1 Spring — aux door button
149214 2870805-1 Trim — brushed aluminum
149229 1467812-501 ж Cord — power
149231 2840997-1 Key — polarizing for P501 STYLUS CARTRIDGE
114918 990327-128 Nut —for R2
139506 — 14497971 Terminals for P501, P3001 ACCESSORIES
149206 2871068-2 Terminals for P901 144518 2871464-1 Suns. Senn. matching (75 to
149054 2871056-1 Baiun — receiver matching (300 to
INSTRUMENT ASSEMBLY 75]
148048 2871472-1 Cable — antenna extension 300
149066 2871039-1 Button — aux door release ohm К
149236 1467837-1 Button — customer switches 147173 Cable — 75 ohm coax 5' Ig.
149216 1439501-1 Cabinet —bottom 2814409-1 Book — Instruction
149215 2812503-502 Cabinet — top .
149064 1467378-1 Door — aux cabinet TOOLS
149062 2840726-1 Foot — рад 149073 1439026-501 е Caddy—lessdisc
149084 990303-86 Nut — spring cabinet retaining 149235 2812554-501 е Disc — test
149087 990303-85 Nut — spring base mounting 149239 2871461-1 * Gauge — height
149219 287104741 Overlay — aluminum function 149053 2811825-2 е Lubricant — oil
149958 1439533-2 Overlay — logo 149247 2811870-1 * Grease — гукоп "O"
149094 1467800-1 Retainer — metal, customer button 149248 891997-109 е Grease —DC 111 silicone
Specifications Subject to Change Without Notice
CONSULT YOUR RCA DISTRIBUTOR FOR REPLACEMENT PARTS AND ACCESSORIES
