CED-1

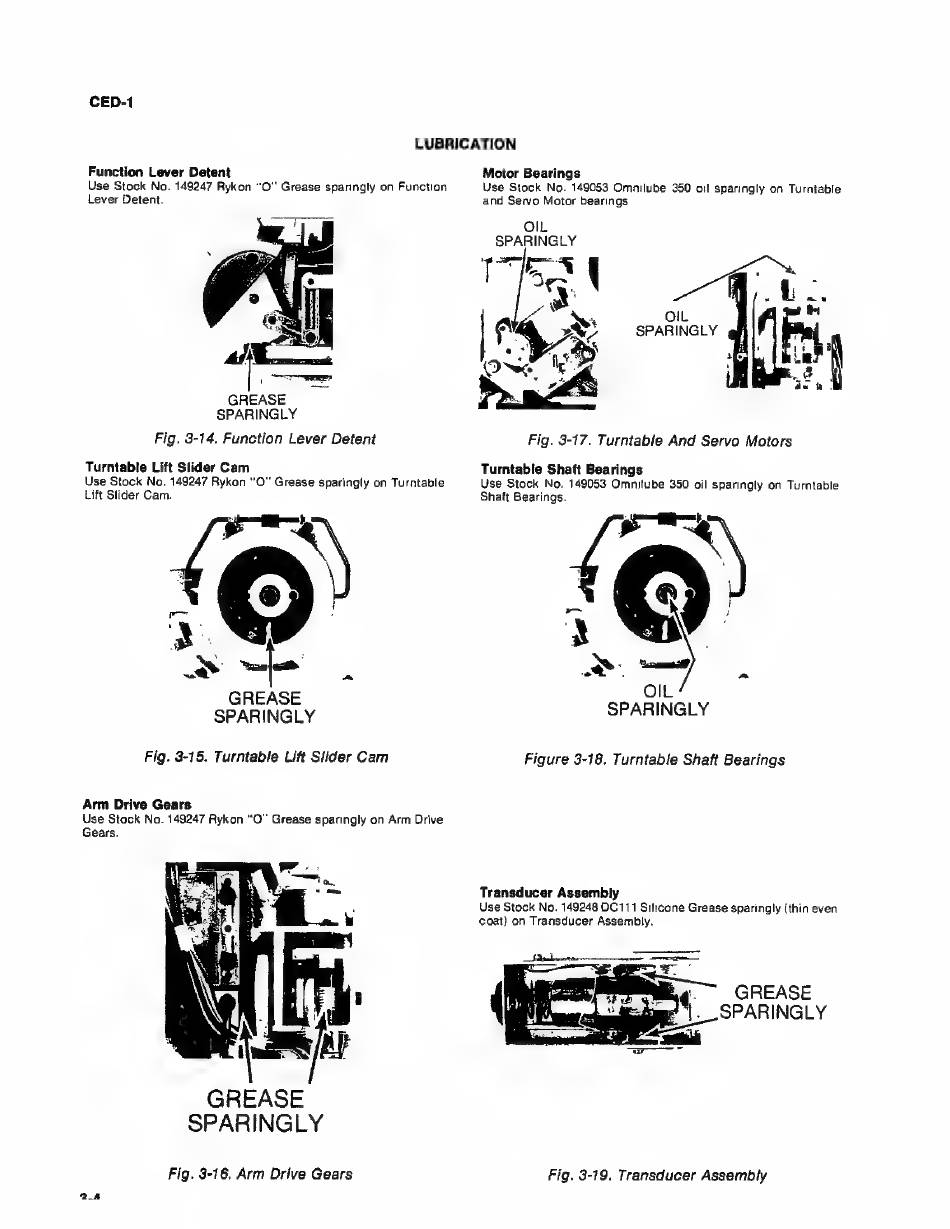

LUBRICATION
Function Lever Detent Motor Bearings
Use Stock No. 149247 Rykon "О" Grease sparingly on Function Use Stock No. 149053 Omnilube 350 oil sparingly on Turntable
Lever Detent. and Servo Motor bearings.
OIL
SPARINGLY
|
GREASE
SPARINGLY
Fig. 3-14. Function Lever Detent
Fig. 3-17. Turntable And Servo Motors
Turntable Lift Slider Cam Turntable Shaft Bearings
Use Stock Мо. 149247 Вукоп "О" Grease sparingly on Turntable
Use Stock No. 149053 Omnilube 350 oi! sparingly on Turntable
Lift Slider Cam. Shaft Bearings.
аз
оп. B
GREASE
SPARINGLY
SPARINGLY
Fig. 3-15. Turntable Lift Slider Cam
Figure 3-18. Turntable Shaft Bearings
Arm Drive Gears
Use Stock No. 149247 Rykon "O" Grease sparingly on Arm Drive
Gears.
Transducer Assembly
Use Stock No. 149248 DC111 Silicone Grease sparingly (thin even
coat) on Transducer Assembly.
GREASE
аш: | . SPARINGLY
c
GREASE
SPARINGLY
Fig. 3-16. Arm Drive Gears Fig. 3-19. Transducer Assembly
