- Page 1 Translated from original operating instructions manual PRUNING SHEARS M32C 26_192037-A Operating instructions 09/2024 READ THE USER OPERATING GUIDE CAREFULLY BEFORE USE...
-
Page 3: Table Of Contents
PELLENC ..............................2.4. SAFETY WARNINGS FOR BATTERY-POWERED SHEARS ............2.5. SAFETY MEASURES ASSOCIATED WITH BATTERY USE ............2.6. SAFETY MEASURES WHEN USING THE "PELLENC" CHARGER ..........2.7. SAFETY SIGNAGE ........................2.8. PERSONAL PROTECTION EQUIPMENT ..................3. DESCRIPTION AND TECHNICAL CHARACTERISTICS ............ 11 3.1. - Page 4 11.2.3. IMPLEMENTATION OF THE COMMERCIAL WARRANTY ..............11.3. PAID AFTER-SALES SERVICE ....................11.3.1. GENERAL INFORMATION ......................11.3.2. WEAR PARTS AND CONSUMABLES ..................... 11.3.3. SPARE PARTS ..........................12. STATEMENT OF COMPLIANCE: M32C ..............25 13. UK DECLARATION OF CONFORMITY : M32C ............26...
-
Page 5: Introduction
26_192037-A 1. INTRODUCTION Dear Customer, Thank you for purchasing your Pruning shears M32C. Properly used and maintained, this equipment will give you years of satisfaction. Warning In accordance with product liability laws, we are not responsible for damage caused by our product if the product includes an accessory that is not from the manufacturer or is not approved by the manufacturer. -
Page 6: Security
• The Pruning shears M32C is intended for vineyard, fruit-tree, olive-growing and landscape maintenance pruning up to a diameter of 32 mm. • The Pruning shears M32C must be operated from the ground or a suitable fully stable and secure platform. • The Pruning shears M32C is only intended for outdoor use. -
Page 7: Personal Safety
PRUNING SHEARS M32C 26_192037-A 2.2.3. PERSONAL SAFETY Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention when using a power tool can result in serious personal injury. -
Page 8: Maintenance
2.2.7. MANAGEMENT OF THE RECYCLING AND RECOVERY OF WASTE FROM YOUR TOOL When the tool reaches the end of its life, PELLENC provide the end-of-life sheet of the equipment. The end-of-life sheet provides instructions for safely removing components. -
Page 9: Safety Measures When Using The "Pellenc" Charger
• Battery alone: product that is classified as class 9, UN3480. 13. Use of a battery other than that provided by Pellenc SA is dangerous (risk of serious injury). If a different battery is used, Pellenc SA cannot be held responsible for any consequences. -
Page 10: Safety Signage
PRUNING SHEARS M32C 26_192037-A 18. When the battery is charging, place the charger on a non-flammable support, more than 1.5 m away from any flammable object. 2.7. SAFETY SIGNAGE Sharp cutting tool: Keep your hands away from the blade. Please read the operating instructions. -
Page 11: Description And Technical Characteristics

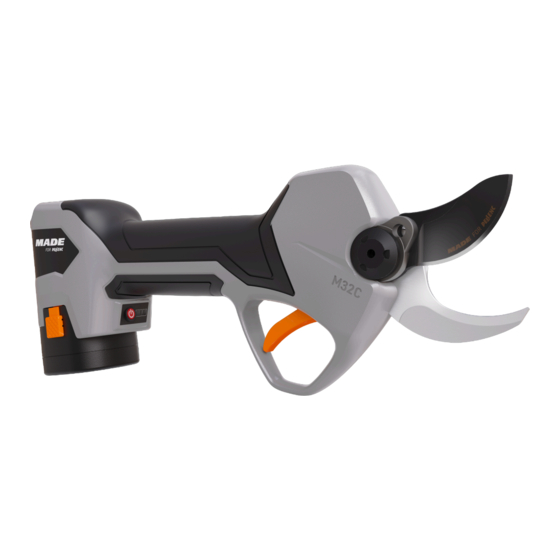

PRUNING SHEARS M32C 26_192037-A 3. DESCRIPTION AND TECHNICAL CHARACTERISTICS 3.1. DESCRIPTION OF THE TOOL Moving blade Fixed blade Trigger LED charge level indicator Power button Lubrication hole Battery Release buttons for battery removal LCD screen 10. Strap 11. Charger 12. Accessories: •... -
Page 12: Start-Up
For more information on the use of the battery, refer to the battery operating instructions. 4.1. CONTENT OF THE CARRY-CASE Check that the tool is delivered with: • 1 M32C pruning shears • 2 wrenches • 2 x M32C batteries •... -
Page 13: Getting Started
PRUNING SHEARS M32C 26_192037-A • Never touch charged objects with the pruning shears. • Do not use or expose the pruning shears in the rain. 5.1. GETTING STARTED Connect the battery to the tool. See 4.2. Connecting the battery to the tool, page 12. -
Page 14: Progressive Mode
PRUNING SHEARS M32C 26_192037-A 5.4. PROGRESSIVE MODE The pruning shears can be used in progressive or non- progressive mode. • Progressive cutting mode: blade stroke corresponds to the extent of the trigger stroke. • Non-progressive cutting mode: the blade closes automatically and completely as soon as the trigger is pressed. -
Page 15: Maintenance
• All maintenance operations must be carried out with the battery disconnected from the tool, unless otherwise specified in the procedure. • Use products recommended by PELLENC. • In the event of any problem, consult an authorised PELLENC dealer. Maintenance schedule Frequency of operations... -
Page 16: Check
PRUNING SHEARS M32C 26_192037-A 7.3. CHECK 7.3.1. VISUAL CHECK OF THE GENERAL CONDITION OF THE TOOL • Visually check the general condition of the tool. 7.3.2. CHECKING THE OPERATING TRIGGER Check the operation and condition of the operating trigger. Check that there are no physical obstructions (e.g. -
Page 17: Greasing The Blade
PRUNING SHEARS M32C 26_192037-A See 4.3. Disconnecting the battery from the tool, page 12. Pose the sharpening stone (1) onto the blade on the right-hand side of the tool. Important Incline the stone about 30° to match the edge of the blade perfectly. -
Page 18: Cleaning The Tool
PRUNING SHEARS M32C 26_192037-A Bring the grease gun (2) into contact with the blade axis of the tool (1) using a single press until the grease appears between the moving blade (3) and the fixed blade (4). Remove the grease gun (2). - Page 19 PRUNING SHEARS M32C 26_192037-A 10. Using the spanner provided, loosen the rack and pinion nut. 11. Remove the rack and pinion nut. 12. Turn the pruning shears over. 13. Remove the clevis pin (1). 14. Remove the blade guide (2).
- Page 20 PRUNING SHEARS M32C 26_192037-A 22. Turn the pruning shears over. 23. Position the rack and pinion nut. 24. Using the supplied spanner, tighten the rack and pinion nut to atorque of 1.5 N.m. 25. Position the rack and pinion screw.
-
Page 21: Incidents And Troubleshooting
8. INCIDENTS AND TROUBLESHOOTING 8.1. TABLE OF INCIDENTS AND BREAKDOWNS Caution Never attempt to open or repair the battery pack or the charger If the tool does not work, return the complete equipment in its original packaging to an authorised repairer PELLENC. -
Page 22: Storage And Transport
See the operating instructions for the battery. Note It is possible to have the pruning shears serviced by an authorised repairer out of season. For more information, consult an authorised dealer or contact PELLENC. 10. ACCESSORIES AND CONSUMABLES 10.1. ACCESSORIES INCLUDED For a list of accessories included with the tool, see 4.1. -
Page 23: Legal Guarantee Of Conformity
PELLENC products are guaranteed under the commercial warranty as from delivery to the customer for a period of two (2) years for products connected to a PELLENC battery, and for a period of one (1) year for other PELLENC products. -
Page 24: Implementation Of The Commercial Warranty
PRUNING SHEARS M32C 26_192037-A In the case of products connected to a PELLENC battery, parts that are replaced under the product warranty after the 12th month of use, are covered for a period of one (1) year. 11.2.2.3. WARRANTY EXCLUSIONS... -
Page 25: Statement
PRUNING SHEARS M32C 26_192037-A 12. STATEMENT OF COMPLIANCE: M32C MANUFACTURER / PERSON AUTHORISED TO COMPILE PELLENC THE TECHNICAL FILE ADDRESS Quartier Notre-Dame - 84120 Pertuis (France) We hereby declare that the machine designated below: GENERIC DENOMINATION Pruning shears FUNCTION INTENDED FOR PRUNING... -
Page 26: Declaration Of Conformity
PRUNING SHEARS M32C 26_192037-A 13. UK DECLARATION OF CONFORMITY : M32C MANUFACTURER / ENTITY AUTHORIZED TO COMPILE PELLENC THE TECHNICAL FILE ADDRESS Quartier Notre-Dame - 84120 Pertuis (France) We hereby declare that the machine referred to below as: GENERIC DENOMINATION... - Page 28 PELLENC Quartier Notre Dame - 84120 Pertuis (France)
