NOTE: If any frequency is set in any one mode, that frequency is stored in the memory. Thus,
frequency will not vary when mode 'switch is changed (except when the tuning control
knob is turned, in which case the above example does not apply), and the stored
frequency will be displayed when the mode switcn is returned to the previous mode.

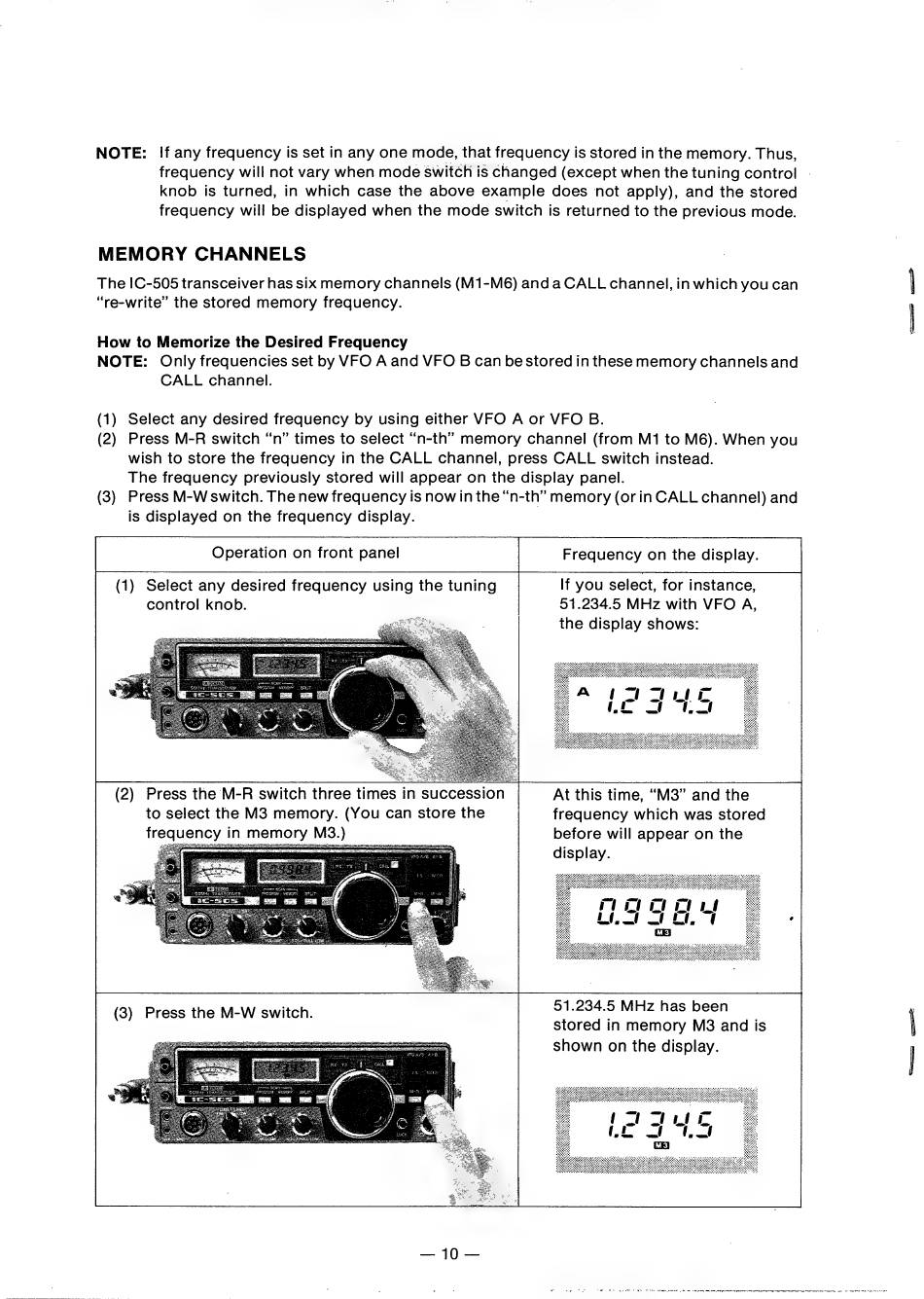

MEMORY CHANNELS
The IC-505 transceiver has six memory channels (M1-M6) anda CALL channel, in which you can
"re-write" the stored memory frequency.
How to Memorize the Desired Frequency
NOTE: Only frequencies set by VFO A and VFO B can bestored in these memory channels and
CALL channel.
(1) Select any desired frequency by using either VFO A or VFO B.
(2) Press M-R switch "n" times to select "n-th" memory channel (from M1 to M6). When you
wish to store the frequency in the CALL channel, press CALL switch instead.
The frequency previously stored will appear on the display panel. |
(3) Press M-W switch. The new frequency is now in the "n-th" memory (огїп CALL channel) and
is displayed on the frequency display. |
Operation on front panel Frequency on the display.
(1) Select any desired frequency using the tuning If you select, for instance,
control knob. 51.234.5 MHz with VFO A,
the display shows:
At this time, "M3" and the
frequency which was stored
before will appear on the
display.
(2) Press the M-R switch three times in succession |
to select the M3 memory. (You can store the
fre ncy in memory M3.)
51.234.5 MHz has been
stored in memory МЗ and is
shown on the display.
(3) Press the M-W switch.
—10—
