Your MLX-10 Telephone

Adjusting the Desk Stand

The angle of a desktop phone can be adjusted to two
positions, low and high, as shown in the diagram at the
bottom of the user card tray. To make the adjustment, put the
phone face down on a flat surface, remove the cord from the
clips in the stand, and follow the steps below. (Removing the
user card tray under the phone may make the adjustment
easier.)
1.

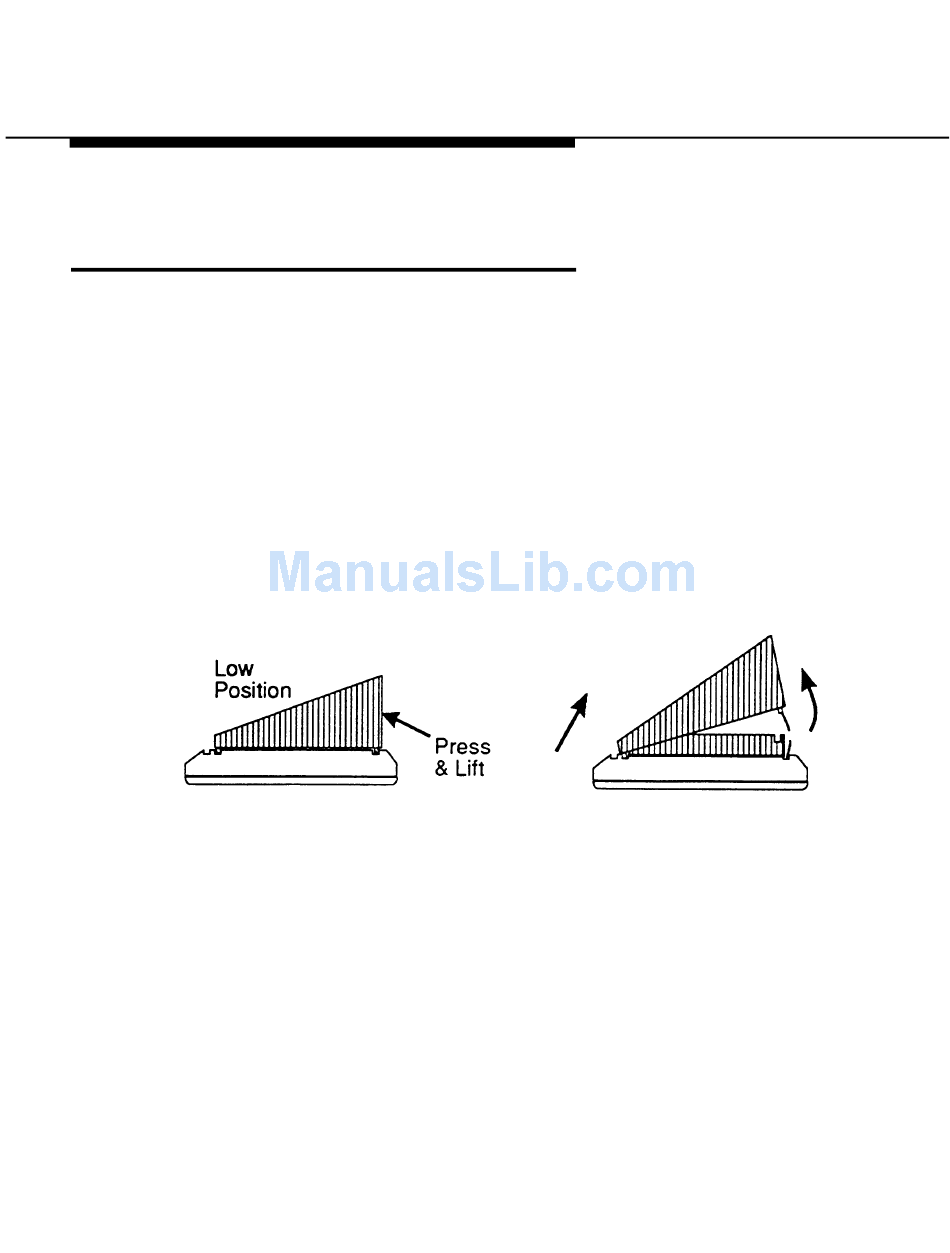

Press on the top rear center of the stand to release the
tab.
2.
Pull the stand toward you and away from the phone.
3.
To adjust the stand to the low position, insert the tab at
the bottom of the stand into the corresponding lower
slot. To adjust the stand to the high position, insert the
tab at the bottom of the stand into the corresponding
upper slot.
1-14 Adjusting the Desk Stand
