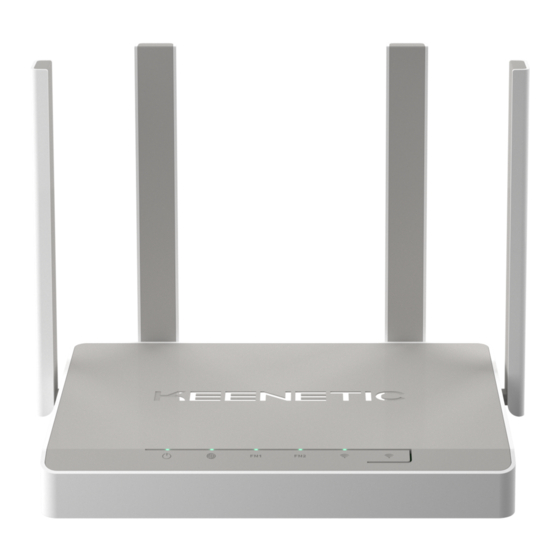

KeeNetic HERO KN-1011 Quick Start Manual

Quick Start Guide
AX1800 Dual Band Mesh Wi-Fi 6 Gigabit Router
with Dual Core CPU, a 5-Port Gigabit Smart Switch,
SFP Combo Port, USB 2.0 and USB 3.0 Ports
Model: KN-1011
Installing Your
Keenetic Hero
1
Position your Keenetic Hero (hereinafter 'Keenetic device')
within cable lengths of Ethernet and power outlets. Place
your Keenetic device in an unenclosed space for better
wireless coverage.
2
Connect your Keenetic device to a power
source. Check that both the Status LED C and
Wi-Fi LED D are illuminated and not blinking.
3
Сonnect a mobile device to your Keenetic device via Wi-Fi.
The default Wi-Fi name (SSID) and the Wi-Fi password are
printed on your Keenetic device's back label along with
a QR code that will automatically connect your mobile device
to the Keenetic device's Wi-Fi when scanned. Alternatively,
сonnect a computer to any gray Ethernet port on your
Keenetic device using the included Ethernet cable.
4
Once connected, an Initial Setup Wizard window will appear
on your mobile device / computer. If the Wizard does not
appear, using a browser go to my.keenetic.net.
Note: If the Initial Setup Wizard doesn't appear, please refer
to the Frequently Asked Questions section below.
10:00
Welcome to
Your Keenetic
Next
For technical support and other information, please visit
5
In the Initial Setup Wizard window that appeared, select the
configuration option.
To create a new network and connect it to the Internet, choose the
appropriate connection type and follow the setup instructions.
To extend an existing network and add this Keenetic device as
a Wi-Fi extender, choose the To switch to Wi-Fi Extender Mode
option and follow the setup instructions.
