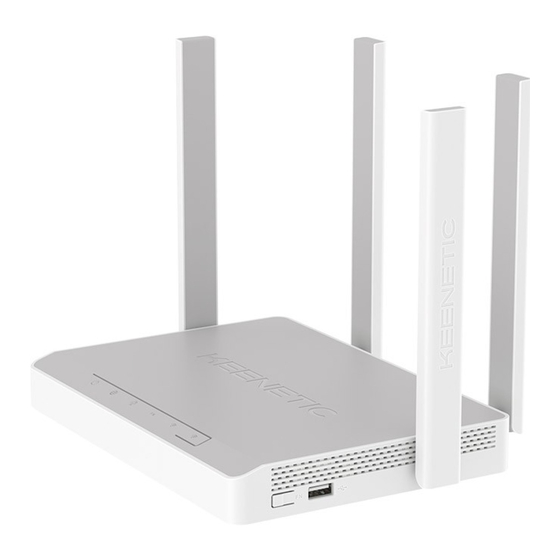

KeeNetic SKIPPER 4G KN-2910 Quick Start Manual

KeeNetic SKIPPER 4G KN-2910 Quick Start Manual

Ac1200 mesh wi-fi 5 4g modem router with a 4-port gigabit smart switch and usb port

Advertisement

Quick Links

KEENETIC
SKIPPER Ó
Quick Start Guide
AC1200 Mesh Wi-Fi 5 4G Modem Router with a 4-Port
Gigabit Smart Switch and USB Port
Model: KN-2910
Installing Your Keenetic Skipper 4G
1. Insert a standard Nano-SIM card, with the gold contacts
facing downwards, into the SIM Сard Slot on the back
of your Keenetic Skipper 4G (hereinafter 'Keenetic device'),
until you hear a click. To obtain an activated Nano-SIM
card, contact your mobile broadband service provider.
2. Install the supplied removable 4G antennas
and position them vertically.
3. Position your Keenetic device within cable length of a power
outlet. Place your Keenetic device in an unenclosed space
for better wireless coverage. Connect your Keenetic device
to a power source. Check that both the Status LED C and
Wi-Fi LED D are illuminated and not blinking.
4. Сonnect a mobile device to your Keenetic device via Wi-Fi.
The default Wi-Fi name (SSID) and the Wi-Fi password are
printed on your Keenetic device's back label along with
a QR code that will automatically connect your mobile device
to the Keenetic device's Wi-Fi when scanned. Alternatively,
сonnect a computer to any gray Ethernet port on your
Keenetic device using the included Ethernet cable.
5. Once connected, an Initial Setup Wizard window will appear
on your mobile device / computer. If the Wizard does not appear,
go to my.keenetic.net and follow the setup instructions.
Note: If the Initial Setup Wizard still doesn't appear, please
refer to the Frequently Asked Questions section below.
2
0
1
2
3
Nano
1
4
SIM
10:00
Welcome to
Your Keenetic
Next
5
3
For technical support and other information, please visit
help.keenetic.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the SKIPPER 4G KN-2910 and is the answer not in the manual?

Questions and answers

Summary of Contents for KeeNetic SKIPPER 4G KN-2910

  • Page 1 2. Install the supplied removable 4G antennas and position them vertically. 3. Position your Keenetic device within cable length of a power outlet. Place your Keenetic device in an unenclosed space for better wireless coverage. Connect your Keenetic device to a power source.
  • Page 2 Off — A compatible USB device was not found or is device's weight. correctly entered in the Internet settings. not ready. 3. If the Mobile Network LED E on the Keenetic device 20 mm or longer 128 mm is steady blue or green, verify that your SIM card has 3.0~4.0 mm...
