- Page 1 Instructions for use INTRAmatic 181 M – 0.535.5250...
- Page 2 Distributed by: Manufacturer: KaVo Dental GmbH KaVo Dental GmbH Bismarckring 39 Bismarckring 39 88400 Biberach 88400 Biberach Germany Germany Phone +49 7351 56-0 www.kavo.com Fax +49 7351 56-1488...
-
Page 3: Table Of Contents
Instructions for use INTRAmatic 181 M – 0.535.5250 Table of contents Table of contents 1 User instructions....................... 2 Safety ..........................2.1 Infection hazard......................7 2.2 Technical condition......................7 2.3 Accessories and combination with other equipment ............8 2.4 Qualification of personnel....................8 2.5 Service and repair...................... -
Page 4: User Instructions
KaVo Dental GmbH. All other trademarks are property of their respective owners. KaVo Original Factory Repair In the event of a repair, please ship your product to the KaVo Original Factory Repair using www.kavobox.com. KaVo Technical service If you have any technical questions or complaints, please contact the KaVo... - Page 5 Instructions for use INTRAmatic 181 M – 0.535.5250 1 User instructions UDI symbol Manufacturer Note: Please note accompanying documents Follow the electronic instructions for use HIBC Code CE mark for medical devices EAC conformity mark (Eurasian Conformity) UA Mark of conformity UA.TR.099...
- Page 6 Instructions for use INTRAmatic 181 M – 0.535.5250 1 User instructions CAUTION In cases which – if not prevented – can lead to minor or moderate injury. CAUTION In cases which – if not prevented – can lead to material damage.
-
Page 7: Safety
4 Reprocess the product and accessories appropriately before disposal. 2.2 Technical condition A damaged product or damaged or NOT KaVo original components could injure patients, users or third parties. 4 Only operate devices or components if they show no signs of damage on the outside. -
Page 8: Accessories And Combination With Other Equipment
Define the service interval depending on the frequency of use. As a result of the use of NON-KaVo original spare parts during the repair, parts may become detached and injure patients, users or third parties. This may res- ult in aspiration, swallowing of parts and possibly even a risk of suffocation. -
Page 9: Property Damage
Instructions for use INTRAmatic 181 M – 0.535.5250 2 Safety | 2.6 Property damage 2.6 Property damage Contaminated and moist compressed air or contaminated water can cause mal- functions and premature wear. 4 Make sure to supply dry, clean and uncontaminated compressed air in ac- cordance with DIN EN ISO 7494-2. -
Page 10: Description Of The Product

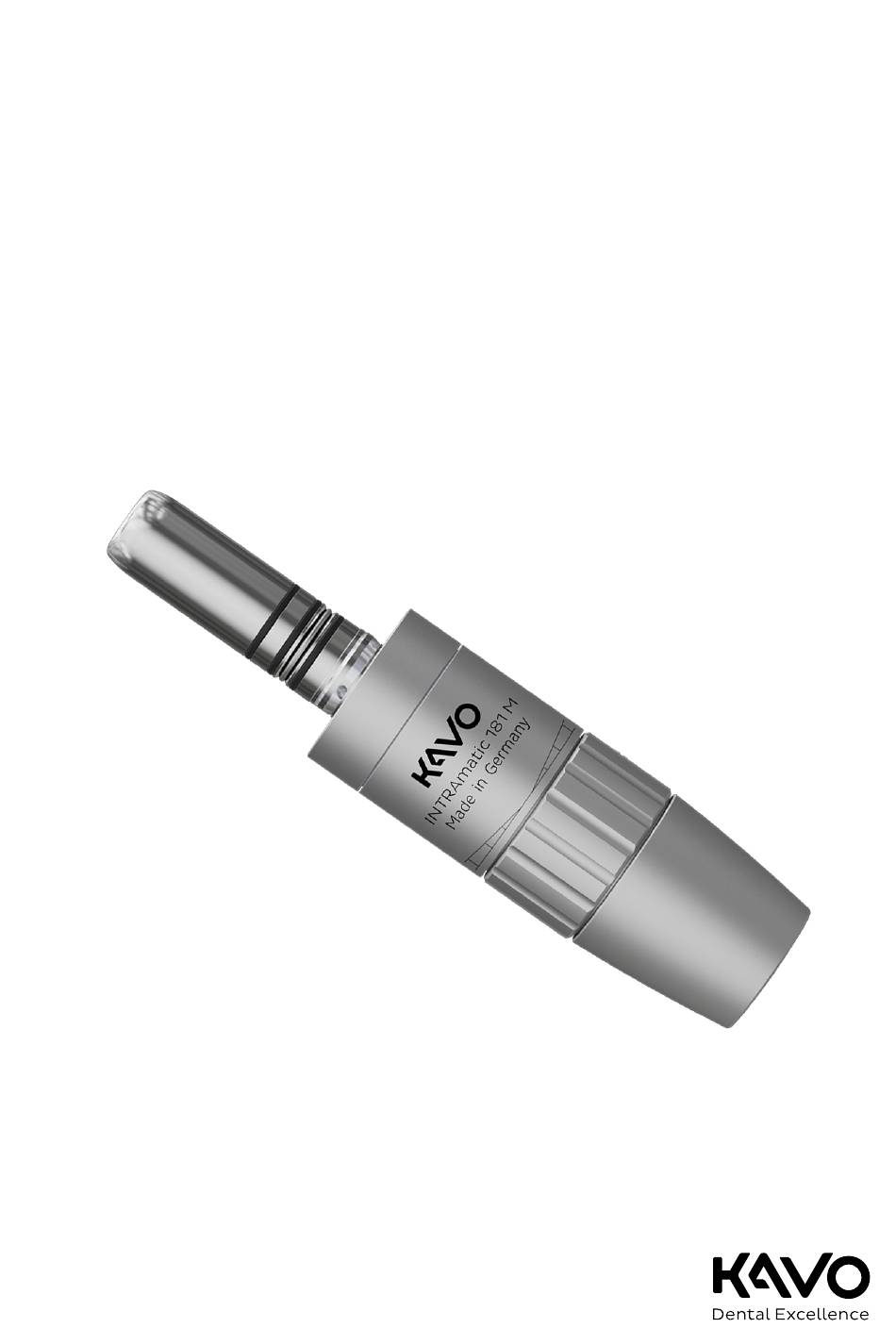

Instructions for use INTRAmatic 181 M – 0.535.5250 3 Description of the product | 3.1 Intended use 3 Description of the product INTRAmatic 181 M (Mat. no. 0.535.5250) 3.1 Intended use Indications for use: The motor is: ▪ An air motor intended to operate/drive a dental handpiece or contra-angle handpiece ▪... -
Page 11: Technical Specifications
Instructions for use INTRAmatic 181 M – 0.535.5250 3 Description of the product | 3.2 Technical Specifications 3.2 Technical Specifications Operating speed 5,000 to 20,000 rpm Drive pressure 2.2 to 2.7 bar (32 to 39 psi) Return air pressure < 1.1 bar (16 psi) Spray water pressure 0.8 to 2.5 bar (12 to 36 psi) -
Page 12: Transportation And Storage Conditions
Instructions for use INTRAmatic 181 M – 0.535.5250 3 Description of the product | 3.3 Transportation and storage conditions 3.3 Transportation and storage conditions CAUTION Startup after refrigerated storage. Malfunction. 4 Prior to startup, strongly refrigerated products must be allowed to warm up to a temperature of 20 °C to 25 °C (68 °F to 77 °F). -
Page 13: Startup And Shut Down
Dispose of and recycle the packaging appropriately in accordance with current packaging law, employing waste management / recycling companies. Comply with the comprehensive return system. KaVo has had its packaging licensed for this purpose. Please comply with the regional public waste-disposal system. -
Page 14: Operation
Instructions for use INTRAmatic 181 M – 0.535.5250 5 Operation | 5.1 Installing the MULTIflex coupling 5 Operation NOTE At the beginning of each workday, the water-conducting systems should be rinsed for at least 2 minutes (without transmission handpieces being at- tached) and if there is a risk of contamination from reflux or back suction, the system may also need to be rinsed for 20 to 30 seconds after each patient. -
Page 15: Regulating The Spray Water
Instructions for use INTRAmatic 181 M – 0.535.5250 5 Operation | 5.4 Regulating the spray water 5.4 Regulating the spray water CAUTION Hazard from insufficient amount of spray water. Damage to the cog due to overheating. 4 Make sure that the motor speed is appropriate for the preparation on hand. -
Page 16: Troubleshooting
Malfunction or complete failure. 4 Do not use Vaseline or other grease or oil. 4 Spray a lint-free cloth with KaVo Spray and apply it to the O-rings on the coupling. 4 Press the O-ring between your fingers to form a loop. -
Page 17: Reprocessing Steps In Accordance With Iso 17664-1 / Iso 17664-2
Instructions for use INTRAmatic 181 M – 0.535.5250 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 | 7.1 Preparations at the site of use 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 7.1 Preparations at the site of use WARNING Hazard from contaminated products. -
Page 18: Manual Internal Cleaning
4 If there is any residual moisture after cleaning and disinfecting, soak up the residual moisture with a soft cotton cloth and then wipe dry. 4 Immediately after drying, lubricate the KaVo medical device with care agents from the care system. -
Page 19: Automated Reprocessing
30 minutes of operation. 4 Unscrew the motor from the hose. 4 Cover the medical device with the KaVo Cleanpac bag, and place it on the corresponding care adapter. 4 Press the spray key for 1 to 2 seconds. -
Page 20: Sterilisation
Instructions for use INTRAmatic 181 M – 0.535.5250 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 | 7.6 Sterilisation 7.6 Sterilisation Sterilisation in a steam steriliser (autoclave) in accordance with EN 13060 / EN ISO 17665-1 CAUTION Improper service and care. -
Page 21: Optional Aids And Consumables
Instructions for use INTRAmatic 181 M – 0.535.5250 8 Optional aids and consumables 8 Optional aids and consumables Available from specialised dental dealers. Material summary Mat. No. O-ring 8.3x0.68 0.200.6120 Cleanpac 10 units 0.411.9691 KaVo Spray 2112 A 0.411.9640 QUATTROcare plus Spray 2140 P 1.005.4525... -
Page 22: Terms And Conditions Of Warranty
12 months from the date of the invoice, subject to the following conditions: In case of justified complaints KaVo shall honour its warranty with a free re- placement or repair. Other claims of any kind whatsoever, in particular with re- spect to compensation, are excluded.
