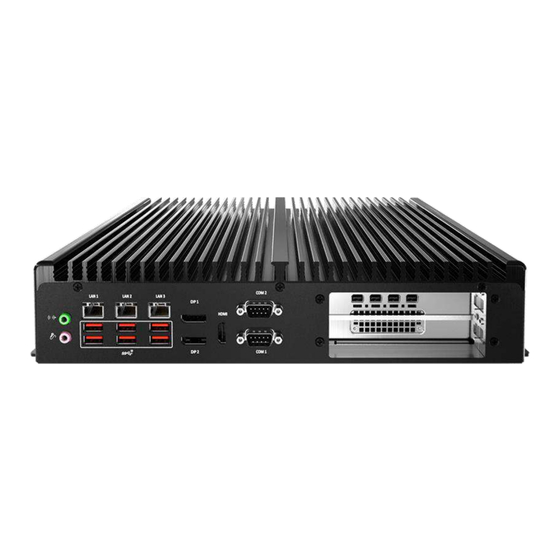

Premio BCO Series User Manual

Fanless embedded computers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER'S
MANUAL
BCO Series
Fanless Embedded Computers
BCO-3000-RPL
BCO-6000-RPL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BCO Series and is the answer not in the manual?

Questions and answers

Related Manuals for Premio BCO Series

Summary of Contents for Premio BCO Series

  • Page 1 USER’S MANUAL BCO Series Fanless Embedded Computers BCO-3000-RPL BCO-6000-RPL...

  • Page 2: Table Of Contents

    BCO-3000/6000-RPL l User’s Manual Table of Contents Prefaces …………………………………………………….……………………………………………. 04 Revision …………………………………………………………………………………………..……………….……….. 04 Disclaimer ………………………………………………………..…….…….………………………….……………….. 04 Copyright Notice …………………………………….…………………….…………………………………………… 04 Trademarks Acknowledgment …………..………………………………………………………....04 Environmental Protection Announcement …………………………….………………….……………….. 04 Safety Precautions ………………………………………….……………………………….…………….………….. 05 Technical Support and Assistance …………………………………….…………….…………….…………….06 Conventions Used in this Manual ………………………………………………………………….….………..06 Package Contents …………………………………………………………………………………………….…………...
  • Page 3 BCO-3000/6000-RPL l User’s Manual Advanced .…………………………………………………………………………………..…..…..62 Boot …………………………….……………………………………..………………………….……..70 Security …………………………….……………………………………..……………………….…..71 Chipset …………………………….……………………………………..……………………….…..88 Power …………………………….……………………………………..……………………….…..89 Save & Exit …………………………….……………………………………..……………………..90 Appendix GPIO WDT BKL SMBusAccess Programming ………………………...…… 91 GPIO WDT BKL Programming …….…………….…….……………………..….…….…….…………... 92 General Purpose IO ………………………………..………………………………………………………….. 93 Watchdog Timer ………………………………..………………………………………………………..……..

  • Page 4: Prefaces

    2024/04/22 Disclaimer All specifications and information in this User’s Manual are believed to be accurate and up to date. Premio Inc. does not guarantee that the contents herein are complete, true, accurate or non-misleading. The information in this document is subject to change without notice and does not represent a commitment on the part of Premio Inc.

  • Page 5: Safety Precautions

    Preface BCO-3000/6000-RPL l User’s Manual Safety Precautions Before installing and using the equipment, please read the following precautions: ⚫ Put this equipment on a reliable surface during installation. Dropping it or letting it fall could cause damage. ⚫ The power outlet shall be installed near the equipment and shall be easily accessible. ⚫...

  • Page 6: Technical Support And Assistance

    Preface BCO-3000/6000-RPL l User’s Manual Technical Support and Assistance 1. Visit the Premio Inc website at www.premioinc.com where you can find the latest information about the product. 2. Contact your distributor, our technical support team or sales representative for technical support if you need additional assistance.

  • Page 7: Package Contents

    Preface BCO-3000/6000-RPL l User’s Manual Package Contents Before installation, please ensure all the items listed in the following table are included in the package. Item Description Q’ty ： Choosing one BCO-3000-RPL Small Form Factor Computer BCO-6000-RPL-1E AI Edge Computer BCO-6000-RPL-2E AI Edge Computer Wall Mount Kit Accessory Kit •...

  • Page 8: Optional Accessory

    Preface BCO-3000/6000-RPL l User’s Manual Optional Accessories • BCO-3000-RPL Series Model No. Product Description 1-TPCD00002 Power Cord, European Type, 180cm 1-TPCD00001 Power Cord, 3-pin UK Type, 180cm 3-DINR-0004 Din Rail-2 Mounting Kit • BCO-6000-RPL Series Model No. Product Description 1-TPCD00002 Power Cord, European Type, 180cm 1-TPCD00001 Power Cord, 3-pin UK Type, 180cm...

  • Page 9: Chapter 1 Product Introductions

    Chapter 1 Product Introductions...

  • Page 10: Overview

    Chapter 1: Product Introductions 1.1 Overview The BCO Series is designed to take a robust approach to provide essential edge computing features into the rugged edge that will not compromise on performance or reliability. The BCO-3000-RPL and BCO-6000-RPL Series are designed with a semi-rugged chassis to shield against the harsh conditions at the edge.

  • Page 11: Hardware Specification

    BCO-3000/6000-RPL l User’s Manual Chapter 1: Product Introductions 1.2 Hardware Specification System Processor Intel® IOTG Raptor Lake-S Processor Core i9/i7/i5/i3, Pentium, Celeron (35W only) Intel® IOTG Alder Lake-S Processor Core i9/i7/i5/i3, Pentium, Celeron (35W only) System Chipset Intel® Q670E Express Chipset Intel®...
  • Page 12 BCO-3000/6000-RPL l User’s Manual Chapter 1: Product Introductions 1.2 Hardware Specification BCO-3000-RPL BCO-6000-RPL Audio Line-out/Mic-in 4x DB9 COM1: RS232/422/485 COM2: RS232/422/485 COM3: RS485 COM4: RS485 8 in / 8 out (Isolated) 3x RJ45 (2.5GbE) 6x USB 3.2 Gen2 8x USB 3.2 Gen 2 x1 Type-A 2x USB 3.2 Gen1 2x USB 2.0 Type-A 2x USB 2.0 Type-A...
  • Page 13 BCO-3000/6000-RPL l User’s Manual Chapter 1: Product Introductions Environment 0 ° C to 50 ° C (35W CPU) Operating Temp. Tested according to: IEC60068-2-1:2007 (Cold test procedure) IEC60068-2-2:2007 (Dry heat test procedure) IEC60068-2-3:2007 (Damp heat, steady state, test procedure) IEC60068-2-14:2009 (Wide temperature range thermal shock) -30 °...

  • Page 14: System I/O

    BCO-3000/6000-RPL l User’s Manual Chapter 1: Product Introductions 1.3 System I/O 1.3.1 BCO-3000-RPL Front Panel USB 3.2 Gen 2 port (10 Gbps) Line-out Used to connect USB 3.2 device Used to connect a speaker DisplayPort Mic-in Used to connect a DisplayPort monitor Used to connect a microphone HDMI port LAN port...
  • Page 15 BCO-3000/6000-RPL l User’s Manual Chapter 1: Product Introductions BCO-3000-RPL Rear Panel Digital I/O USB 2.0 port The Digital I/O terminal block supports 8 digital Used to connect USB 2.0 device input and 8 digital output USB 3.2 Gen 1 port (5 Gbps) DC IN Used to connect USB 3.2 device Used to plug a DC power input with terminal...

  • Page 16: Bco-6000-Rpl

    BCO-3000/6000-RPL l User’s Manual Chapter 1: Product Introductions 1.3.2 BCO-6000-RPL Front Panel USB 3.2 Gen 2 port (10 Gbps) Line-out Used to connect USB 3.2 device Used to connect a speaker DisplayPort Mic-in Used to connect a DisplayPort monitor Used to connect a microphone HDMI port LAN port Used to connect a HDMI monitor or connect...
  • Page 17 Chapter 1: Product Introductions BCO-3000/6000-RPL l User’s Manual BCO-6000-RPL Rear Panel Digital I/O USB 2.0 port The Digital I/O terminal block supports 8 digital Used to connect USB 2.0 device input and 8 digital output USB 3.2 Gen 1 port (5 Gbps) DC IN Used to connect USB 3.2 device Used to plug a DC power input with terminal...

  • Page 18: Mechanical Dimension

    BCO-3000/6000-RPL l User’s Manual Chapter 1: Product Introductions 1.4 Mechanical Dimensions 1.4.1 BCO-3000-RPL Unit: mm...

  • Page 19: Bco-6000-Rpl

    BCO-3000/6000-RPL l User’s Manual Chapter 1: Product Introductions 1.4.2 BCO-6000-RPL Unit: mm...

  • Page 20: Chapter 2 Mechanical Specifications

    Chapter 2 Mechanical Specifications...

  • Page 21: Switch And Connector Locations

    BCO-3000/6000-RPL l User’s Manual Chapter 2: Mechanical Specifications 2.1 Switch and Connector Locations 2.1.1 SKU1/ SKU2 RearI/OPanel JCOMP2 JVDD1 JATX1 JCOMP1 JCOMP3 JCOMP4 JCOM3_4 JBAT1 M2_E1 JLVDS1_EDP1 M2_M1 JINV1 JESPI1 JPWR3 JAUD1 JCMOS1 JSATA2 JAMP1 JME_DIS1 JSATA3 PCIE1 JSATA1 JUSB1 JGPIO1 CPUFAN1 JPWR1...
  • Page 22 BCO-3000/6000-RPL l User’s Manual Chapter 2: Mechanical Specifications Component Contents Component 2.2 CPU Socket 2.3 CPU & Heatsink Installation 2.4 Memory • DIMM1~2: DDR4 SO DIMM Slots 2.5 Storage • JSATA1: SATA 3.0 6Gb/s Ports • M2_M1: M.2 Slot (M Key, 2242, 2280) 2.6 Expansion Slots •...

  • Page 23: Cpu Socket

    BCO-3000/6000-RPL l User’s Manual Chapter 2: Mechanical Specifications 2.2 CPU Socket Introduction to the LGA1700 CPU The surface of the LGA1700 CPU has four notches and a golden triangle to assist in correctly lining up the CPU for motherboard placement. The golden triangle is the Pin 1 indicator.

  • Page 24: Cpu & Heatsink Installation

    BCO-3000/6000-RPL l User’s Manual Chapter 2: Mechanical Specifications 2.3 CPU & Heatsink Installation Use appropriate ground straps, gloves and ESD mats to protect yourself from electrostatic discharge (ESD) while installing the processor. Important Images are for illustration purposes only; actual parts may vary.

  • Page 25: Memory

    BCO-3000/6000-RPL l User’s Manual Chapter 2: Mechanical Specifications 2.4 Memory DIMM1~2: DDR4 SO DIMM Slots The SO-DIMM slots is intended for memory modules. D IM M 1 D IM M 2 Installing DDR4 Memory 1. Open the side clips to unlock the DIMM slot. 2.

  • Page 26: Storage

    BCO-3000/6000-RPL l User’s Manual Chapter 2: Mechanical Specifications 2.5 Storage JSATA1: SATA 3.0 6Gb/s Ports This connector is SATA 6Gb/s interface port, it can connect to one SATA device. JSATA2 JSATA3 JSATA1 Important • This SATA port supports hot plug. •...
  • Page 27 BCO-3000/6000-RPL l User’s Manual Chapter 2: Mechanical Specifications M2_M1: M.2 Slot (M Key, 2242, 2280) Please install the M.2 solid-state drive (SSD) into the M.2 slot as shown below. Feature ∙ Supports PCIe 3.0 x4 signal. M 2 _ M 1 ∙...

  • Page 28: Expansion Slots

    BCO-3000/6000-RPL l User’s Manual Chapter 2: Mechanical Specifications 2.6 Expansion Slots M2_E1 PCIE1: PCIe 4.0 x16 JUSIM1 (SKU1,2 Only) M2_B1 (SKU1,2 Only) PCIE1: PCIe Expansion Slots The PCI Express(Peripheral Component Interconnect Express) slots support PCIe interface expansion cards. JUSIM1: Nano SIM Holder (SKU1,2 Only) This holder is provided for 3G, 4G, LTE, 5G Nano SIM cards.
  • Page 29 BCO-3000/6000-RPL l User’s Manual Chapter 2: Mechanical Specifications M2_E1: M.2 Slot (E Key, 2230) Please install the Wi-Fi/ Bluetooch card into the M.2 slot as shown below. Feature ∙ Supports PCIe x 1 & USB 2.0 signal. ∙ Supports CNVi. M2_B1: M.2 Slot (B Key, 3042) (SKU1,2 Only) Please install the WWAN Card/ solid-state drive (SSD) into the M.2 slot as shown...

  • Page 30: Connectors

    BCO-3000/6000-RPL l User’s Manual Chapter 2: Mechanical Specifications 2.7 Connectors Power Connectors J P W R 3 J P W R 1 JPWR1: ATX 24-Pin Power Connector This connector allows you to connect an ATX power supply. +3.3V +3.3V G N D G N D G N D PWROK...
  • Page 31 BCO-3000/6000-RPL l User’s Manual Chapter 2: Mechanical Specifications JPWR3: ATX 4-Pin 12V Power Connector This connector is used to provide power to SATA devices. G N D G N D JPWR3 Important Make sure that all the power cables are securely connected to a proper power supply to ensure stable operation of the system.
  • Page 32 BCO-3000/6000-RPL l User’s Manual Chapter 2: Mechanical Specifications Audio Connectors J A U D 1 J A M P 1 JAUD1: Front Audio Header This connector allows you to connect front panel audio. MIC_L G N D MIC_R PRESENCE# JAUD1 F_OUTR MIC2_JD H P O N...
  • Page 33 BCO-3000/6000-RPL l User’s Manual Chapter 2: Mechanical Specifications Graphics Connectors JINV1 JLVDS1_EDP1 JINV1: LVDS Inverter Box Header The connector is provided for LCD backlight options G N D G N D JINV1 VCC5 VCC5 +12V +12V INV_ON#1 L_BKLT_CTRL#1...
  • Page 34 BCO-3000/6000-RPL l User’s Manual Chapter 2: Mechanical Specifications JLVDS1_EDP1: LVDS+eDP Wafer Connector This connector is designed for use with LVDS/eDP interface flat panels. When connecting your flat panel to this connector, be sure to check the panel datasheet to ensure that you set the JVDD1 LVDS power jumper to the appropriate power voltage.
  • Page 35 BCO-3000/6000-RPL l User’s Manual Chapter 2: Mechanical Specifications Other Connectors CPUFAN1, SYSFAN1: CPU/ System Fan Box Headers The fan power connector supports CPU/ system cooling fans with +12V. When connecting the wire to the connectors, always note that the red wire is the positive and should be connected to the +12V;...
  • Page 36 BCO-3000/6000-RPL l User’s Manual Chapter 2: Mechanical Specifications JFP1: Front Panel Connector This front-panel connector is provided for electrical connection to the front panel switches & LEDs and is compliant with Intel Front Panel I/O Connectivity Design Guide. HDDLED+ POWERLED HDDLED- POWERLED JFP1...
  • Page 37 BCO-3000/6000-RPL l User’s Manual Chapter 2: Mechanical Specifications JCOM3_4: COM Port Box Header This connector is a 16550A high speed communications port that sends/ receives 16 bytes FIFOs. You can attach a serial device to it. NDCD3# NDCD4# NSIN3 NSIN4 NSOUT3 NSOUT4 NDTR3...
  • Page 38 BCO-3000/6000-RPL l User’s Manual Chapter 2: Mechanical Specifications SKU1/ SKU2 ∙ COM1 Connector(RearI/O) Supports RS-232/ 422/ 485, With Ring/ 0V/ 5V/ 12V (Default set to Ring). ∙COM2 (Rear I/O), JCOM3_4 Connector Supports RS-232/ 422/ 485, With 0V/ 5V/ 12V. SKU3 ∙...
  • Page 39 BCO-3000/6000-RPL l User’s Manual Chapter 2: Mechanical Specifications JGPIO1: GPIO (DIO) Box Header This connector is provided for the General-Purpose Input/Output (GPIO) peripheral module. G N D G N D N_GPO0 N_GPI0 JGPIO1 N_GPO1 N_GPI1 N_GPO2 N_GPI2 N_GPO3 N_GPI3 N_GPO4 N_GPI4 N_GPO5 N_GPI5...
  • Page 40 BCO-3000/6000-RPL l User’s Manual Chapter 2: Mechanical Specifications JUSB1: USB 2.0 Box Header These connectors are ideal for connecting USB devices such as keyboard, mouse, or other USB-compatible devices. USB_D- USB_D- JUSB1 USB_D+ USB_D+ G N D G N D Nopin JUSB2: USB 3.2 Gen 1 Box Header (SKU1,2 Only)
  • Page 41 BCO-3000/6000-RPL l User’s Manual Chapter 2: Mechanical Specifications JBAT1: CMOS Battery Header If the CMOS battery is out of charge, the time in the BIOS will be reset and the data of system configuration will be lost. In this case, you need to replace the CMOS battery. JBAT1 Replacing CMOS battery 1.

  • Page 42: Jumpers

    BCO-3000/6000-RPL l User’s Manual Chapter 2: Mechanical Specifications 2.8 Jumpers Important Avoid adjusting jumpers when the system is on; it will damage the motherboard. J C O M P 2 J C O M P 1 J C O M P 4 J C M O S 1 JVDD1 JATX1...
  • Page 43 BCO-3000/6000-RPL l User’s Manual Chapter 2: Mechanical Specifications Jumper Name Default Setting Description AT/ ATX Mode Select Jumper JATX1 1-2:ATX(Default) 2-3:AT LVDS Power Jumper JVDD1 1-2:3.3V(Default) 2-3:5V Chassis Intrusion Jumper This connector connects to the chassis intrusion switch cable. If the chassis is opened, JCASE5 Normal the chassis intrusion mechanism will be...

  • Page 44: Chapter 3 System Setup

    Chapter 3 System Setup...

  • Page 45: Set Torque Force To 3.5 Kgf-Cm To Screw Or Unscrew System Parts

    BCO-3000/6000-RPL l User’s Manual Chapter 3: System Setup 3.1 Set torque force to 3.5 kgf-cm to screw or unscrew system parts. 3.2 Separating the expansion module from main computer module. To ensure safety and prevent system damage, before disassembly, please switch off the system and disconnect the unit from its power source.
  • Page 46 BCO-3000/6000-RPL l User’s Manual Chapter 3: System Setup 2. Remove the 3 screws on the left and right side of the system as highlighted in the pictures below 3. Now you can remove the bottom cover.

  • Page 47: Install Ram

    BCO-3000/6000-RPL l User’s Manual Chapter 3: System Setup 3.3 Install RAM 1. Push down the locking tab(s) at the end of each slot. 2. Line up the RAM stick with the slot, ensuring that the notch of the RAM stick matches that of the slots.

  • Page 48: Install M.2

    BCO-3000/6000-RPL l User’s Manual Chapter 3: System Setup 3.4 Install M.2 1. Remove the screws first 2. Insert M.2 card at a 45 degree angle. 3. Gently press the Mini PCIe card down against the board and secure it with one screw (Round Spacer and M3x6L).

  • Page 49: Graphics Card Slot Installation

    BCO-3000/6000-RPL l User’s Manual Chapter 3: System Setup 3.5 Graphics card slot installation 1. Install PCIe Card 2. Remove M3 screws...
  • Page 50 BCO-3000/6000-RPL l User’s Manual Chapter 3: System Setup 3. Remove the four rear screws 4. Remove the rear PCI blank...
  • Page 51 BCO-3000/6000-RPL l User’s Manual Chapter 3: System Setup 5. Install the PCIE card into the RiserCard in the direction of the arrow 6. Secure the PCIe card to the bracket with screws...
  • Page 52 BCO-3000/6000-RPL l User’s Manual Chapter 3: System Setup 7. Install the bracket into the system in the direction of the arrow 8. Follow the original removal steps to lock the bracket back onto the system...
  • Page 53 BCO-3000/6000-RPL l User’s Manual Chapter 3: System Setup 9. Both types are assembled in the same way. 8. Before entering the OS, please enter the BIOS to confirm whether the PCIe options are consistent with the system.

  • Page 54: Installing Wall Mount Kit

    BCO-3000/6000-RPL l User’s Manual Chapter 3: System Setup 3.6 Installing wall mount kit 1. Wall mount kit is available for BCO-3000/6000 RPL included in the standard package. 2. Place the system upside down so you can see the bottom cover. The highlighted screw holes below will be used.
  • Page 55 BCO-3000/6000-RPL l User’s Manual Chapter 3: System Setup 3. Lock the wall mount kit with eight screws (M3x5L, Nylok).

  • Page 56: Installing Din Rail Holder

    BCO-3000/6000-RPL l User’s Manual Chapter 3: System Setup 3.7 Installing DIN rail holder (BCO-3000-RPL only) 1. Din rail holder is available for BCO-3000-RPL as optional accessories. 2. Place the system upside down so you can see the bottom cover. The highlighted screw holes below will be used.

  • Page 57: Chapter 4 Bios Setup

    Chapter 4 BIOS Setup...

  • Page 58: Bios Setup

    BCO-3000/6000-RPL l User’s Manual Chapter 4: BIOS Setup 4.1 BIOS Setup This chapter provides information on the BIOS Setup program and allows users to configure the system for optimal use. Users may need to run the Setup program when: • An error message appears on the screen at system startup and requests users to run SETUP.

  • Page 59: Control Keys

    BCO-3000/6000-RPL l User’s Manual Chapter 4: BIOS Setup 4.1.1 Control Keys ← → SelectScreen ↑ ↓ SelectItem Enter Select ChangeValue Exit GeneralHelp PreviousValues OptimizedDefaults Save&Reset* Screenshotcapture <K> Scrollhelpareaupwards <M> Scrollhelpareadownwards * When you press <F10>, a confirmation window appears and it provides the modification information.

  • Page 60: The Menu Bar

    BCO-3000/6000-RPL l User’s Manual Chapter 4: BIOS Setup 4.1.2 The Menu Bar Main Use this menu for basic system configurations, such as time, date, etc. Advanced Use this menu to set up the items of special enhanced features. Boot Use this menu to specify the priority of boot devices. Security Use this menu to set supervisor and user passwords.

  • Page 61: Main

    BCO-3000/6000-RPL l User’s Manual Chapter 4: BIOS Setup 4.2 Main HDD Information ∙ RAID (VMD) Disabled: Display HDD information as plugging in status. ∙ RAID (VMD) Enabled: Display "Not Present" only. System Date This setting allows you to set the system date. Format: <Day>...

  • Page 62: Advanced

    BCO-3000/6000-RPL l User’s Manual Chapter 4: BIOS Setup 4.3 Advanced Full Screen Logo Display This BIOS feature determines if the BIOS should hide the normal POST messages with the motherboard or system manufacturer’s full-screen logo. [Enabled] BIOS will display the full-screen logo during the boot-up sequence, hiding normal POST messages.
  • Page 63 BCO-3000/6000-RPL l User’s Manual Chapter 4: BIOS Setup CPU Configuration Intel Virtualization Technology Enables or disables Intel Virtualization technology. [Enabled] Enables Intel Virtualization technology and allows a platform to run multiple operating systems in independent partitions. The system can function as multiple systems virtually. Disables this function.
  • Page 64 BCO-3000/6000-RPL l User’s Manual Chapter 4: BIOS Setup Intel(R) SpeedStep(TM) Enhanced Intel SpeedStep® Technology enables the OS to control and activate performance states (P-States) of the processor. [Enabled] When enabled, Intel SpeedStep® technology is activated. This technology allows the processor to manage its power consumption via performance state (P-State) transitions.
  • Page 65 BCO-3000/6000-RPL l User’s Manual Chapter 4: BIOS Setup Super IO Configuration Serial Port 1/ 2/ 3/ 4 This setting enables or disables the specified serial port. » Change Settings This setting is used to change the address & IRQ settings of the specified serial port. »...
  • Page 66 BCO-3000/6000-RPL l User’s Manual Chapter 4: BIOS Setup H/W Monitor (PC Health Status) These items display the current status of all monitored hardware devices/ components such as voltages, temperatures and all fans’ speeds. Thermal Shutdown This setting determines the behavior of the system when the CPU temperature reaches a predefined threshold.
  • Page 67 BCO-3000/6000-RPL l User’s Manual Chapter 4: BIOS Setup PCI/PCIE Device Configuration Audio Controller This setting enables or disables the detection of the onboard audio controller. Network Stack Configuration This menu provides Network Stack settings for users to enable network boot (PXE) from BIOS.
  • Page 68 BCO-3000/6000-RPL l User’s Manual Chapter 4: BIOS Setup GPIO Group Configuration GPO0 ~ GPO7 These settings control the operation mode of the specified GPIO. Intel(R) RST Enables or disables Intel® RST. Intel® Rapid Storage Technology (Intel® RST) is a feature that combines the capabilities of both hardware and software to enhance storage performance, data protection, and flexibility.
  • Page 69 BCO-3000/6000-RPL l User’s Manual Chapter 4: BIOS Setup PCIE ASPM settings This menu provide settings for PCIe ASPM (Active State Power Management) level for different installed devices. M2_B1/ M2_E1/ M2_M1/ PCIE1 Sets PCI Express ASPM (Active State Power Management) state for power saving. [L0s] Initiate an automatic shutdown of the system to protect from potential damage due to overheating.

  • Page 70: Boot

    BCO-3000/6000-RPL l User’s Manual Chapter 4: BIOS Setup 4.4 Boot Boot Option #1-2 This setting allows users to set the sequence of boot devices where BIOS attempts to load the disk operating system.

  • Page 71: Security

    BCO-3000/6000-RPL l User’s Manual Chapter 4: BIOS Setup 4.5 Security Administrator Password Administrator Password controls access to the BIOS Setup utility. User Password User Password controls access to the system at boot and to the BIOS Setup utility. Chassis Intrusion Enables or disables recording messages while the chassis is opened.
  • Page 72 BCO-3000/6000-RPL l User’s Manual Chapter 4: BIOS Setup PCH-FW Configuration This menu allows you to configure settings related to the PCH firmware. Firmware Information These settings show the ME Firmware Version ME Firmware SKU firmware information of the Intel ME (Management ME Firmware Mode ME Firmware Status 1-2 Engine).
  • Page 73 BCO-3000/6000-RPL l User’s Manual Chapter 4: BIOS Setup Firmware Update Configuration » ME FW Image Re-Flash Enables or disables the ME Firmware Image Re-flashing. » Local FW Update Enables or disables the capability to perform a firmware update of the ME locally. PTT Configuration Intel®...
  • Page 74 BCO-3000/6000-RPL l User’s Manual Chapter 4: BIOS Setup » HECI Message Check Disable This setting disables message check for BIOS boot path when sending messages. » MBP HOB Skip Setting this option will skip ME’s Memory-Based Protection (MBP) H0B region. »...
  • Page 75 BCO-3000/6000-RPL l User’s Manual Chapter 4: BIOS Setup AMT Configuration Intel® Active Management Technology (Intel® AMT) is hardware-based technology for remotely managing and securing PCs out-of-band (OOB). USB Provisioning of AMT Enables or disables the ability to provision AMT using a USB device. Mac PASS Through Enables or disables the ability of AMT to pass through network traffic without altering the original MAC (Media Access Control) addresses of the network interface.
  • Page 76 BCO-3000/6000-RPL l User’s Manual Chapter 4: BIOS Setup ASF Configuration » PET Progress Enables or disable the this item to receive PET Events. » WatchDog Enables or disable the watchdog timer. » OS Timer This item displays OS Timer. » BIOS Timer This item displays BIOS Timer.
  • Page 77 BCO-3000/6000-RPL l User’s Manual Chapter 4: BIOS Setup MEBx (Management Engine BIOS Extension) » Intel(R) ME Password Intel® Set the ME Password for securing access to the ME configuration through the MEBx menu. Upon setting up Intel® ME Password for the first time, type “admin” as the default password, then enter your own.
  • Page 78 BCO-3000/6000-RPL l User’s Manual Chapter 4: BIOS Setup » User consent • User Opt-in [None] Local user consent is not required for a remote console to establish KVM remote control session. Local user consent is required for a remote console to [KVM] establish KVM remote control session.
  • Page 79 BCO-3000/6000-RPL l User’s Manual Chapter 4: BIOS Setup » Network Setup • Intel ® ME Network Name Settings - Shared/Dedicated FQDN Determines if the Intel® ME Fully Qualified Domain Name (FQDN, which is “HostName. DomainName” ) is shared with the host OS or dedicated exclusively to the Intel ME. - Dynamic DNS Update Enables or disables automatic registration of the firmware’s IP addresses and FQDN in the Domain Name System (DNS) using the Dynamic DNS Update protocol.
  • Page 80 BCO-3000/6000-RPL l User’s Manual Chapter 4: BIOS Setup • Manage Certificates This item display when Remote Configuration** is disabled. After entering the Manage Certificates menu, the following screen will display: The details of the selected certificate hash includes “Hash Name, Active State, Default State, Hash Type and Hash Data”.
  • Page 81 BCO-3000/6000-RPL l User’s Manual Chapter 4: BIOS Setup One Click Recovery (OCR) Configuration » OCR Https Boot Enables or disables the use of HTTPS (Hypertext Transfer Protocol Secure) for the OCR boot process. When enabled, the OCR process will utilize HTTPS for enhanced security during the process of booting up the system.
  • Page 82 BCO-3000/6000-RPL l User’s Manual Chapter 4: BIOS Setup Trusted Computing Security Device Support This item enables or disables BIOS support for security device. When set to [Disable], the OS will not show security device. SHA256 PCR Bank These settings enables or disables the SHA-1 PCR Bank and SHA256 PCR Bank. Pending Operation When Security Device Support is set to [Enable], Pending Operation will appear.
  • Page 83 BCO-3000/6000-RPL l User’s Manual Chapter 4: BIOS Setup Serial Port Console Redirection Console Redirection Console Redirection operates in host systems that do not have a monitor and keyboard attached. This setting enables or disables the operation of console redirection. When set to [Enabled], BIOS redirects and sends all contents that should be displayed on the screen to the serial COM port for display on the terminal screen.
  • Page 84 BCO-3000/6000-RPL l User’s Manual Chapter 4: BIOS Setup Console Redirection Settings (COM1) This option appears when Console Redirection is enabled. » Terminal Type To operate the system’s console redirection, you need a terminal supporting ANSI terminal protocol and a RS-232 null modem cable connected between the host system and terminal(s).
  • Page 85 BCO-3000/6000-RPL l User’s Manual Chapter 4: BIOS Setup Secure Boot Secure Boot Secure Boot function can be enabled only when the Platform Key (PK) is enrolled and running accordingly. Secure Boot Mode Selects the secure boot mode. This item appears when Secure Boot is enabled. [Standard] The system will automatically load the secure keys from BIOS.
  • Page 86 BCO-3000/6000-RPL l User’s Manual Chapter 4: BIOS Setup Key Management Press Enter key to enter the sub-menu. Manage the secure boot keys. This item appears when “Secure Boot Mode” sets to [Custom]. » Platform Key (PK): The Platform Key (PK) can protect the firmware from any un-authenticated changes. The system will verify the PK before your system enters the OS.
  • Page 87 BCO-3000/6000-RPL l User’s Manual Chapter 4: BIOS Setup » Append Key Loads an additional db from storage devices to your system. » Delete Key Deletes the db from your system. » Forbidden Signatures (dbx): Forbidden Signatures (dbx) lists the forbidden signatures that are not trusted and cannot be loaded.

  • Page 88: Chipset

    BCO-3000/6000-RPL l User’s Manual Chapter 4: BIOS Setup 4.6 Chipset DVMT Total Gfx Mem This setting specifies the total graphics memory size for Dynamic Video Memory Technology (DVMT). Panel Select Set your video signal interface as LVDs or eDP. LCD Panel Type This setting specifies the LCD Panel’s resolution and distribution formats.

  • Page 89: Power

    BCO-3000/6000-RPL l User’s Manual Chapter 4: BIOS Setup 4.7 Power Restore AC Power Loss This setting specifies whether your system will reboot after a power failure or interrupt occurs. Available settings are: [Power Off] Leaves the computer in the power off state. [Power On] Leaves the computer in the power on state.

  • Page 90: Save & Exit

    BCO-3000/6000-RPL l User’s Manual Chapter 4: BIOS Setup 4.8 Save & Exit Save Changes and Reset Save changes to CMOS and reset the system. Discard Changes and Exit Abandon all changes and exit the Setup Utility. Discard Changes Abandon all changes. Load Optimized Defaults Use this menu to load the default values set by the motherboard manufacturer specifically for optimal performance of the motherboard.

  • Page 91: Appendix Gpio Wdt Bkl Smbusaccess Programming

    Appendix GPIO WDT BKL SMBus Access Programming...

  • Page 92: Gpio Wdt Bkl Programming

    BCO-3000/6000-RPL l User’s Manual Appendix GPIO WDT BKL Programming This chapter provides WDT (Watch Dog Timer), GPIO (General Purpose Input/ Output) and LVDS Backlight programming guide. Abstract In this section, code examples based on C programming language provided for customer interest.

  • Page 93: General Purpose Io

    BCO-3000/6000-RPL l User’s Manual Appendix General Purpose IO 1. General Purposed IO – GPIO/DIO The GPIO port configuration addresses are listed in the following table: Name IO Port IO address Name IO Port IO address N_GPI0 0x22 Bit 4 N_GPO0 0x11 Bit 4 N_GPI1...
  • Page 94 BCO-3000/6000-RPL l User’s Manual Appendix Read input value from GPI: 1. Read the value from GPI port. 2. Get the value of GPI address. Example: Get N_GPI2 input value. val = SMBus_ReadByte (0x6E, 0x22); // Read value from N_GPI2 port through SMBus.

  • Page 95: Watchdog Timer

    BCO-3000/6000-RPL l User’s Manual Appendix Watchdog Timer 2. Watchdog Timer – WDT The base address (WDT_BASE) of WDT configuration registers is 0xA10. Set WDT Time Unit val = Inportb (WDT_BASE + // Read current WDT setting 0x05); val = val | 0x08; // minute mode.
  • Page 96 BCO-3000/6000-RPL l User’s Manual Appendix Check WDT Reset Flag If the system has been reset by WDT function, this flag will set to 1. val = Inportb (WDT_BASE + // Read current WDT setting. 0x05); val = val & 0x40; // Check WDTMOUT_STS (bit 6).

  • Page 97: Lvds Backlight Control -Bkl

    BCO-3000/6000-RPL l User’s Manual Appendix LVDS Backlight Control - BKL 3. LVDS Backlight Control – BKL The controller support LVDS backlight level control from 0(0%) to 255(100%), the default backlight level is 100%. It must be controlled by SMBus access. The details of SMBus access (SMBus_ReadByte, SMBus_WriteByte) are provided in this document.

  • Page 98: Smbusaccess

    BCO-3000/6000-RPL l User’s Manual Appendix SMBus Access 4. SMBus Access The base address of SMBus must know before access. The relevant bus and device information are as following. #define IO_SC 0xCF8 #define IO_DA 0xCFC #define PCIBASEADDRESS 0x80000000 #define PCI_BUS_NUM #define PCI_DEV_NUM #define PCI_FUN_NUM Get SMBus Base Address int SMBUS_BASE;...
  • Page 99 BCO-3000/6000-RPL l User’s Manual Appendix SMBus_WriteByte (char DEVID, char offset, char DATA) Write DATA to OFFSET on SMBus device DEVID. Outportb (LOWORD ( ), 0xFE); SMBUS_BASE Outportb (LOWORD ( ) + 0x04, DEVID); //out Base + 04, (DEVID) SMBUS_BASE Outportb (LOWORD ( ) + 0x03, OFFSET);...
  • Page 100 © Premio Inc. All Rights Reserved www.premioinc.com...
