- Page 1 USER’S MANUAL WCO-3000-KBL-U Series IP65/IP67 Waterproof Systems...
-
Page 2: Table Of Contents
WCO-3000-KBL-U | User’s Manual Table of Contents Prefaces …………………………………………………….……………………………………………. 04 Revision …………………………………………………………………………………………..……………….……….. 04 Disclaimer ………………………………………………………..…….…….………………………….……………….. 04 Copyright Notice …………………………………….…………………….…………………………………………… 04 Trademarks Acknowledgment …………..………………………………………………………....04 Environmental Protection Announcement …………………………….………………….……………….. 04 Safety Precautions ………………………………………….……………………………….…………….………….. 05 Technical Support and Assistance …………………………………….…………….…………….….………. 06 Conventions Used in this Manual ………………………………………………………………….………….. 06 Package Contents …………………………………………………………………………………………….…………... - Page 3 WCO-3000-KBL-U | User’s Manual Chapter 4 BIOS Setup …………………………………………………………………………… 32 BIOS Introduction …….……….……………………………………..….…….…..….………….. 33 Main Setup ……..……….………………….…………………………..…….….………………..34 Advanced Setup ………………………………………………..…..……………………………….. 35 4.3.1 CPU Configuration ……………………………………………………………………..… 36 4.3.2 PCH-FW Configuration ……..…………………….…………………..………………. 37 4.3.3 SATA and RST Configuration ………………………….……………………..……... 37 4.3.4 RST (UEFI RAID) Configuratio ………………….……………………………..…..38 4.3.5 Trusted Computing …………………………………..………………..…..……..
-
Page 4: Prefaces
WCO-3000-KBL-U | User’s Manual Prefaces Revision Revision Description Date Manual Released 2019/08/13 Disclaimer All specifications and information in this User’s Manual are believed to be accurate and up to date. We do not guarantee that the contents herein are complete, true, accurate or non-misleading. The information in this document is subject to change without notice. -
Page 5: Safety Precautions
Preface WCO-3000-KBL-U | User’s Manual Safety Precautions Before installing and using the equipment, please read the following precautions: Put this equipment on a reliable surface during installation. Dropping it or letting it fall could cause damage. The power outlet shall be installed near the equipment and shall be easily accessible. ... -
Page 6: Technical Support And Assistance
Preface WCO-3000-KBL-U | User’s Manual Technical Support and Assistance Contact your distributor, our technical support team or sales representative for technical support if you need additional assistance. Please have following information ready before you call: Model name and serial number ... -
Page 7: Package Contents
Package Contents Before installation, please ensure all the items listed in the following table are included in the package. Item Description Q’ty WCO-3000-KBL-U Series Embedded System Utility DVD Driver Wall Mount Kit Waterproof Connector Cover Set Ordering Information Model No. -
Page 8: Chapter 1 Product Introductions
Chapter 1 Product Introductions... -
Page 9: Overview
These systems are built with an extremely rugged enclosure, as well as the industrial-grade components, making these units dustproof and waterproof. WCO-3000-KBL-U series offers modularize flexible I/O, wide range (9~50V) DC power input, and high reliability even operating in temperature extremes (-40°C ~ +70°C). -
Page 10: Hardware Specification
Chapter 1: Product Introductions WCO-3000-KBL-U | User’s Manual 1.2 Hardware Specification Processor System I/O Ports • 7 • 1x USB 3.0 (Waterproof Connector) Gen Intel® Core™ i5-7300U Processor, Dual Core, 3MB • 2x USB 2.0 by M12 A-Code 8-pin Cache, up to 3.5 GHz •... -
Page 11: System I/O

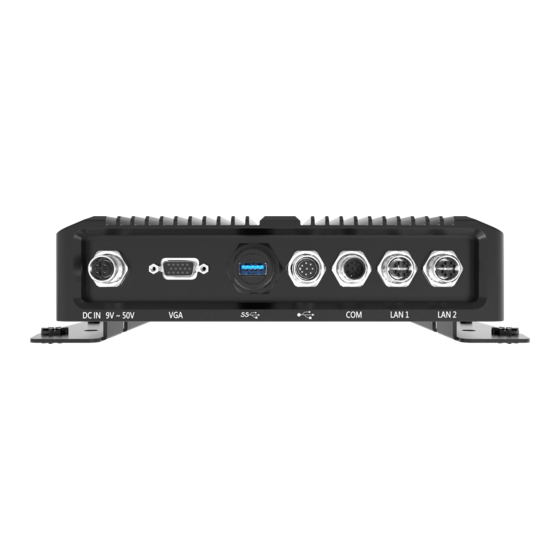

Chapter 1: Product Introductions WCO-3000-KBL-U | User’s Manual 1.3 System I/O 1.3.1 WCO-3000-KBL-U Front Panel Rear View ATX power on/off switch DC IN Press to power-on or power-off the system Used to plug a DC power input with terminal block Antenna hole Used to connect an antenna for optional Mini- PCIe WiFi module... -
Page 12: Wco-3000-Kbl-U-Ip67
Chapter 1: Product Introductions WCO-3000-KBL-U | User’s Manual 1.3 System I/O 1.3.2 WCO-3000-KBL-U-IP67 Front Panel Rear View ATX power on/off switch DC IN Press to power-on or power-off the system Used to plug a DC power input with terminal block Used to connect a VGA monitor USB 3.0 port Used to connect USB 3.0/2.0/1.1 device... -
Page 13: Mechanical Dimensions
Chapter 1: Product Introductions WCO-3000-KBL-U | User’s Manual 1.4 Mechanical Dimensions 1.4.1 WCO-3000-KBL-U Unit: mm 1.4.2 WCO-3000-KBL-U-IP67 Unit: mm... -
Page 14: Chapter 2 Connectors
Chapter 2 Connectors... -
Page 15: Connector Locations
Chapter 2: Connectors WCO-3000-KBL-U | User’s Manual 2.1 Switch and Connector Locations 2.1.1 Top View... -
Page 16: Bottom View
Chapter 2: Connectors WCO-3000-KBL-U | User’s Manual 2.1.2 Bottom View... -
Page 17: Connector Definition
Chapter 2: Connectors WCO-3000-KBL-U | User’s Manual 2.2 Connector Definition List of Connector Connector Location Definition RS232 / RS422 / RS485 Connector LAN1, LAN2 LAN Port USB2.0 USB 2.0 Port USB3.0 USB 3.0 Port Standard VGA Port DC_IN DC Power Input Connector (+0 ~ 50V) COM: RS232 / RS422 / RS485 Connector Connector Type: M12 A-code 8-pin RS422 / 485 Full... - Page 18 Chapter 2: Connectors WCO-3000-KBL-U | User’s Manual LAN: LAN 1 & LAN 2 Connector Connector Type: M12 X-code 8-pin Definition Definition LAN1_MDI0P LAN1_MDI3P LAN1_MDI0N LAN1_MDI3N LAN1_MDI1P LAN1_MDI2N LAN1_MDI1N LAN1_MDI2P Definition Definition LAN2_MDI0P LAN2_MDI3P LAN2_MDI0N LAN2_MDI3N LAN2_MDI1P LAN2_MDI2N LAN2_MDI1N LAN2_MDI2P USB 2.0: 2 Ports USB 2.0 Connector Type: M12 A-code 8-pin Definition USB_D1-...
- Page 19 Chapter 2: Connectors WCO-3000-KBL-U | User’s Manual USB 3.0: Standard USB 3.0 Connector Connector Type: Waterproof Connector Definition Definition USB3.0_RX+ USB2.0_D- USB2.0_D+ USB3.0_TX- USB3.0_TX+ USB3.0_RX- VGA: Standard VGA Connector Connector Type: Waterproof Connector Definition Definition GREEN S_GND BLUE HSYNC R_GND VSYNC G_GND B_GND...
-
Page 20: Chapter 3 System Setup
Chapter 3 System Setup... -
Page 21: Set Torque Force To 3.5 Kgf-Cm To Execute All The Screwing And Unscrewing
Chapter 3: System Setup WCO-3000-KBL-U | User’s Manual 3.1 Set torque force to 3.5 kgf-cm to execute all the screwing and unscrewing In order to prevent electric shock or system damage, before removing the chassis cover, must turn off power and disconnect the unit from power source. 3.2 Installing SODIMM 1. - Page 22 Chapter 3: System Setup WCO-3000-KBL-U | User’s Manual 3. After removing internal SATA HDD bracket, you will be able to access the memory slot. 4. Insert memory module from 45 degree direction. 5. Press the memory module vertically downward until you hear the “click” sound. Make sure the memory module is firmly in place.
-
Page 23: Installing Hdd On Internal Sata Hdd Bay
Chapter 3: System Setup WCO-3000-KBL-U | User’s Manual 3.3 Installing HDD on internal SATA HDD bay 1. Unscrew the below four screws (M3x5L) to remove the internal SATA HDD bay. 2. Lock the 2.5” HDD with HDD bracket using four screws (M3x4L). 3. -
Page 24: Removing Chassis Bottom Cover
Chapter 3: System Setup WCO-3000-KBL-U | User’s Manual 4. Fasten the four screws to lock the internal SATA HDD bracket. 3.4 Removing chassis bottom cover 1. Removing chassis bottom cover may affect waterproof function and is only necessary when you need to install mini PCIe card and antenna. 2. -
Page 25: Installing Mini Pcie Card / Msata
Chapter 3: System Setup WCO-3000-KBL-U | User’s Manual 3.5 Installing mini PCIe card / mSATA 1. Two mini PCIe slots are available for WCO-3000-KBL-U series. MiniPCIE1 supports mSATA. MiniPCIE1 / mSATA MiniPCIE2 2. Insert mini PCIe card or mSATA module from 45 degree direction. -
Page 26: Installing Antenna
Chapter 3: System Setup WCO-3000-KBL-U | User’s Manual 3.6 Installing antenna 1. Two antenna holes are available for WCO-3000-KBL-U series. (WCO-3000-KBL-U only) 2. Remove antenna hole cover on the system panel. 3. Have antenna jack penetrate through the hole. - Page 27 Chapter 3: System Setup WCO-3000-KBL-U | User’s Manual 4. Put on washer and fasten the nut with antenna jack. 5. Attach the RF connector at the cable-end onto the communication module. 6. Assemble the antenna and antenna jack together.
-
Page 28: Assemble Chassis Bottom Cover
Chapter 3: System Setup WCO-3000-KBL-U | User’s Manual 3.7 Assemble chassis bottom cover 1. Place the bottom cover according to the below direction and make sure the rail is facing inside the system. 2. Lock the bottom cover with the eighteen screws. -
Page 29: Assemble Waterproof Cable
Chapter 3: System Setup WCO-3000-KBL-U | User’s Manual 3.8 Assemble waterproof cable 1. Please remove the external waterproof cover on the connectors that you need to connect to mating waterproof cables. 2. Install external M12 A-CODE 4P power cable. Please align the foolproof opening and tighten the locking ring to secure waterproof cable. - Page 30 Chapter 3: System Setup WCO-3000-KBL-U | User’s Manual 4. Install external waterproof USB 3.0 cable. Please align the foolproof opening and tighten the locking ring to secure waterproof cable. 5. Install external M12 A-CODE 8P USB 2.0 cable. Please align the foolproof opening and tighten the locking ring to secure waterproof cable.
- Page 31 Chapter 3: System Setup WCO-3000-KBL-U | User’s Manual 7. Install external M12 X-CODE 8P LAN1 cable. Please align the foolproof opening and tighten the locking ring to secure waterproof cable. 8. Install external M12 X-CODE 8P LAN2 cable. Please align the foolproof opening and tighten the locking ring to secure waterproof cable.
-
Page 32: Chapter 4 Bios Setup
Chapter 4 BIOS Setup... -
Page 33: Bios Introduction
Chapter 4: BIOS Setup WCO-3000-KBL-U | User’s Manual 4.1 BIOS Introduction The system BIOS software is stored on EEPROM. The BIOS provides an interface to modify the configuration. When the battery is removed, all the parameters will be reset. BIOS Setup Power on the embedded system and by pressing <Del>... -
Page 34: Main Setup
Chapter 4: BIOS Setup WCO-3000-KBL-U | User’s Manual 4.2 Main Setup Press <Del> to enter BIOS CMOS Setup Utility. The Main setup screen is showed as following when the setup utility is entered. System Date/Time is set up in the Main Menu. ■... -
Page 35: Advanced Setup
Chapter 4: BIOS Setup WCO-3000-KBL-U | User’s Manual 4.3 Advanced Setup... -
Page 36: Cpu Configuration
Chapter 4: BIOS Setup WCO-3000-KBL-U | User’s Manual 4.3.1 CPU Configuration ■ Intel Virtualization Technology Virtualization enhanced by Intel Virtualization Technology will allow a platform to run multiple operating systems and applications in independent partitions. With virtualization, one computer system can function as multiple Virtual systems. ■... -
Page 37: Pch-Fw Configuration
Chapter 4: BIOS Setup WCO-3000-KBL-U | User’s Manual 4.3.2 PCH-FW Configuration 4.3.3 SATA and RST Configuration ■ SATA Controller(s) Enable or disable Serial ATA controller. ■ SATA Mode Selection This item allows users to select mode of SATA controller. ■ Serial ATA Port 0 / 1 / 2 This item allows users to enable or disable Serial ATA Port 0 / 1 / 2. -
Page 38: Rst (Uefi Raid) Configuratio
Chapter 4: BIOS Setup WCO-3000-KBL-U | User’s Manual 4.3.4 RST (UEFI RAID) Configuration How to set the UEFI RAID: 1. When set to RAID, please save change reset system. 2. After reboot the system, please into BIOS utility and then will see “Intel (R) Rapid Storage Technology”... - Page 39 Chapter 4: BIOS Setup WCO-3000-KBL-U | User’s Manual 3. Into Intel(R) Rapid Storage Technology, and start create RAID volume. 4. Start Create the RAID ■ Select Disk that you want to do the RAID ■ Select [x]; No-Select [ ]...
-
Page 40: Trusted Computing
Chapter 4: BIOS Setup WCO-3000-KBL-U | User’s Manual 4.3.5 Trusted Computing ■ Security Device Support Enable or disable Security Device Support. 4.3.6 ACPI Settings ■ Enable ACPI Auto Configuration Enable or disable ACPI Auto Configuration. -
Page 41: Super Io Configuration
Chapter 4: BIOS Setup WCO-3000-KBL-U | User’s Manual 4.3.7 Super IO Configuration This setting allows you to select options for the Super IO Configuration, and change the value of the selected option. ■ Serial Port 1 Configuration Serial Port This item allows you to enable or disable serial port. - Page 42 Chapter 4: BIOS Setup WCO-3000-KBL-U | User’s Manual ■ Serial Port 2 Configuration Serial Port This item allows you to enable or disable serial port. Change Settings This item allows you to change the address & IRQ settings of the specified serial port. ...
- Page 43 Chapter 4: BIOS Setup WCO-3000-KBL-U | User’s Manual ■ Serial Port 4 Configuration Serial Port This item allows you to enable or disable serial port. Change Settings This item allows you to change the address & IRQ settings of the specified serial port. ...
-
Page 44: Hardware Monitor
Chapter 4: BIOS Setup WCO-3000-KBL-U | User’s Manual ■ Serial Port 6 Configuration Serial Port This item allows you to enable or disable serial port. Change Settings This item allows you to change the address & IRQ settings of the specified serial port. ... -
Page 45: Serial Port Console Redirection
Chapter 4: BIOS Setup WCO-3000-KBL-U | User’s Manual 4.3.9 Serial Port Console Redirection ■ Console Redirection These items allows you to enable or disable COM1 console redirection. 4.3.10 Stack Configuration... -
Page 46: Csm Configuration
Chapter 4: BIOS Setup WCO-3000-KBL-U | User’s Manual 4.3.11 CSM Configuration ■ CSM Support This item allows users to enable or disable for “CSM Support”. ■ GateA20 Active This item allows users to set Upon Request or Always for "GateA20 Active“. ■... -
Page 47: Usb Configuration
Chapter 4: BIOS Setup WCO-3000-KBL-U | User’s Manual 4.3.12 USB Configuration ■ Legacy USB Support Allows USB keyboard/ mouse to be used in MS-DOS. ■ XHCI Hand-off Determines whether to enable XHCI (USB3.0) Hand-off feature for an operating system without XHCI (USB3.0) Hand-off support. ■... -
Page 48: Chipset
Chapter 4: BIOS Setup WCO-3000-KBL-U | User’s Manual 4.4 Chipset This section allows you to configure and improve your system and allows you to set up some system features according to your preference. 4.4.1 System Agent (SA) Configuration ■ VT-d This item allows users to enable or disable VT-d. - Page 49 Chapter 4: BIOS Setup WCO-3000-KBL-U | User’s Manual ■ Graphic Configuration GTT Size This item allows you to change the GTT size. Aperture Size Aperture size optimal between 128MB, 256MB, 512MB, 1024MB or 2048MB. DVMT Pre-Allocated DVMT pre-allocated (fixed) Graphics memory size optimal from 0M to 60M. ...
-
Page 50: Pch-Io Configuration
Chapter 4: BIOS Setup WCO-3000-KBL-U | User’s Manual 4.4.2 PCH-IO Configuration This section allows you to configure the chipset. ■ PCI Express Configuration... - Page 51 Chapter 4: BIOS Setup WCO-3000-KBL-U | User’s Manual PCI Express Root Port 1 / 6 / 9 / 10 / 11 PCI Express Port 1 / 6 / 9 / 10 / 11 This item allows you to enable or disable PCI Express Port 1 / 6 / 9 / 10 / 11 in the chipset. ...
- Page 52 Chapter 4: BIOS Setup WCO-3000-KBL-U | User’s Manual ■ HD Audio Configuration HD Audio Control detection of the HD-Audio device. This item allows you to select <Enabled>, <Disabled> or <Auto>. Disabled: Azalia will be unconditionally be disabled. Enabled: Azalia will be unconditionally be enabled. Auto: Azalia will be enabled if present, disabled otherwise.
-
Page 53: Security
Chapter 4: BIOS Setup WCO-3000-KBL-U | User’s Manual 4.5 Security Security menu allow users to change administrator password and user password settings. ■ Administrator Password This item allows you to set Administrator Password. ■ User Password This item allows you to set User Password. -
Page 54: Boot
Chapter 4: BIOS Setup WCO-3000-KBL-U | User’s Manual 4.6 Boot This menu allows you to setup the system boot options. ■ Setup Prompt Timeout This item sets number of seconds to wait for setup activation key. ■ Bootup NumLock State This item selects the keyboard NumLock state. -
Page 55: Save & Exit
Chapter 4: BIOS Setup WCO-3000-KBL-U | User’s Manual 4.7 Save & Exit This setting allows users to configure the boot settings. ■ Save Changes and Reset This item allows user to reset the system after saving the changes. This item allows user to reset the system after saving the changes. -
Page 56: Appendix Wdt & Gpio
Appendix WDT & GPIO This appendix provides the sample codes of WDT (Watch Dog Timer) and GPIO (General Purpose Input/ Output). -
Page 57: Wdt Sample Code
Appendix – WDT & GPIO WCO-3000-KBL-U | User’s Manual WDT Sample Code // IO Address 0xA16 is time value // IO Address 0xA15 is WDT enable and configuration Example, Set 0xA16=-0x03, 0xA15=0x31, it will reset after 3 seconds #define TimePort 0xA16 #define TimeEnablePort 0xA15 WriteByte (TimePort,0x03) -
Page 58: Gpio Sample Code
Appendix – WDT & GPIO WCO-3000-KBL-U | User’s Manual GPIO Sample Code GPI 1 ~ GPI 8 GPI 1 GPI 2 GPI 3 GPI 4 GPI 5 GPI 6 GPI 7 GPI 8 IO Address 0xA03h 0xA03h 0xA03h 0xA03h 0xA06h 0xA06h 0xA06h... - Page 59 Appendix – WDT & GPIO WCO-3000-KBL-U | User’s Manual Sample Code: #1 : // Get GPI 1 status //Get GPI 0 Pin Status Register printf("Input port value = %x\n", ReadByte(GPI1to4_ADDR)); // bit4 = GPI 1 status // Get GPI 5 status //Get GPI 0 Pin Status Register printf("Input port value = %x\n", ReadByte(GPI_REG5to8));...
- Page 60 All Rights Reserved WCO-3000-KBL-U | User’s Manual...
