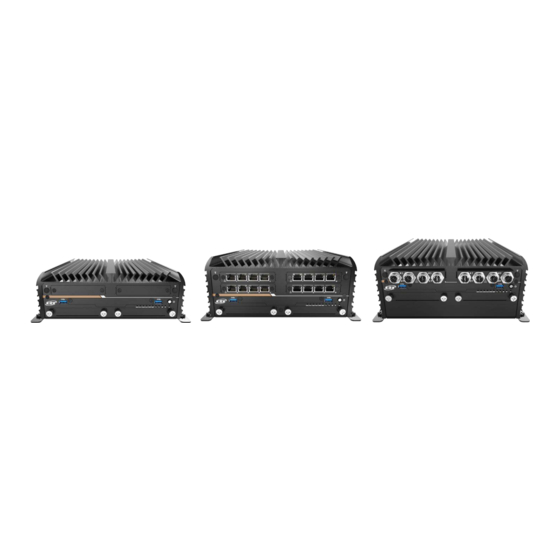

Surveillance applied fanless system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER'S
MANUAL
ACO-6000 Series
Surveillance Applied Fanless System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACO-6000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Premio ACO-6000 Series

Summary of Contents for Premio ACO-6000 Series

  • Page 1 USER’S MANUAL ACO-6000 Series Surveillance Applied Fanless System...

  • Page 2: Table Of Contents

    ACO-6000 | User’s Manual Table of Contents Prefaces ……………………………………………………………………………………………….. 04 Revision ………………………………………………………..……………………………..……………….……….. 04 Disclaimer ……………………………………………………….…….……………….………………….………….. Copyright Notice …………………………………….…….….………………………………….………………… Trademarks Acknowledgment …………..………….………………………………………....Environmental Protection Announcement ……………………………………..……..……………….. Safety Precautions ……………………………………………………………………………………….….…….. Technical Support and Assistance ………………………………...……………………..…….…….……. Conventions Used in this Manual …………………………………..……………………..….……….. Package Contents ……………………………………………………………………..…..…………………….… Ordering Information …………………………..……………………………………..………..….….…………...
  • Page 3 ACO-6000 | User’s Manual 3.12 Assemble PCIe/PCI expansion module ……………….……………..……..………..68 3.13 Assemble chassis bottom cover ………………..………………..……..……….……..69 3.14 Installing SIM card ………………..…………………..…….………..………….…….……..70 3.15 Installing wall mount kit …………..……………..………………..……..……….……..72 Chapter 4 BIOS Setup …………………………………………………………..……………… 73 BIOS Introduction …….……….……………………………………….…….…..….…………... 74 Main Setup ……..……….………………….…………………………..….….………………..

  • Page 4: Prefaces

    ACO-6000 | User’s Manual Prefaces Revision Revision Description Date Manual Released 2017/09/12 LAN Chipset Revised 2017/10/16 Power Connector Definition Revised 2017/11/02 GPIO Sample Code Revised 2018/02/09 New-added CPU support, OS revised, and switches definition 2018/10/09 revised WDT & GPIO Sample Code Revised 2018/11/28 New-added TPM 1.2 support 2019/08/12...

  • Page 5: Safety Precautions

    Preface ACO-6000 | User’s Manual Safety Precautions Before installing and using the equipment, please read the following precautions:  Put this equipment on a reliable surface during installation. Dropping it or letting it fall could cause damage.  The power outlet shall be installed near the equipment and shall be easily accessible. ...

  • Page 6: Technical Support And Assistance

    Preface ACO-6000 | User’s Manual Technical Support and Assistance Contact your distributor, our technical support team or sales representative for technical support if you need additional assistance. Please have following information ready before you call:  Model name and serial number ...

  • Page 7: Package Contents

    Package Contents Before installation, please ensure all the items listed in the following table are included in the package. Item Description Q’ty ACO-6000 Series Fanless Embedded System Utility DVD Driver Wall Mount Kit Accessory Kit DVI to VGA Adapter Ordering Information Model No.
  • Page 8 Preface ACO-6000 | User’s Manual Model No. Product Description Surveillance Applied Fanless System with LGA 1151 for Intel® 6 Gen Processor and Q170 PCH, ACO-6011E 2x LAN, 1x PCIe x16 Expansion Surveillance Applied Fanless System with LGA 1151 for Intel® 6 Gen Processor and Q170 PCH, ACO-6011E-4L 6x LAN, 1x PCIe x16 Expansion...

  • Page 9: Optional Accessory

    Preface ACO-6000 | User’s Manual Model No. Product Description Surveillance Applied Fanless System with LGA 1151 for Intel® 6 Gen Processor and Q170 PCH, ACO-6011P 2x LAN, 1x PCI Expansion Surveillance Applied Fanless System with LGA 1151 for Intel® 6 Gen Processor and Q170 PCH, ACO-6011P-4L 6x LAN, 1x PCI Expansion...

  • Page 10: Chapter 1 Product Introductions

    Chapter 1 Product Introductions...

  • Page 11: Overview

    Featuring with completely cable-less designed, high functional, one-piece housing design, and anti-vibration, ACO-6000 series are ruggedized systems that can operate in harsh environments and easy to install and maintain. A build in over voltage protection (OVP), over current protection (OCP), reverse protection, and wide range DC power input makes ACO-6000 series are safety system for all industrial applications.

  • Page 12: Hardware Specification

    Chapter 1: Product Introductions ACO-6000 | User’s Manual 1.2 Hardware Specification Audio Realtek ALC888S System Codec 1x Mic-in and 1x Speak-out Processor System 2x 260-Pin DDR4 Memory 1866/2133MHz SODIMM. - Support 6th & 7th Gen Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Max.
  • Page 13 Chapter 1: Product Introductions ACO-6000 | User’s Manual Environment • Operating Temperature: Ambient with Air Flow: -25°C to 70°C (with Industrial Grade Peripherals) • Storage Temperature: -30°C to 85°C • Relative humidity: 10%~95% (non-condensing) I/O Ports • 6x USB 3.0 Port and 2x internal USB 2.0 port •...

  • Page 14: System I/O

    Chapter 1: Product Introductions ACO-6000 | User’s Manual 1.3 System I/O 1.3.1 ACO-6000 ACO-6000 ACO-6000-4L(P) ACO-6000-8L(P) ACO-6000-D10G ACO-6000-4L(P)-M12 ACO-6000-8L(P)-M12 ACO-6000-4U3 ACO-6000-8U3 Front Panel ATX power on/off switch HDD LED Press to power-on or power-off the system Indicates the status of the hard drive Watchdog LED Reset switch Indicates the status of the watchdog active...
  • Page 15 Chapter 1: Product Introductions ACO-6000 | User’s Manual ACO-6000 LAN Port PoE Port ACO-6000-4L / ACO-6000-8L ACO-6000-4P / ACO-6000-8P M12 LAN Port M12 PoE Port ACO-6000-4L-M12 , ACO-6000-8L-M12 ACO-6000-4P-M12 , ACO-6000-8P-M12 D10G Port ACO-6000-D10G USB Port ACO-6000-4U3 / ACO-6000-8U3...
  • Page 16 Chapter 1: Product Introductions ACO-6000 | User’s Manual Rear Panel DisplayPort DC IN Used to connect a DisplayPort monitor Used to plug a DC power input with terminal block USB 3.0 port Used to connect USB 3.0/2.0/1.1 device Speaker-out Used to connect a speaker LAN port Used to connect the system to a local area Mic-in...

  • Page 17: Aco-6010-16L(P)

    Chapter 1: Product Introductions ACO-6000 | User’s Manual 1.3.2 ACO-6010-16L(P) Front Panel LAN Port ATX power on/off switch Used to connect the system to a local area Press to power-on or power-off the system network (ACO-6010-16L Only) Reset switch PoE Port Press to reset the system Used to connect the system to a local area USB 3.0 port...
  • Page 18 Chapter 1: Product Introductions ACO-6000 | User’s Manual Rear Panel DisplayPort DC IN Used to connect a DisplayPort monitor Used to plug a DC power input with terminal block USB 3.0 port Used to connect USB 3.0/2.0/1.1 device Speaker-out Used to connect a speaker LAN port Used to connect the system to a local area Mic-in...

  • Page 19: Aco-6010-16L(P)-M12

    Chapter 1: Product Introductions ACO-6000 | User’s Manual 1.3.3 ACO-6010-16L(P)-M12 Front Panel M12 LAN Port ATX power on/off switch Used to connect the system to a local area Press to power-on or power-off the system network (ACO-6010-16L-M12 Only) Reset switch M12 PoE Port Press to reset the system Used to connect the system to a local area...
  • Page 20 Chapter 1: Product Introductions ACO-6000 | User’s Manual Rear Panel DisplayPort DC IN Used to connect a DisplayPort monitor Used to plug a DC power input with terminal block USB 3.0 port Used to connect USB 3.0/2.0/1.1 device Speaker-out Used to connect a speaker LAN port Used to connect the system to a local area Mic-in...

  • Page 21: Aco-6011E(P)

    Chapter 1: Product Introductions ACO-6000 | User’s Manual 1.3.4 ACO-6011E(P) ACO-6011E ACO-6011E-4L(P) ACO-6011E-8L(P) ACO-6011E-D10G ACO-6011E-4L(P)-M12 ACO-6011E-8L(P)-M12 ACO-6011E-4U3 ACO-6011E-8U3 ACO-6011P ACO-6011P-4L(P) ACO-6011P-8L(P) ACO-6011P-D10G ACO-6011P-4L(P)-M12 ACO-6011P-8L(P)-M12 ACO-6011P-4U3 ACO-6011P-8U3 Front Panel ATX power on/off switch HDD LED Press to power-on or power-off the system Indicates the status of the hard drive Reset switch Watchdog LED...
  • Page 22 Chapter 1: Product Introductions ACO-6000 | User’s Manual ACO-6011E(P) LAN Port PoE Port ACO-6011E(P)-4L / ACO-6011E(P)-8L ACO-6011E(P)-4P / ACO-6011E(P)-8P M12 LAN Port M12 PoE Port ACO-6011E(P)-4L-M12 , ACO-6011E(P)-8L-M12 ACO-6011E(P)-4P-M12 , ACO-6011E(P)-8P-M12 D10G Port ACO-6011E(P)-D10G USB Port ACO-6011E(P)-4U3 / ACO-6011E(P)-8U3...
  • Page 23 Chapter 1: Product Introductions ACO-6000 | User’s Manual Rear Panel DisplayPort DC IN Used to connect a DisplayPort monitor Used to plug a DC power input with terminal block USB 3.0 port Used to connect USB 3.0/2.0/1.1 device Speaker-out Used to connect a speaker LAN port Used to connect the system to a local area Mic-in...

  • Page 24: Mechanical Dimension

    Chapter 1: Product Introductions ACO-6000 | User’s Manual 1.4 Mechanical Dimensions 1.4.1 ACO-6000 / ACO-6000-4L(P) / ACO-6000-4L(P)-M12 / ACO-6000-8L(P) / ACO-6000-8L(P)-M12 / ACO-6000-D10G / ACO-6000-4U3 / ACO-6000-8U3 Unit: mm...

  • Page 25: Aco-6010-16L(P) / Aco-6010-16L(P)-M12

    Chapter 1: Product Introductions ACO-6000 | User’s Manual 1.4.2 ACO-6010-16L(P) / ACO-6010-16L(P)-M12 Unit: mm...

  • Page 26: Aco-6011E(P)

    Chapter 1: Product Introductions ACO-6000 | User’s Manual 1.4.3 ACO-6011E(P) / ACO-6011E(P)-4L(P) / ACO-6011E(P)-4L(P)-M12 / ACO-6011E(P)-8L(P) / ACO-6011E(P)-8L(P)-M12 / ACO-6011E(P)-D10G ACO-6011E(P)-4U3 / ACO-6011E(P)-8U3 Unit: mm...

  • Page 27: Chapter 2 Switches And Connectors

    Chapter 2 Switches and Connectors...

  • Page 28: Switch And Connector Locations

    Chapter 2: Switches and Connectors ACO-6000 | User’s Manual 2.1 Switch and Connector Locations 2.1.1 Top View...

  • Page 29: Bottom View

    Chapter 2: Switches and Connectors ACO-6000 | User’s Manual 2.1.2 Bottom View...

  • Page 30: Connector / Switch Definition

    Chapter 2: Switches and Connectors ACO-6000 | User’s Manual 2.2 Connector / Switch Definition List of Connector / Switch Connector Location Definition AT_ATX1 AT / ATX Power Mode Switch CLR_CMOS1 Clear BIOS Switch PWR_SW1 Power Switch RESET1 Reset Switch USB3_1,USB3_2 USB 3.0 Port USB2_1, USB2_2 USB 2.0 Port...

  • Page 31: Switch Definitions

    Chapter 2: Switches and Connectors ACO-6000 | User’s Manual 2.3 Switches Definitions AT_ATX1: AT / ATX Power Mode Switch Switch Definition 1-2 (Left) AT Power Mode 2-3 (Right) ATX Power Mode（Default） CLR_CMOS1: Clear BIOS Switch Switch Definition Normal Status (Default) Clear BIOS CAR_PWR1: PC / Power Ignition Mode Switch Switch...
  • Page 32 Chapter 2: Switches and Connectors ACO-6000 | User’s Manual Step of Setting Power Ignition Step 1 To select power ignition by PC/CAR switch. Step 2 To select battery input voltage by 12V / 24V switch. Step 3 To configure the power off delay time, please check the Delay Time Setting Options in advance. Step 4 To connect the power and ignition power Step 1...
  • Page 33 Chapter 2: Switches and Connectors ACO-6000 | User’s Manual...

  • Page 34: Connector Definitions

    Chapter 2: Switches and Connectors ACO-6000 | User’s Manual 2.4 Connectors Definitions PWR_SW1: Power Button Definition Definition Power Button RESET1 : Reset Button Definition RESET USB3_1: USB3.0 Connector, Type A Definition Definition USB3_RX5+ USB2_D5- USB2_D5+ USB3_TX5- USB3_TX5+ USB3_RX5- USB3_2: USB3.0 Connector, Type A Definition Definition USB3_RX6+...
  • Page 35 Chapter 2: Switches and Connectors ACO-6000 | User’s Manual USB2_1: USB3.0 Connector, Type A Definition USB2_D7- USB2_D7+ USB2_2: USB3.0 Connector, Type A Definition USB2_D8- USB2_D8+ USB2_CN1: USB2.0 Ports Connector Type: 2X5 10-pin box header, 2.54mm pitch Definition Definition USB2_D9+ USB2_D10+ USB2_D9- USB2_D10- Cable Shield...
  • Page 36 Chapter 2: Switches and Connectors ACO-6000 | User’s Manual SIM3：SIM Card Socket Definition Definition UIM3_PWR UIM3_RESET UIM3_VPP UIM3_CLK UIM3_DATA COM1_2_1: RS232 / RS422 / RS485 Connector Connector Type: 9-pin D-Sub COM1 RS422 / 485 Full RS485 Half Duplex RS232 Definition Duplex Definition Definition DCD1...
  • Page 37 Chapter 2: Switches and Connectors ACO-6000 | User’s Manual COM3_1： RS232 / RS422 / RS485 Connector Connector Type: 2X5 10-pin box header, 2.54mm pitch COM3_1 RS422 / 485 Full RS485 Half Duplex RS232 Definition Duplex Definition Definition DCD3 TX3- DATA3- RxD3 TX3+ DATA3+...
  • Page 38 Chapter 2: Switches and Connectors ACO-6000 | User’s Manual DC_IN1: DC Power Input Connector (+9~48V) Connector Type: Terminal Block 1X3 3-pin, 5.0mm pitch Definition +9~48VIN Power Ignition DVI_I1: DVI-I Connector Definition Definition DVI_TX2- DVI Hot Plug Detect DVI_TX2+ DVI_TX0- DVI_TX0+ VGA_DDC_CLOCK DVI_DDC_CLOCK VGA_DDC_DATA...
  • Page 39 Chapter 2: Switches and Connectors ACO-6000 | User’s Manual DP2: DisplayPort Connector Definition Definition DP2_LANE0_P DP2_LANE3_N DP2_LANE0_N DP2_LANE1_P DP2_AUX_P DP2_LANE1_N DP2_LANE2_P DP2_AUX_N DP2_HPD DP2_LANE2_N DP2_LANE3_P DP2_PWR SPK_OUT1 : Speaker-out Jack (Green) Connector Type: 5-pin Phone Jack Definition OUT_R OUT_L MIC_IN1: Microphone Jack (Pink) Connector Type: 5-pin Phone Jack Definition MIC_R...
  • Page 40 Chapter 2: Switches and Connectors ACO-6000 | User’s Manual DIO1: Digital Input / Output Connector Connector Type: Terminal Block 2X9 18-pin, 3.5mm pitch Definition Definition DC INPUT...
  • Page 41 Chapter 2: Switches and Connectors ACO-6000 | User’s Manual Digital Input Wurung Digital Output Wurung PWR_SW2 : Remote Power Switch Connector Type: Terminal Block 1X2 2-pin, 3.5mm pitch Definition Power Button...
  • Page 42 Chapter 2: Switches and Connectors ACO-6000 | User’s Manual CN1: LAN1 and USB3.0 Ports Connector Type: RJ45 port with LEDs and dual USB3.0 ports Definition Definition Definition LAN1_MDI0P USB2_D1- USB2_D2- LAN1_MDI0N USB2_D1+ USB2_D2+ LAN1_MDI1P LAN1_MDI2P USB3_RX1- USB3_RX2- LAN1_MDI2N USB3_RX1+ USB3_RX2+ LAN1_MDI1N LAN1_MDI3P USB3_TX1-...
  • Page 43 Chapter 2: Switches and Connectors ACO-6000 | User’s Manual MINIPCIE1: Mini PCI-Express Socket Definition Definition Definition WAKE# +3.3V +3.3V USB2_D11+ +3.3V MINIPCIE RST# MINIPCIE_RXN1 +3.3V +1.5V +3.3V CLKREQ0# MINIPCIE_RXP1 USIM1_VCC USIM1_DATA +1.5V MINIPCIE_CLKN0 USIM1_CLK SMB_CLK +1.5V MINIPCIE_CLKP0 MINIPCIE_TXN1 USIM1_RST SMB_DATA MINIPCIE_TXP1 USIM1_VPP +3.3V...
  • Page 44 Chapter 2: Switches and Connectors ACO-6000 | User’s Manual MINIPCIE3: Mini PCI-Express / mSATA Socket Definition Definition Definition WAKE# +3.3V +3.3V USB_D14+ +3.3V MINIPCIE RST# MINIPCIE_RXN18 +3.3V (SATA_RXN5) +1.5V +3.3V MINIPCIE_RXP18 CLKREQ2# (SATA_RXP5) USIM3_VCC USIM3_DATA +1.5V MINIPCIE_CLKN2 USIM3_CLK SMB_CLK +1.5V MINIPCIE_TXN18 MINIPCIE_CLKP2 (SATA_TXN5)
  • Page 45 Chapter 2: Switches and Connectors ACO-6000 | User’s Manual SATA1, SATA2: SATA with Power Connector SATA1 SATA1 SATA2 SATA2 Definition Definition Definition Definition SATA_TXP0 SATA_TXP1 SATA_TXN0 SATA_TXN1 SATA_RXN0 SATA_RXN1 SATA_RXP0 SATA_RXP1 +3.3V +3.3V +3.3V +12V +3.3V +12V +3.3V +12V +3.3V +12V +12V +12V...
  • Page 46 Chapter 2: Switches and Connectors ACO-6000 | User’s Manual POWER1, POWER2, POWER3, POWER4: Power Connector Connector Type: 1X4-pin Wafer, 2.0mm pitch Definition +12V PCIE1: PCI-Express X1 Socket Connector Type: PCI-Express X1 Slot Definition Definition +12V +12V +12V +12V +12V SMB_CLK SMB_DATA +3.3V +3.3V...
  • Page 47 Chapter 2: Switches and Connectors ACO-6000 | User’s Manual PCIE1: PCI-Express X16 Socket Connector Type: PCI-Express X16 Slot Definition Definition Definition Definition PCIE_PRSNT1 +12V PEG_TXN6 +12V PEG_RXP6 +12V +12V PEG_RXN6 +12V PEG_TXP7 SMB_CLK PEG_TXN7 PEG_RXP7 SMB_DATA PEG_RXN7 PRSNT2_3 +3.3V +3.3V PEG_TXP8 +3.3V +3.3VSB...
  • Page 48 Chapter 2: Switches and Connectors ACO-6000 | User’s Manual PWR_LED1: Power LED Status Definition POWER LED+ POWER LED- HDD_LED1: HDD Access LED Status Definition HDD LED+ HDD LED- WDT_LED1: Watchdog LED Status Definition WATCHDOG LED+ WATCHDOG LED- GPIO_LED1: GPIO LED Status Definition GPIO LED+ GPIO LED-...

  • Page 49: Chapter 3 System Setup

    Chapter 3 System Setup...

  • Page 50: Removing Chassis Bottom Cover

    Chapter 3: System Setup ACO-6000 | User’s Manual 3.1 Set torque force to 3.5 kgf-cm to execute all the screwing and unscrewing. 3.2 Removing chassis bottom cover In order to prevent electric shock or system damage, before removing the chassis cover, must turn off power and disconnect the unit from power source. 1.

  • Page 51: Removing Pcie/Pci Expansion Module

    Chapter 3: System Setup ACO-6000 | User’s Manual 3.2 Removing PCIe/PCI expansion module 1. This step only applies to ACO-6011 series, which is equipped with PCIe/PCI expansion module. 2. Unscrew four screws (M3x5L) circled below. 3. Now you can remove the PCIe/PCI expansion module.

  • Page 52: Removing Chassis Top Cover

    Chapter 3: System Setup ACO-6000 | User’s Manual 3.3 Removing chassis top cover 1. Unscrew the four screws (M3x5L) highlighted below. 2. Hold the body of the system and lift it vertically away from the top cover. 3. Top cover separated from the system body.

  • Page 53: Installing Sodimm

    3.4 Installing SODIMM 1. Place the system body with SODIMM socket facing upward. Two SODIMM sockets are available for ACO-6000 Series on the top side. 2. Insert memory module from 45 degree direction. 3. Press the memory module vertically downward until you hear the “click” sound. Make sure...

  • Page 54: Installing Cpu

    Chapter 3: System Setup ACO-6000 | User’s Manual 3.5 Installing CPU 1. CPU socket is located on the top side. 2. Press down the CPU socket lever in order to open the socket cover.
  • Page 55 Chapter 3: System Setup ACO-6000 | User’s Manual 3. Remove the CPU protective cover. 4. Insert CPU gently.
  • Page 56 Chapter 3: System Setup ACO-6000 | User’s Manual 5. Press down the lever again to hold the socket cover. 6. Paste thermal pad (1-BR0500040, 29x29x0.5mm) on the CPU.
  • Page 57 Chapter 3: System Setup ACO-6000 | User’s Manual 7. Place the designated heat block onto the CPU with thermal pad. 8. Lock the heat block with three screws (M3x5L). Screw driver will able to penetrate through the holes on the top in order to fasten the screws with copper stud.
  • Page 58 Chapter 3: System Setup ACO-6000 | User’s Manual 9. Paste the thermal pad (1-BR0500041, 76x70x2.0mm) onto the installed heat block. 10. Installation complete.

  • Page 59: Installing Mini Pcie Card / Msata

    ACO-6000 | User’s Manual 3.6 Installing mini PCIe card / mSATA 1. Three mini PCIe slots are available for ACO-6000 series, two on top side and one on bottom side. MINIPCIE2 on the bottom side and MINIPCIE3 on the top side support mSATA.

  • Page 60: Installing Antenna

    Chapter 3: System Setup ACO-6000 | User’s Manual 3.7 Installing antenna 1. Four antenna holes are available for ACO-6000 series on the rear panel and two holes are on the front panel. 2. Remove antenna hole cover on the system panel.
  • Page 61 Chapter 3: System Setup ACO-6000 | User’s Manual 4. Put on washer and fasten the nut with antenna jack. 5. Assemble the antenna and antenna jack together. 6. Attach the RF connector at the cable-end onto the communication module.

  • Page 62: Assembly Chassis Top Cover

    Chapter 3: System Setup ACO-6000 | User’s Manual 3.8 Assembly chassis top cover 1. Place the top cover upside down as shown below. 2. Ensure thermal pad is in place on both the CPU thermal block and PCH thermal block. 3.
  • Page 63 Chapter 3: System Setup ACO-6000 | User’s Manual 4. Push the system body down until it is firmly in place. 5. Fasten the four screws (M3x5L) to lock the system body with top cover.

  • Page 64: Installing Hdd On Internal Sata Hdd Bay

    Chapter 3: System Setup ACO-6000 | User’s Manual 3.9 Installing HDD on internal SATA HDD bay 1. Place the top cover upside down as shown below. 2. Unscrew the four screws (M3x5L) to remove the internal SATA HDD bay. 3. Lock the 2.5” HDD with HDD bracket using four screws (M3x4L).
  • Page 65 Chapter 3: System Setup ACO-6000 | User’s Manual 4. Install the HDD bracket following the direction below. 5. Fasten the four screws to lock the internal HDD bracket.

  • Page 66: Installing Hdd On Removable Sata Hdd Bay

    ACO-6000 | User’s Manual 3.10 Installing HDD on removable SATA HDD bay 1. Two removable SATA HDD bays are available for ACO-6000 Series. 2. Unscrew the two sun screws circled below to take out the removable SATA HDD bay. 3. Lock the 2.5” HDD with HDD bracket using four screws (M3x4L).

  • Page 67: Installing Pcie/Pci Expansion Card

    ACO-6000 | User’s Manual 3.11 Installing PCIe/PCI expansion card 1. PCIe or PCI card with FHHL dimension is supported by ACO-6000 series. 2. Unscrew the screw (M3x5L) to remove the plane bracket. 3. Loose the sun screw (circled below) on the holder so the pairing arm can be adjustable.

  • Page 68: Assemble Pcie/Pci Expansion Module

    Chapter 3: System Setup ACO-6000 | User’s Manual 5. Adjust the arm until it holds the card firmly in place. Then fasten the sun screw on the holder. 3.12 Installing PCIe/PCI expansion module 1. Install the expansion module back in place and ensure the golden finger is inserted into the expansion slot.

  • Page 69: Assemble Chassis Bottom Cover

    Chapter 3: System Setup ACO-6000 | User’s Manual 2. Fasten the four screws (M3x5L) below to lock the expansion module. 3.13 Assemble chassis bottom cover 1. Place the bottom cover according to the below direction and make sure the rail is facing inside the system.

  • Page 70: Installing Sim Card

    ACO-6000 | User’s Manual 2. Lock the bottom cover with the six screws (M3x5L). 3.14 Installing SIM card 1. For ACO-6000 Series, SIM card slot is located inside the control area. Unscrew the two screws below to remove the cover bracket.
  • Page 71 Chapter 3: System Setup ACO-6000 | User’s Manual 2. Now you can insert SIM card into the socket. 3. Please note that the installation of SIM cards has to match the installation of mini PCIe slots. SIM Card Socket Number Matching Mini PCIe Slot SIM 1 MINIPCIE1...

  • Page 72: Installing Wall Mount Kit

    ACO-6000 | User’s Manual 3.15 Installing wall mount kit 1. Wall mount kit is available for ACO-6000 series included in the standard package. 2. Place the system upside down so you can see the bottom cover. The highlighted eight screw holes below will be used.

  • Page 73: Chapter 4 Bios Setup

    Chapter 4 BIOS Setup...

  • Page 74: Bios Introduction

    Chapter 4: BIOS Setup ACO-6000 | User’s Manual 4.1 BIOS Introduction The system BIOS software is stored on EEPROM. The BIOS provides an interface to modify the configuration. When the battery is removed, all the parameters will be reset. BIOS Setup Power on the embedded system and by pressing <Del>...

  • Page 75: Main Setup

    Chapter 4: BIOS Setup ACO-6000 | User’s Manual 4.2 Main Setup Press <Del> to enter BIOS CMOS Setup Utility, the Main Menu (as shown below) will appears on the screen. Use arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. ...

  • Page 76: Advanced Setup

    Chapter 4: BIOS Setup ACO-6000 | User’s Manual 4.3 Advanced Setup This section allows you to configure and improve your system and allows you to set up some system features according to your preference.

  • Page 77: Cpu Configuration

    Chapter 4: BIOS Setup ACO-6000 | User’s Manual 4.3.1 CPU Configuration ■ SW Guard Extensions (SGX) This item allows you to set the SW Guard Extensions. ■ Select Owner EPOCH input type This item allows you to select the owner EPOCH input type. ■...

  • Page 78: Pch-Fw Configuration

    Chapter 4: BIOS Setup ACO-6000 | User’s Manual 4.3.2 PCH-FW Configuration ■ AMT Configuration Intel Active Management Technology (AMT) is hardware-based technology for remotely managing and securing PCs out-of-band. ■ Un-Configure ME Use this function to enable or disable Un-Configure ME without password function.

  • Page 79: Sata And Rst Configuration

    Chapter 4: BIOS Setup ACO-6000 | User’s Manual 4.3.3 SATA And RST Configuration ■ SATA Controller(s) Enable or disable Serial ATA controller. ■ SATA Mode Selection This item allows users to select mode of SATA controller. ■ Serial ATA Port 0 / 1 / 2 / 3 / 4 / 5 This item allows users to enable or disable Serial ATA Port 0 / 1 / 2 / 3 / 4 / 5.

  • Page 80: Rst (Uefi Raid) Configuration

    Chapter 4: BIOS Setup ACO-6000 | User’s Manual 4.3.4 RST (UEFI RAID) Configuration How to set the UEFI RAID: 1. When set to RAID, please save change reset system. 2. After reboot the system, please into BIOS utility and then will see “Intel (R) Rapid Storage Technology”...
  • Page 81 Chapter 4: BIOS Setup ACO-6000 | User’s Manual 3. Into Intel(R) Rapid Storage Technology, and start create RAID volume. 4. Start Create the RAID ■ Select Disk that you want to do the RAID ■ Select [x]; No-Select [ ]...

  • Page 82: Trusted Computing

    Chapter 4: BIOS Setup ACO-6000 | User’s Manual 4.3.5 Trusted Computing...

  • Page 83: Acpi Settings

    Chapter 4: BIOS Setup ACO-6000 | User’s Manual 4.3.6 ACPI Settings ■ Enable ACPI Auto Configuration Enable or disable BIOS ACPI auto configuration.

  • Page 84: Nct6106D Super Io Configuration

    Chapter 4: BIOS Setup ACO-6000 | User’s Manual 4.3.7 NCT6106D Super IO Configuration ■ Serial Port 1 Configuration  Serial Port This item will allow users to enable or disable serial port.  Change Settings This setting is used to change the address & IRQ settings of the specified serial port. ...
  • Page 85 Chapter 4: BIOS Setup ACO-6000 | User’s Manual ■ Serial Port 2 Configuration  Serial Port This item will allow users to enable or disable serial port.  Change Settings This setting is used to change the address & IRQ settings of the specified serial port. ...
  • Page 86 Chapter 4: BIOS Setup ACO-6000 | User’s Manual ■ Serial Port 4 Configuration  Serial Port This item will allow users to enable or disable serial port.  Change Settings This setting is used to change the address & IRQ settings of the specified serial port. ...

  • Page 87: Nct6106D Hw Monitor

    Chapter 4: BIOS Setup ACO-6000 | User’s Manual 4.3.8 NCT6106D HW Monitor These items display the current status of all monitored hardware devices/components such as voltages, temperatures and all fans’ speeds. 4.3.9 Serial Port Console Redirection ■ Console Redirection This item allows users to enable or disable console redirection.

  • Page 88: Network Stack Configuration

    Chapter 4: BIOS Setup ACO-6000 | User’s Manual 4.3.10 Network Stack Configuration ■ Network Stack Use this item to enable or disable UEFI Network Stack.

  • Page 89: Csm Configuration

    Chapter 4: BIOS Setup ACO-6000 | User’s Manual 4.3.11 CSM Configuration ■ CSM Support This item allows you to enable or disable CSM support. ■ GateA20 Active This item allows you to select <Upon Request> or <Always>. Upon Request: GA20 can be disabled using BIOS services. Always: Do not allow GA20 disabling.

  • Page 90: Usb Configuration

    Chapter 4: BIOS Setup ACO-6000 | User’s Manual 4.3.12 USB Configuration ■ Legacy USB Support This item allows you to select <Enabled>, <Disabled> or <Auto>. Enabled: To enable legacy USB support. Disabled: To keep USB devices available only for EFI specification, Auto: To disable legacy support if no USB devices are connected.

  • Page 91: Chipset

    Chapter 4: BIOS Setup ACO-6000 | User’s Manual 4.4 Chipset This section allows you to configure and improve your system and allows you to set up some system features according to your preference. 4.4.1 System Agent (SA) Configuration ■ VT-d This item allows users to enable or disable VT-d.

  • Page 92: Pch-Io Configuration

    Chapter 4: BIOS Setup ACO-6000 | User’s Manual ■ Graphic Configuration  Primary Display Change the Primary Display. Select <Auto> or <PEG+IGFX> PEG+IGFX (Multiple-Displays): IGFX will be primary and only display under BIOS an DOS mode  GTT Size This item allows you to change the GTT size. ...
  • Page 93 Chapter 4: BIOS Setup ACO-6000 | User’s Manual ■ PEG Port Configuration  PEG 0:1:0  Enable Root Port This item allows you to enable or disable the Root Port.  Max Link Speed This item allows you to configure PEG 0:1:0 Max Sped. ...
  • Page 94 Chapter 4: BIOS Setup ACO-6000 | User’s Manual 4.4.2 PCH-IO Configuration This section allows you to configure the chipset. ■ PCI Express Configuration...
  • Page 95 Chapter 4: BIOS Setup ACO-6000 | User’s Manual  PCI Express Root Port 1 / 3 / 4 / 5 / 6 / 7 / 8 / 9  PCI Express Port 1 / 3 / 4 / 5 / 6 / 7 / 8 / 9 This item allows you to enable or disable PCI Express Port 1 / 3 / 4 / 5 / 6 / 7 /8 / 9 in the chipset.
  • Page 96 Chapter 4: BIOS Setup ACO-6000 | User’s Manual ■ HD Audio Configuration  HD Audio Control detection of the HD-Audio device. This item allows you to select <Enabled>, <Disabled> or <Auto>. Disabled: Azalia will be unconditionally be disabled. Enabled: Azalia will be unconditionally be enabled. Auto: Azalia will be enabled if present, disabled otherwise.

  • Page 97: Security

    Chapter 4: BIOS Setup ACO-6000 | User’s Manual 4.5 Security Security menu allow users to change administrator password and user password settings.  Administrator Password This item allows you to set Administrator Password.  User Password This item allows you to set User Password.

  • Page 98: Boot

    Chapter 4: BIOS Setup ACO-6000 | User’s Manual 4.6 Boot This menu allows you to setup the system boot options.  Setup Prompt Timeout This item sets number of seconds to wait for setup activation key.  Bootup NumLock State This item selects the keyboard NumLock state.

  • Page 99: Save & Exit

    Chapter 4: BIOS Setup ACO-6000 | User’s Manual 4.7 Save & Exit This setting allows users to configure the boot settings.  Save Changes and Reset This item allows user to reset the system after saving the changes. This item allows user to reset the system after saving the changes.

  • Page 100: Appendix Wdt & Gpio

    Appendix WDT & GPIO This appendix provides the sample codes of WDT (Watch Dog Timer) and GPIO (General Purpose Input/ Output).

  • Page 101: Wdt Sample Code

    Appendix – WDT & GPIO ACO-6000 | User’s Manual WDT Sample Code WDT Setting Psuedo Code #define AddrPort 0x2e #define DataPort 0x2f #define SIO_UnLock_Value 0x87 #define SIO_Lock_Value 0xaa #define WATCHDOG_LDN 0x07 #define GPIO_Port 0xF1 //Enter_Config WriteByte (AddrPort, SIO_UnLock_Value); WriteByte (AddrPort, SIO_UnLock_Value); //Enter WATCHDOG LDN WriteByte (AddrPort, 0x07);...

  • Page 102: Gpio Sample Code

    Appendix – WDT & GPIO ACO-6000 | User’s Manual GPIO Sample Code GPIO Setting PIN# GPIO# Default Configuration XCOM- XCOM+ OUT8 DIO Output8 DIO Input8 OUT7 DIO Output7 DIO Input7 OUT6 DIO Output6 DIO Input6 OUT5 DIO Output5 DIO Input5 OUT4 DIO Output4 DIO Input4...
  • Page 103 All Rights Reserved ACO-6000 | User’s Manual...

This manual is also suitable for:
