EASTRON SDM630-Mbus V2 User Manual

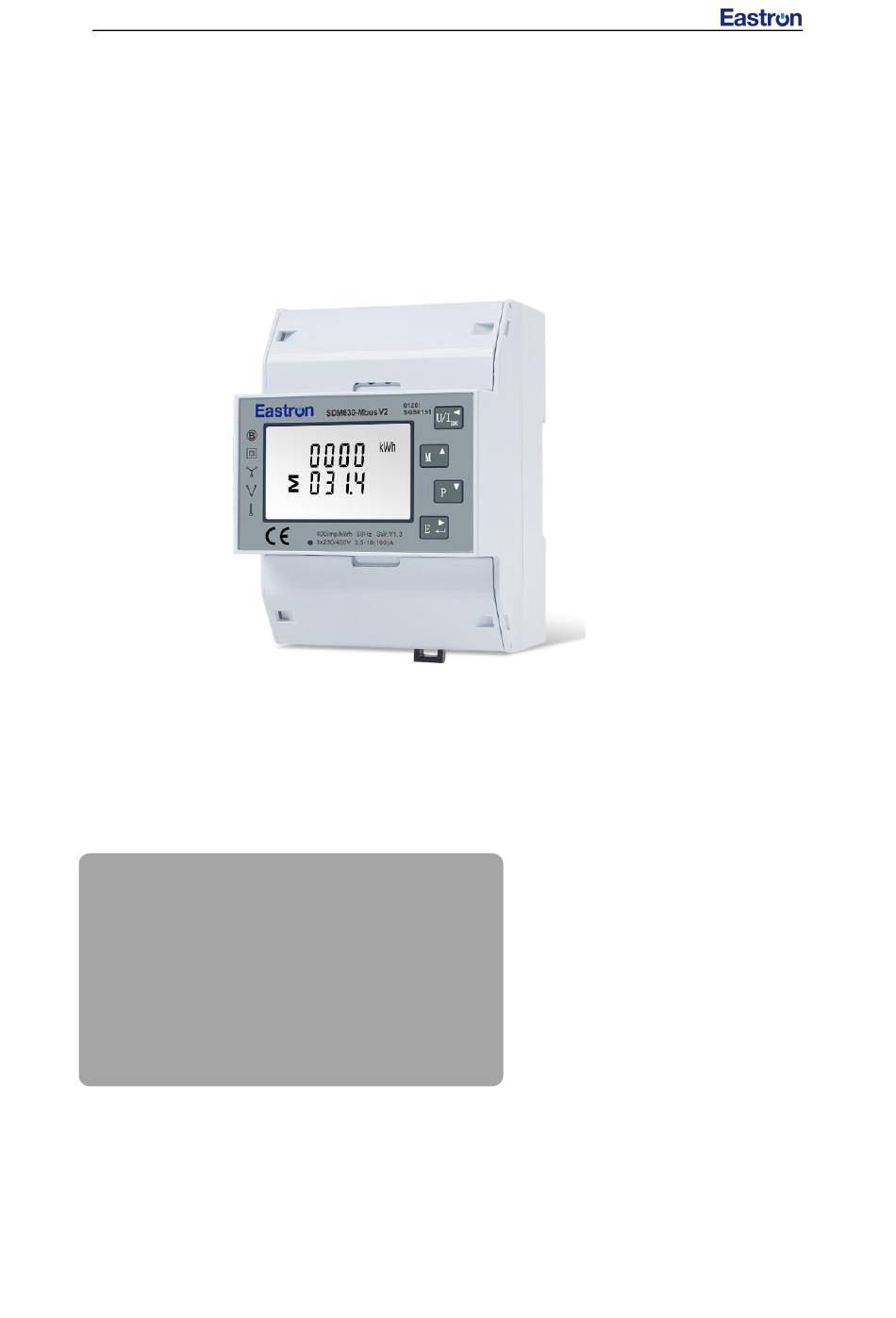

SDM630-Mbus V2
DIN Rail Smart Meter for Single and Three Phase Electrical Systems
Measures kWh Kvarh, KW, Kvar, KVA, P,
F, PF, Hz, dmd, V, A, etc.
Bi-directional measurement IMP & EXP
Two pulse outputs
Mbus EN13753-3
Din rail mounting 35mm
100A direct connection
Better than Class 1 / B accuracy
Address: No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, 314000, China.
Tel: 0086-573-83698881
Email:sales@eastrongroup.com Web: www.eastrongroup.com
USER MANUAL
2022 V1.3

Advertisement

loading
Need help?

Need help?

Do you have a question about the SDM630-Mbus V2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eastron SDM630-Mbus V2

Summary of Contents for Eastron SDM630-Mbus V2

  • Page 1 EASTRON SDM630-Mbus V2 User Manual SDM630-Mbus V2 DIN Rail Smart Meter for Single and Three Phase Electrical Systems Measures kWh Kvarh, KW, Kvar, KVA, P,  F, PF, Hz, dmd, V, A, etc. Bi-directional measurement IMP & EXP  Two pulse outputs ...
  • Page 2 60 minutes. In order to measure energy, the unit requires voltage and current inputs in addition to the supply required to power the product. SDM630-Mbus V2 supports Max. 100A direct connection, saves the cost and avoid the trouble to connect external CTs, giving the unit a cost-effective and easy operation. Built-in interfaces provides pulse and Mbus outputs.
  • Page 3 EASTRON SDM630-Mbus V2 User Manual Start-up Screens The first screen lights up all display segments and can be used as a display check second screen indicates firmware installed in the unit and its build number. (*The build number(1.302.2014) is for reference only.
  • Page 4 EASTRON SDM630-Mbus V2 User Manual Voltage and Current Each successive pressing of the button selects a new range: Phase to neutral voltages(3p4w) Phase to neutral voltages(3p3w) Current on each phase Phase to neutral voltage THD%(3p4w) Phase to neutral voltage THD%(3p3w) Address: No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, 314000, China.
  • Page 5 EASTRON SDM630-Mbus V2 User Manual Current THD% for each phase Frequency and Power factor and Demand Each successive pressing of the button selects a new range: Frequency and Power Factor (total) Power Factor of each phase Maximum Power Demand Maximum Current Demand Address: No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, 314000, China.
  • Page 6 EASTRON SDM630-Mbus V2 User Manual Power Each successive pressing of the button select a new range: Instantaneous Active Power in kW Instantaneous Reactive Power in kVAr Instantaneous Volt-amps in KVA Total kW, kVAr, kVA Energy Measurements Each successive pressing of the...
  • Page 7 EASTRON SDM630-Mbus V2 User Manual Exported active energy in kWh Imported reactive energy in kVArh Exported reactive energy in kVArh Total active energy in kWh Total reactive energy in kVArh Set-up To enter set-up mode, pressing the button for 3 seconds, until the password screen appears.
  • Page 8 EASTRON SDM630-Mbus V2 User Manual Setting up is password-protected so you must enter the correct password (default ‘1000’) before processing. If an incorrect password is entered, the display will show: Err To exit setting-up mode, press repeatedly until the measurement screen is restored.
  • Page 9 EASTRON SDM630-Mbus V2 User Manual When setting up the unit, some screens require the entering of a number. In particular, on entry to the setting up section, a password must be entered. Digits are set individually, from left to right. The procedure is as follows:...
  • Page 10 EASTRON SDM630-Mbus V2 User Manual After setting the last digit, SET will show. Press to exit the number setting routine and return to the Set-up menu. DIT Demand Integration Time This sets the period in minutes over which the current and power readings are integrated for maximum demand measurement.
  • Page 11 EASTRON SDM630-Mbus V2 User Manual Press to exit the DIT selection routine and return to the menu. Backlit set-up The backlit lasting time is settable Default lasting time is 60minutes For example, if it’s set as 5, the backlit will be off in 5minutes from the last time operation on the meter.
  • Page 12 EASTRON SDM630-Mbus V2 User Manual buttons to select the required system option: 1P2(W),3P3(W) ,3P4(W) Press to confirm the selection. SET indicator will appear. Press to exit the system selection routine and return to the menu. SET will disappear and you will be returned to the main Set-up Menu Pulse output This option allows you to configure the pulse output 1.
  • Page 13 EASTRON SDM630-Mbus V2 User Manual buttons to choose kWh or kVArh. On completion of the entry procedure, press to confirm the setting and press to return to the main set up menu. Pulse rate Use this to set the energy represented by each pulse. Rate can be set to 1 pulse per dFt/0.01/0.1/1/10/100kWh/kVArh.
  • Page 14 EASTRON SDM630-Mbus V2 User Manual Pulse Duration The energy monitored can be active or reactive and the pulse width can be selected as 200, 100(default) or 60ms. (It shows pulse width of 200ms) From the Set-up menu, use buttons to select the Pulse width option.
  • Page 15 EASTRON SDM630-Mbus V2 User Manual From the Set-up menu, use buttons to select the Address ID Press button to enter the selection routine. The current setting will be flashing. buttons to choose Modbus Address(001 to 250) Default: 001 Mbus secondary address...
  • Page 16 EASTRON SDM630-Mbus V2 User Manual Press to enter the selection routine. The current setting will flash. buttons to choose Baud rate 0.3k, 0.6k, 1.2k, 2.4k, 4.8k, 9.6k Default is 2.4k On completion of the entry procedure, press to confirm the setting and press to return to the main set up menu.
  • Page 17 EASTRON SDM630-Mbus V2 User Manual On Completion of the entry procedure, press to confirm the setting and press to return to the main set up menu. Stop bits From the Set-up menu, use buttons to select the Stop Bit option.
  • Page 18 EASTRON SDM630-Mbus V2 User Manual Press to enter the selection routine. The MD will flash. Press to confirm the setting and press to return to the main set up menu. Specifications Measured Parameters The unit can monitor and display the following parameters of a single phase two wire(1p2w), three phase three wire(3p3w) or four phase four wire(3p4w) supply.
  • Page 19 EASTRON SDM630-Mbus V2 User Manual Measured Inputs Voltage inputs through 4-way fixed connector with 25mm² stranded wire capacity. single phase two wire(1p2w), three phase three wire(3p3w) or four phase four wire(3p4w) unbalanced. Line frequency measured from L1 voltage or L3 voltage.
  • Page 20 EASTRON SDM630-Mbus V2 User Manual Pulse output 2 is non-configurable. It is fixed up with active kWh. The constant is 400imp/kWh. MBus Output for EN_13757-3 For MBus EN13757-3, the following MBus communication parameters can be configured from the Set-up menu:...
  • Page 21 EASTRON SDM630-Mbus V2 User Manual Wiring diagram Three Phase Three Wires： Address: No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, 314000, China. Tel: 0086-573-83698881 Email:sales@eastrongroup.com Web: www.eastrongroup.com...
  • Page 22 EASTRON SDM630-Mbus V2 User Manual Three Phase Four Wires： Single Phase two Wires： Address: No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, 314000, China. Tel: 0086-573-83698881 Email:sales@eastrongroup.com Web: www.eastrongroup.com...
  • Page 23 EASTRON SDM630-Mbus V2 User Manual Address: No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, 314000, China. Tel: 0086-573-83698881 Email:sales@eastrongroup.com Web: www.eastrongroup.com...
