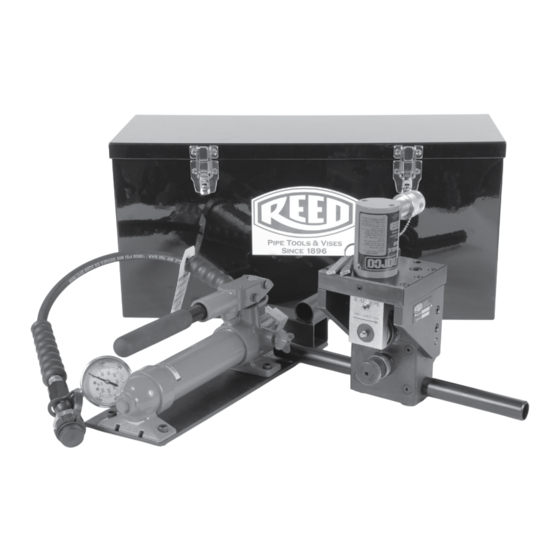

RG26H and RG812H Roll Groover
OperatOr's Manual
rg26h and rg812h
pOrtable hydraulic
rOll grOOver
1425 West Eighth St. Erie, PA 16502 USA Phone: 800-666-3691 or 814-452-3691 Fax: 800-456-1697 or 814-455-1697
211-58550
REED MANUFACTURING COMPANY
www.reedmfgco.com
Operator's Manual
Catalog Number: RG812H
Item Code: 08550
Catalog Number: RG26H
Item Code: 08560
WARNING
Clothing/gloves can
be caught in moving
parts. Fingers can
be crushed.
• Keep hands away
from grooving
rolls.
• Use footswitch.
• Read Operator's
Manual.
1
211-58550
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for REED RG812H
Summary of Contents for REED RG812H
- Page 1 RG26H and RG812H Roll Groover Operator's Manual Catalog Number: RG812H Item Code: 08550 Catalog Number: RG26H Item Code: 08560 WARNING Clothing/gloves can be caught in moving OperatOr’s Manual parts. Fingers can be crushed. • Keep hands away from grooving rolls.
-
Page 2: Description And Specifications
• Reed Model JLV Low Pipe Jack (06355) with JTA Ball Transfer Head (06351), or JL2R Low Roller Head Jack (06356). • Reed 5301PD Power Drive, 38 RPM Models. RIDGID® is a registered trademark of RIDGID, Inc. and is not associated with Reed Manufacturing Co. 211-58550... - Page 3 Cover up or tie up long hair. Do not wear loose clothing, gloves, unbuttoned jackets, loose sleeve 5. Do not use the RG26H or RG812H Roll Groover for any cuffs, neckties, rings, watches or other jewelry. other purpose than roll grooving pipe and tubing.
- Page 4 2. Install the Hydraulic Pump and stand by inserting the pipe over 2-1/2 the support rod on the operators side of the Roll Groover. This is the side of the tool with the REED Logo, Depth Gages and 3-1/2 grease fitting.
- Page 5 RG26H and RG812H Roll Groover Operator's Manual Figure 1 - RG26H and RG812H Roll Groover Pressure Gauge Hydraulic Pump Hydraulic Ram Adjusting Screw Pressure Release Support Rod Pump Stand Grease Fittings Drive Shaft Cover Plate Groove Roll 211-58550...
- Page 6 Operator's Manual RG26H and RG812H Roll Groover Table 1 - Standard Roll Groove Specifications Note: All dimensions are in inches. NOM. PIPE MIN. GASKET GROOVE GROOVE NORMAL PIPE DIAMETER WALL SEAT WIDTH DIAMETER GROOVE SIZE O.D. TOL. THK. ± .030 ±...
- Page 7 RG26H and RG812H Roll Groover Operator's Manual 5. Square up the pipe tool. with Hydraulic Pump, allowing one complete rotation of pipe Adjusting Groove Depth between strokes of Hydraulic Pump. Note: If the ram will not advance make sure the Pres- Note: To insure the proper groove diameter, a trial groove should sure Release Valve is closed.
- Page 8 Operator's Manual RG26H and RG812H Roll Groover Figure 2 - Pipe Set-Up Machine Axis TOP VIEW Pipe Axis Operator's Side Lateral Offset SIDE VIEW Pipe Axis Machine Axis Parallel 211-58550...
- Page 9 RG26H and RG812H Roll Groover Operator's Manual 211-58550...
- Page 10 Operator's Manual RG26H and RG812H Roll Groover Parts Breakdown See Also RP #108 211-58550...
- Page 11 RG26H and RG812H Roll Groover Operator's Manual parts list Ref. RG26H RG812H Description Item Code Item Code Quantity Main Body 99235 99235 Top Plate 99232 99232 Right Side Gusset 99233 99233 Left Side Gusset 99234 99234 Driveshaft 99250 99230 Slide Block...
- Page 12 PARTICULAR PURPOSE SHALL APPLY. No warranty claims will be allowed unless the product in question is re- ceived freight prepaid at the Reed factory. All warranty claims are limited to repair or replacement, at the option of the company, at no charge to the customer.
