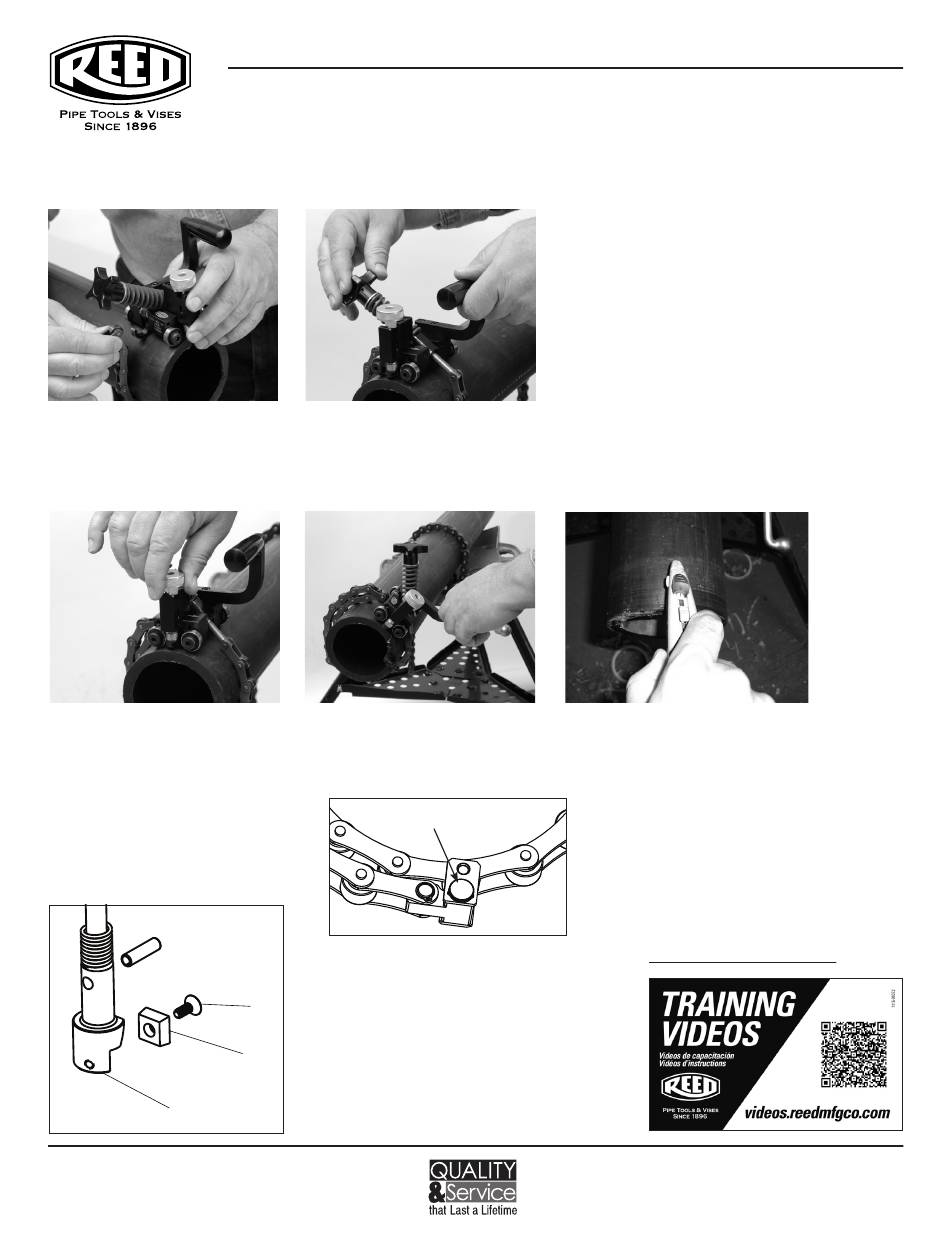

REED PEPEEL6 Quick Start Manual

PEPEEL6 Range: 1 1/2" - 6" nominal IPS PE (48 - 168 mm) 1.9" actual diameter or larger
PEPEEL12 Range: 6" - 12" nominal IPS PE (168 - 324 mm) 6.6" actual diameter or larger
Step 1 - With the blade up,
place the peeler on the pipe and
attach the chain.
Step 3 - Wrap the excess chain
around itself and attach the end
with the magnet or chain keeper.
Lower the cutter.
3
Reed Manufacturing Company
1425 West 8th Street
Erie, PA 16502 USA
Step 2 - Orient the tool so the
wheels align with edge of pipe.
Then lightly tighten chain.
Step 4 - Rotate tool clockwise
until the pipe is peeled to the
desired length.
Thumb Screw
#04632 Use of Chain Keeper
Loosen thumb screw a few turns.
Spread side plates and place over
1
chain rivets and tighten thumb screw.
2
Blade Assembly
1 Screw #35241
2 Blade #24530
3 Blade Holder #98639
PE Pipe Peeler
PEPEEL6, PEPEEL12
NOTES: PE Pipe Peeler can be used anywhere
along the pipe, provided there is 5 1/2" (142 mm)
clearance for the PEPEEL6 and 6 1/2"
(165 mm) clearance for the PEPEEL12.
This application can be useful for electrofusion
for tapping saddles.
• PE Pipe Peelers will work on metric pipe sizes.
• PE Pipe Peelers remove .010" ribbon material.
Because inner diameter depths differ from fitting
to fitting, it is up to the operator to determine
and then put sufficient peel length on the pipe in
order to properly electrofuse fittings to the pipe.
Fig. 1
Fig. 1: Before peeling, it may be
necessary to score the outside
layer of the pipe to ensure the
chip breaks.
Reed PE Pipe Peeler online video
videos.reedmfgco.com/peeler
Phone: 800-666-3691 or 814-452-3691
Fax: 800-456-1697 or 814-455-1697
www.reedmfgco.com
1219R-54217
