Preparing Generator (New Installations)

1. Unlock both locks, open generator lid, and
remove front panel.
2. See Figure
with an internal breaker near the control-
ler, remove end panel from right side. Oth-
erwise, proceed to Step 3.

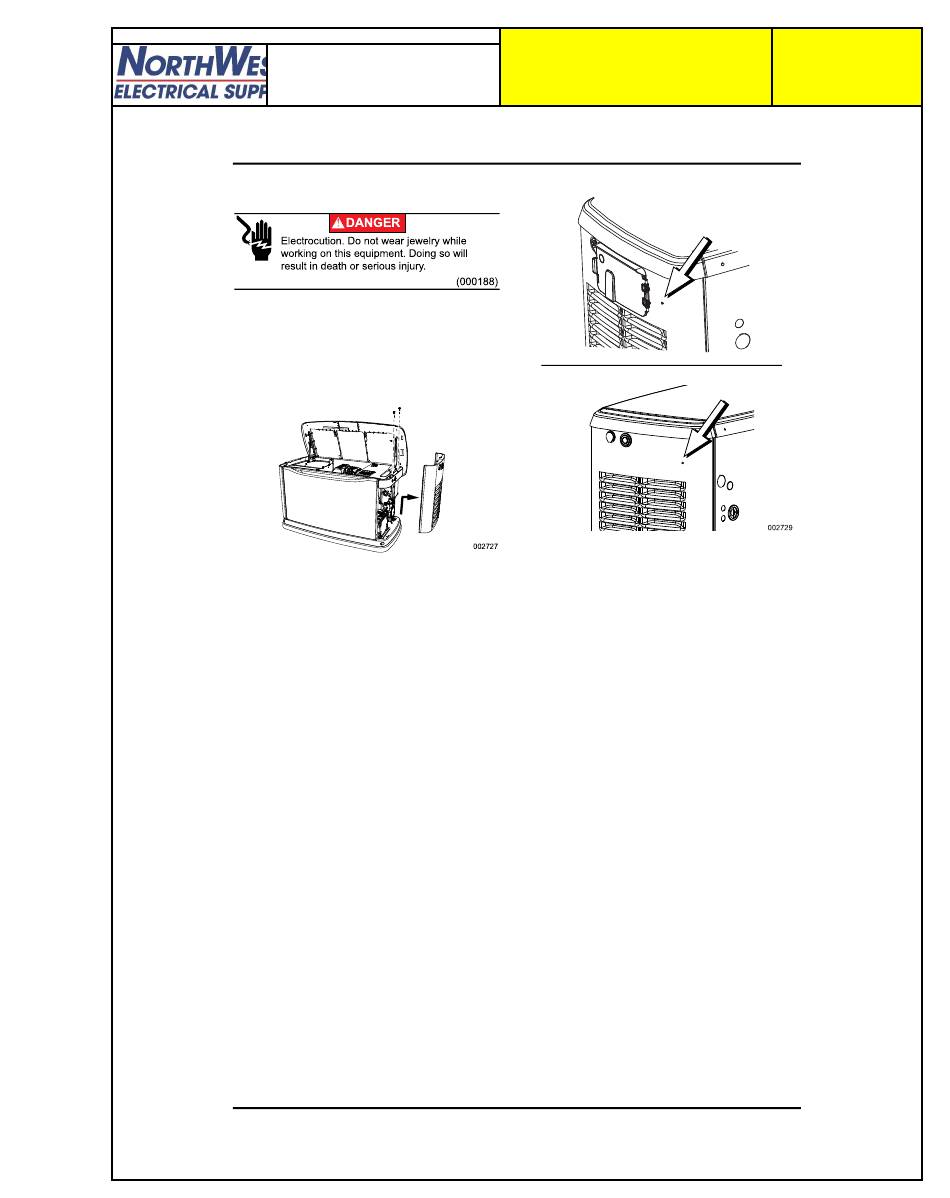

Figure 4-4. Removing End Panel
3. Turn generator OFF. Remove generator
panel fuse.
NOTE: There are different controller configu-
rations for various model years.
4. Turn main utility disconnect breaker in
home’s electrical panel to OFF or OPEN.
5. Using an appropriate fuse puller, remove
T1 fuse from transfer switch.
6. Disconnect negative (–) battery cable,
then positive (+) battery cable.
7. If generator is equipped with an external
breaker box, remove controller sheet
metal cover and fasteners.
8. See Figure
have a pre-positioned dimple on the end
panel. The dimple marks the center of the
mounting hole to be drilled.
Installation and User’s Manual for Mobile Link
4-4. If generator is equipped
(Internal Breaker)
4-5. 2013 and later models
®
Catalog Number:
7170
Notes: Usual lead time prox 2-3 weeks ARO
Installation and Operation
Figure 4-5. Pre-Positioned Dimple
9. Inspect area behind external breaker box
to verify all wires are moved out of the way
to prevent damage during drilling.
IMPORTANT NOTE: Cover the breaker box
prior to drilling to prevent metal shavings
from entering breaker box.
NOTE: Models equipped with an internal
breaker mounted near the controller will
already have the end panel removed at this
point. Carefully place the end panel face up on
a clean, smooth, flat surface to avoid damag-
ing the paint.
10. Drill a 1-1/8 in (29 mm) diameter hole with
the dimple as the center point.
11. Proceed to Connecting New Mobile Link
Unit.
